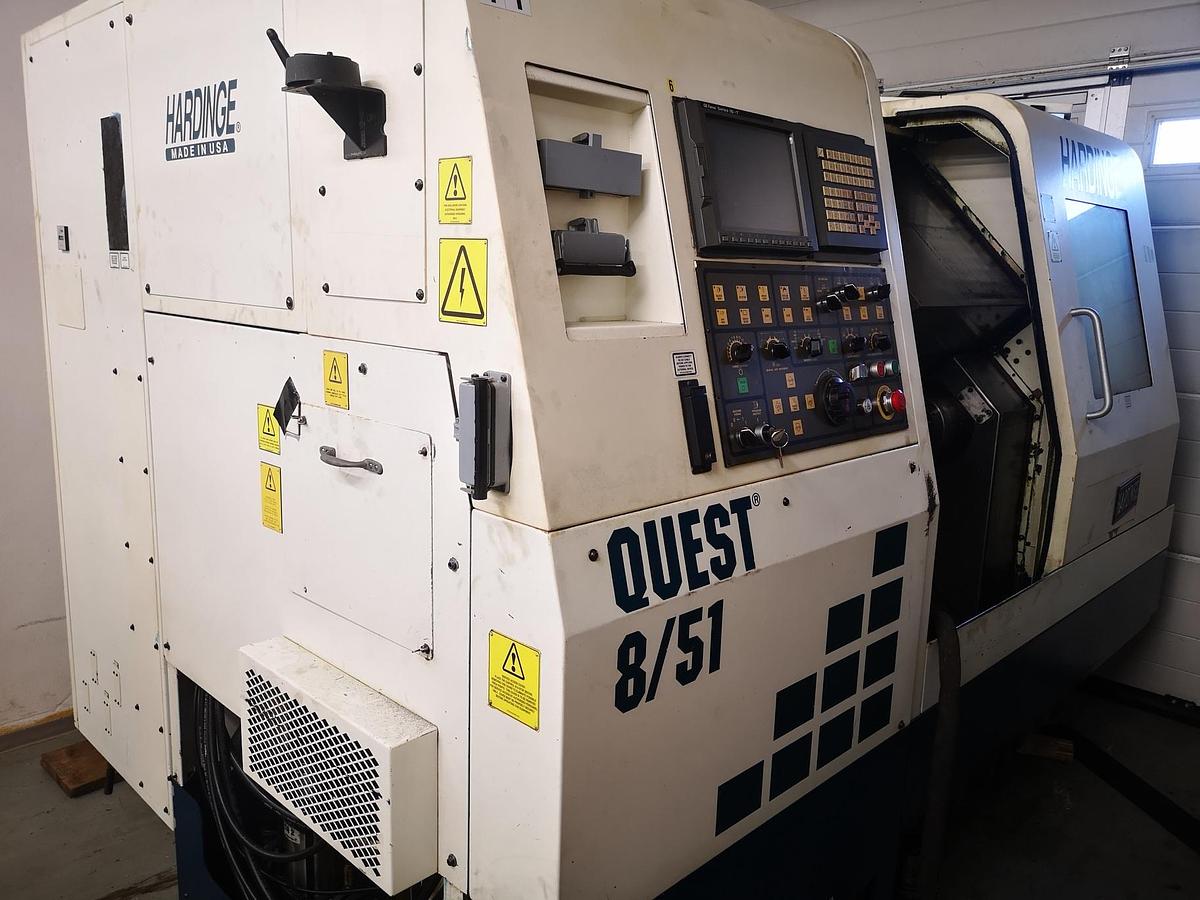

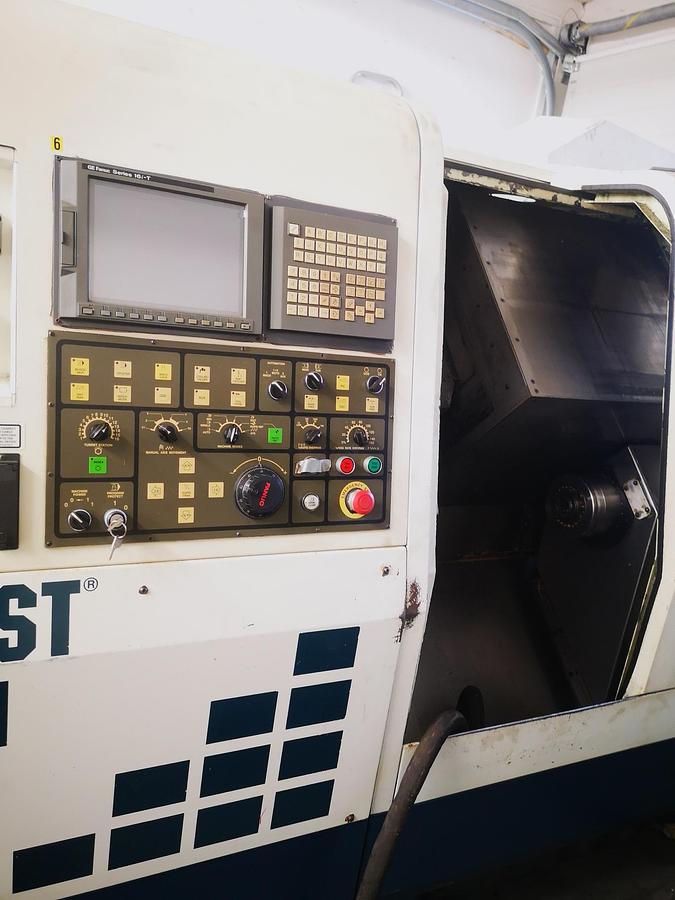

2002 HARDINGE QUEST 8/51

CNC SUB SPINDLE,

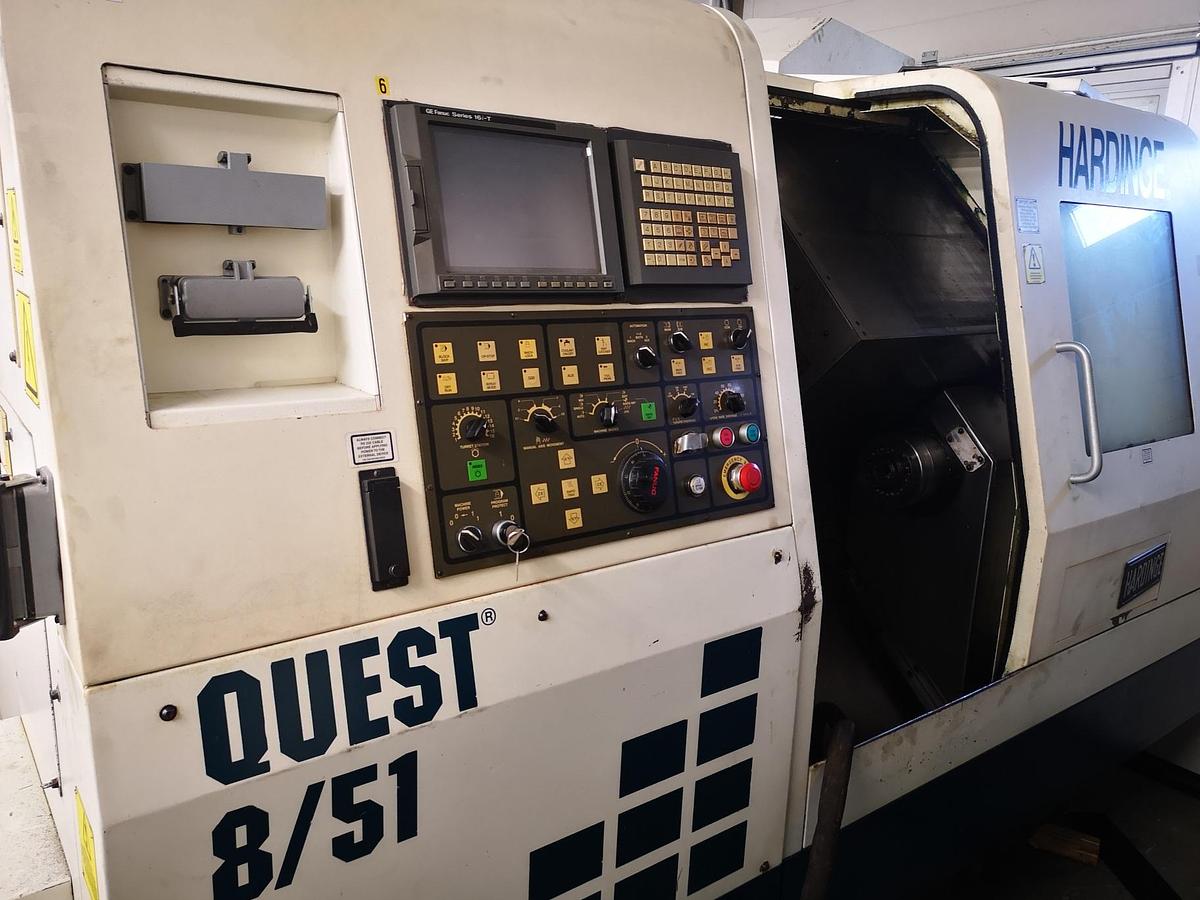

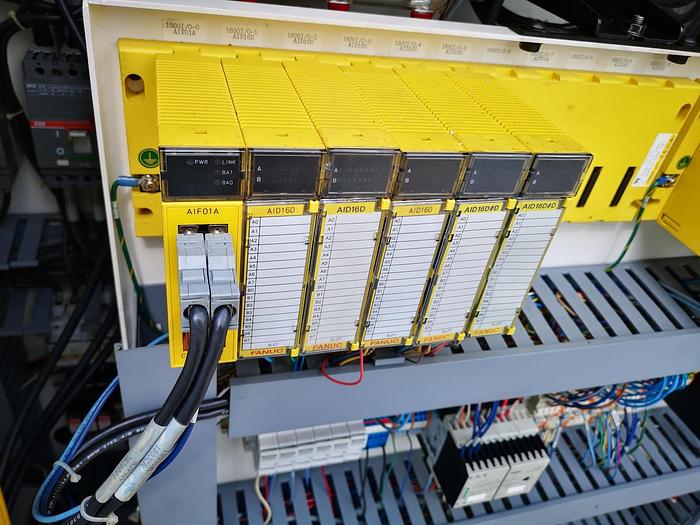

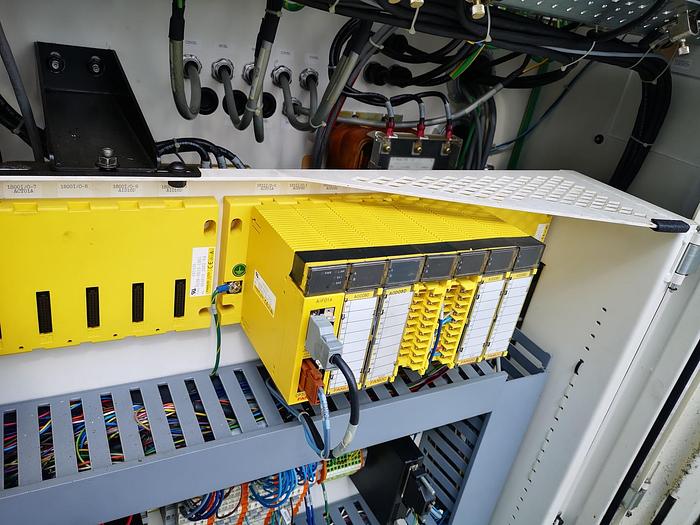

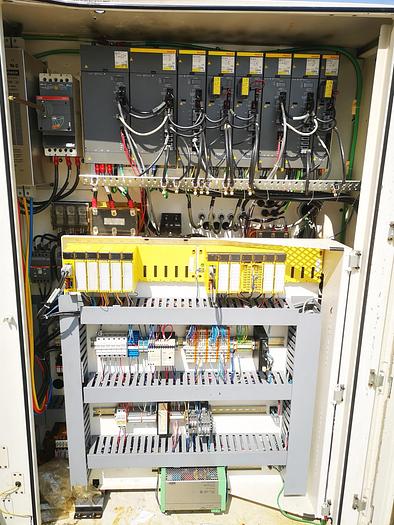

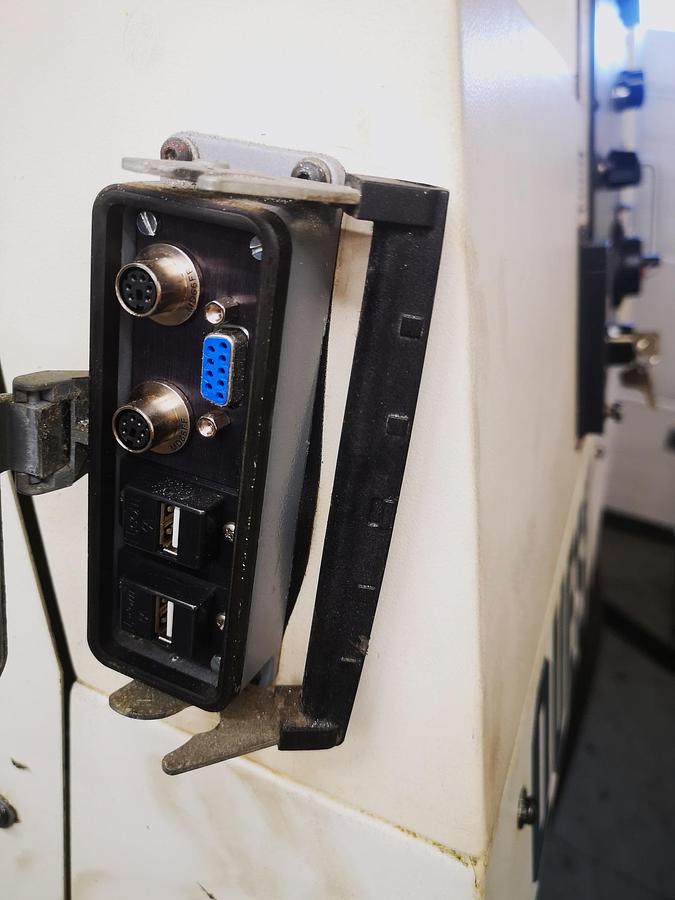

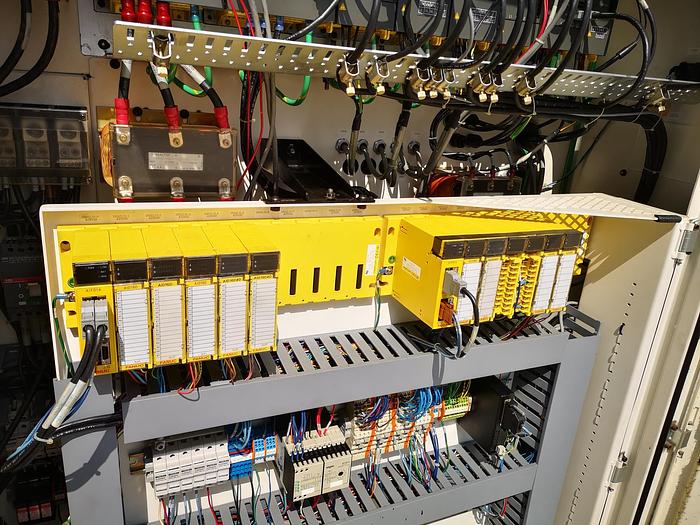

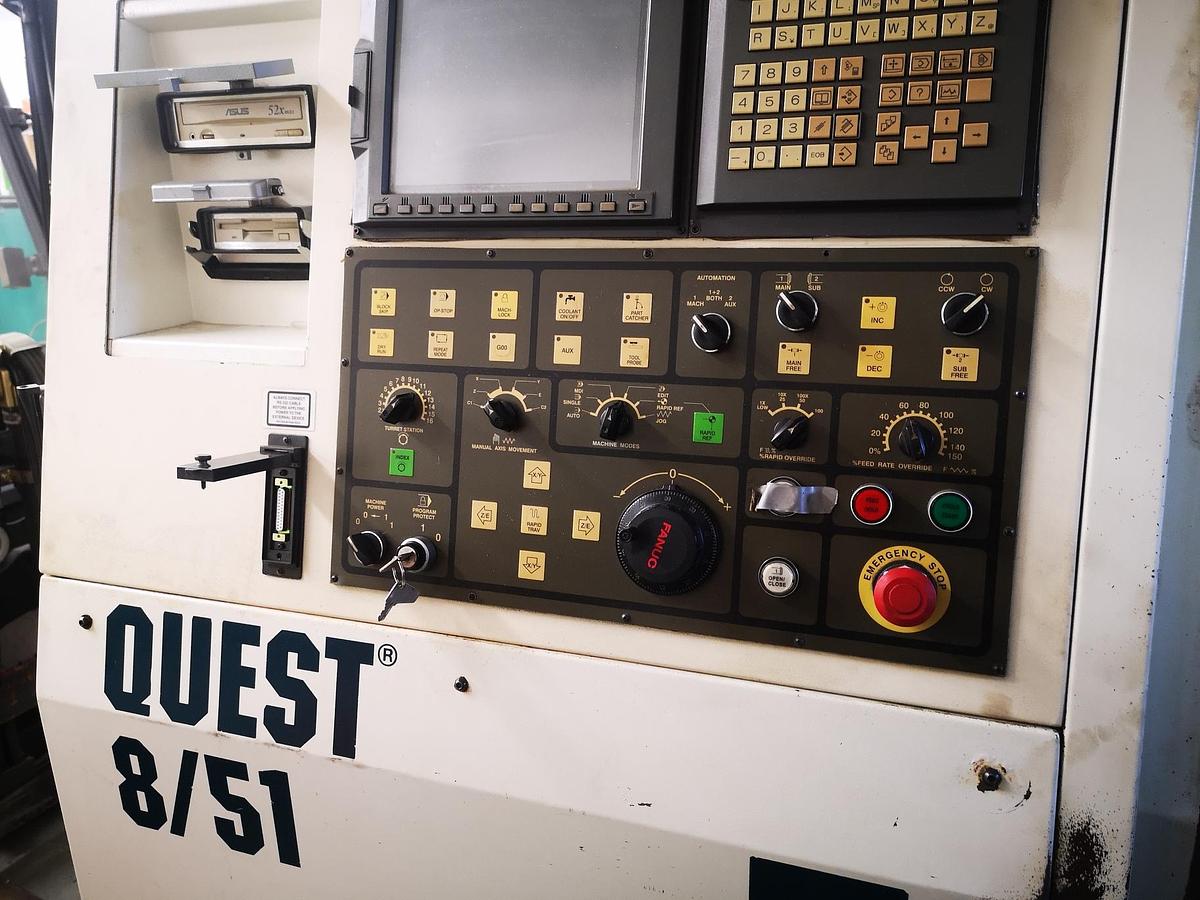

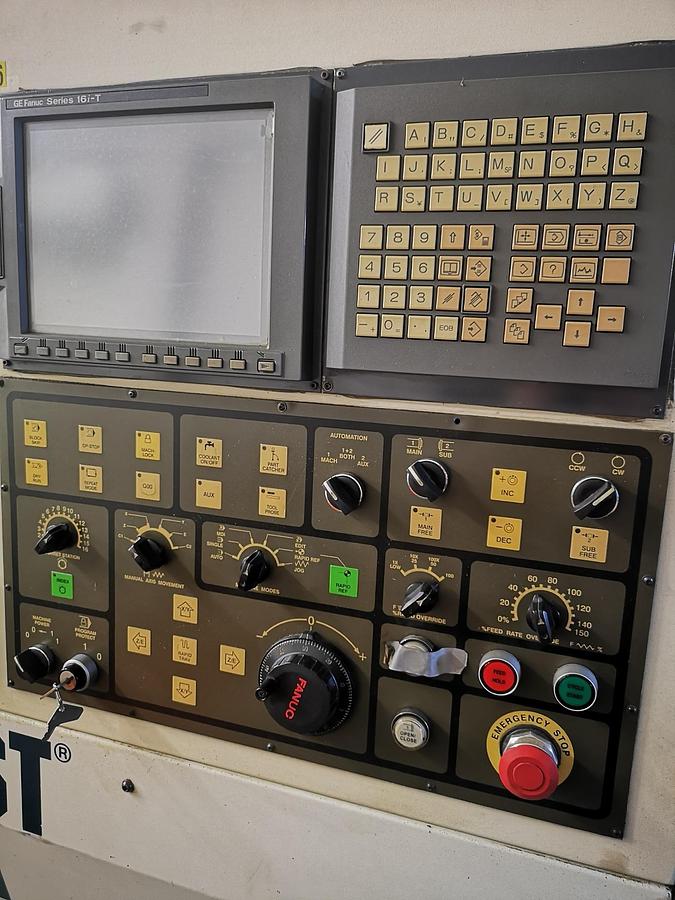

DRIVEN TOOLING LATHE WITH GE FANUC SERIES 16I-T CONTROL

UK

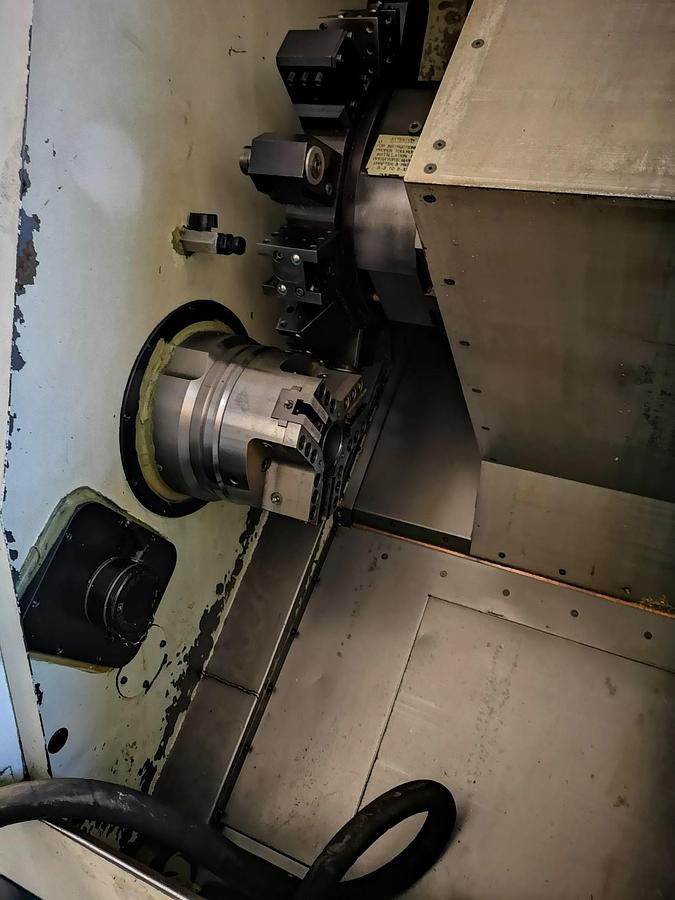

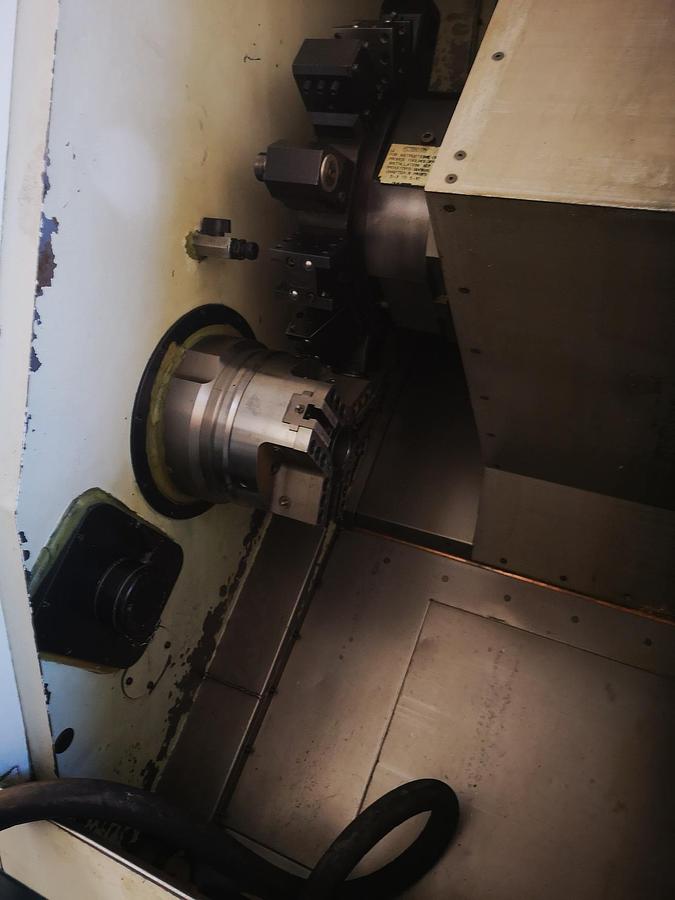

150mm Dia

3 Jaw Power Chuck.

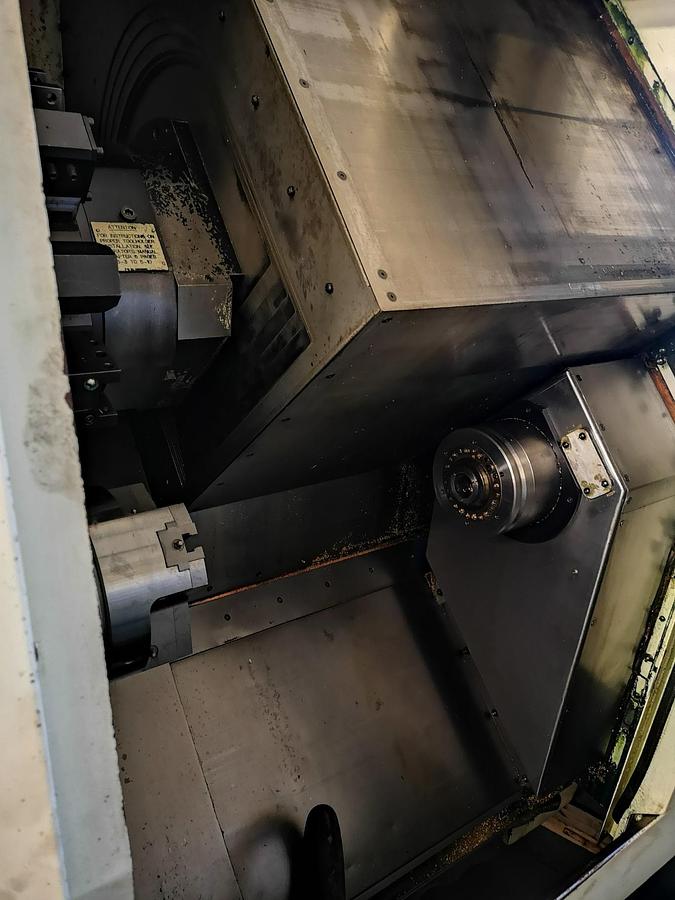

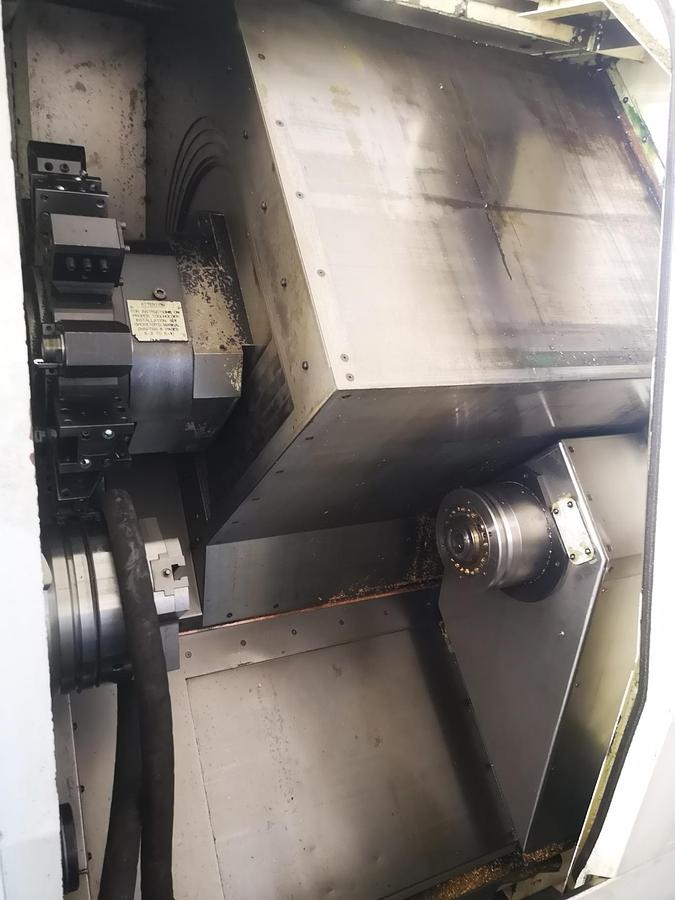

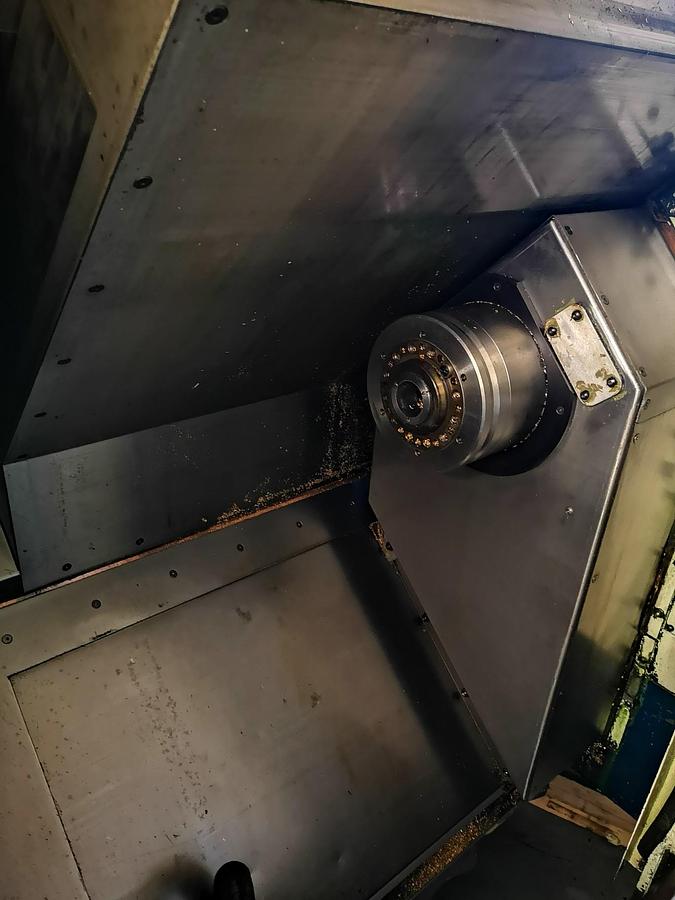

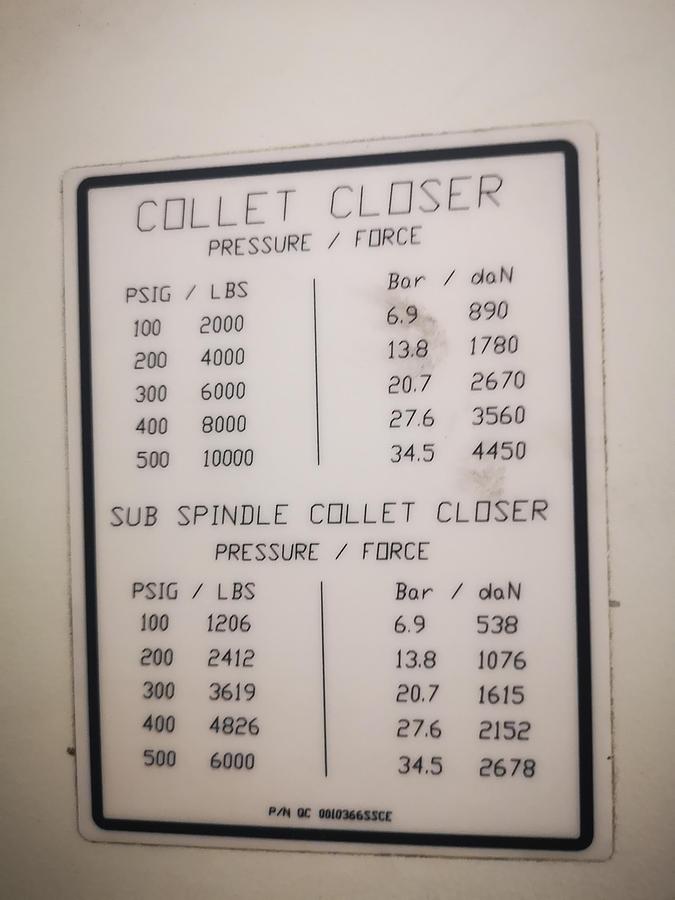

Collet Chuck Sub Spindle,

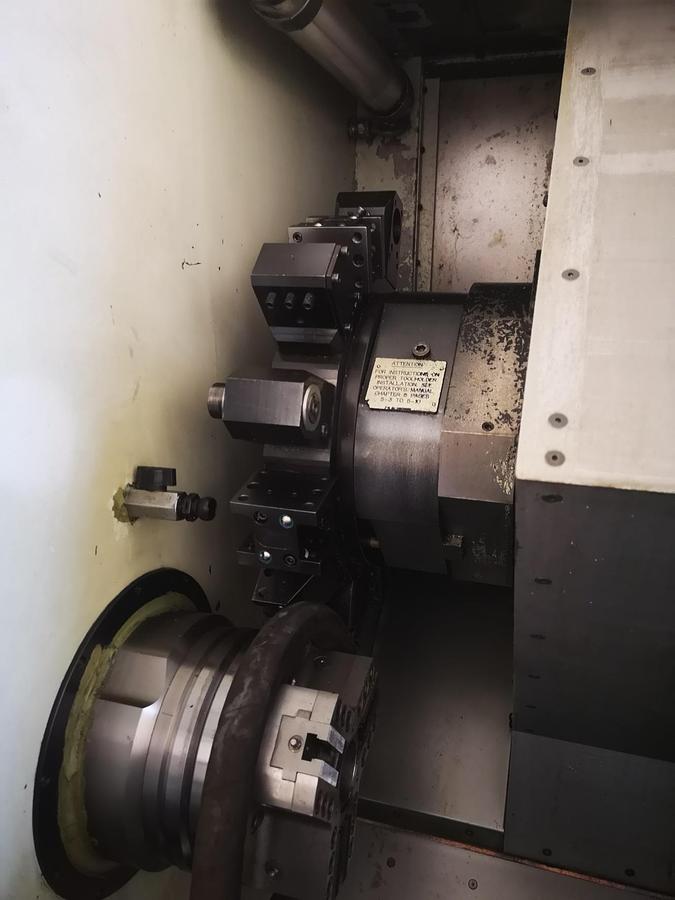

12 Station Turret.

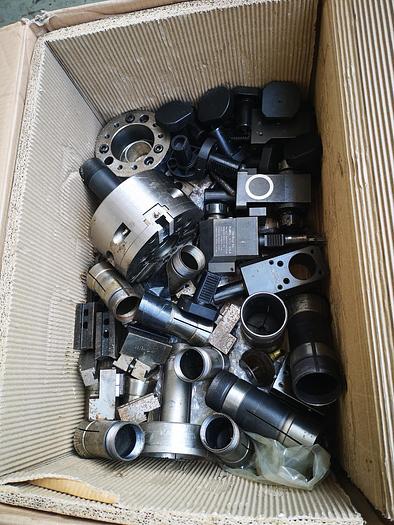

Quantity Of Static & Driven Holders.

S/No. QC-28 (2002).

Description

This HARDINGE Quest 51 SP was manufactured in 2002. It features a swing over bed of 520 mm, a maximum turning diameter of 356 mm, and a spindle speed up to 4200 RPM. The machine includes a 12-station live tooling turret with integrated C-axis and Y-axis for multi-axis machining. Control is managed via a 21iT CNC system. Consider the opportunity to buy this HARDINGE Quest 51 SP horizontal turning machine. Contact us for more information.

Measurements width: 1950 mm

Measurements depth: 3860 mm

Measurements height: 1905 mm

Machine weight: 5550 kg

Brand: FANUC

Model: 21iT

Spindle speed range: 50–4200

Spindle motor power: 15 kW

X-Axis Movement: 189 mm

Workpiece drm over bed: 520 mm

High-speed tailstock

Parts catcher

Bar feed interface

Max turning diameter: 356 mm

Bar-through hole (round collet): 51 mm, spindle bore 60 mm

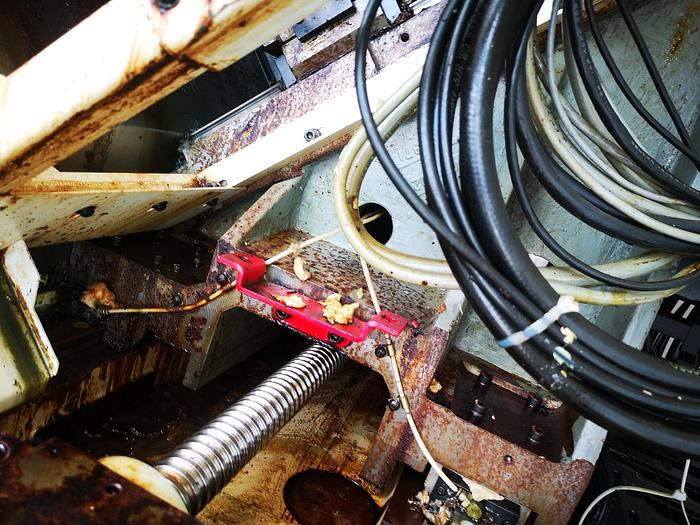

Distance between centers (z travel): 610 mm

Live-tool motor: 3. 7 kw

Rapid traverse: x = 1100 ipm / z = 1500 ipm

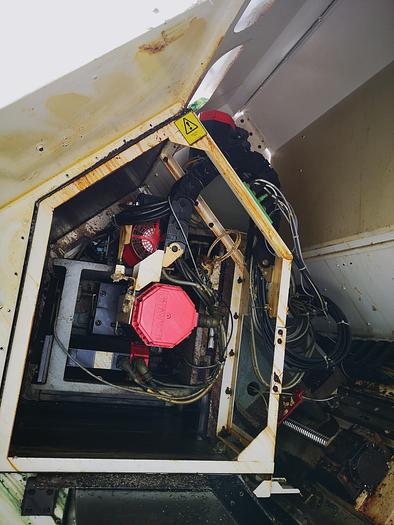

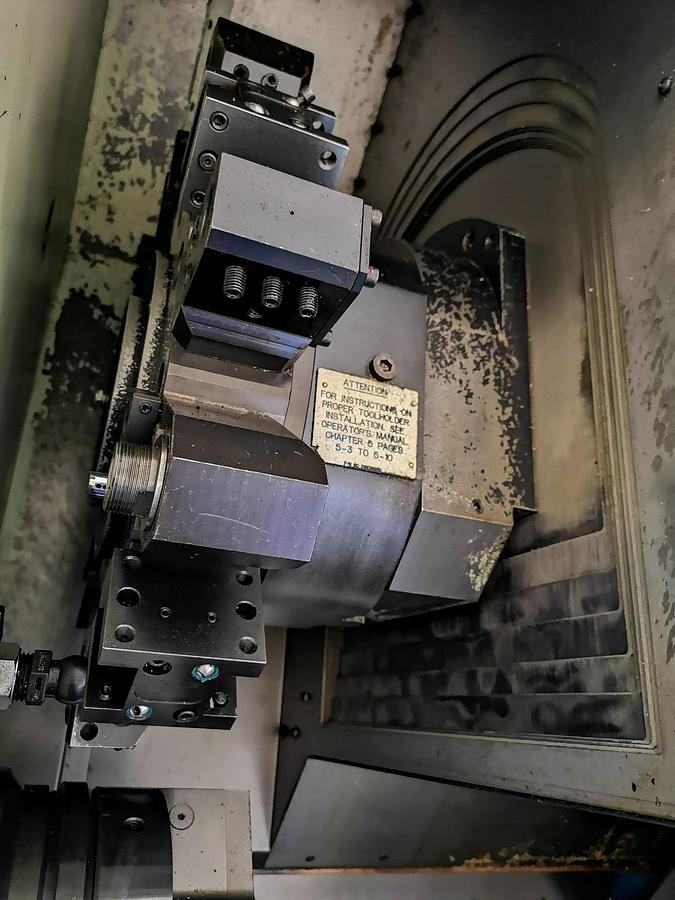

Turret type: vdi30, 12-station live tooling turret

C-axis & y-axis: integrated on main spindle turret, enabling multi-axis machining

Collet system: 20c collets included

43750 power hours

Machine still under power / Basic equipment: for VDI 30 tools, 12 stations/

Chisel cross-section, square, max. 25 mm/

Chisel shank diameter, max. 40 mm/

Switching time (from station to station) 0.1 s/

Chisel shank diameter with ER25 collet 2-6 mm/

Drive power at the tool tip: 3.7 kW/

Torque at the tool tip_: 21.7 Nm/

Speed range (in increments of 1 rpm) 80-80,000/

Optionally: VDI 40 tools, 10 stations/

Chisel cross-section. Square, max. 25 mm/

Tool shank diameter max. 40 mm/

Switching time (from station to station) 0.35 s/

Optional: driven VDI 40 tools in all stations -/

Tool shank diameter with ER32 collet 3 - 20 mm/

Drive power at the tool tip: 5.6 kW/

Torque at the tool tip: 35.3 Nm/

Speed range (in steps of | rpm) 60-6000/

Conventional Hardinge/

Turret head type T_ (inch or millimeter) with directional logic, 10 or 12 stations/

Tool shank cross-section, square, max. 25 mm/

Tool diameter, max. 40 mm/

Switching time (from station to station) 0.35 s/

Counter spindle - with belt drive or integral drive/

Spindle head (ANSI)/

16C collet Round (opening) 42 mm/

Jaw chuck size 150 mm/

Step chuck (clamping width) 152.4 mm/

Drive power at 1500 rpm | Base speed 7.5 kW/

Torque 47.7 Nm/

Speed range (in increments of | rpm) with belt drive and integral antenna 60-6000/

Travel, max. 603.3 mm/

Path speed max. 38 rpm/

Hydraulic tailstock with encoder feedback/

Path speed max. 7.6 m/min/

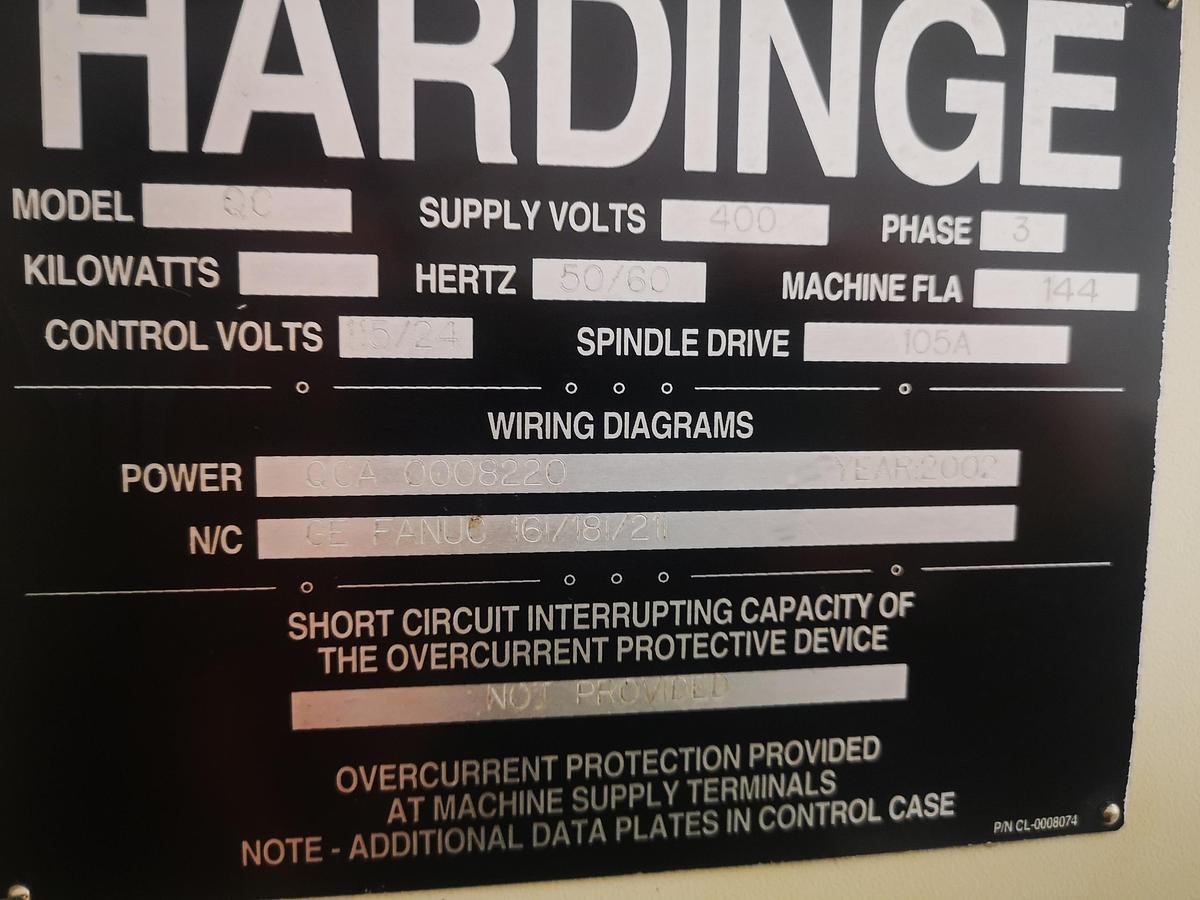

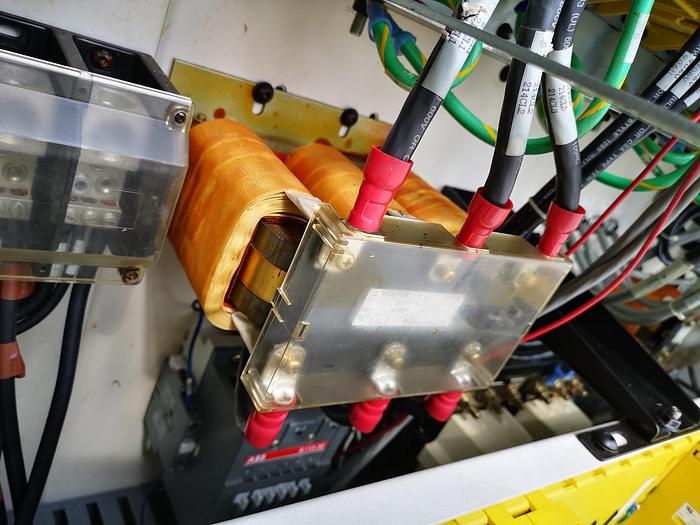

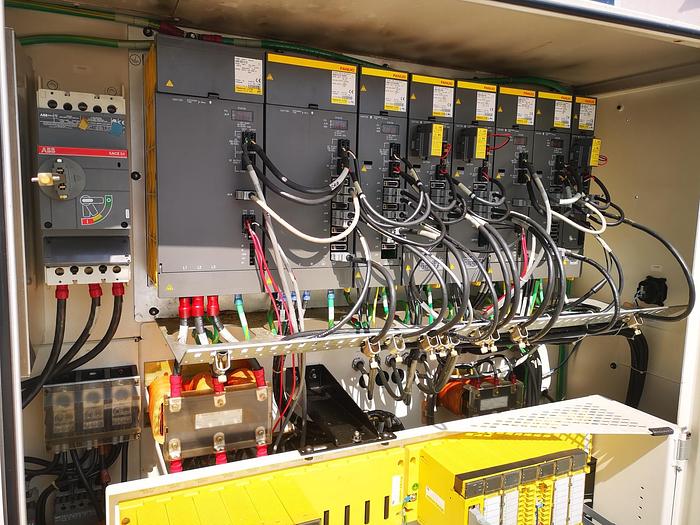

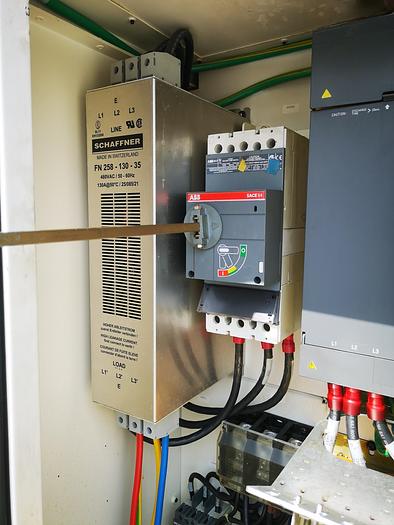

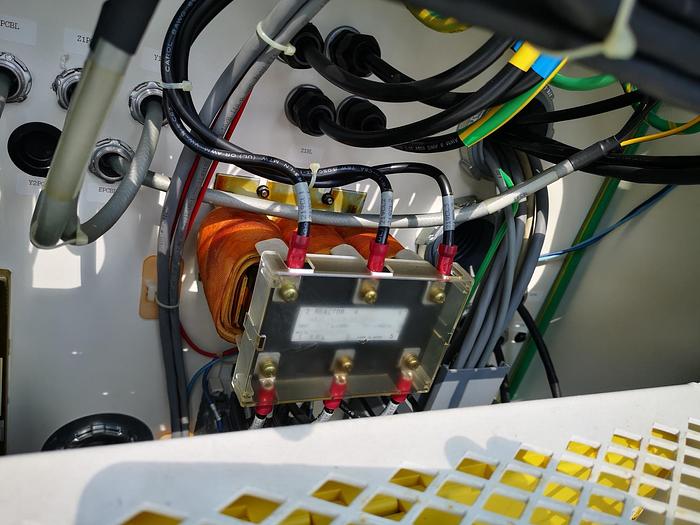

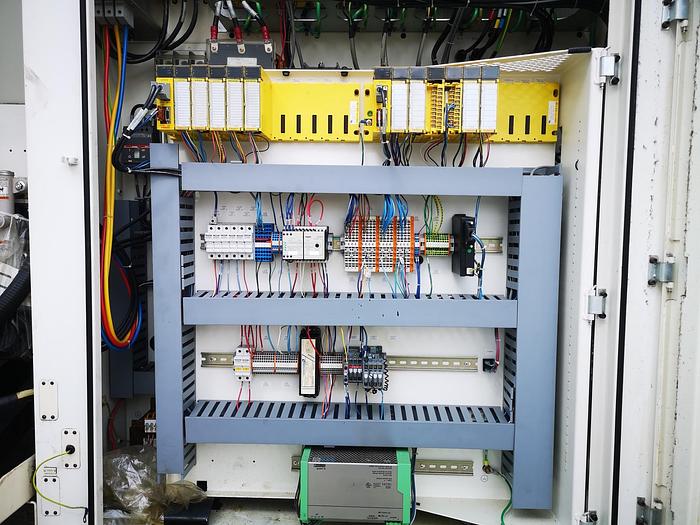

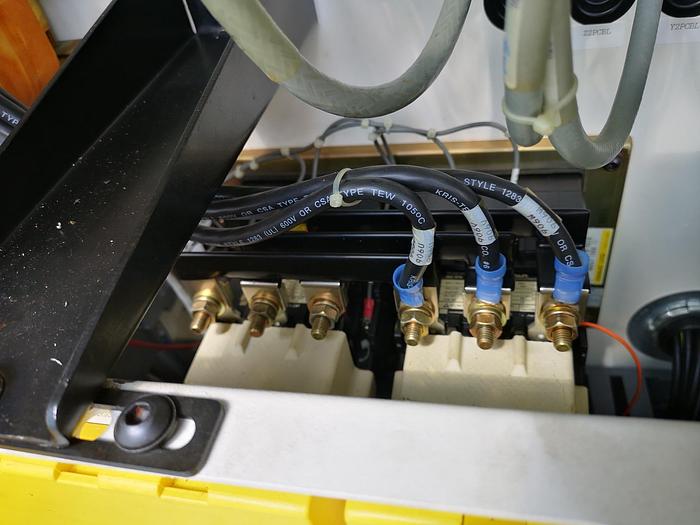

Connected loads/

Machine dimensions:

Length (with tailstock) 2758.5 mm/

Length (with counter spindle) 3008.7 mm/

Length with optional chip conveyor 3844.3 mm/

Depth 1943.1 mm/

Height 1905 mm/

Weight (approx.) 5552 kg
