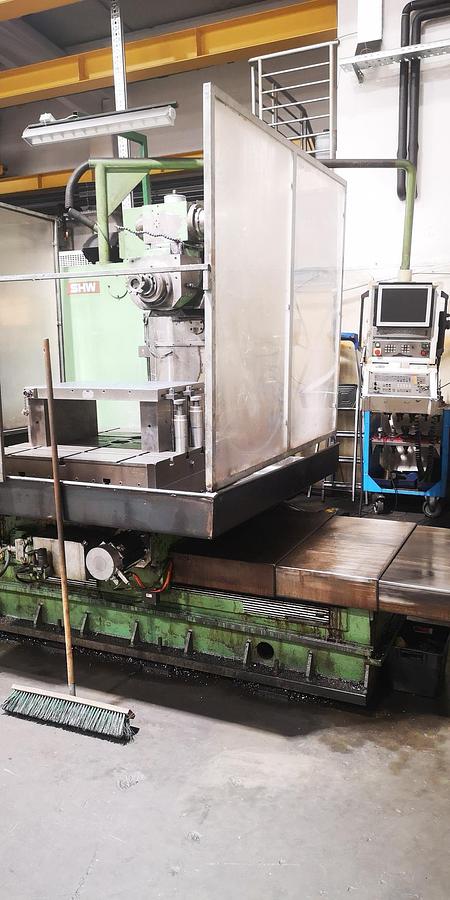

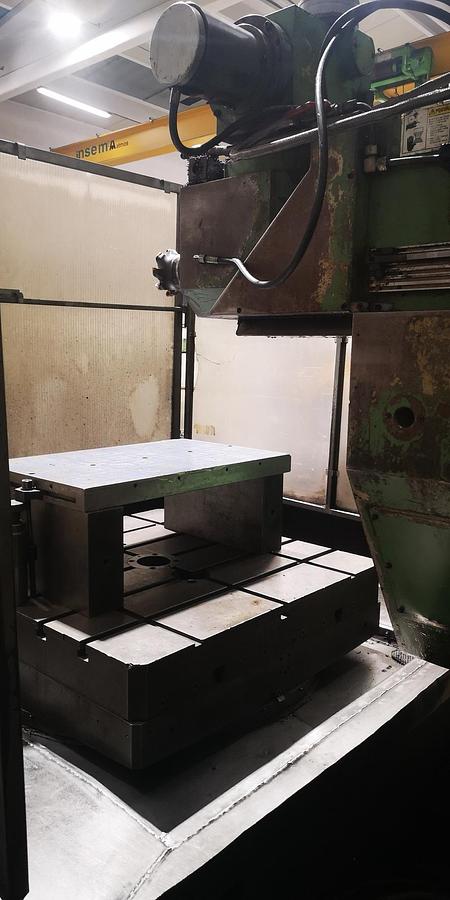

BED TYPE MILLING CNC SHW UF5 -+ ROTARY TABLE AND FULLY TOOLINGS HEIDENHAIN TNC 410 AC

Technical data

Travel distances

• X-axis (rotary table): 1,500 mm

• Y-axis (vertical spindle): 1,300 mm

• Z-axis (horizontal spindle): 750 mm

• C - AXIS ROTARY TABLE POSITIONING:

Control

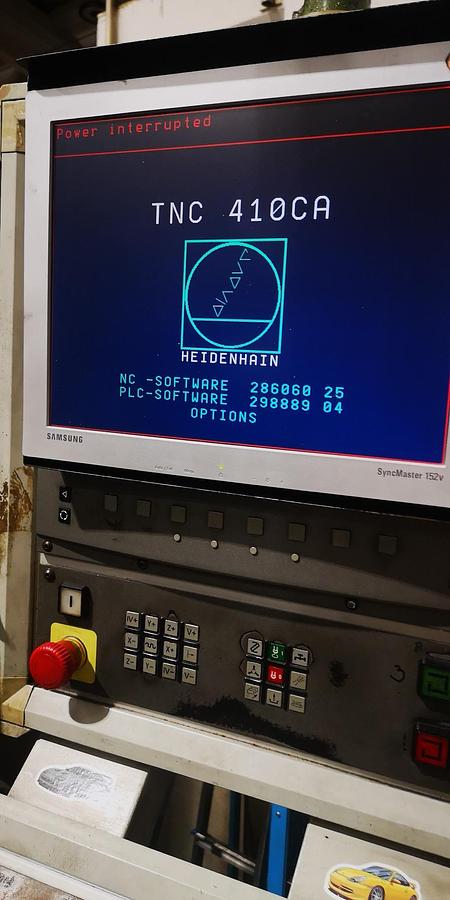

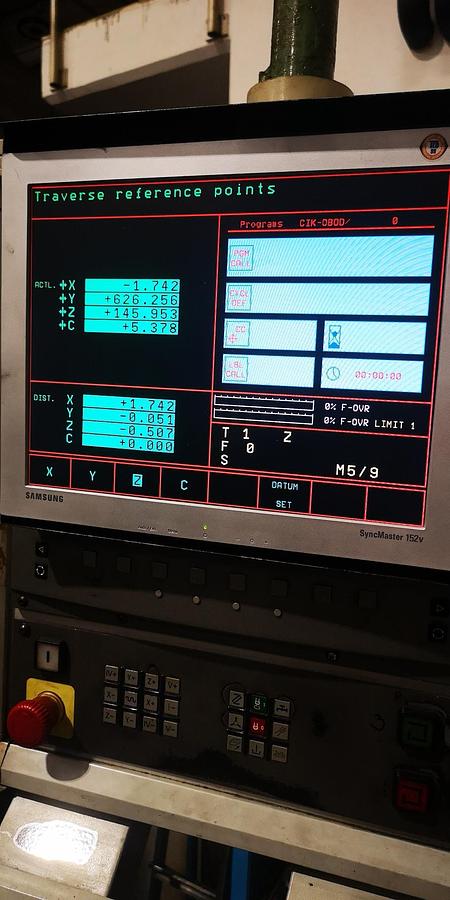

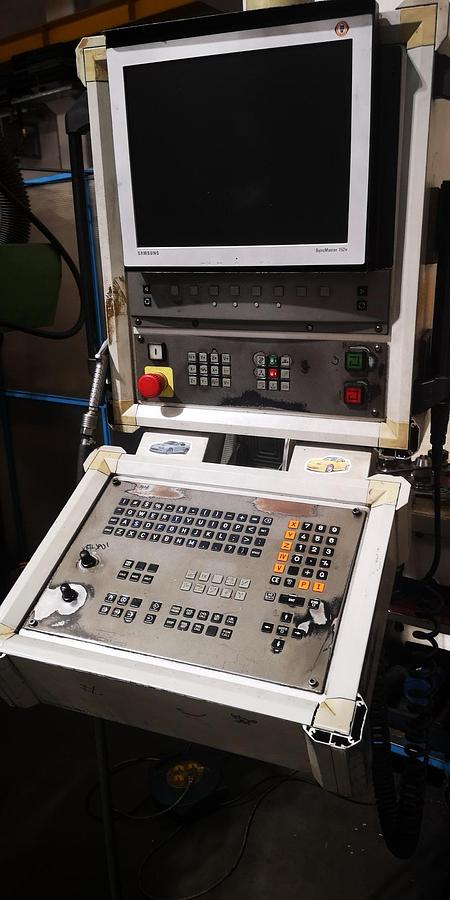

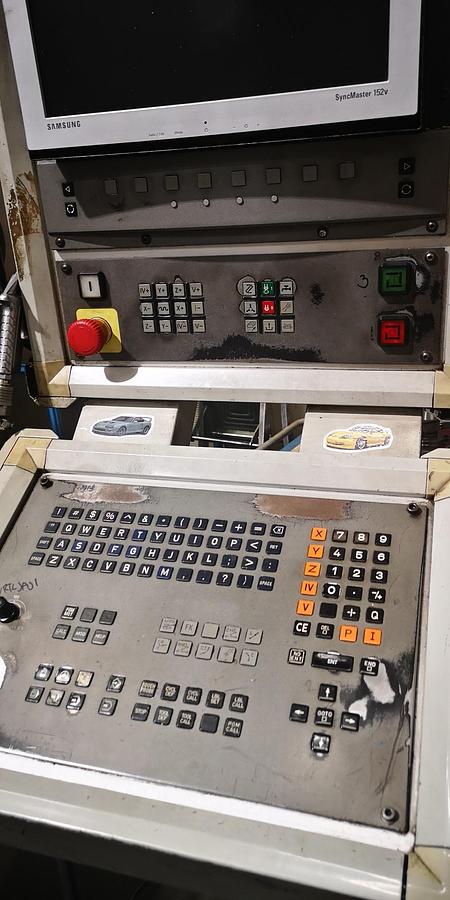

• CNC control: Control conversion to Heidenhain TNC 410 CA

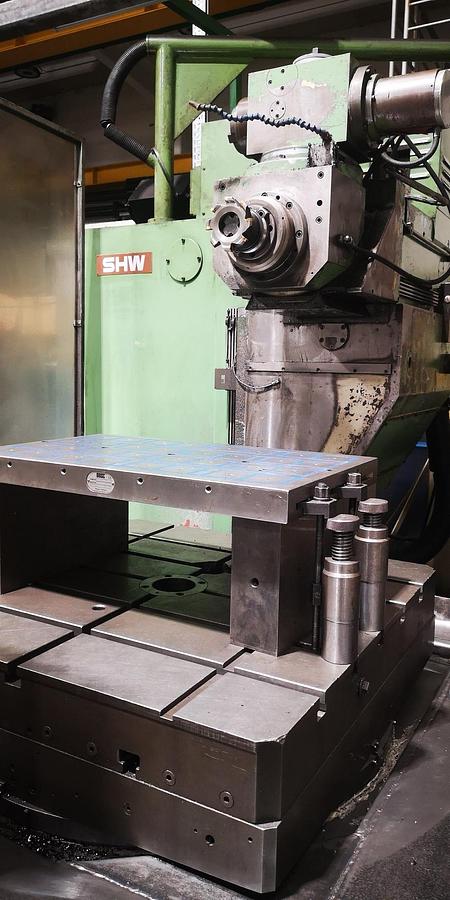

Automatic swivel head

(Switch between horizontal and vertical machining)

Quill 120 mm

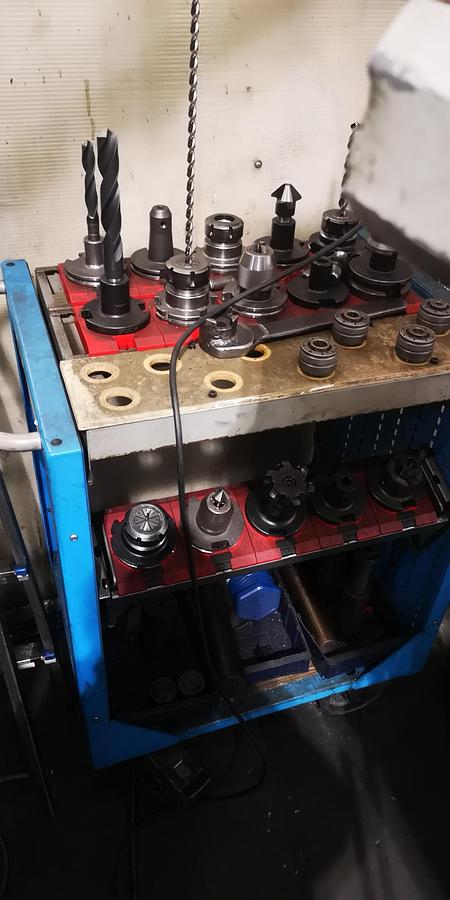

Milling spindle holder SK 50

Speed 2,500 rpm

Year of manufacture 1994

• – General overhaul

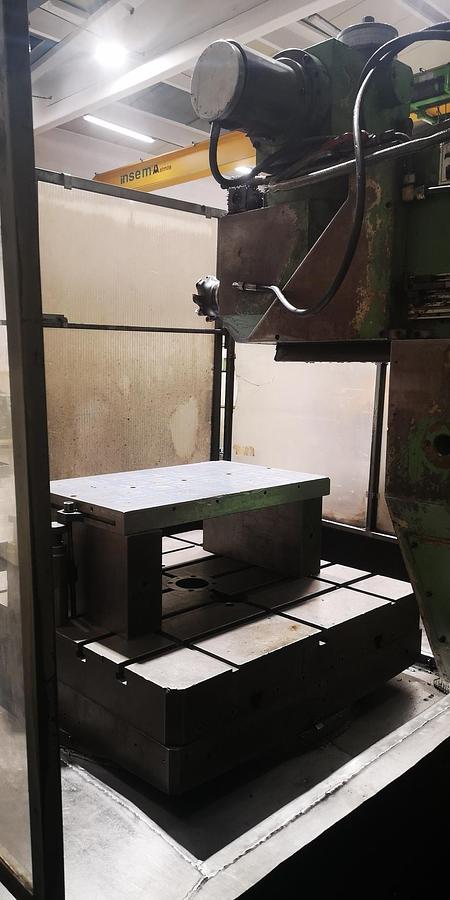

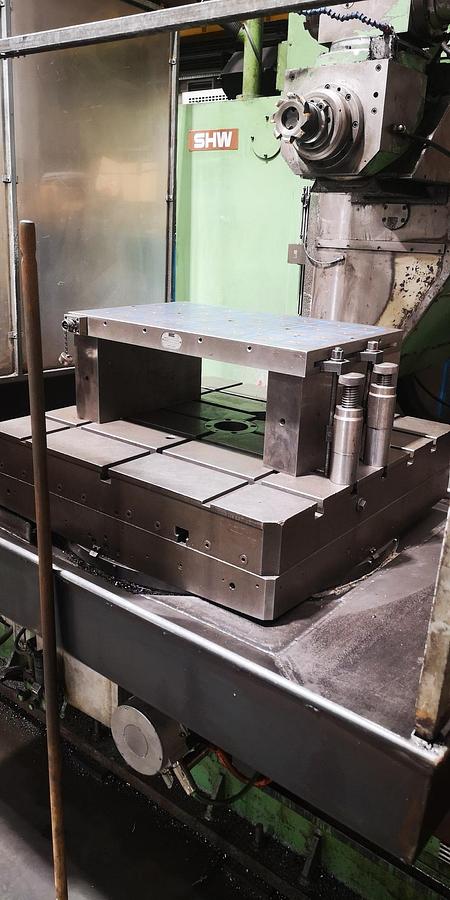

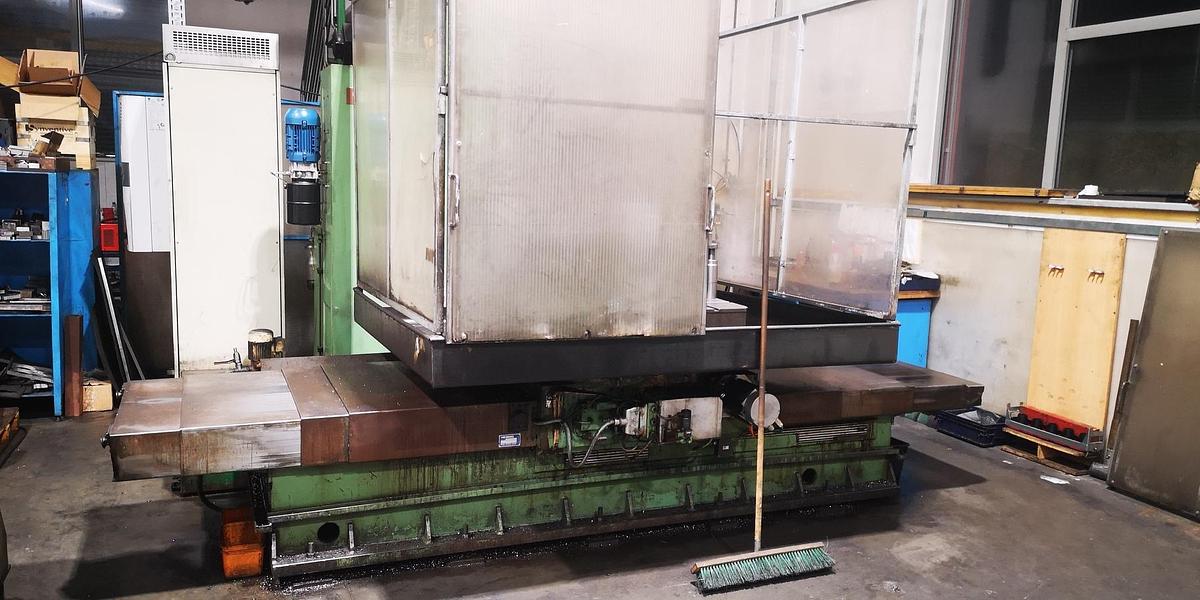

Stepless NC rotary table

• Rückle PKTF 55

• Clamping surface: 1500 x 1250 mm
