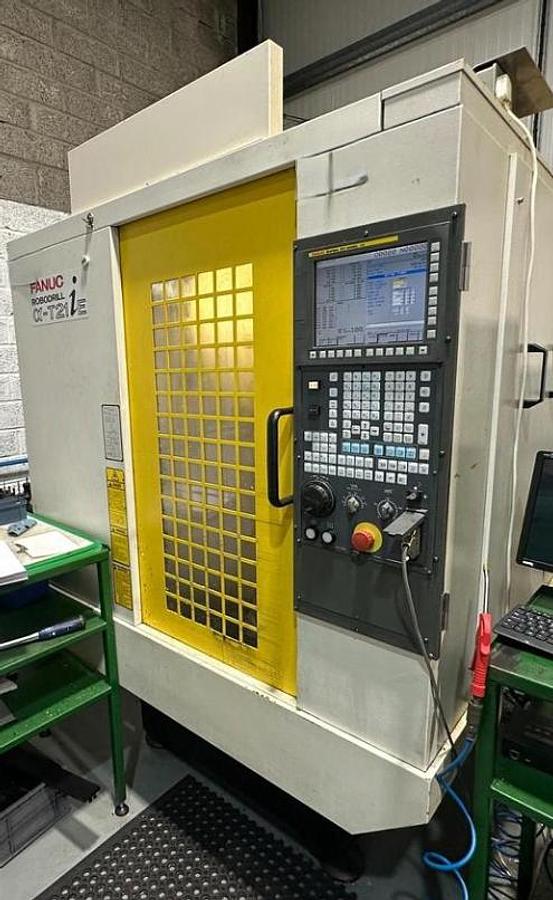

Fanuc Robodrill T21iE 5-Axis Vertical Machining Centre – 2007

Fanuc 31i-Model A5 | Nikken 5AX-130FA (2017) 4th & 5th Axis Trunnion | BT30 | 10,000 RPM

2007 Fanuc Robodrill T21iE 5-Axis Vertical Machining Centre with Fanuc 31i-Model A5 control and 2017 Nikken 5AX-130FA trunnion table. 10,000 rpm spindle, 500×400×330 mm travels, 54 m/min rapids. Available now.

Manufacturer: Fanuc

Model: Alpha T21iE

Machine Type: 5 Axis Vertical Machining Centre

Year: 2007

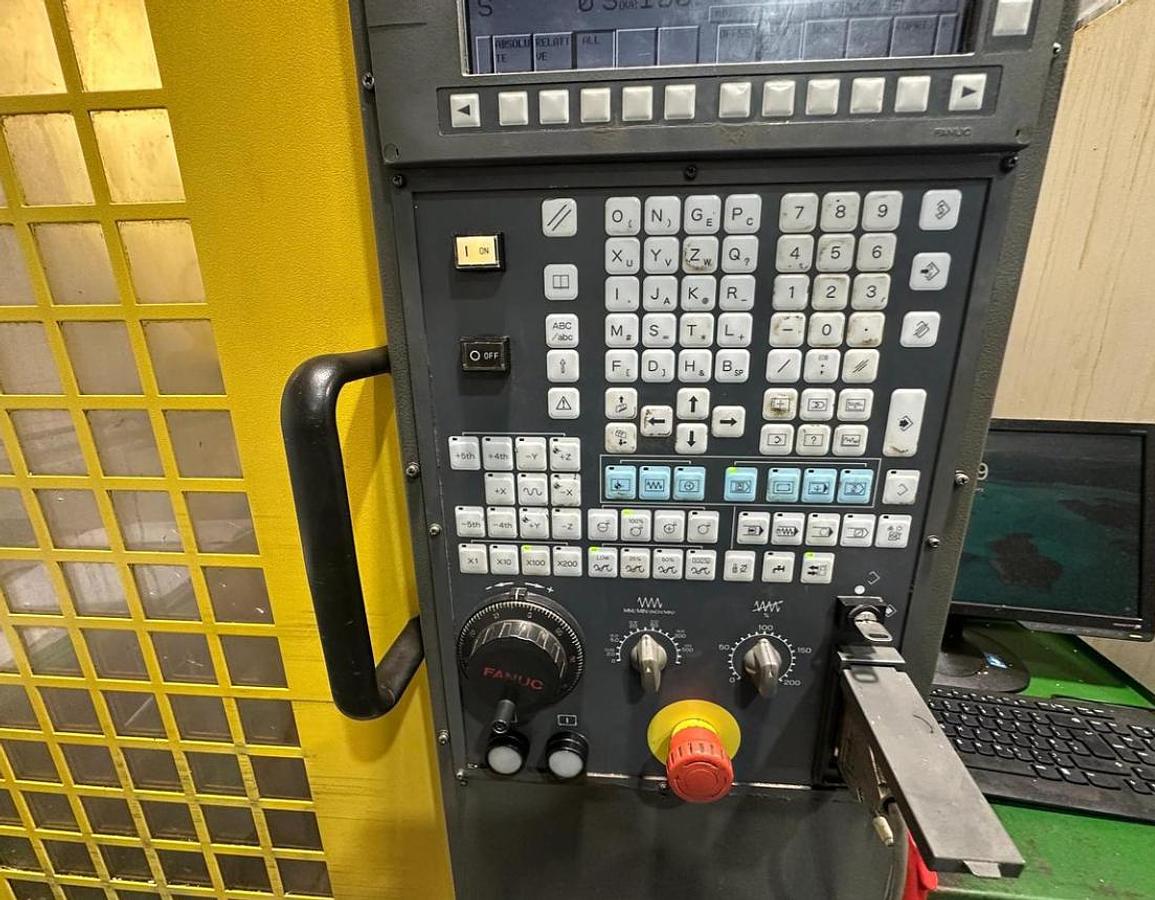

Control: Fanuc Series 31i

Condition: Very Good

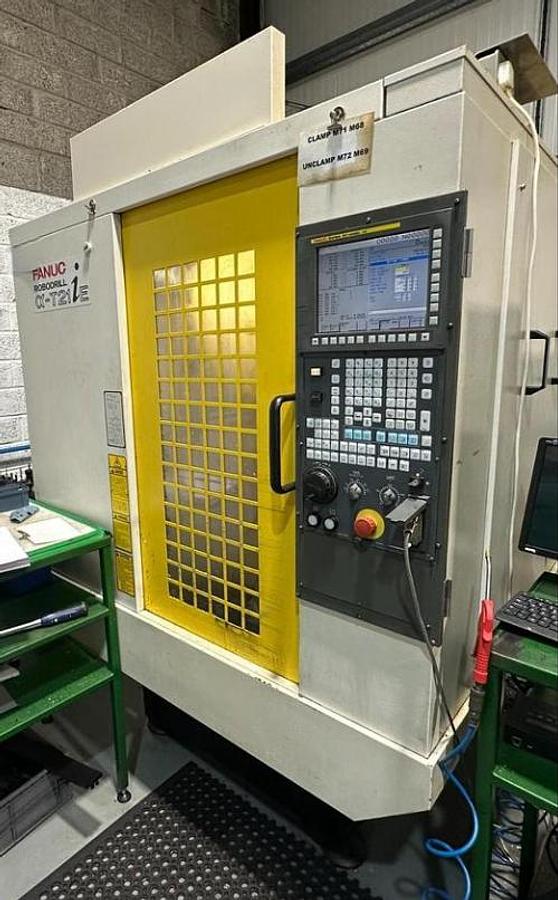

Available now: a 2007 Fanuc Robodrill T21iE configured as a compact 5-axis machining centre with a 2017 Nikken 5AX-130FA 4th & 5th axis trunnion table. This is an excellent solution for multi-face machining, complex small components, aerospace/medical work, and high-accuracy production—all with the speed and reliability Robodrill is famous for.

Key Machine Specifications

• Manufacturer: Fanuc
• Model: Robodrill T21iE
• Year: 2007
• Control: Fanuc Series 31i-Model A5

Axis Travels

• X: 500 mm
• Y: 400 mm
• Z: 330 mm

Rapids

• Rapid Traverse X/Y/Z: Up to 54 m/min

Spindle

• Max Spindle Speed: 10,000 rpm

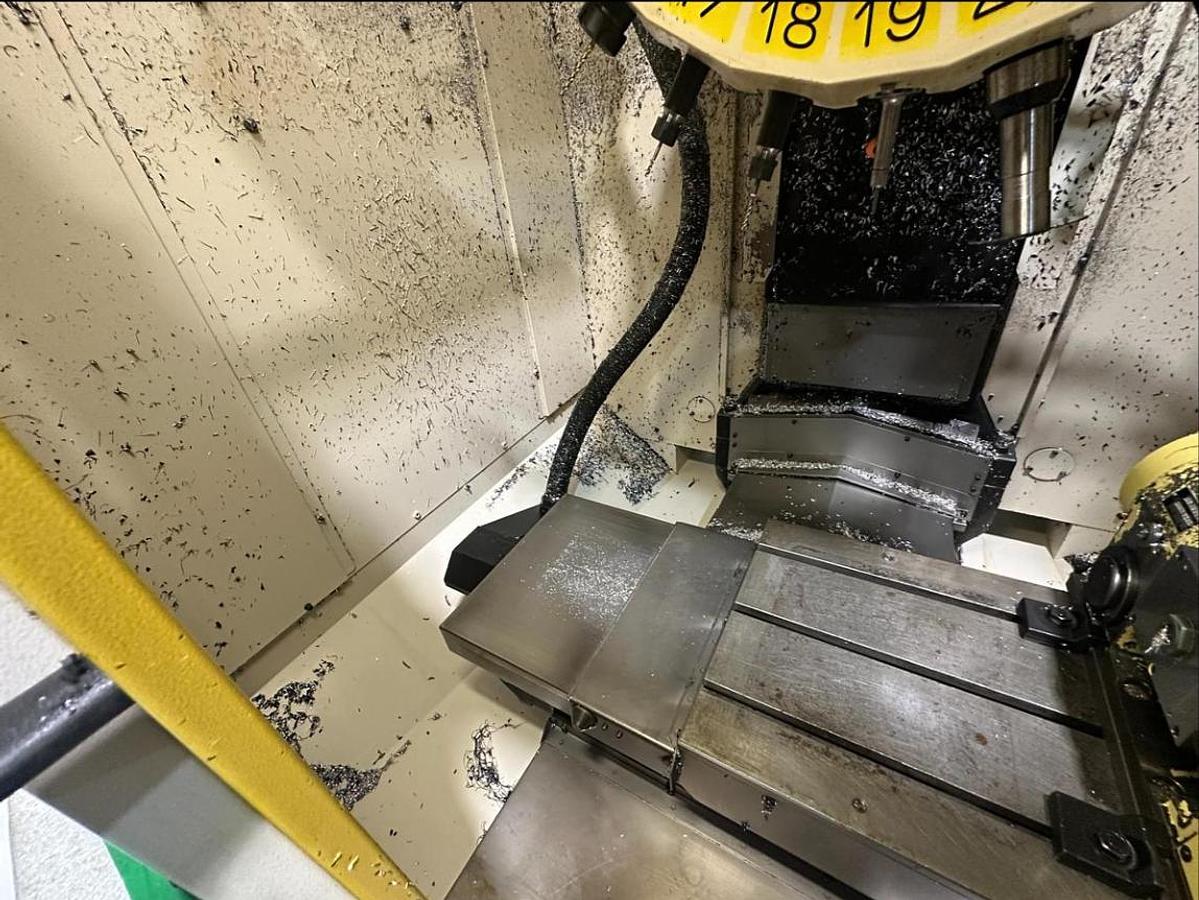

Table / Load

• Permissible Mass on Table: 250 kg (uniform)

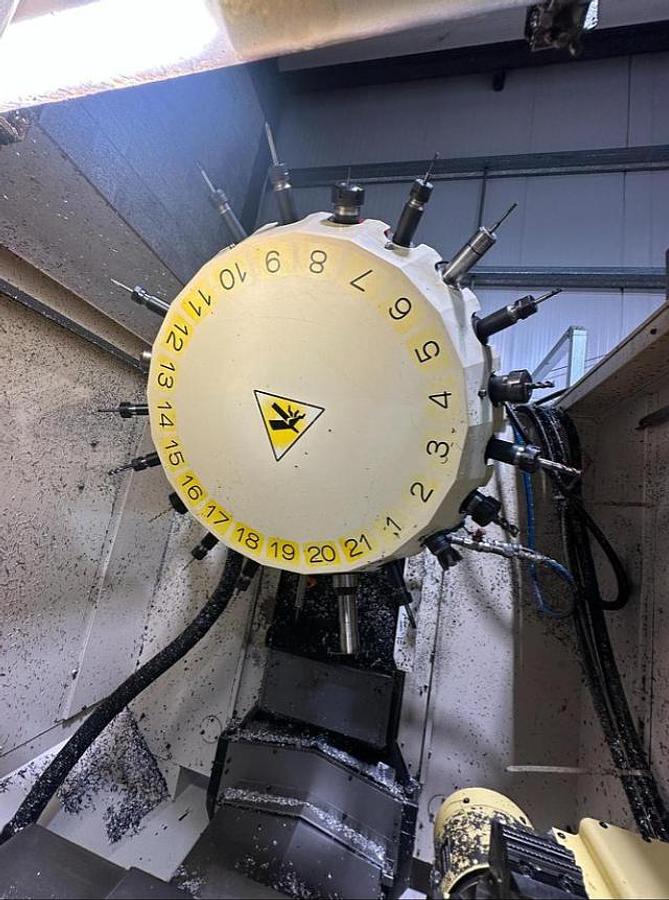

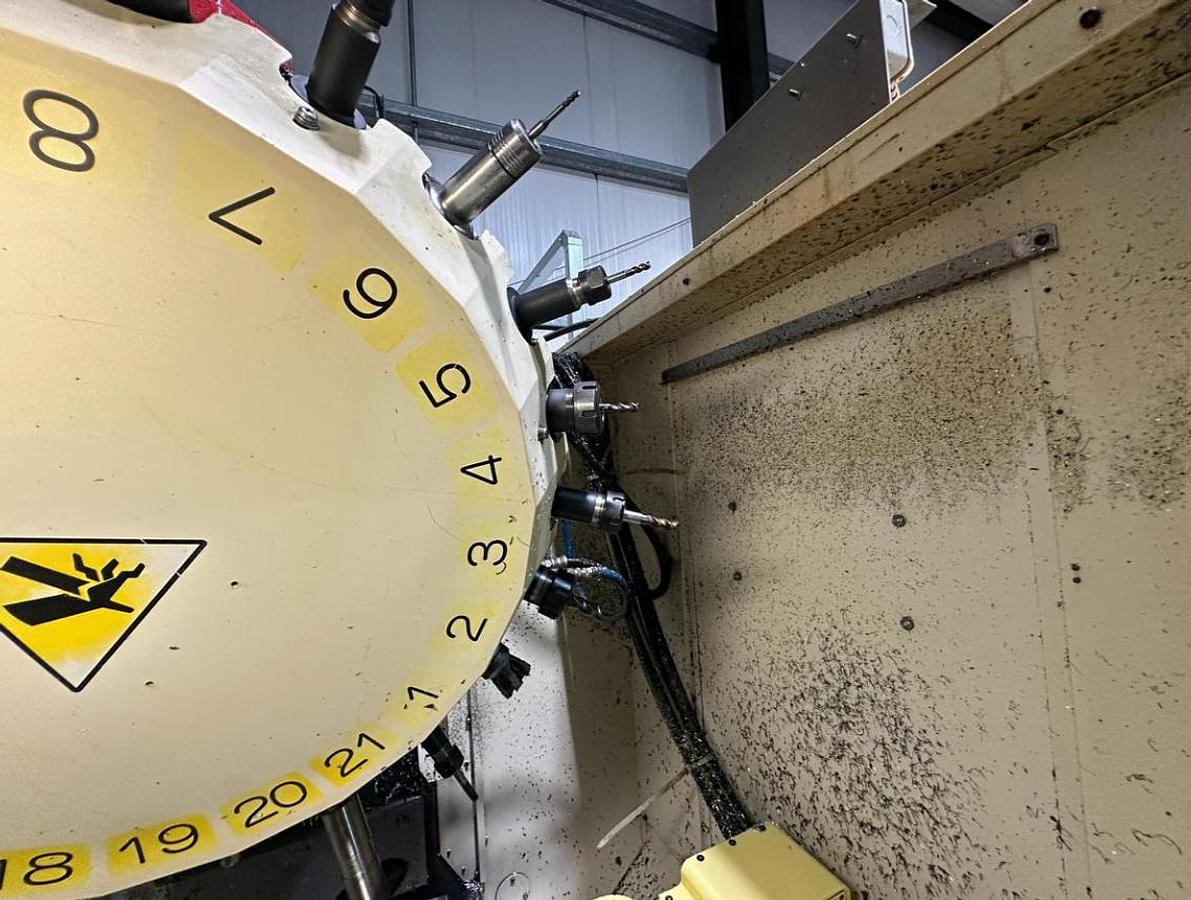

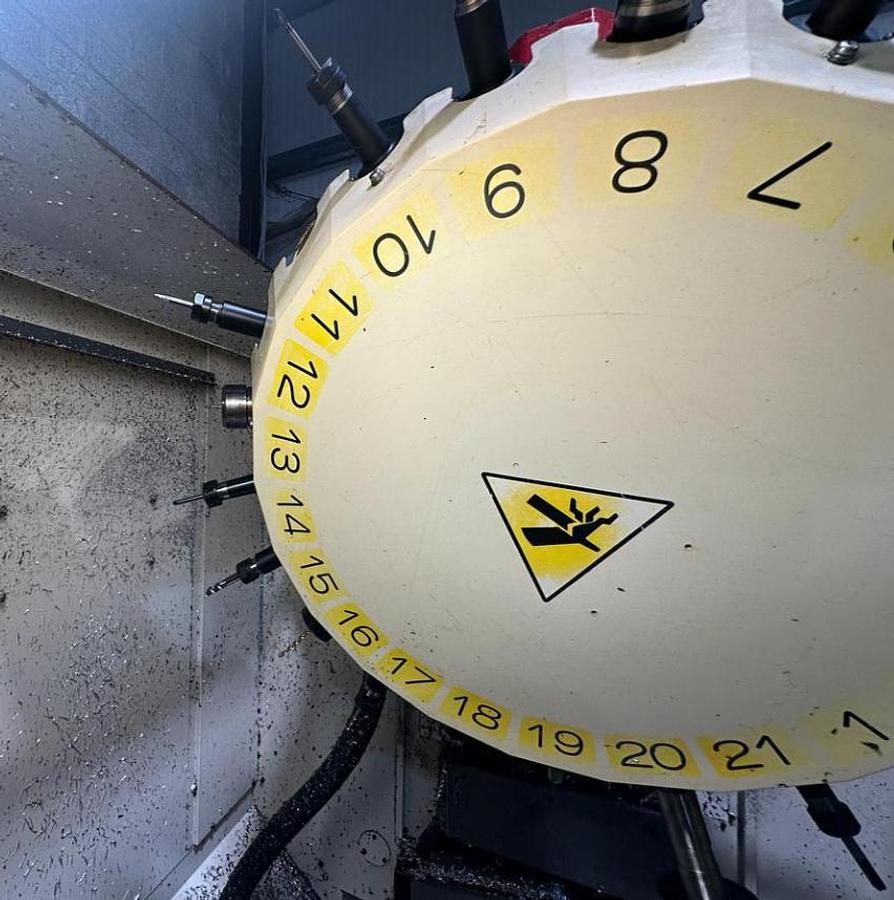

Tooling / ATC Limits

• Max tool mass: 2 kg per tool
• Total tool mass: 23 kg
• Max tool length: 200 mm
• Maximum Tool Diameter: 80mm

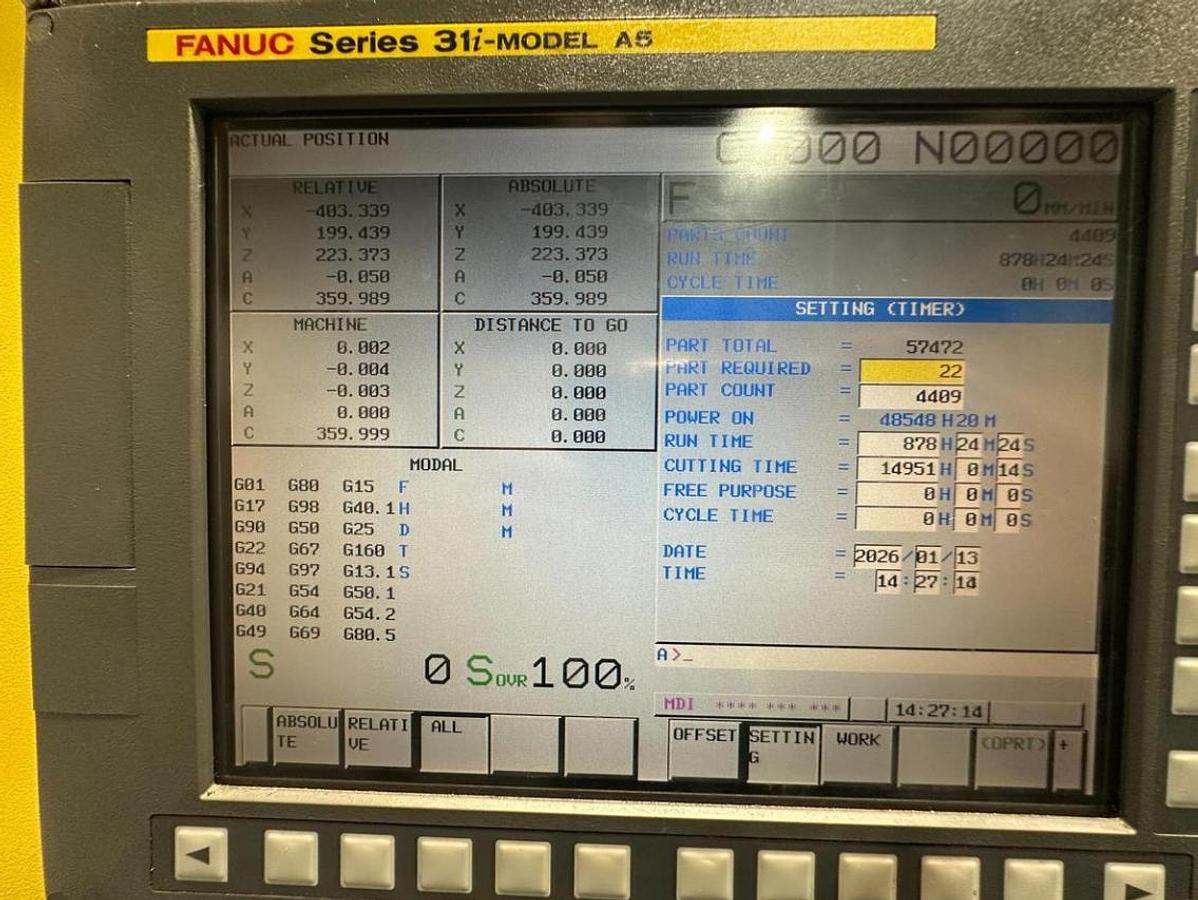

Hours (correct at time of advertising)

• Power On: 48,548 hrs
• Cutting Time: 14,951 hrs

Including: 21 BT 30 Toolholders

Not Including: Vices

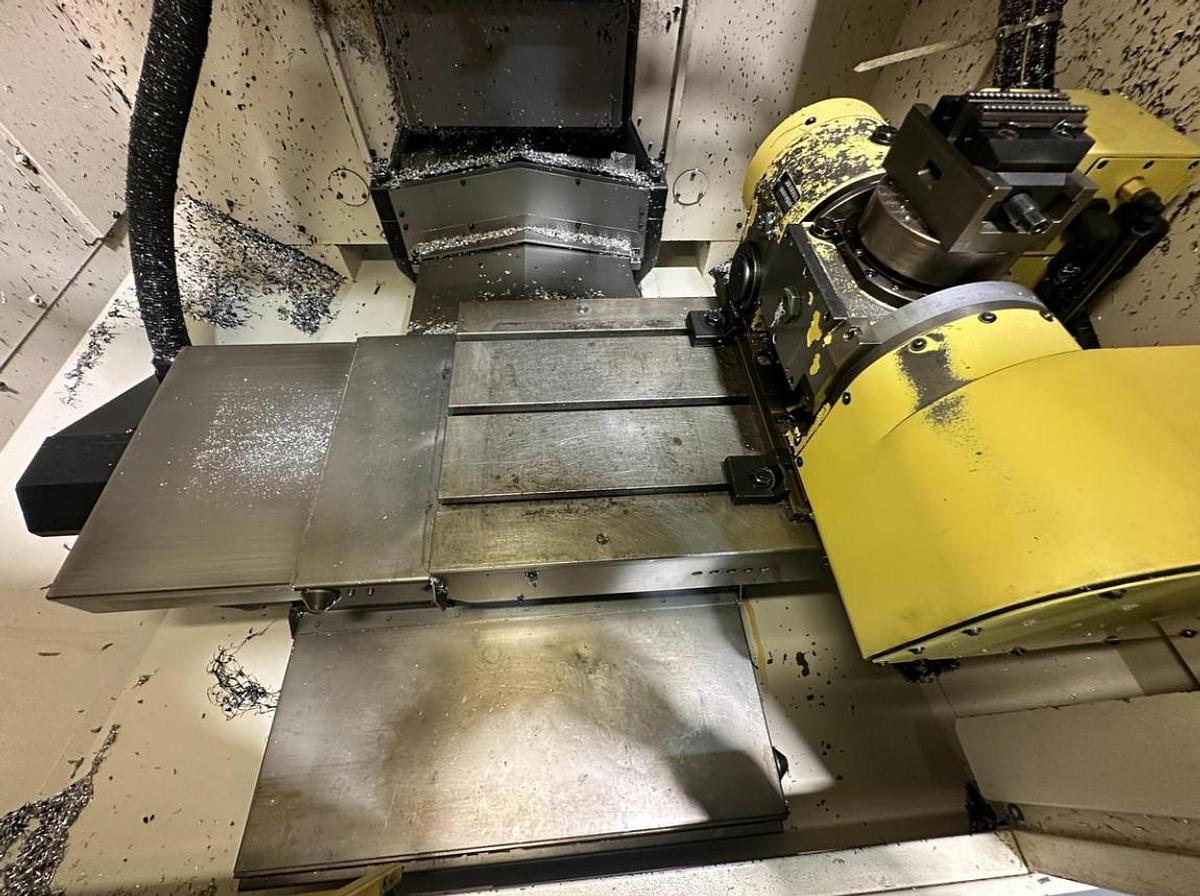

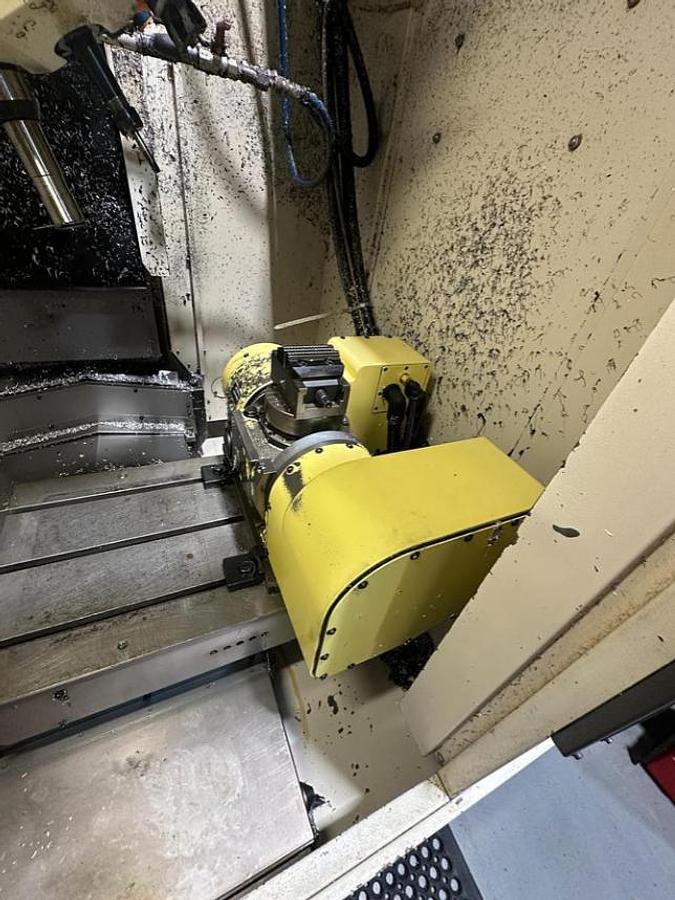

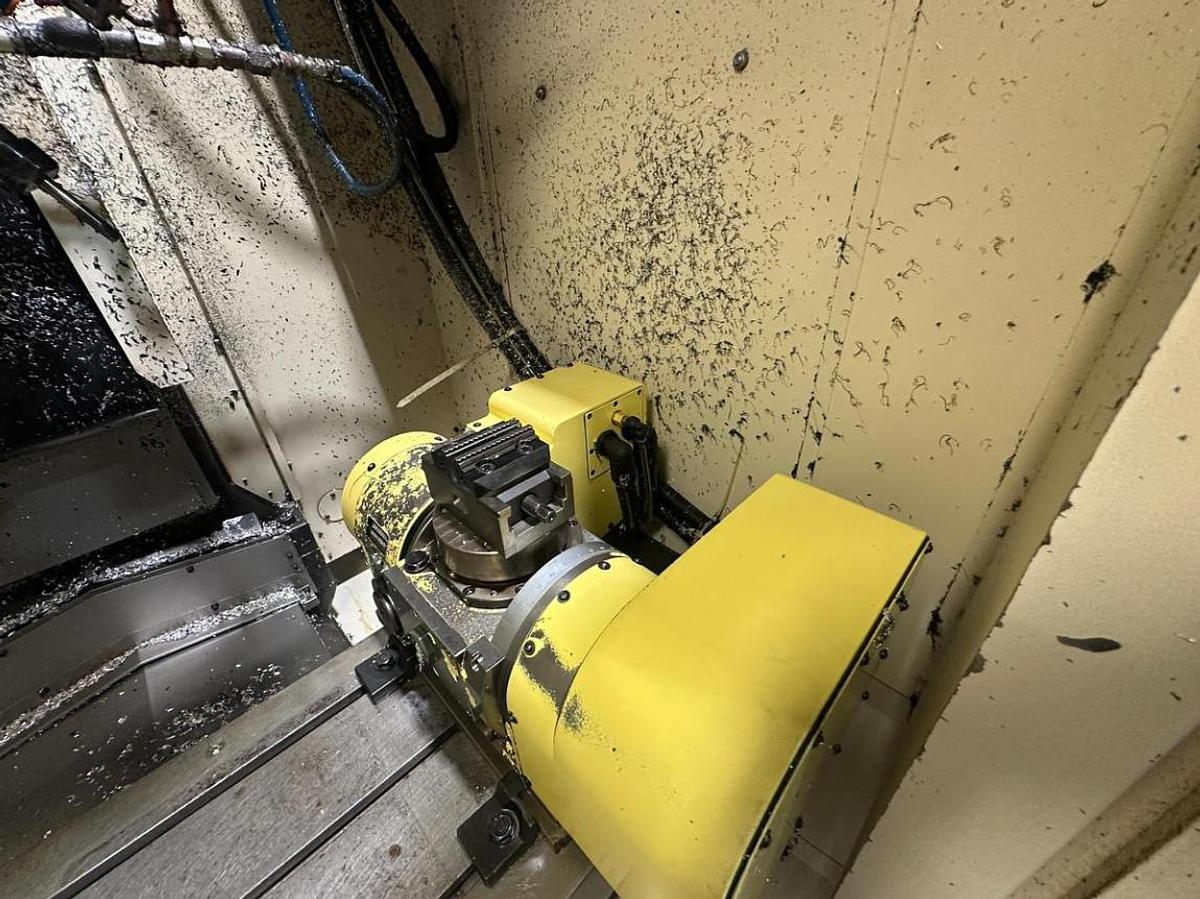

Nikken 5AX-130FA Trunnion Table (2017) – 4th & 5th Axis

This machine is fitted with a Nikken 5AX-130FA compact tilting rotary table, ideal for BT30 high-speed machines and tight work envelopes.

• Manufacturer: Nikken
• Model: 5Ax130FA
• Year: 2017
• Configuration: 4th & 5th Axis Trunnion
• Table Diameter: Ø130 mm
• Tilt Axis (A-Axis): ±110°
• Rotary Axis (C-Axis): 360° continuous
• Drive Type: Direct servo drive
• Positioning Accuracy: ±5 arc-sec (typical Nikken spec)
• Repeatability: ±2 arc-sec
• Maximum Workpiece Weight: Approx. 20 kg
• ✔ One of the most popular compact 5-axis rotary tables for Robodrill and small-format machining centres.

Why this machine?

• True compact 5-axis capability (ideal for complex parts & multi-face machining)
• Fanuc reliability + fast rapids for high productivity
• Nikken trunnion accuracy and rigidity—perfect match for a Robodrill-style high-speed environment
• Great for aluminium, plastics, small steel components, and precision production work
