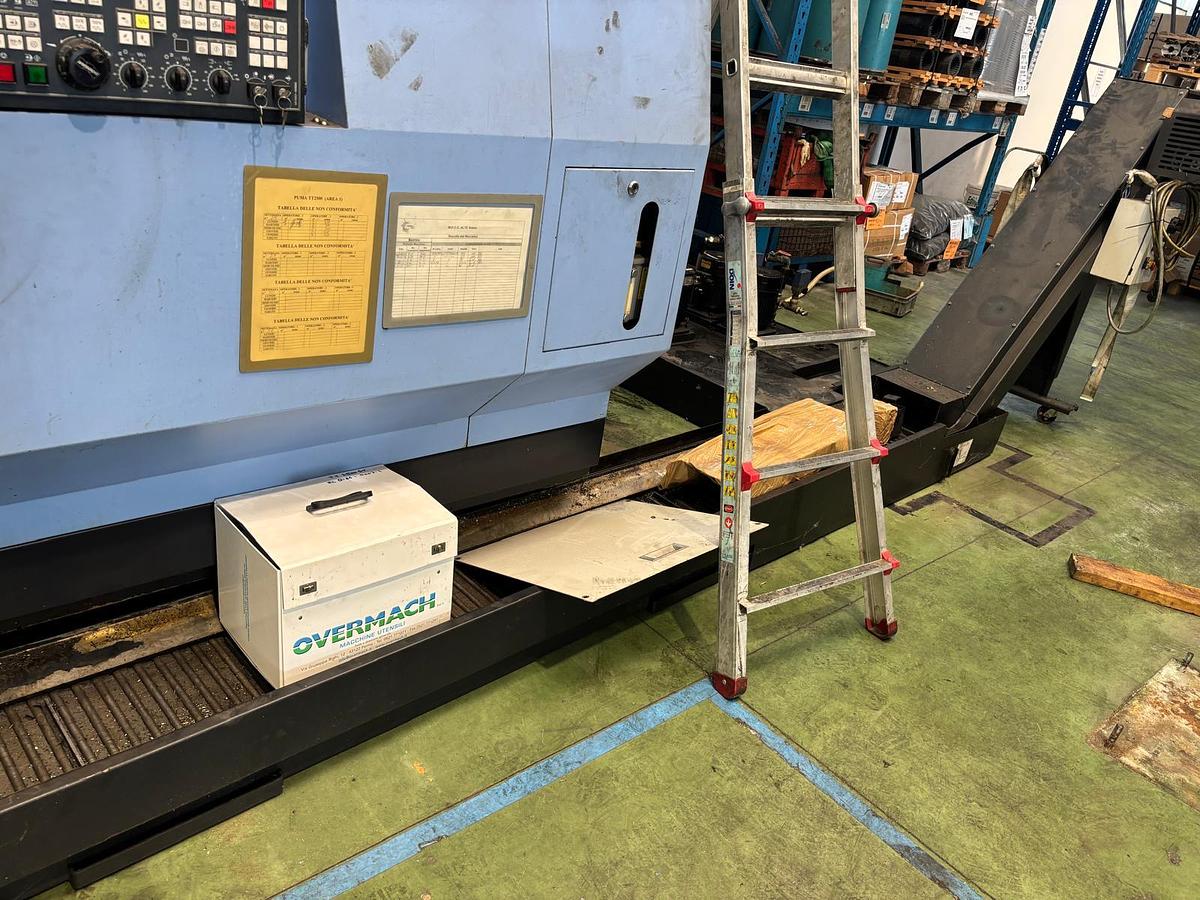

CNC LATHE DOOSAN PUMA TT2500SY

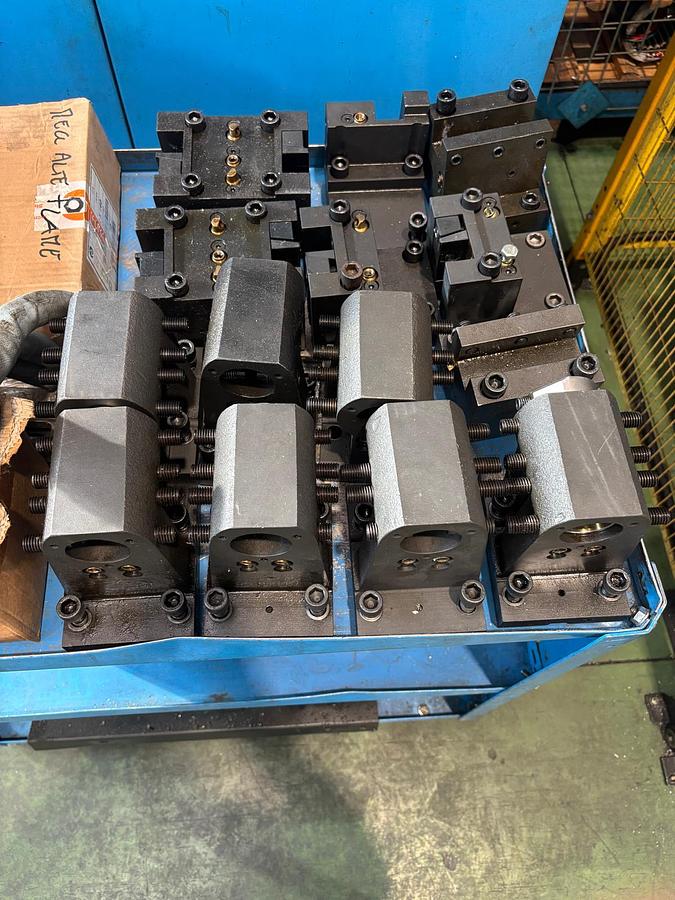

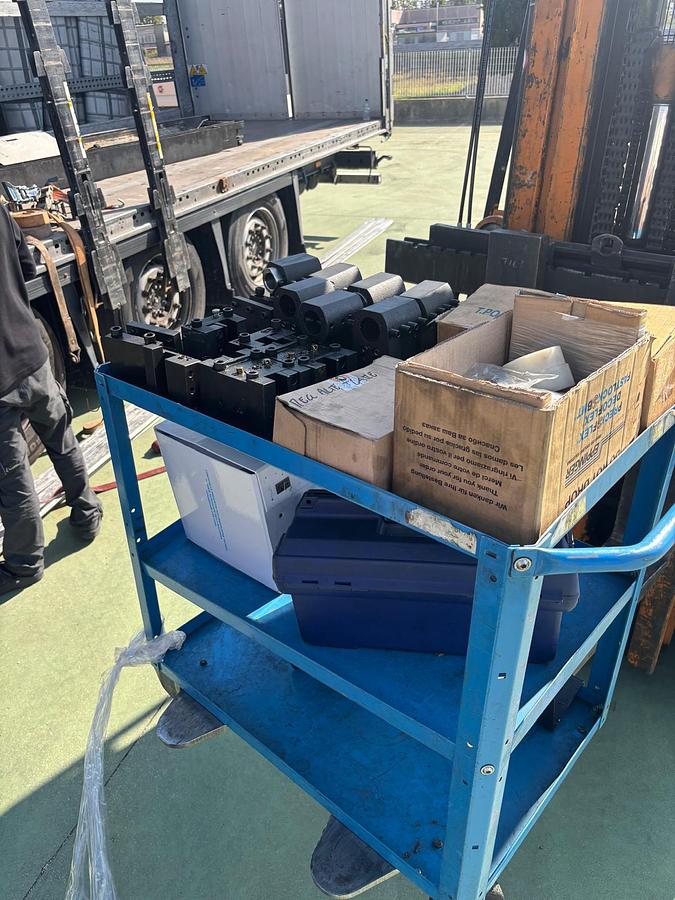

WE OFFER AN NICE CONDITION MACHINE WITH TOOLINGS

Model: Doosan PUMA TT2500SY

YEAR: 2014/12 START WORK IN 2015

Type: Multitasking CNC lathe with twin spindles and twin turrets

Controlled Axes: 8 axes (2 spindles)

Configuration:

• Upper turret: X1, Z1, Y1, C1
• Lower turret: X2, Z2, C2
• Transfer axis: A

Key Specifications

• Max turning diameter: 390 mm
• Max turning length: 350 mm
• Bar capacity: Ø 76 mm
• Spindle size: 10″ (254 mm)
• Max spindle speed: 3,500 rpm
• Spindle motor power: 26 kW (left and right)

Axis Travels & Rapid Feeds

• X1 axis travel: 255 mm – 20 m/min
• Z1 axis travel: 800 mm – 24 m/min
• Y1 axis travel: ±60 mm – 7.5 m/min
• X2 axis travel: 190 mm
• Z2 axis travel: 900 mm

Machine Dimensions

• Approx. footprint: 4,050 × 2,210 × 2,480 mm
• Net weight: approx. 12,700 kg

CNC Control FANUC

Overall dimenson: 4050 x 2480 x 2210 H. mm - weight Kg. 12.700
