ROBO DRILL T-14i A

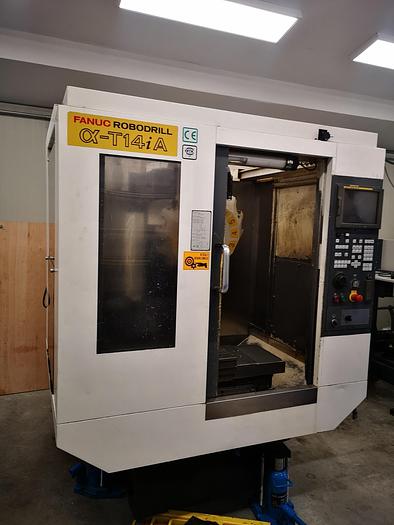

Fanuc Robodrill T14iA Vertical Machining Centre

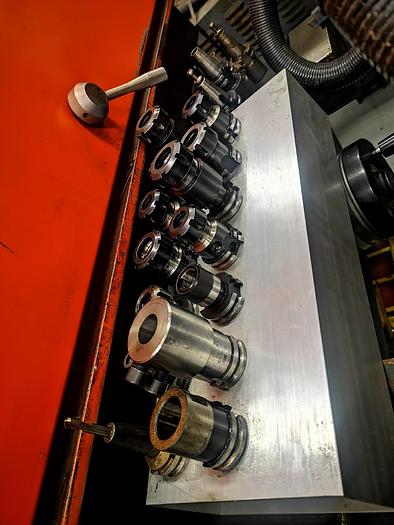

WE OFFER AN NICE WORKING CONDITION MACHINE INCLUDING 18 TOOLINGS + OPTIONAL WE OFFER AS WELL 4 TH AXIS IF CLIENT NEEDS

MACHINE REPABILITY PRECISE WORKING 0,02mm

Specification Traverses X Axis500mm

Y Axis380mm

Z Axis300mm

Spindle Nose to Worktable Minimum250mm

Maximum550mmWork Table

Table working surface650 x 400mm

Table loading capacity (uniform load)200kg

Table surface configuration Number of T slots3Width14mmPitch125mm

Machine DimensionsWidth1550mm

Depth1900mm

Height min/max2067/2367mm

Weight (approximately)2000kg

SpindleSpeed range100 – 8,000rpm

Taper BT 30

FeedratesRapid traverse rate48m/min

Feedrate1 – 30000mm/min

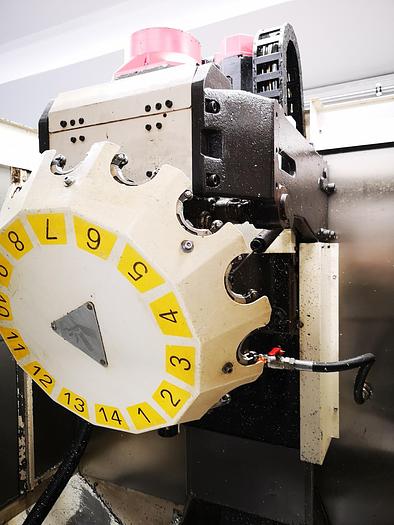

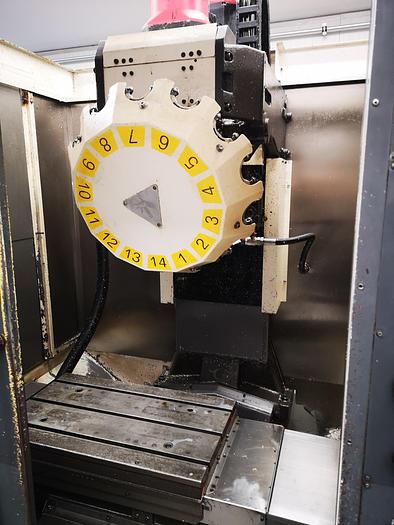

ToolchangerType of toolingMAS BT 30

Tool storage capacity14 Tools

Tool diameter80mm

Tool length200mm

Tool weight2kg (total 15kg)

Tool change time – tool to tool0.9 secs (2kg)

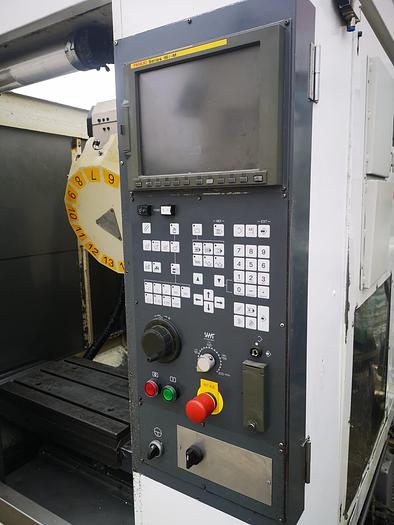

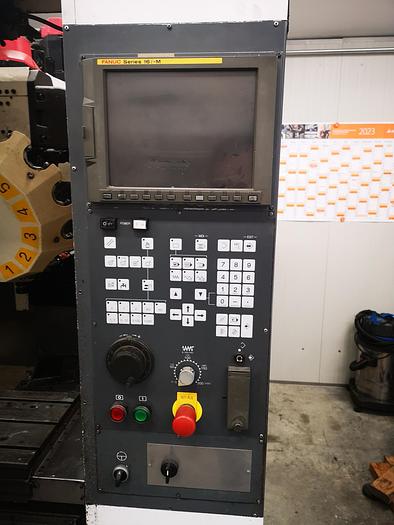

CNC Control SystemFanuc Series 16iM Electrical

Supply415V, 3 ph , 50Hz

Compressed Air Supply5kgf/cm2 (100 litres/min

FOR CLIENT WE ORGANIZE SAFE DISMANTLING LOADING AND AS WELL TRANSPORT TO DESTINATION
