EDM- DIE SINKING SODICK

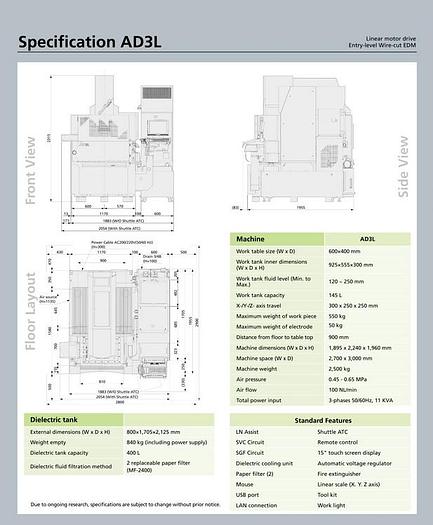

Technical Specifications

Work table size (W x D)

600 x 400 mm

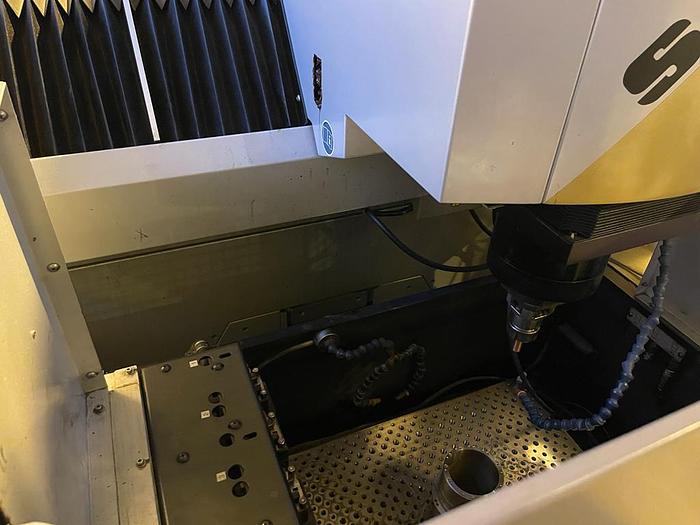

Work tank inner dimensions (W x D X H)

925 x 555 x 300 mm

Work tank fluid level (Min. to Max)

100 ~ 250 mm

Axis travel ( X x Y x Z)

300 x 250 x 250 mm

Max. weight of Electrode

50 kg

Maximum weight of workpiece

550 kg

Distance between electrode and table top

167~ 417 mm

Machine tool dimensions

1870 x 1955 x 2315 mm

Machine tool weight

3200 kg

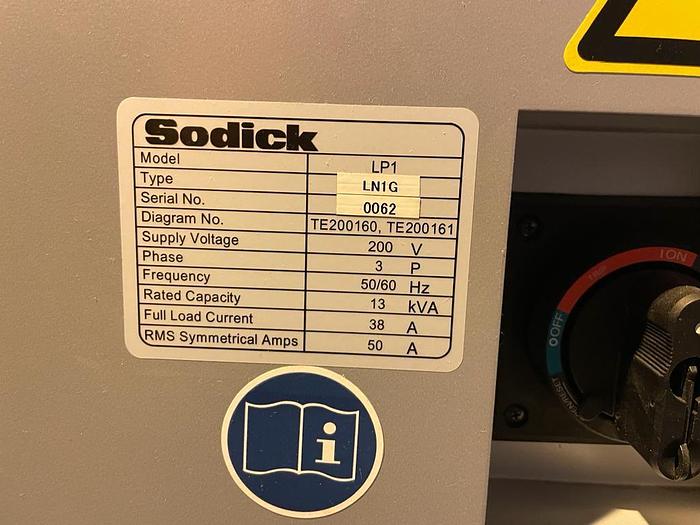

Power consumption (3 Ph. 50/60 Hz)

10 kva

Dielectric fluid and capacity

400 lit
