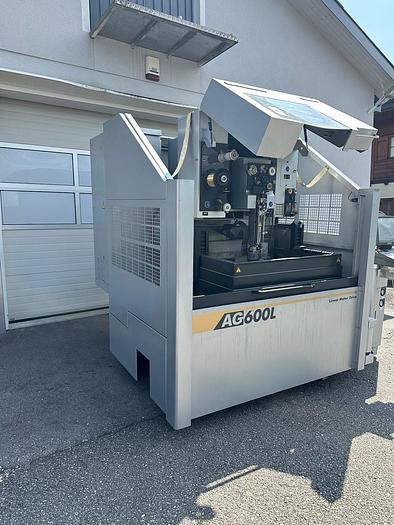

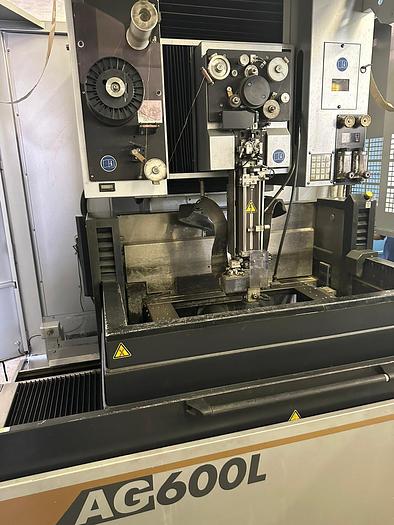

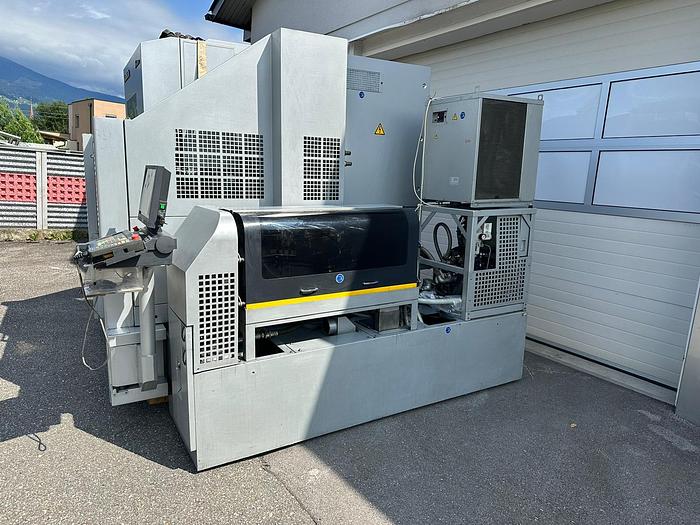

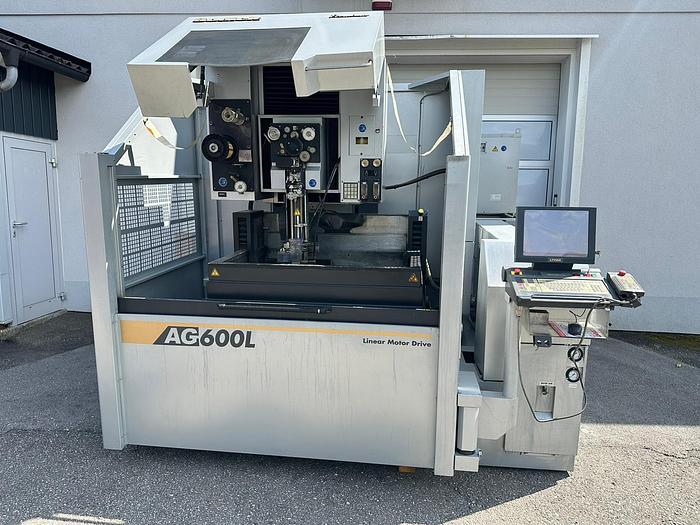

WIRE EROSION - EDM- SODICK PREMIUM AG600L

WE SELLING AN VERY NICE CONDITION SODICK 600L

Technical Specification

X/Y/Z axis travel (mm): 600 x 400 x 350

U/V axis travel (mm): 120 x 120

Max. workpiece weight (kg): 1000

Distance from floor to table top (mm): 995

Machine dimensions (W x D x H, mm): 2615 x 2740 x 2390

Machine weight (kg): 5200

Taper angle: ±25° (±45°: option)

Wire diameter (mm): ø 0.1 ~ 0.3

Wire tension (N): 3 ~ 23

Max. wire speed (mm/sec): 420

Max. workpiece dimensions (W x D x H, mm): 800 x 570 x 340

Controlled axis: 5

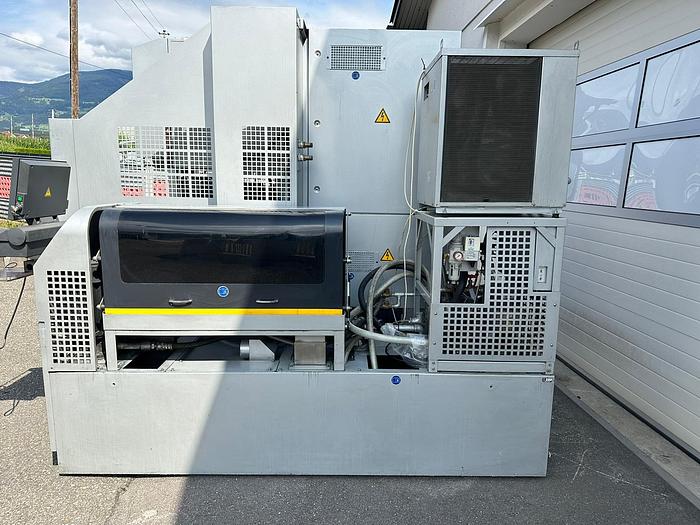

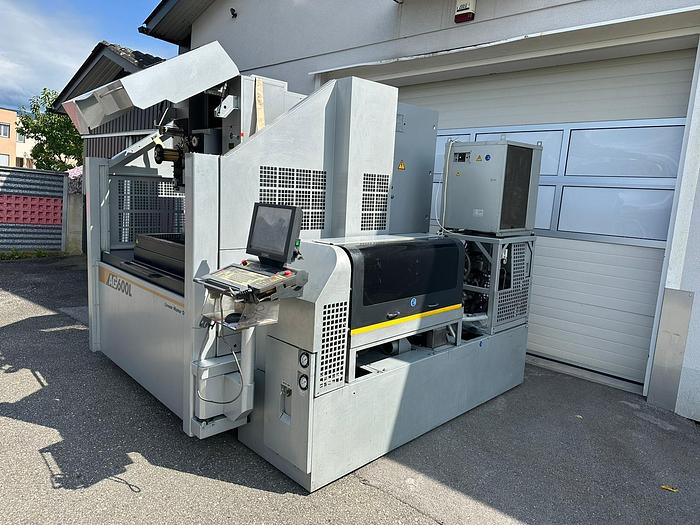

Dielectric Tank

External dimensions (W x D x H, mm): 725 x 2550 mm

Weight empty (kg): 600 kg

Capacity (l): 800 L

Filtration method: austauschbare Papierfilter (Innendruck )

Features

• 10 year warranty on positioning accuracy
• Linear motor (X, Y, U, V axis)
• Absolute linear scales (X, Y, U, V axis)
• Ceramic components
• Linear motor cooling unit
• Remote controller
• 3-sided rise and fall work tank
• Improved ease of operation
• High speed electrolysis free circuit
• SODICK Fine Corner Control
• Energy saving circuit
• FTII (Fine pick-up function)
• Automatic water level control

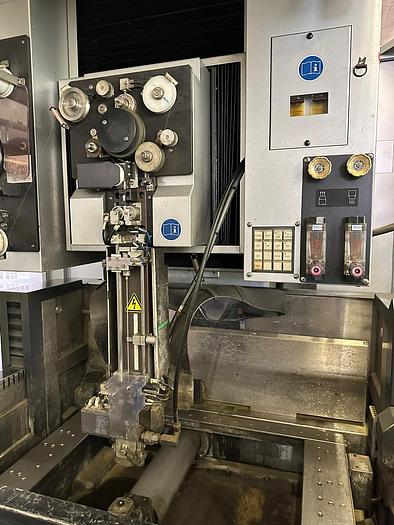

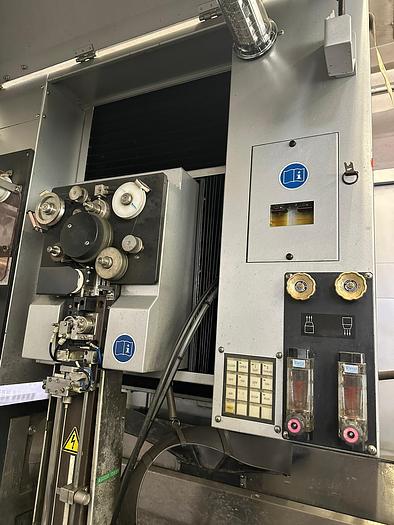

• Fixed Jet AWT (Automatic wire threader)
• Wire end remover
• Dielectric cooling unit
• Voltage stabiliser
• LAN interface

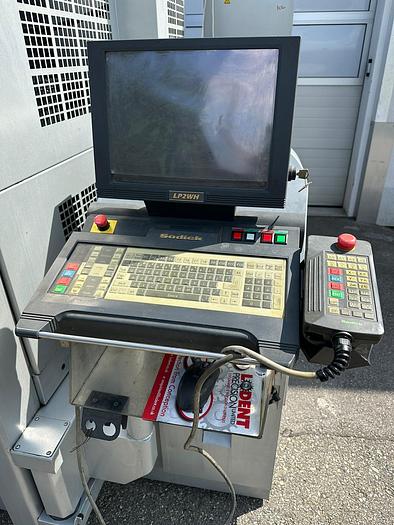

• 15" TFT screen
• USB port
• Work light

MACHINE IS READY TO LOAD

WE ORGANIZE TRANSPORT AS WELL FOR CUSTOMER
