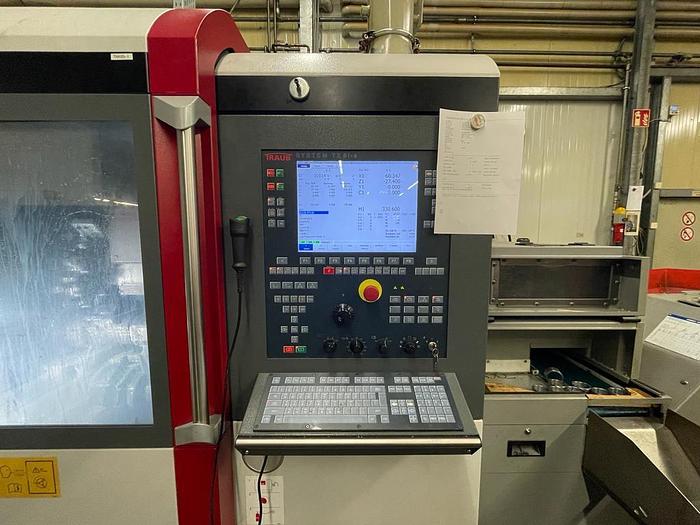

TRAUB TNK 65 CNC LATHE

WE OFFER NA BEAUTIFUL CONDITION MACHINE

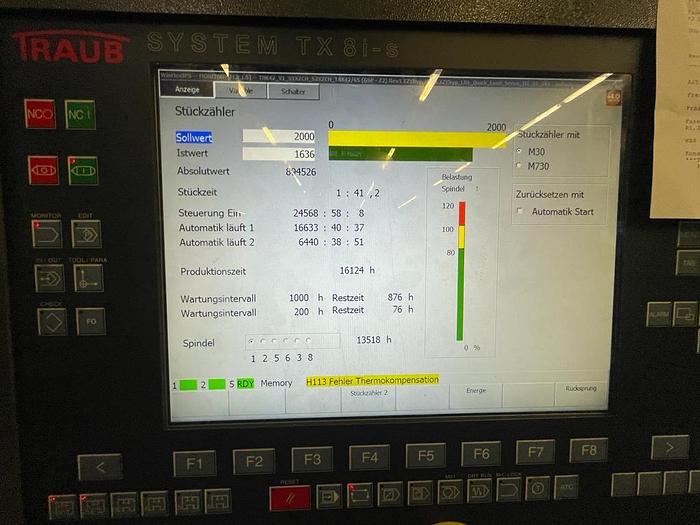

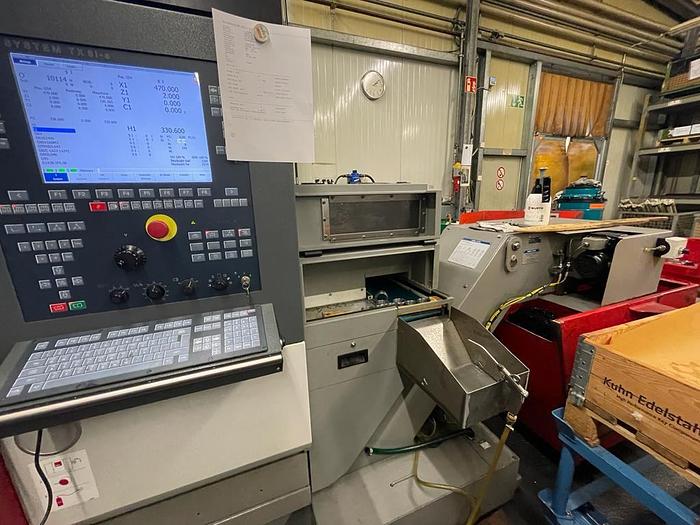

CNC short turning machine TRAUB TNK65 with a TX8i-s control system year 2017!

Some data about the machine:

Traub software package consisting of:

-Polyform( C-axis programming)

-Helical( 3D interpolation Y-axis)

-Threading without compensating chuck)

-Cut-off steel breakage monitoring

Axis switch-off (GSP to block travel)

-T-ATC ( Touch ATC)

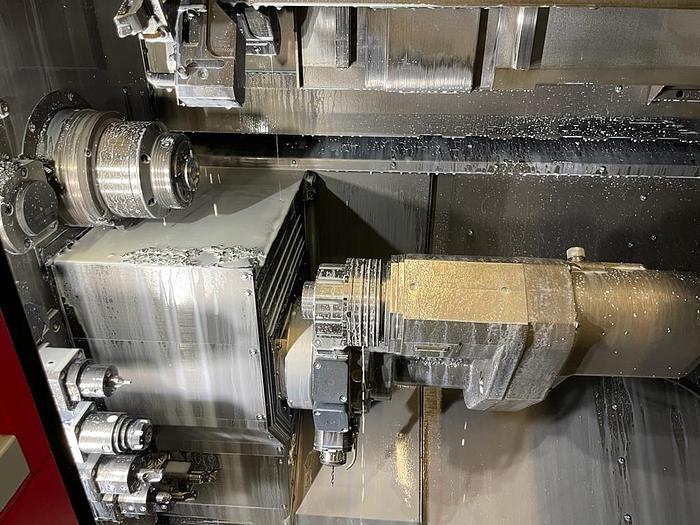

Top tool carrier:

X,Y (interpolated) Z,H axis , 10. tool holders compact shank D45 with total drive 12000 rpm

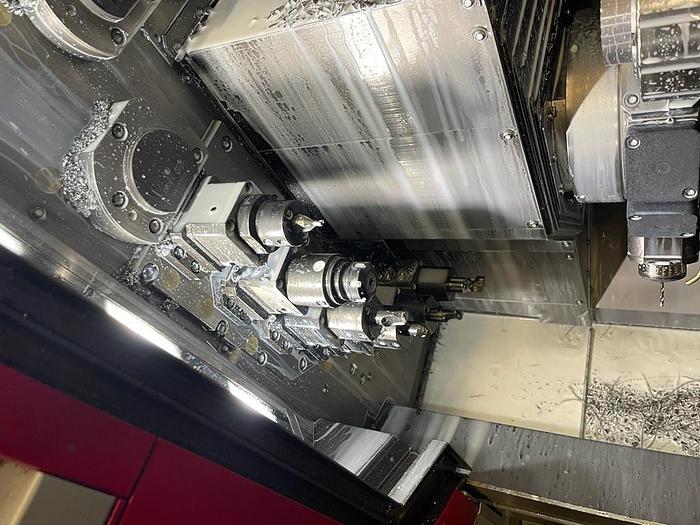

Bottom tool carrier:

with integrated counter spindle Y,Y (interpolated),

Z,H axis 9 tool holders compact shank D45 and common drive 12000 rpm

Counter spindle:

Throughput: 52mm (can be limited to 42mm by clamping device)

6000 rpm 22,5Nm

Holder: 100mm cyl.

with full clamping cylinder D52/15 for collet or chuck clamping, hydraulically operated, clamping pressure min/max: 8/70 bar

Chuck D130mm

Glass scale X-axis tool holder top and bottom

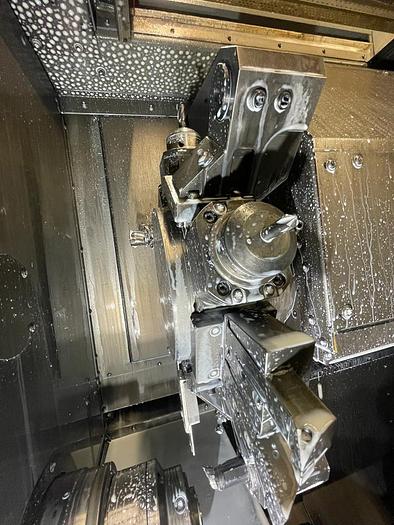

Tool carrier for back machining:

8 tool holders (2xsynchronous, 6xasynchronous) total drive for up to 5 tools with 4000rpm, 16Nm at 25% ED, or 12000 rpm, 5.3Nm 25%ED

prepared for internal cooling lubricant supply

Accessories:

Various driven tools and holders

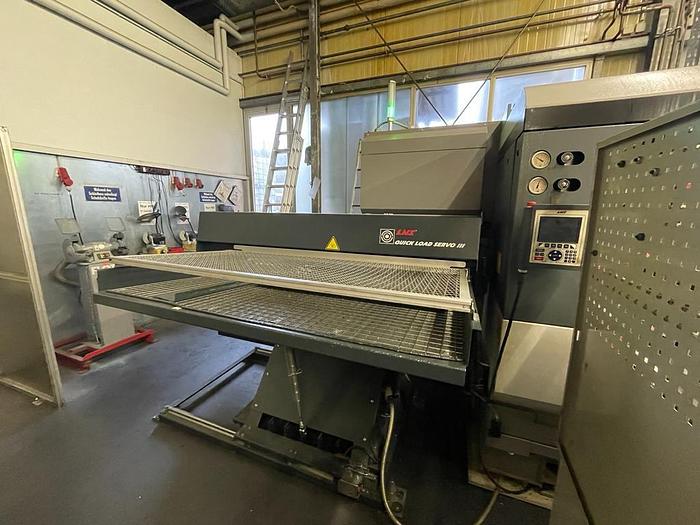

Bar loader LNS Quick Load Servo III

Chip conveyor

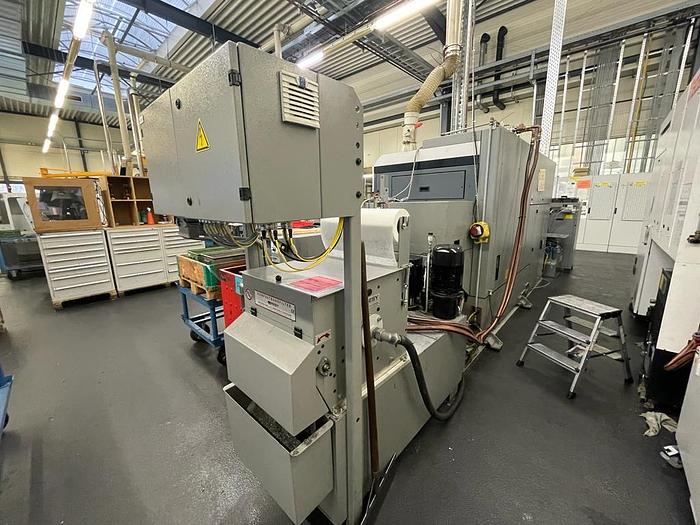

Paper belt filter system

Complete documentation

etc.

MACHINE IS READY TO WORK , CAN BE INSPECTED IN AUSTRA - ST. ANDRA
