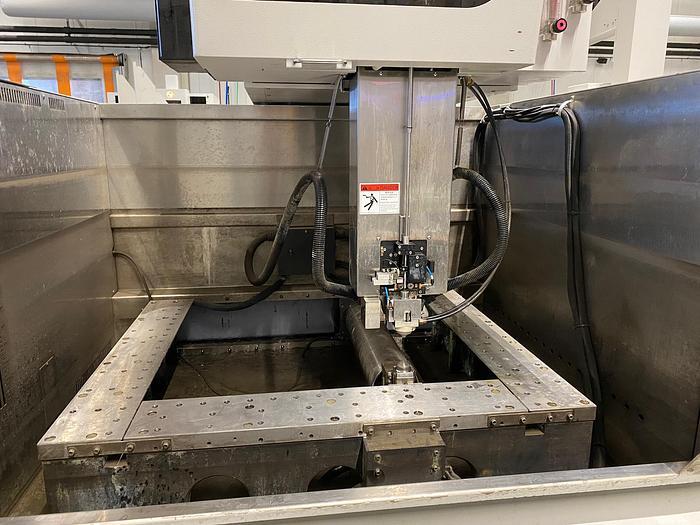

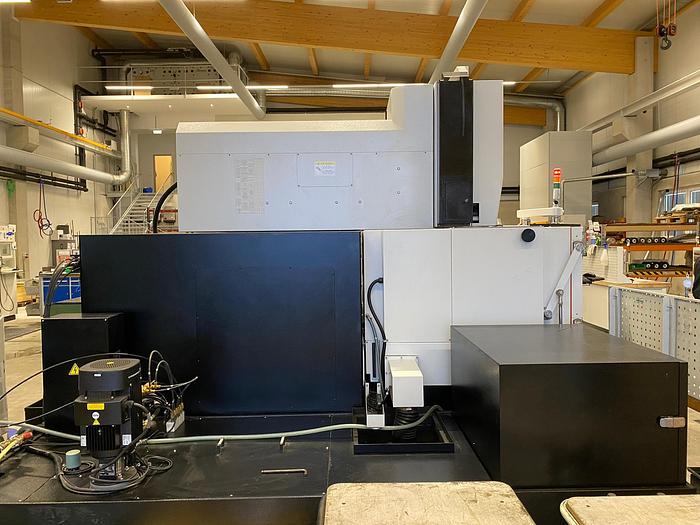

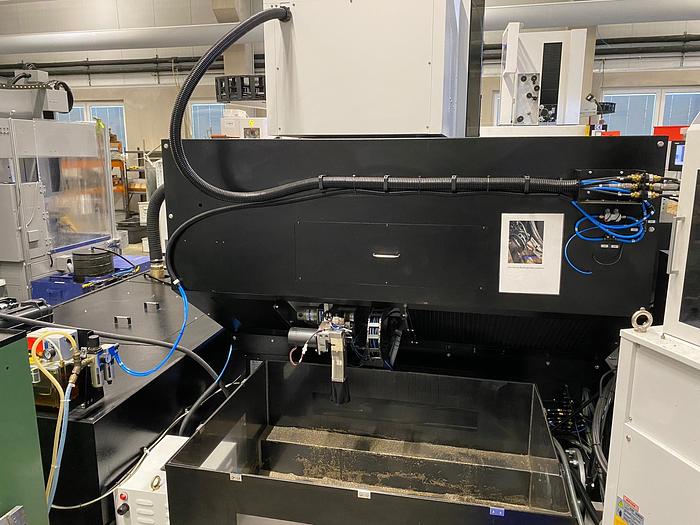

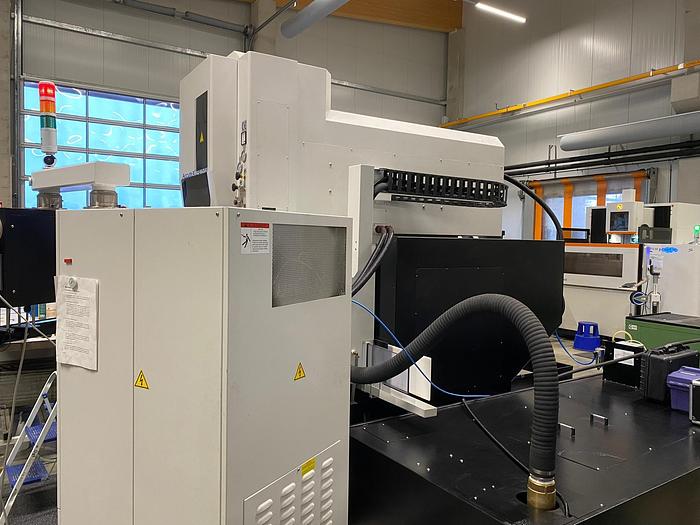

WIRE EDM ACCUTEX - AU-860iA-Y600

1 Accutex AU-860iA-Z600 (used machine) - built in 2021 1.00 Stk.

Manufacturer:

Accutex

Model:

AU 860iA

Year of manufacture:

2022

Condition:

like new (exhibition machine)

travel path

X-axis 800mm

Y axis 600mm

Z axis 600mm

travel path

U-axis ±75mm

V-axis ±75mm

MAX PIECE WORK

1330 x 990 x 595mm

Max. table load

5000kg

Max Konik

±21°H=100

Machine weight

8500kg

Machine height

2740mm

Machine dimension

3900x3600mm

Standard wire diameter

0.15 to 0.3mm

Max. weight of wire spool (kg)

16 kg

Surface quality

>Ra 0.5

Water system capacity (l)

Main +Sub Tank / 1630L+1280L

Standard accessories

• Windows CE Touch Screen Controller

• Automatic wire threading (Auto Wire Threading, AWT)

• SD Master

• Collision protection X/Y/Z/U/V axes

• 0.2 μm resolution in linear scale

• Water cooler

• Float gun

• CE Conformity Configuration

• Pure water tank

Environmental requirements

power source

220Vac/380Vac ±5%; 3-phase 50/60 Hz ±1 Hz

Temperature/humidity

25±1°C; less than 75% RH

Vicinity

• The machine must not be installed near punching machines, drilling machines or other sources of

interference.

• The machine must not be installed near heat treatment or electroplating facilities.

• The machine must be placed in an airtight room to keep out dust.

• Before positioning the machine, consider that it will move during operation and that space will be required

for maintenance.

• The unevenness of the fixed surface should be less than 20 μm.

Grounding type

Ground resistance below 10 Ω: disconnect the ground terminal from other machines

Air pressure

> 6 kg/cm2 (for machines with AWT system)
