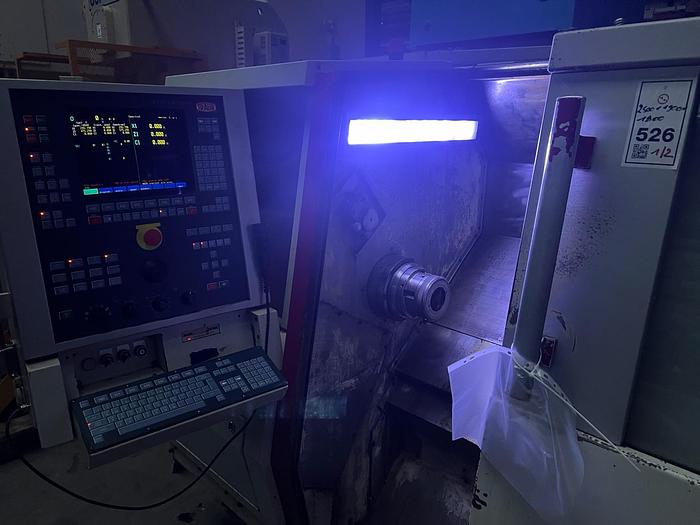

CNC LATHE TRAUB TNA 300

WE OFFER AN NICE CONDITION TRAUB TNA 300

SPINDLE CAPACITY: 65mm

SPINDLE NOSE: A6

CHUCK DIAMETER 200-250

TURNING DIAMETER MAX: 275mm

TRAVERSE OVER CENTER: 35mm

TURNING LENGHT MAX: 450mm

SWING DIA. OVER CROSS SLIDE: 395mm

SWING DIA OVER BED: 520mm

Main drive:

POWER: 11kW

SPINDLE SPEED MAX: 4000 RPM

TORQUE: 280 Nm

C-AXIS: 100RPM

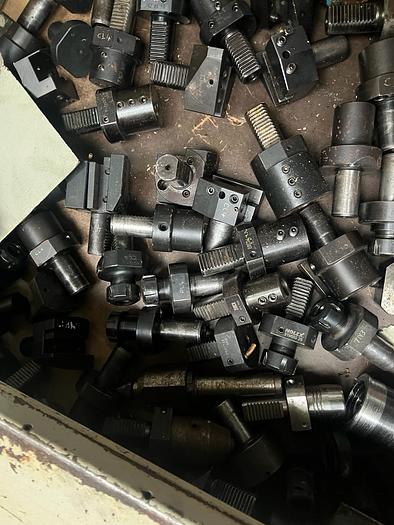

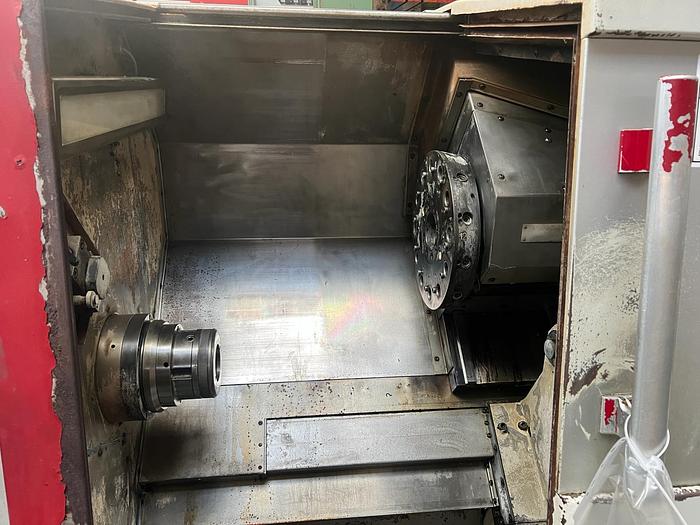

TURRET:

TOOLS: 12

SHANK DIAMETER: 30mm

TOOL SECTION DIMENSIONS: 20X20 mm

INDEXING TIME: 1 STATION 0,5 sec

EACH ADD STATION: 0,15 sec

Y-AXIS : +-35mm

feed rates:

X-AXIS: 15/15

Z-AXIS: 18/18

Y-AXIS: 10/10

TAIL STOCK: QUIL SIZE: 70mm

QUIL STROKE: 60mm

MAY TROKE OF RAPID RETURN SLIDE: 280mm

Quil force at 55 bar (8600N)

QUIL RECEPTOR: MK4

STEADY FIXED: 8-95

COOLANT: 5 BAR

COOLANT TANK CAPACITY: 275L

TOTAL POWER CONSUMP: 16kW

WEIGHT: 3500 KG

DIMENSIONS:

L: 2710 mm

D: 1620 mm

H: 1800 mm
