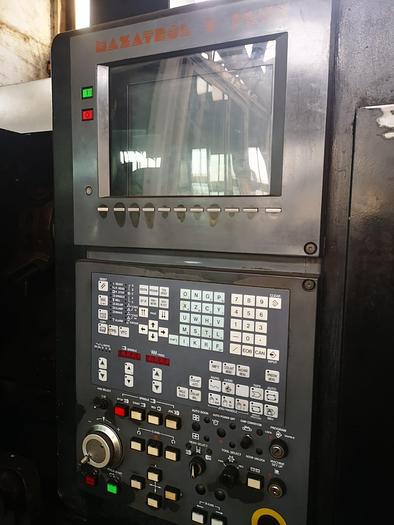

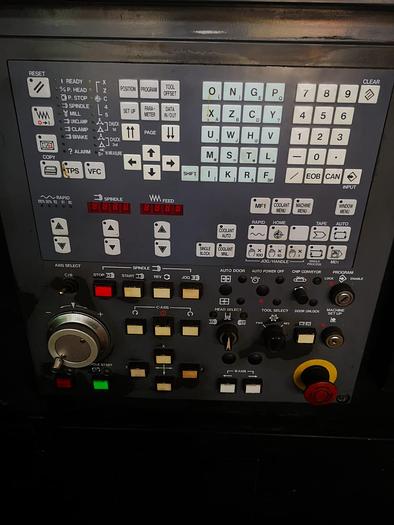

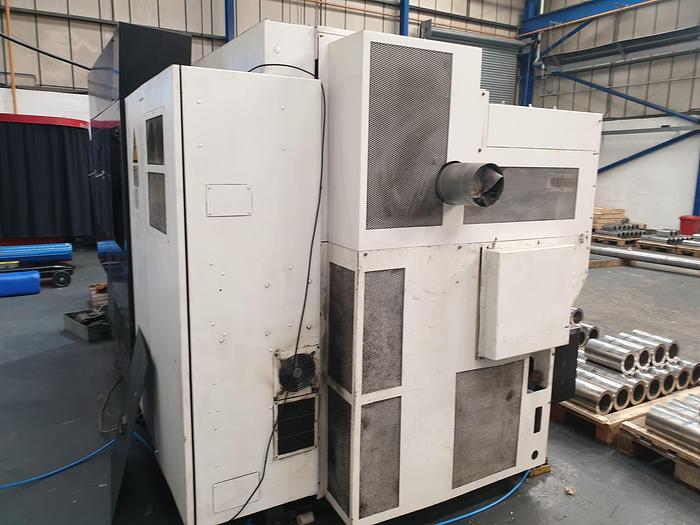

MAZAK SUPER QUICK TURN 30MS CNC SUB SPINDLE, 'C' AXIS, DRIVEN TOOLING LATHE WITH MAZATROL T PLUS CONTROL

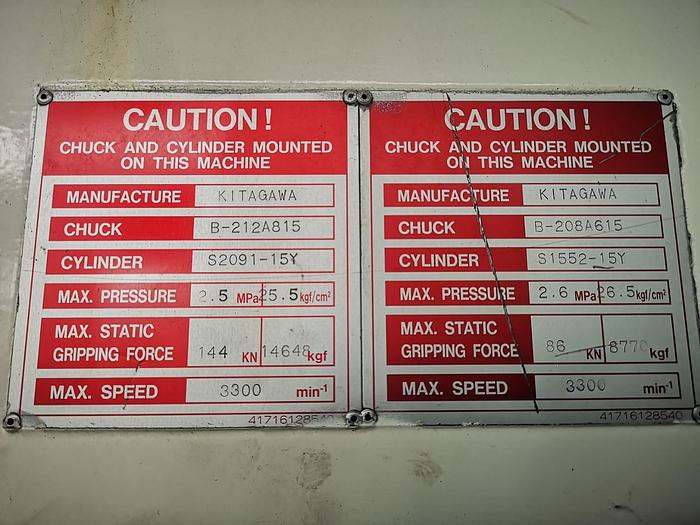

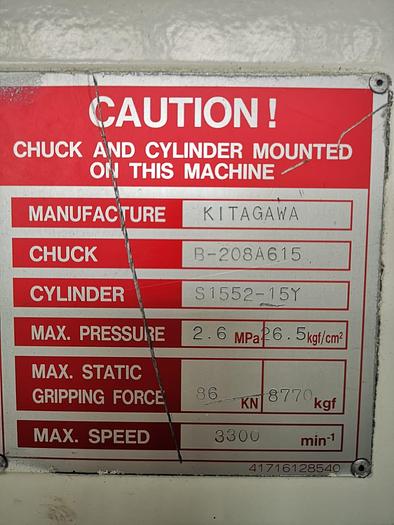

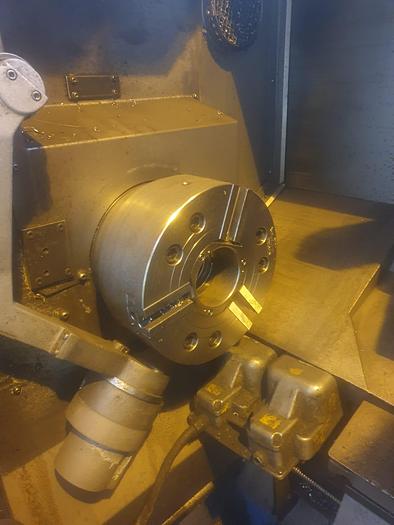

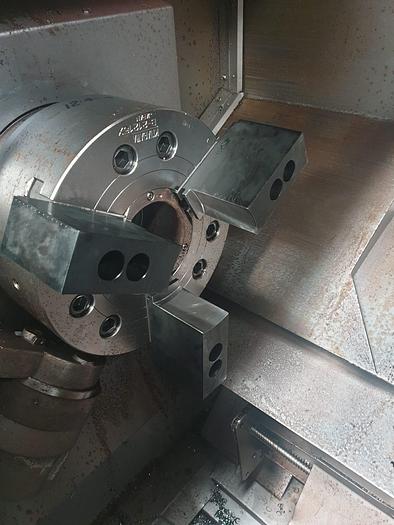

Kitagawa B-212

3 Jaw Power Chuck.

Maximum Swing Ø560mm.

Maximum Swing Over Cross Slide Ø500mm.

Maximum Turning Ø413mm.

Distance Between Spindles 1,035mm.

Main Spindle Bore Ø88mm,

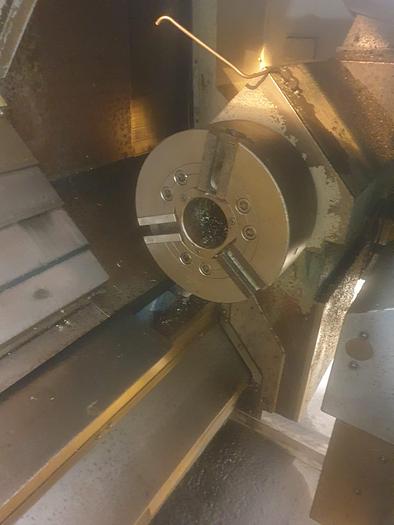

Sub Ø61mm.

Axis Travel 'X'=244mm, 'Z'=1,035mm, 'B'=1,067mm.

Maximum Main & Sub Spindle Speeds 3,000rpm.

Maximum Milling Spindle Speed 1,500rpm.

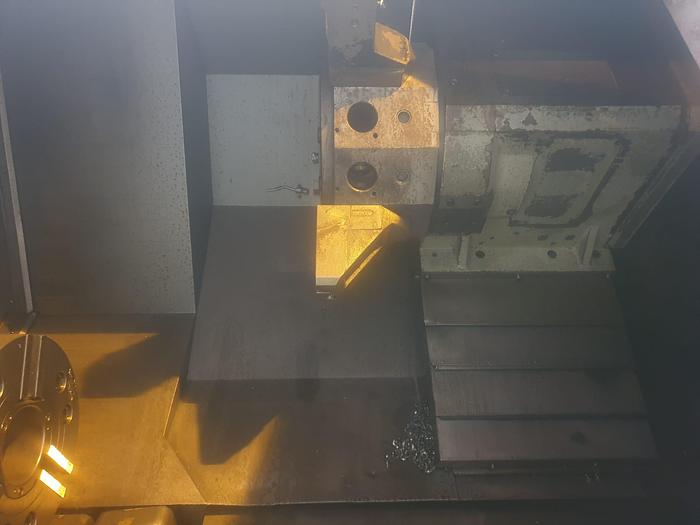

12 Station Turret.

TOOLINGS INCLUDED WHICH WERE USED IN THE WORKSHOP

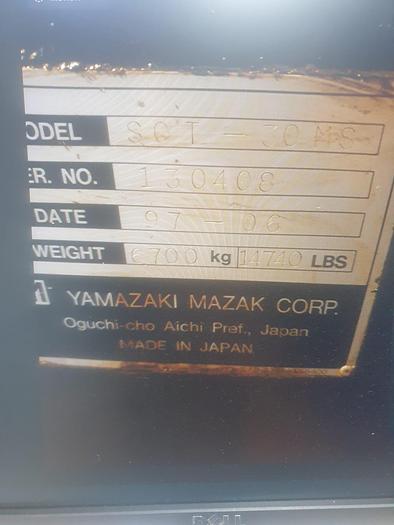

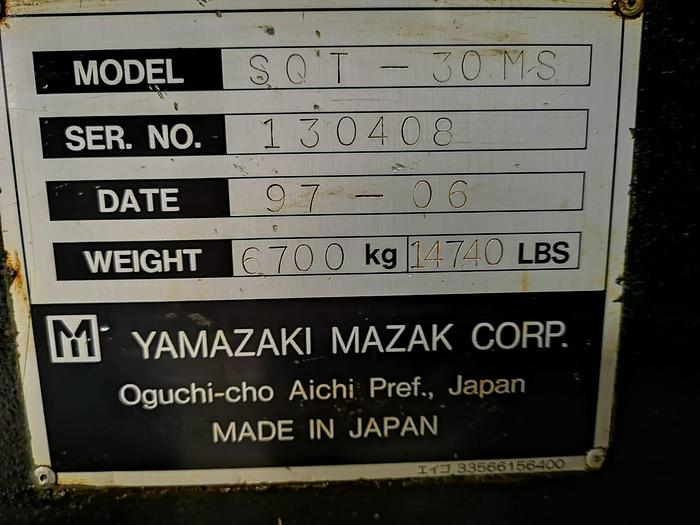

WEIGHT 6700 KG

DIMENSIONS:

• LENGHT 4010 mm
• WIDE 2100 mm
• HEIGHT 2160 mm
