ULTRASONIC BATCH WASHING - FINNSONIC V031A VERSA

FINNSONIC V031A VERSA+ RANGE ULTRASONIC BATCH WASHING/DRYING MACHINE

Year of manufacture 2014.

Finnsonic V031A Versa

DESCRIPTION

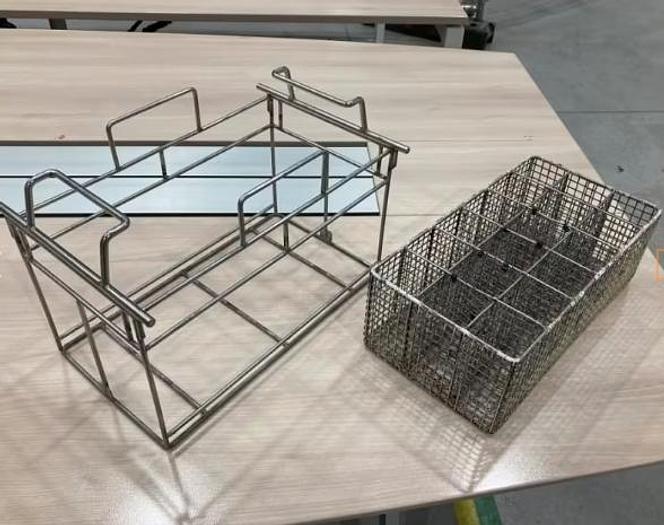

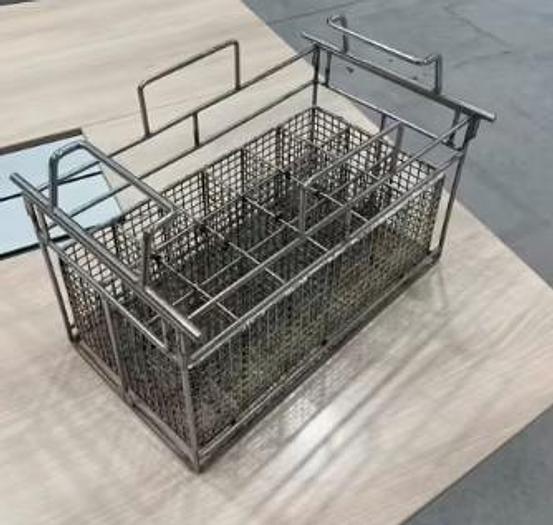

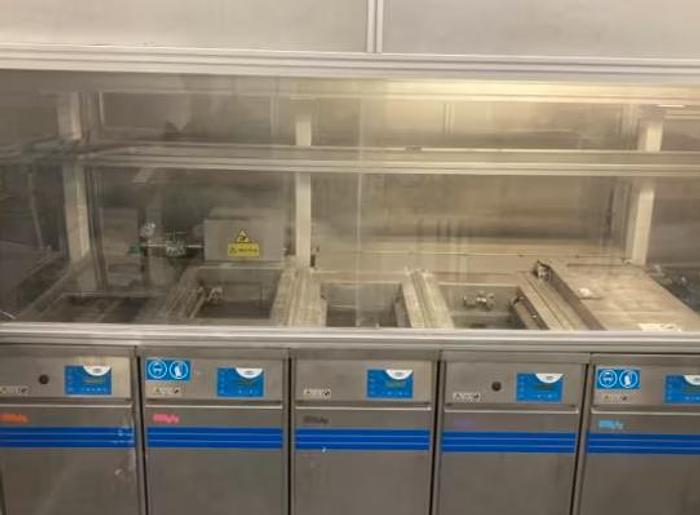

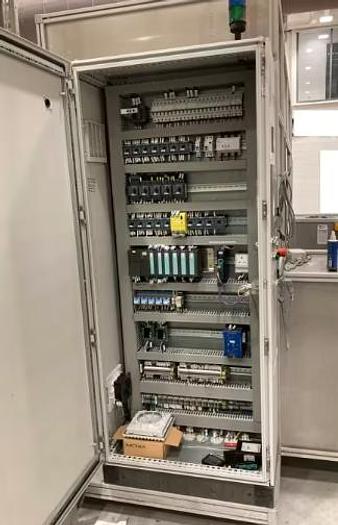

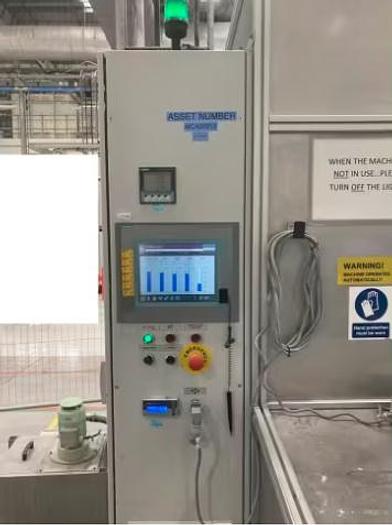

The machine features a 5-stage process for ultrasonic clean, rinse and drying of components. Each liquid tank contains approx. 35 litres of solution (stage 1-3) with the Ultrasonic system in stage 1 operating at 30KHz. All process tanks operating temperatures are adjustable up to 80 Degrees Celsius. Automated conveyors are installed for loading/unloading of baskets into the machine to allow batch operation. Maximum weight of fixture basket and components is 20kg with 8 baskets included with equipment. Automation system uses a Siemens S7-313 plc and a MP-277 HMI screen

DIMENSIONS:

4.0m wide

2.7m deep

2.5m tall.
