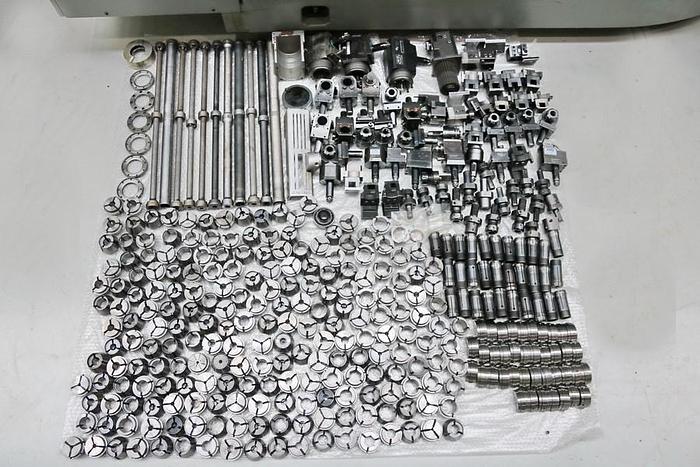

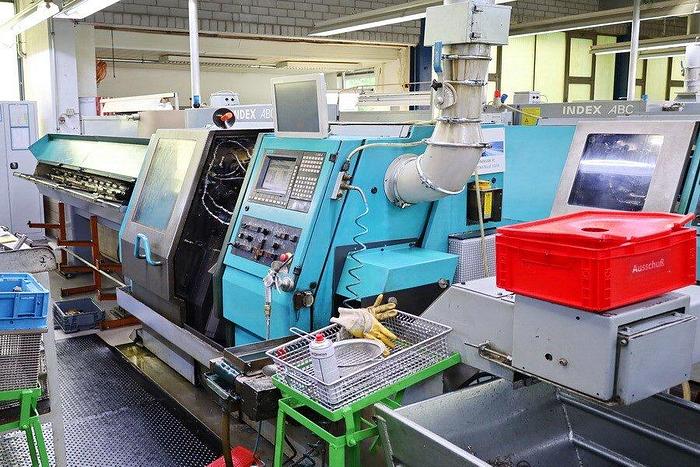

CNC TURNING AND MILLING - INDEX ABC 42 TWIN TURRET TWIN SPINDLE - WITH BAR FEEDER AND HUGE TOOLINGS

WE OFFER AN EXCELLENT CONDITION INDEX ABC 42

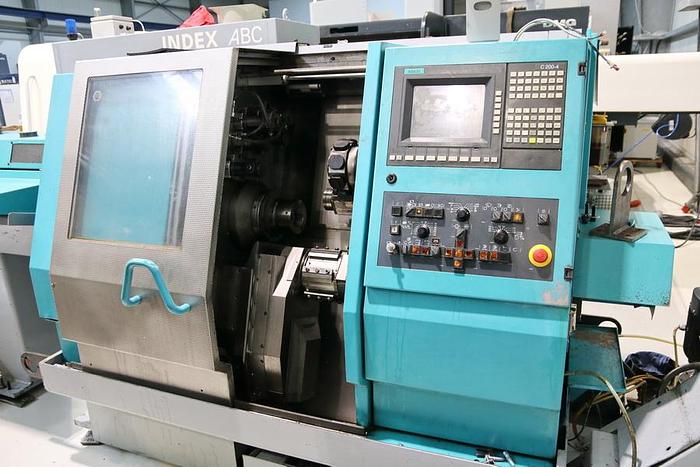

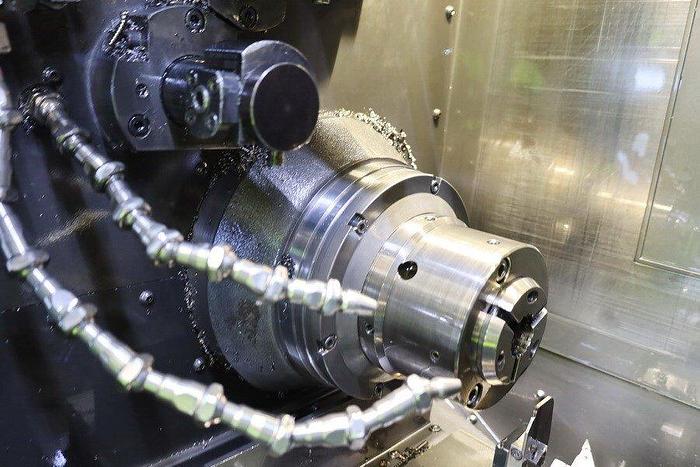

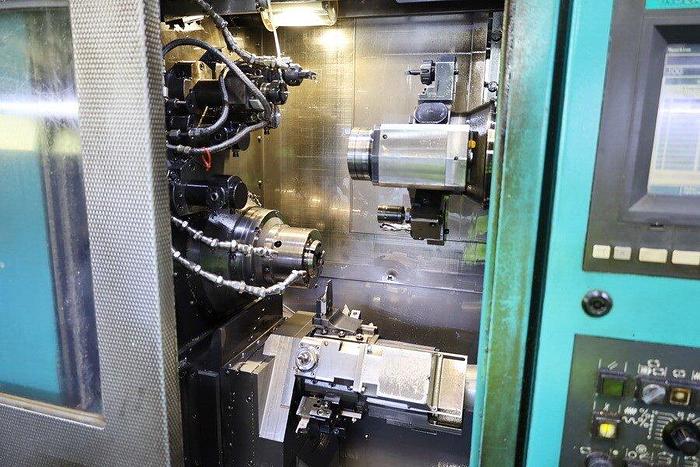

CNC turning and milling centre, INDEX - ABC 42, two turrets, driven tool stations, counter spindle on upper tool turret, 1x back drilling unit, with impact unit, many accessories

General Info

Machine Category CNC Turning- and Milling Center

Make INDEX

Type ABC 42 (*934)

Year 1997

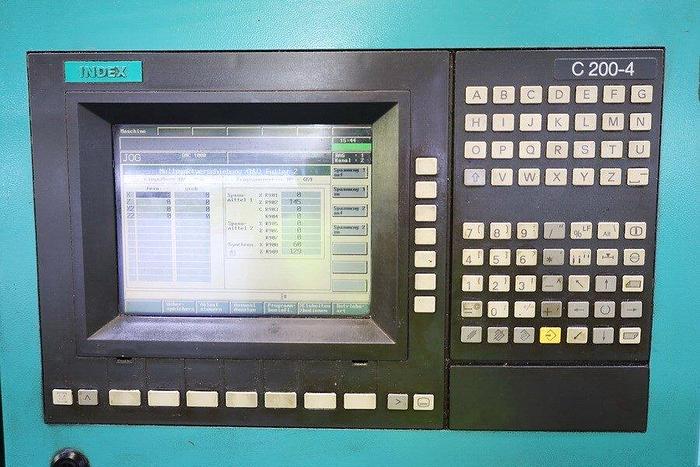

Control C200-4 / 840C Siemens

Country of origin Germany

Other information CNC

- Turning- and MillingCenter INDEX

- ABC 42

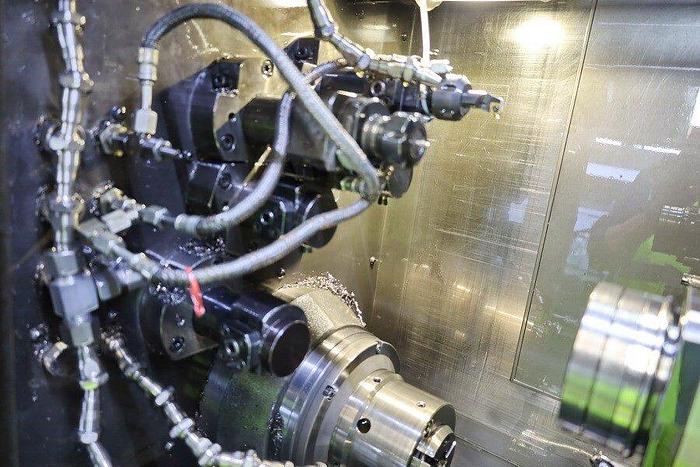

- two turrets

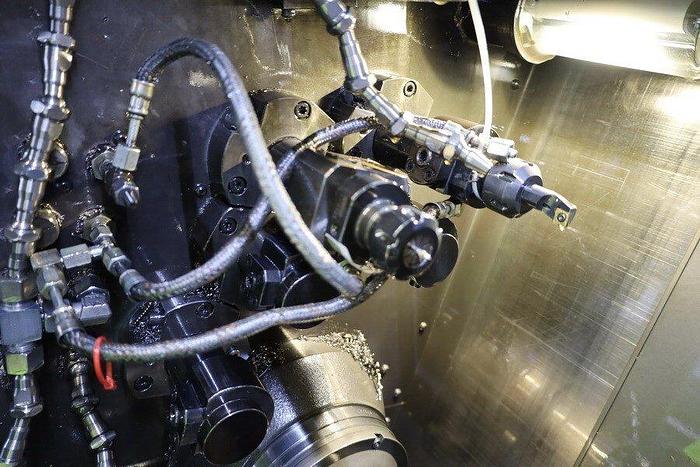

- live tool stations

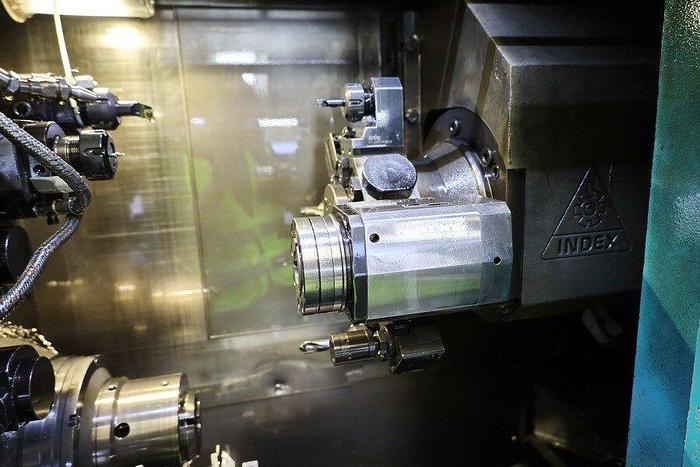

- subspindle on upper turret

- 1x back drilling device

- with percussion unit

- many accessories

Technical Details

Backside processing: C-Axis 0,001 °

change-time tool to tool 0,2 sec

clamping diameter max. 42 mm

clamping length max. 38 mm

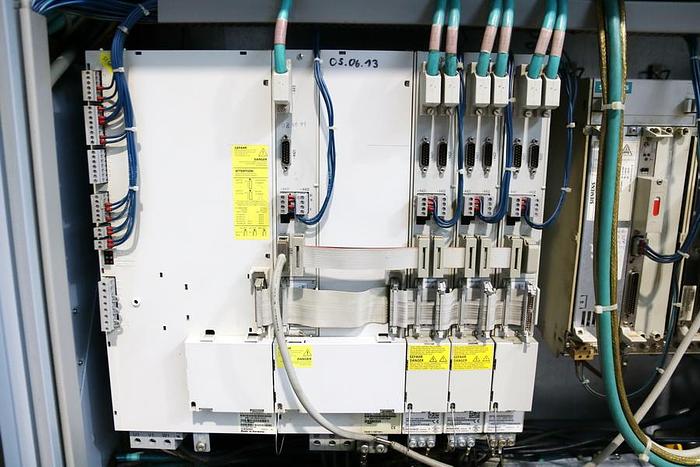

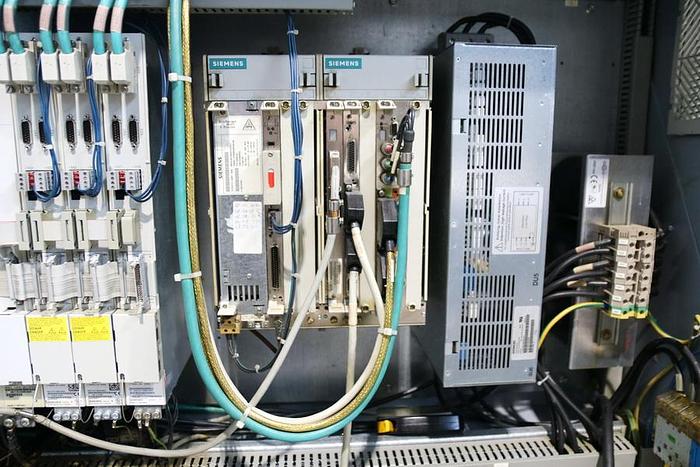

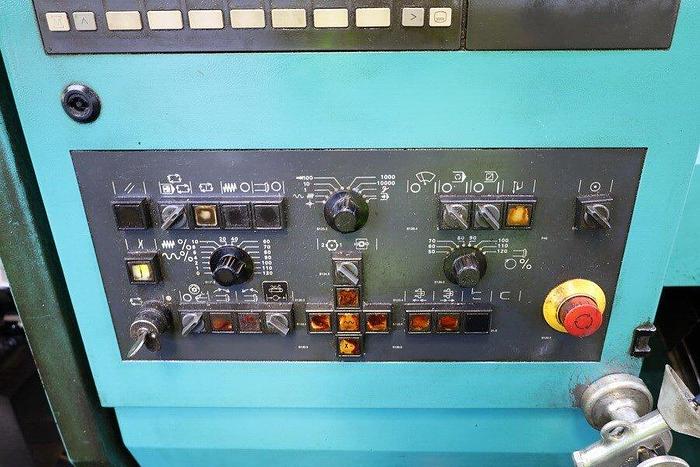

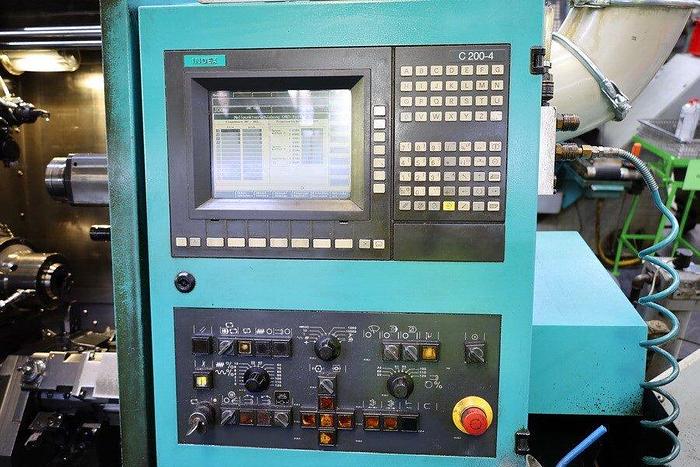

control C200-4 / 840C Siemens

dimensions of the machine ca. 7,0 x 3,0 x 2,5 m

Driven Tool Positions: 8

Feed force X: 8,3 / Z: 5,5 kN

Fixed tools max. 5 pos

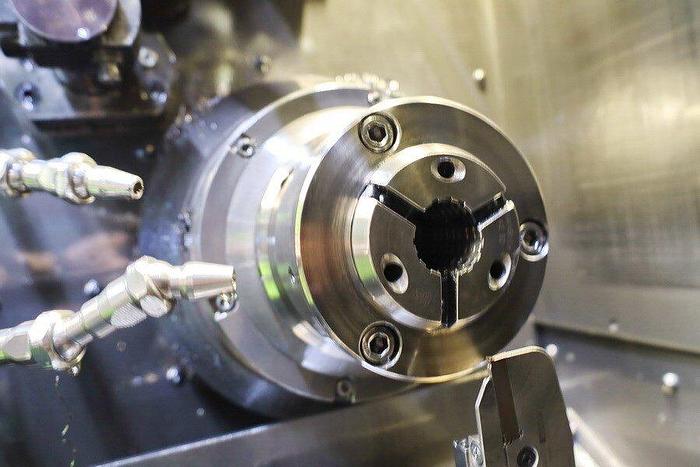

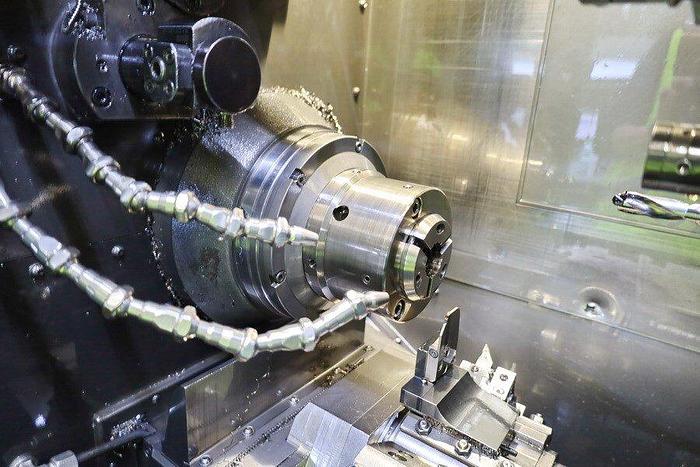

Main spindle:

max. Torque 7,5 Nm

number of toolpositions 6 pos.

power capacity - driven tools 3,3 kW

power capacity - main spindel 13 / 21 kW

rapid traverse X: 16 / Z: 24 m/min

shaft cross cut 25 x 48 DIN 69880

spindle bore 15,5 mm

spindle diameter in front bearing 85 mm

spindle hollow 36 mm

spindle passage 36 (42) mm

Spindle speed - driven tools 6.000 min -1

Spindle speed range subspindle max. 4.500 min/-1

Subspindel: total power requirement ca. 30 kW

travel -x axis 81 mm

travel -z axis 80 mm

turning length max. 280 mm

turning speed range - main spindle max. 6.300 min/-1

Turret 1: Turret 2:

weight of the machine ca. 3,0 t

Accessories

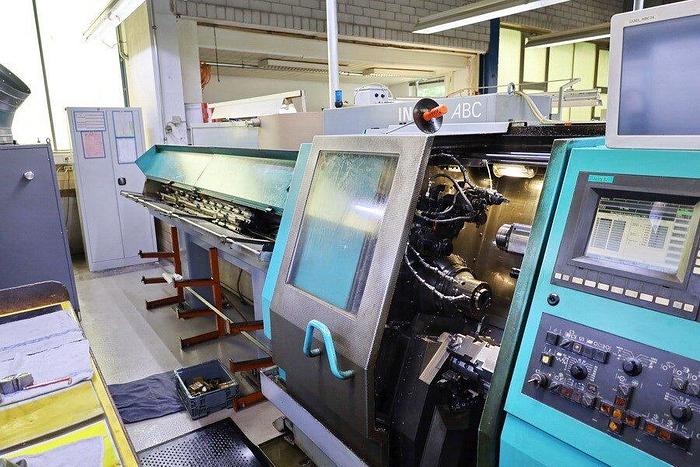

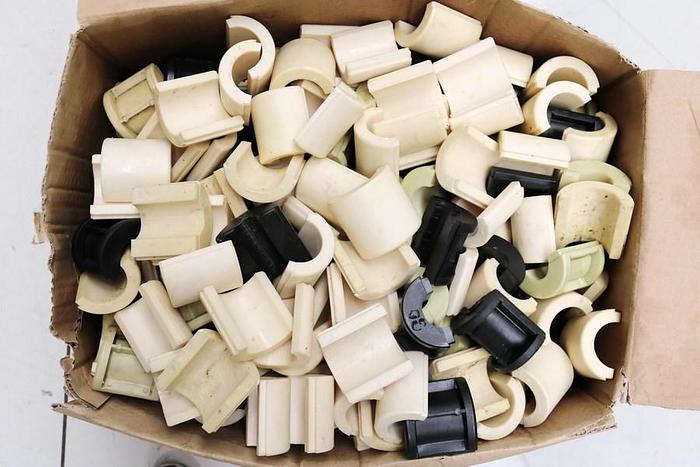

bar feeder Index LM 3200

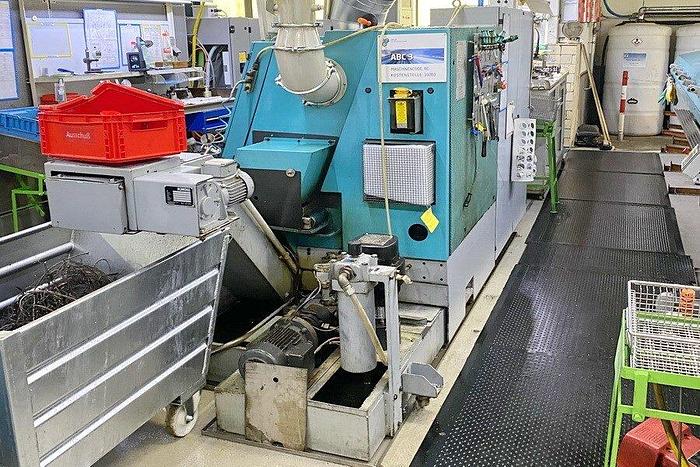

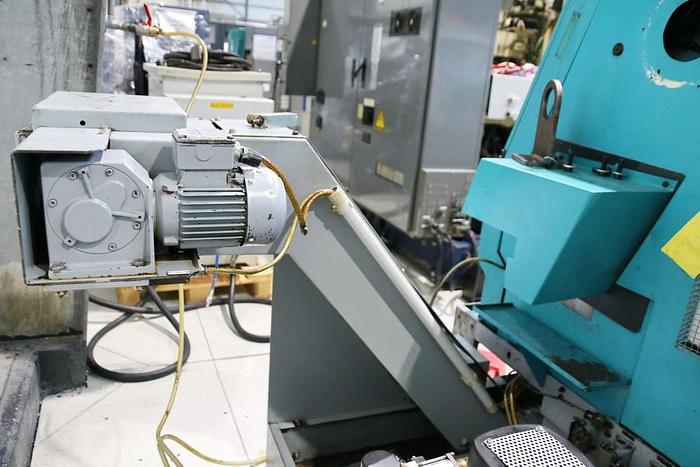

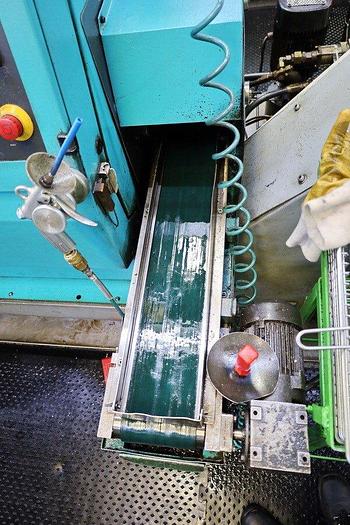

Chip conveyor

Coolantsystem

Documents

driven tool stations

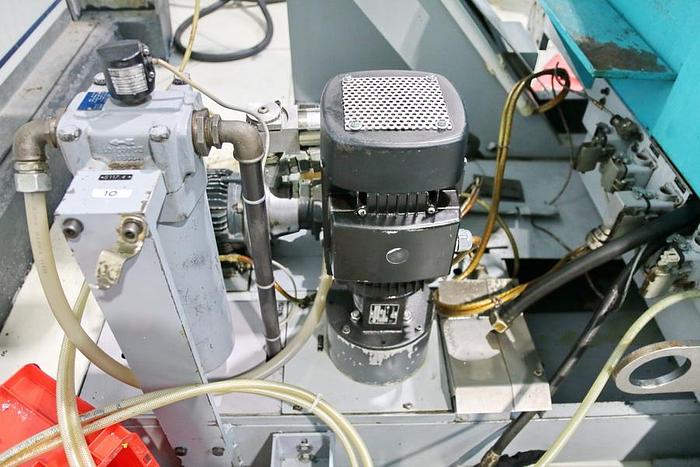

hydraulic system

parts catcher

Subspindle

Turret 2x
