CNC LATHE HWACHEON CUTEX-160 B - TURNING AND MILLING CENTER

WE OFFER AN VERY NICE CONDITION 4 AXIS CNC LATHE HWACHEON

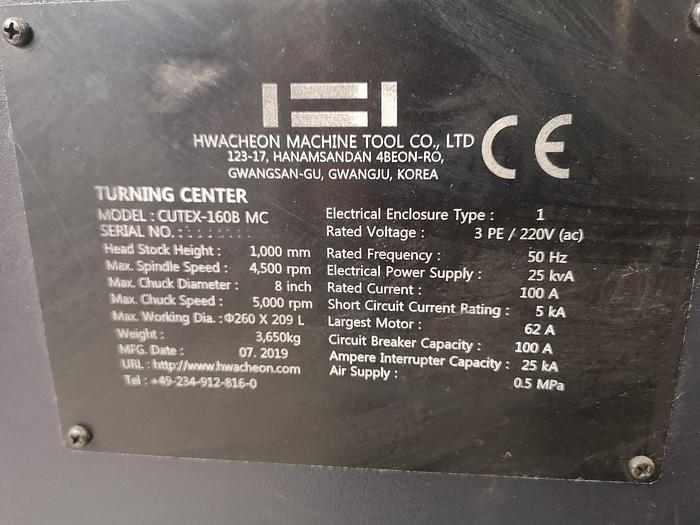

MODEL: CUTEX -160B MC

YEAR: 07 / 2019

HEAD STOCK HEIGHT: 1000mm

MAX SPINDLE SPEED: 4500 RPM

MAX CHUCK DIA: 8 INCH

MAX CHUCK SPEED: 5000 RPM

MAX WORKING DIA: DIAMETER 260 X 209 L

WEIGHT: 3650 KG

RATED VOLTAGE: 3 PE / 220 V (ac)

FREQUENCY 50HZ

ELECTRICAL POWER SUPLY 25 kWA

RATED CURRENT 100A

SHORT CIRCUT CURRENT RATING 5 kA

LARGEST MOTOR 62 A

CIRCUIT BREAKER CAPACITY 100A

AMPERE INTERRUPTER CAPACITY 25 kA

AIR SUPPLY: 0.5 MPa
