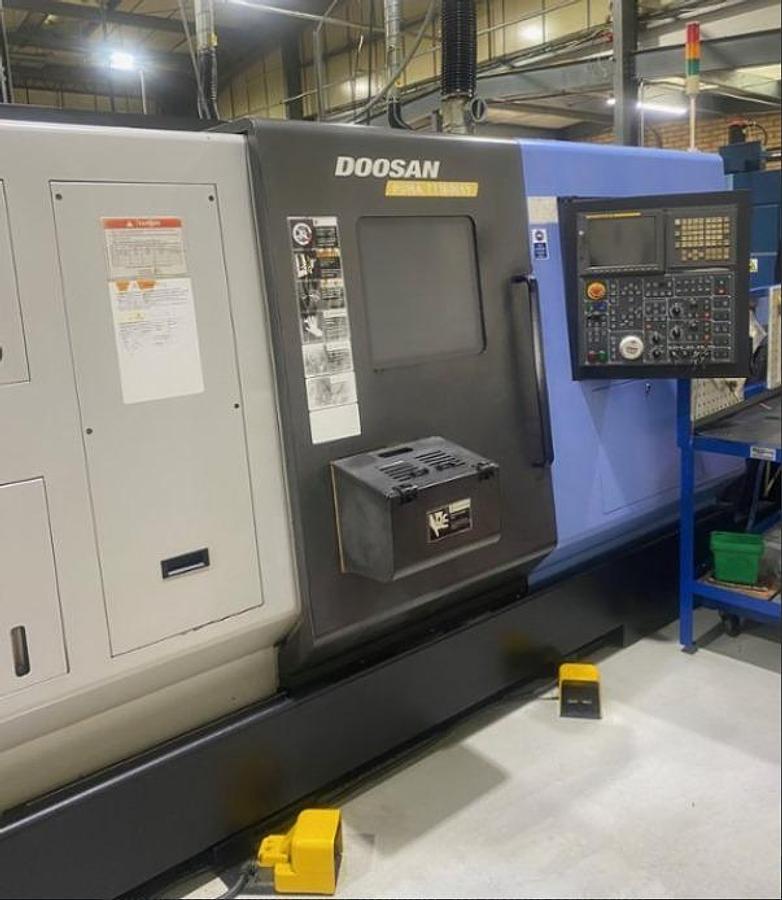

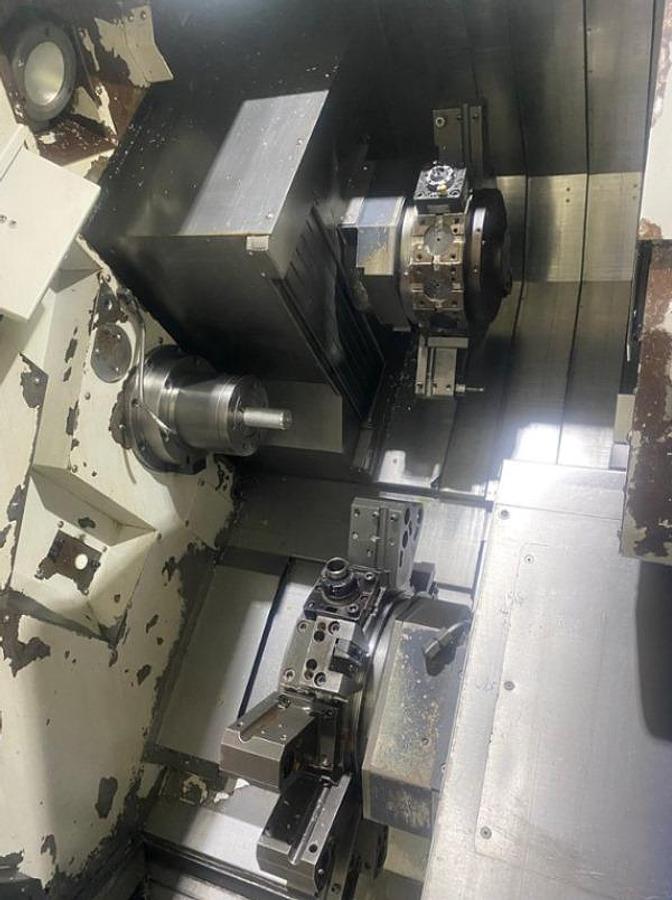

CNC LATHE DOOSAN TT 1800SY TURNING AND MILLING CENTRE

WE OFFER AN VERY NICE WORKING CONDITION Doosan Puma TT1800SY - MACHINE RUNS COMPONENTS FOR MEDICAL EQUIPMENT.

YEAR: 2007

MACHINE WILL COME OUT IN END OF MAY 2025, WE WILL ORGANIZE PROFFESSIONAL DISMANTLING SECURING AND LOADING FOR THE CUSTEMER.

ALSO SHIPPING WORLDWIDE WE CAN ORGANIZE FOR OUR CLIENT.

Spindle Speed: 5000rpm

Spindle Motor Power: 22kw

Rapid Feedrates: X x Z: 20 x 40m/minute

Swing: 230mm

Bar Capacity: 65mm

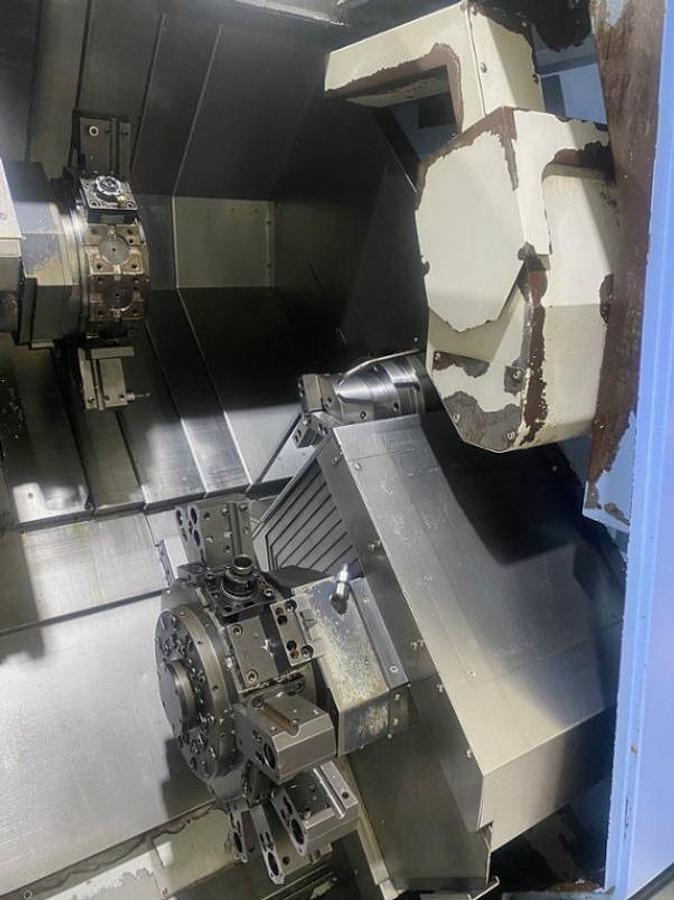

Turret Positions: 12+12

Sub Spindle Motor Power: 15Kw

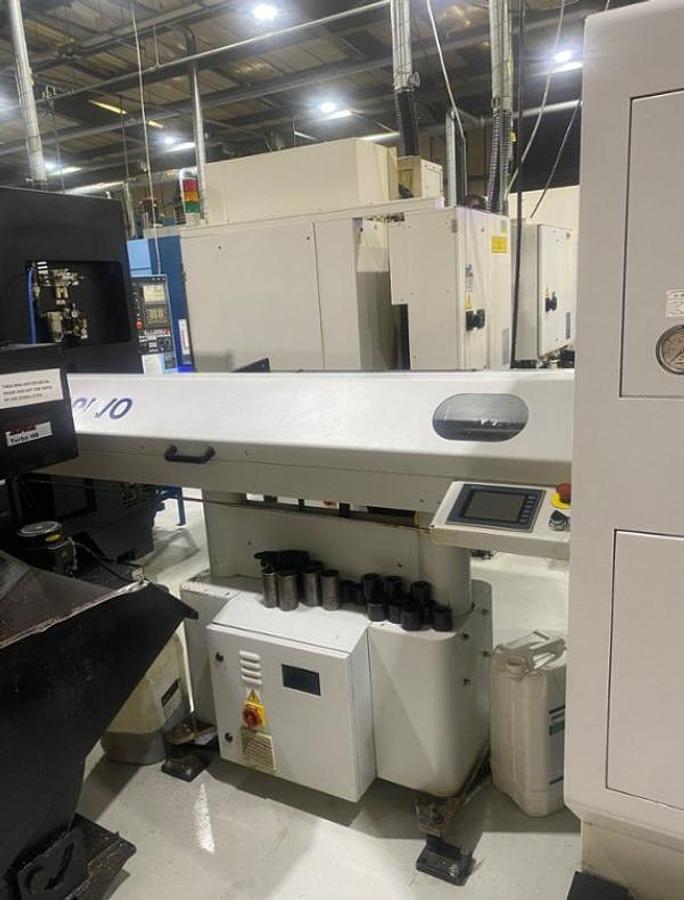

Additional Equipment: 3000mm Iemca Magazine Barfeed

Y Axis Travel: ± 50mm

C axis: 0.001 degree

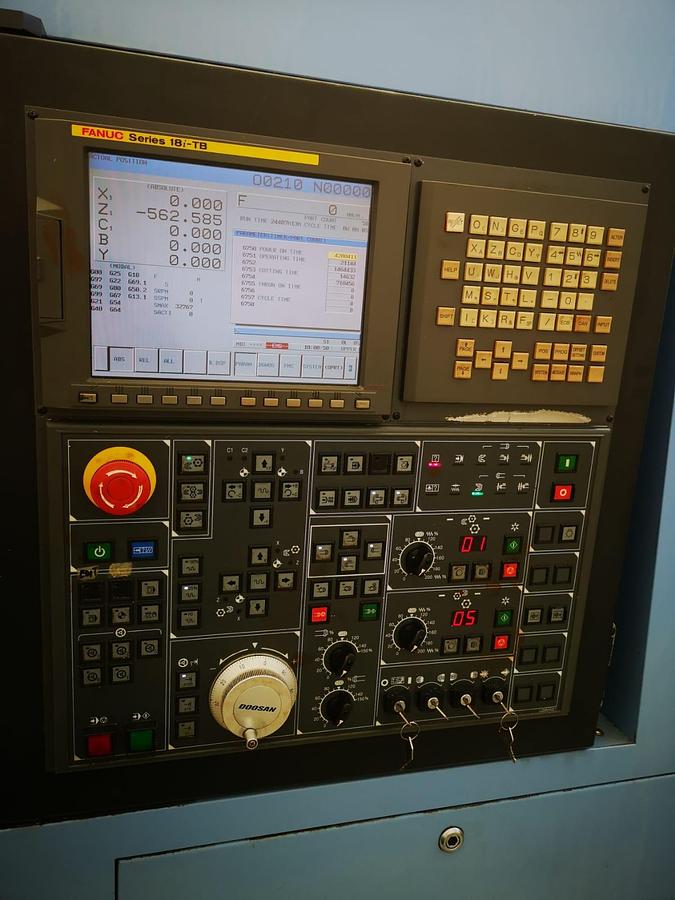

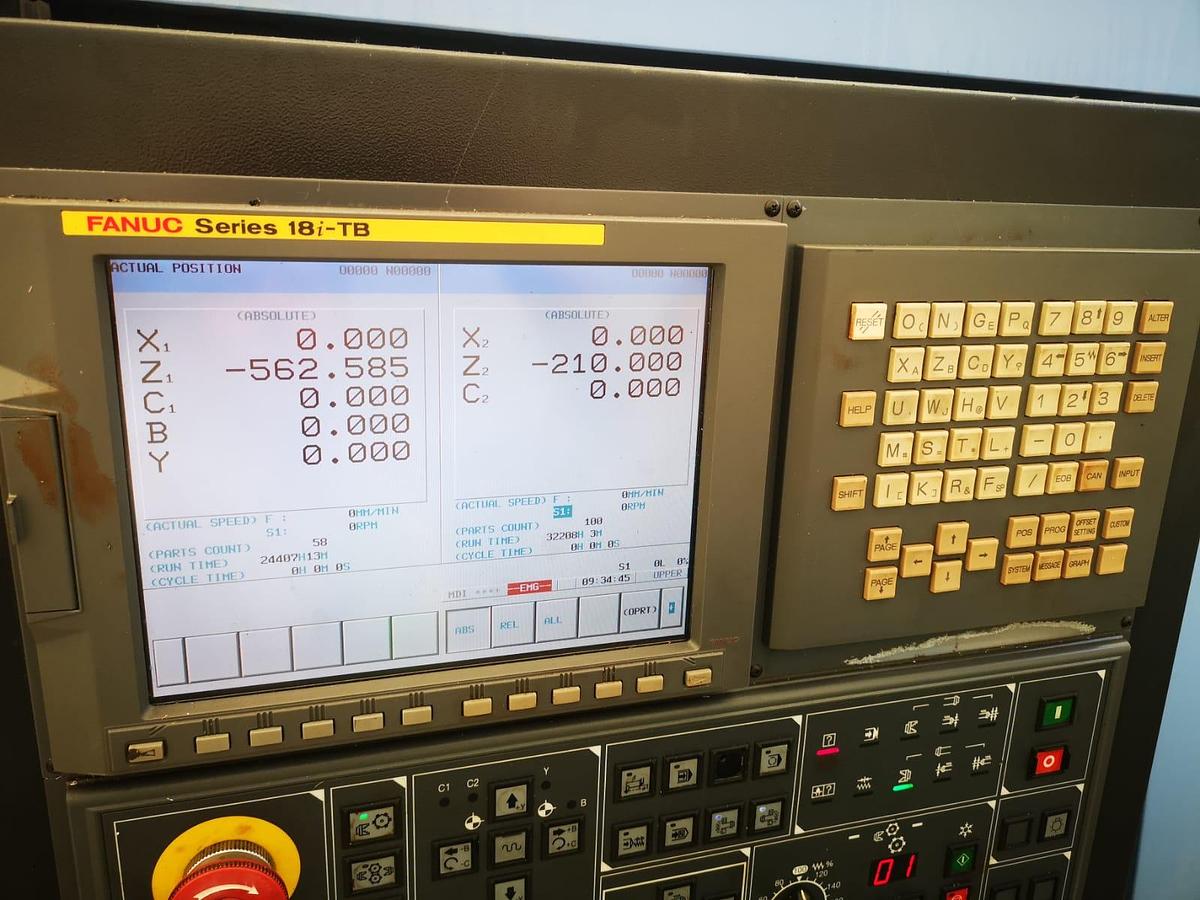

Control: FANUC 18i

Machine Dimensions L x D x H: 3905 x 2070 x 2080mm

Machine Weight: 8800kg

Maximum Cutting diameter: 230mm

Maximum Cutting Length: 230mm

Milling RPM: 5000rpm @5.5kW

Description equipment :

C axis & Milling,

Tool setter,

Coolant,

Y-Axis,

Interlocked guards,

Low Volt Light,

Magazine Barfeed,

Parts Catcher,

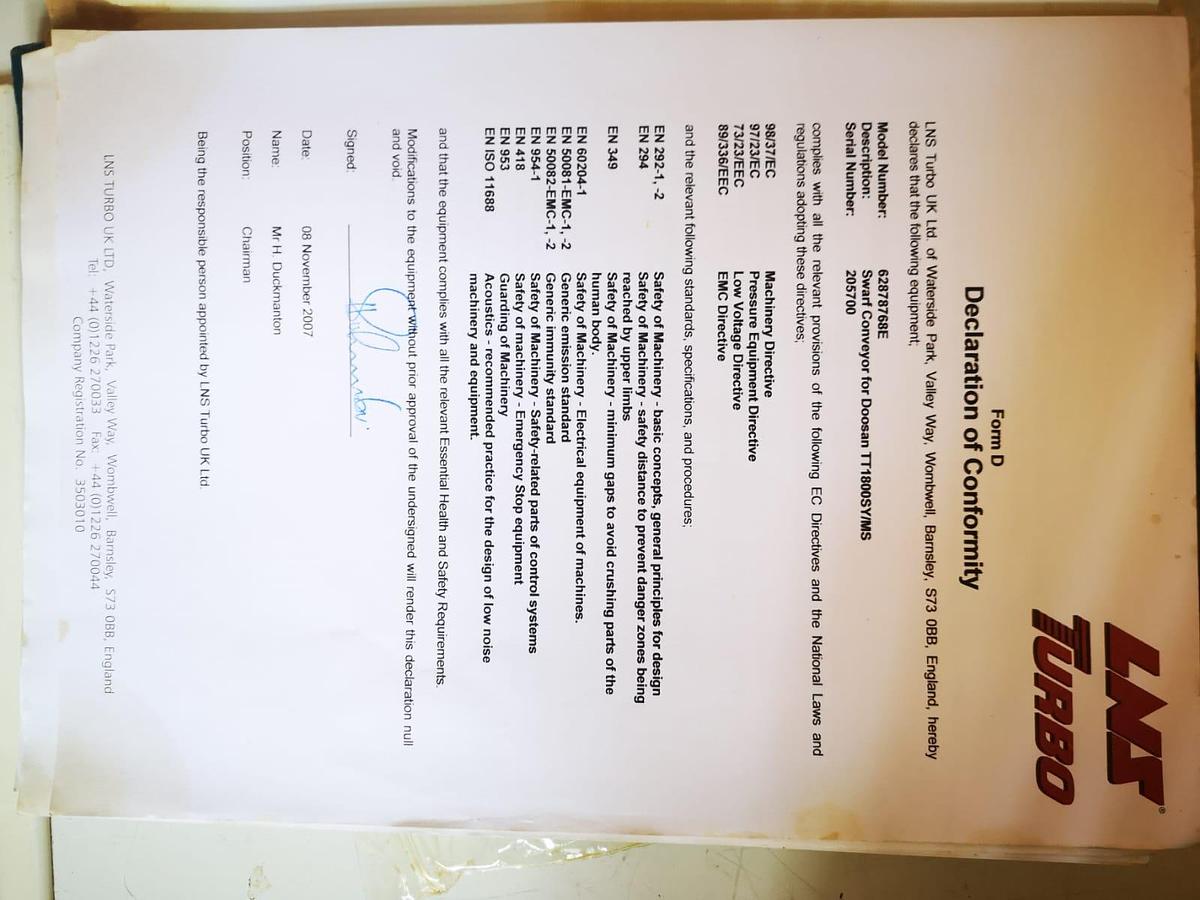

Manuals,

C Axis (0.001deg) on

Sub Spindle,

Swarf Conveyor,

Sub Spindle
