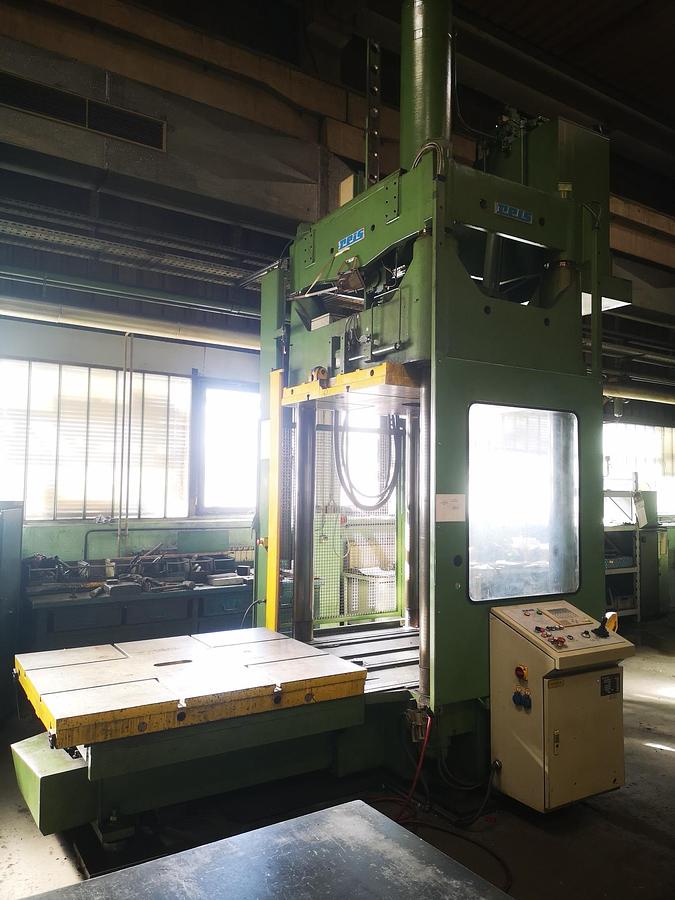

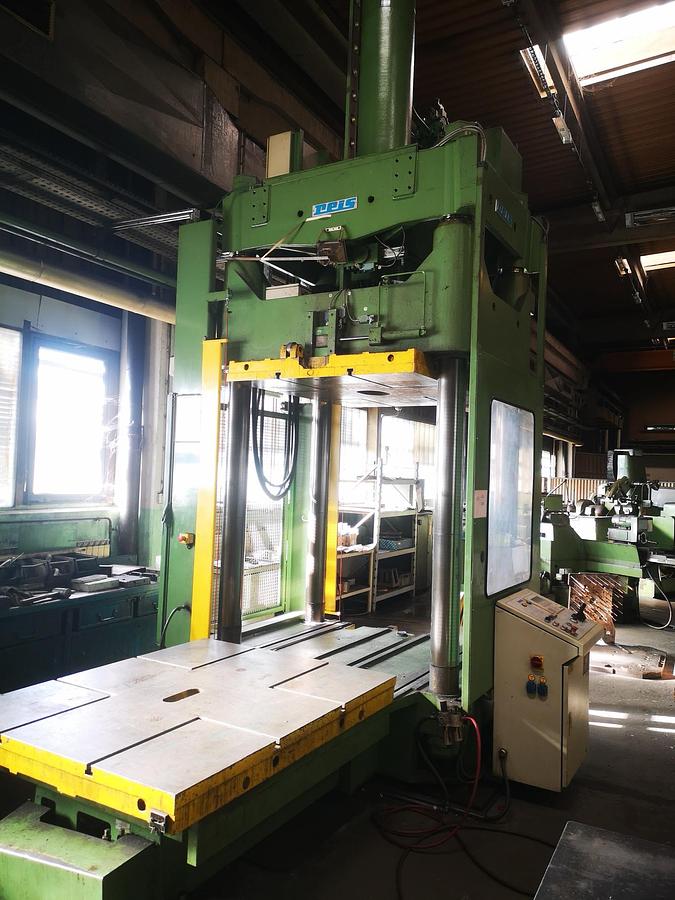

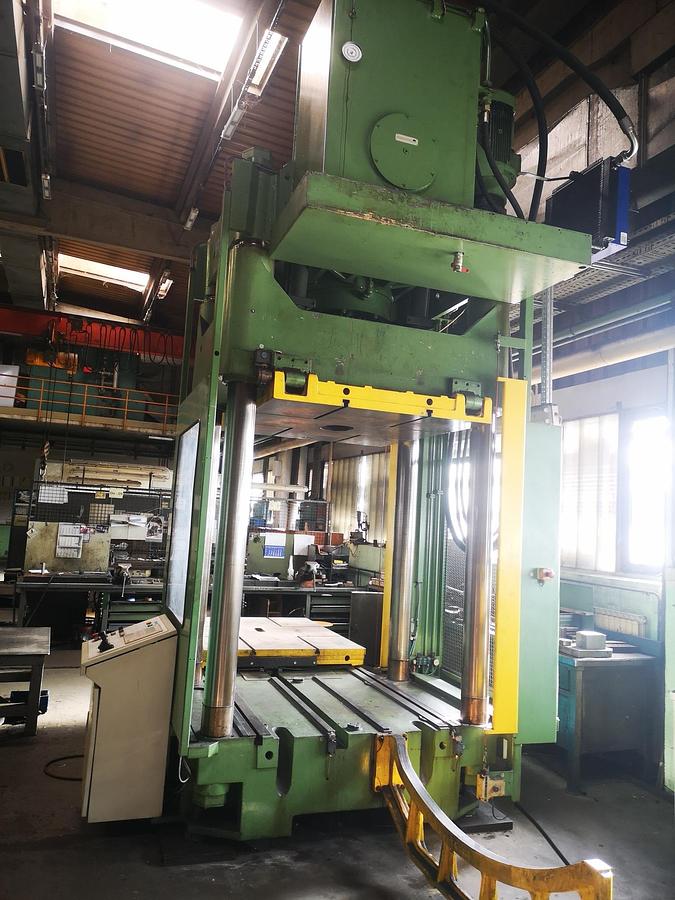

REIS TUS 130-100 SPOTTING PRESS

WEOFFER AN BEAUTIFULL CONDITION REIS PRESS

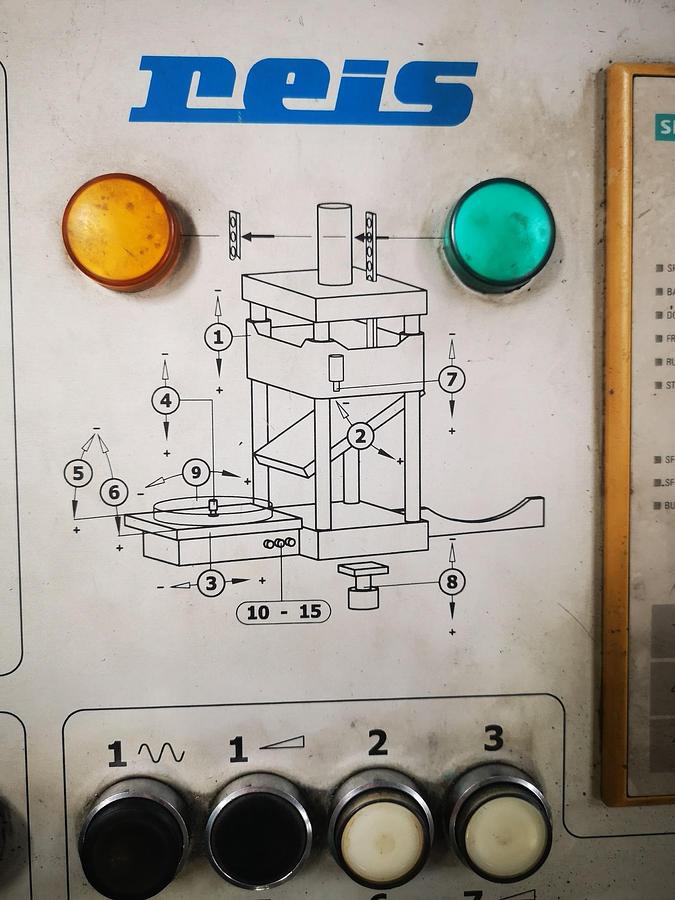

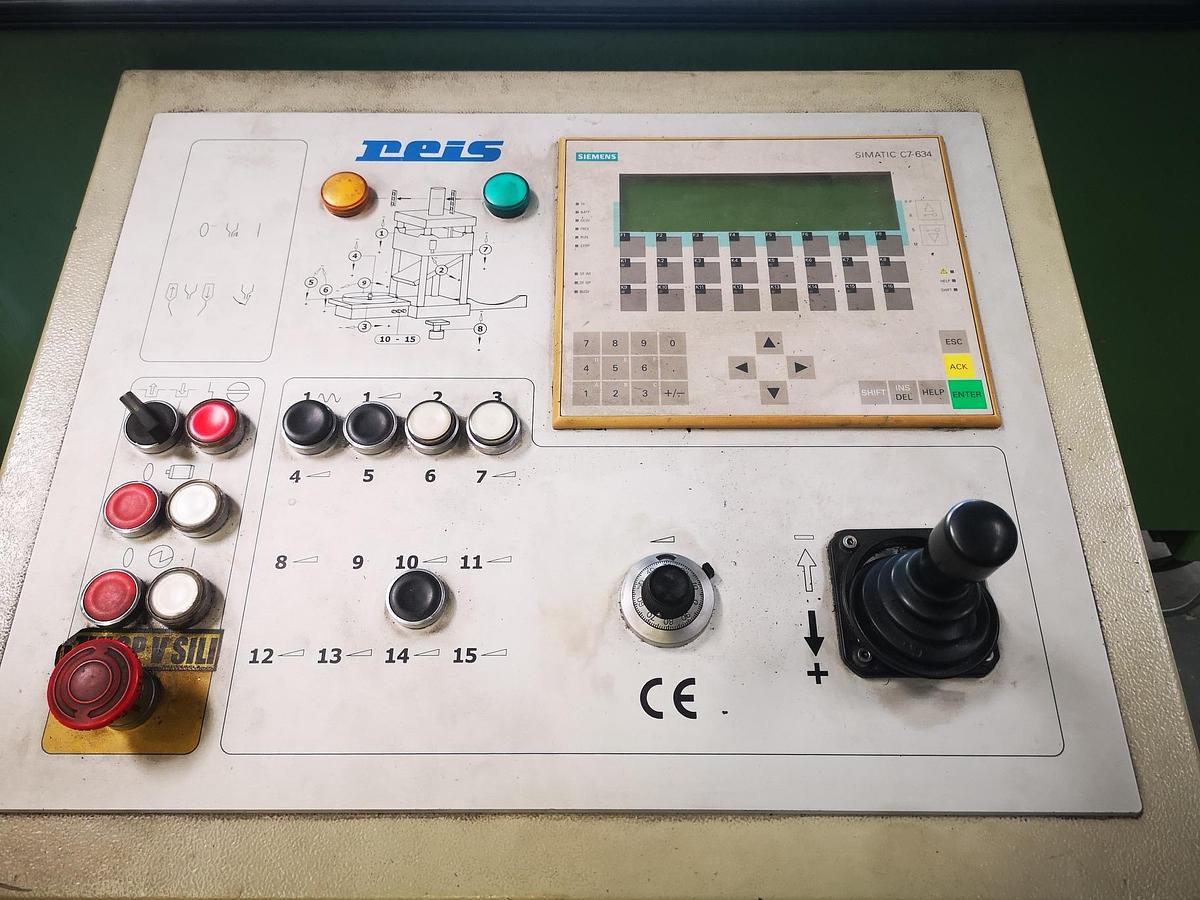

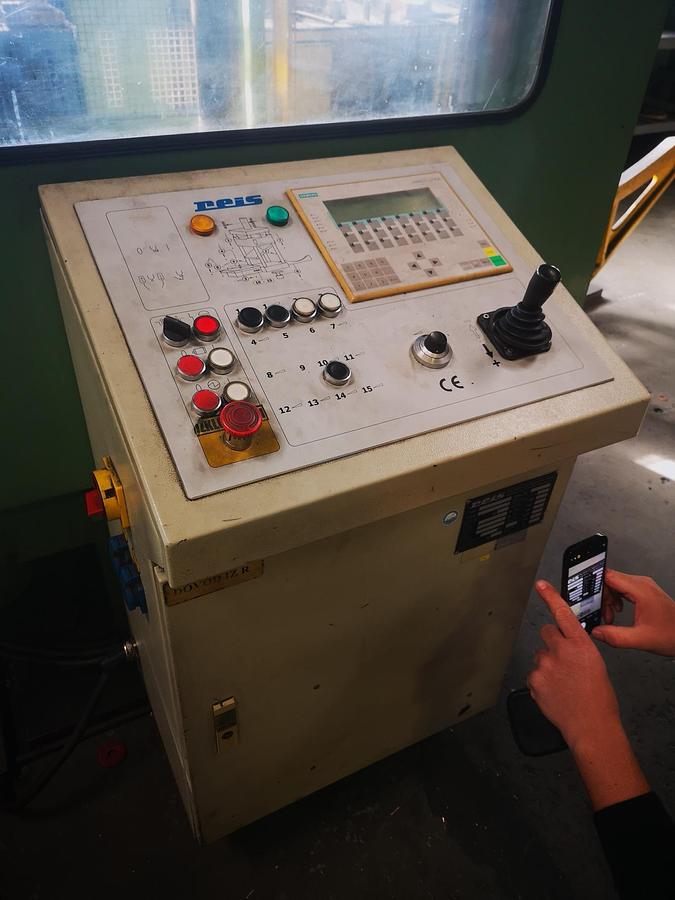

YEAR: 2004 WITH SIEMENS OPERATIONAL PANEL.

Description

Press force: 1000 KN

Press closing speed: 50 mm/s

Press opening speed: 50 mm/s

Installation height: 1400 mm

Maximum table distance: 1700 mm

Tables: 1600×1300 mm

Allowable weight 12000 kg

No.1 clamping table

Translation 1500 mm speed 200 mm/s

Maximum load 6000 kg

Nr.1 Tilting table

Angle 60°

Maximum load 7500 Kg

Overall dimensions: 3900 x 2400 x 3045 mm

FOR TRANSPORT WILL BE DISASEMBLED -CILINDER AND HYDRAULIC UNIT TO FIT ON MEGA TRAILER 3000mm height is required.

Weight: 17000 Kg
