HURCO BMC30/M

WE SELL AN NICE WORKING CONDITION HURCOP -BMC-30

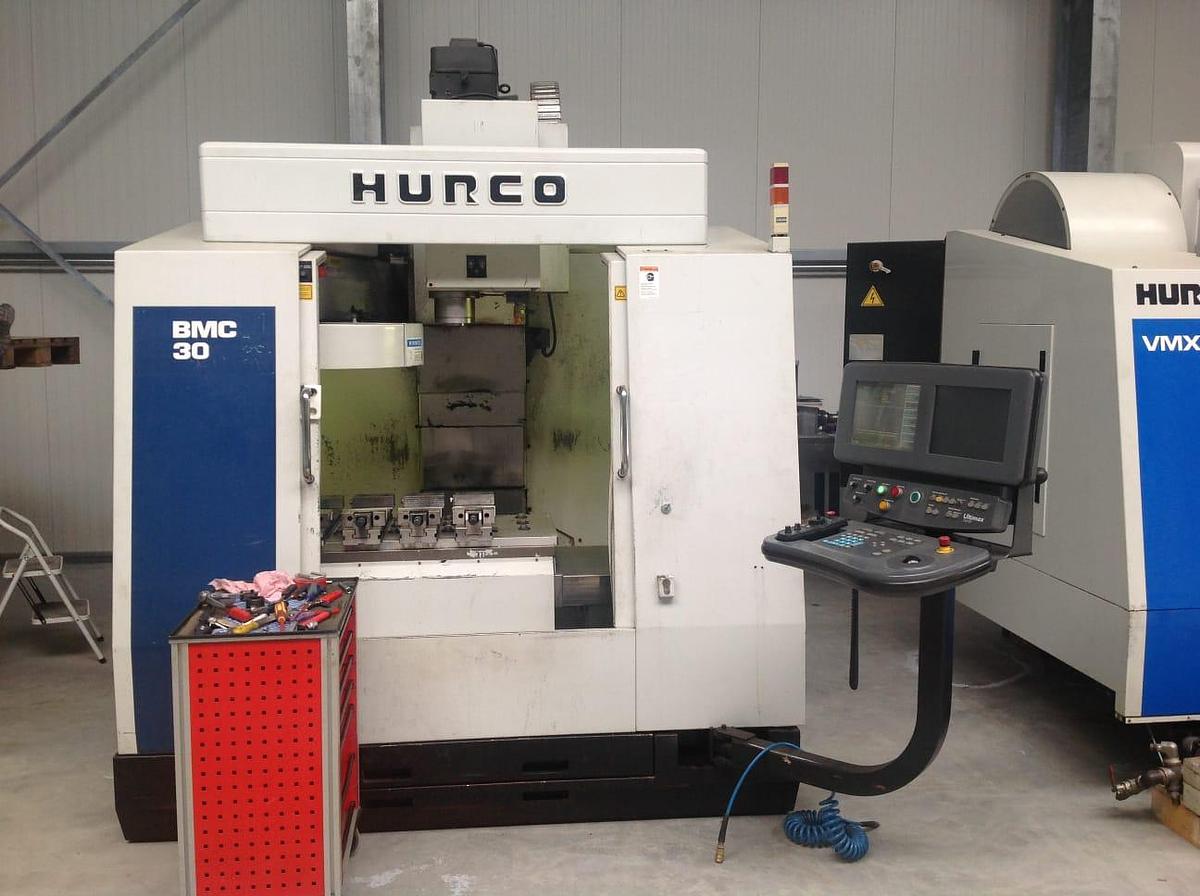

CNC Vertical Machining Center HURCO

BMC 30/M

Year of manufacture: 1998

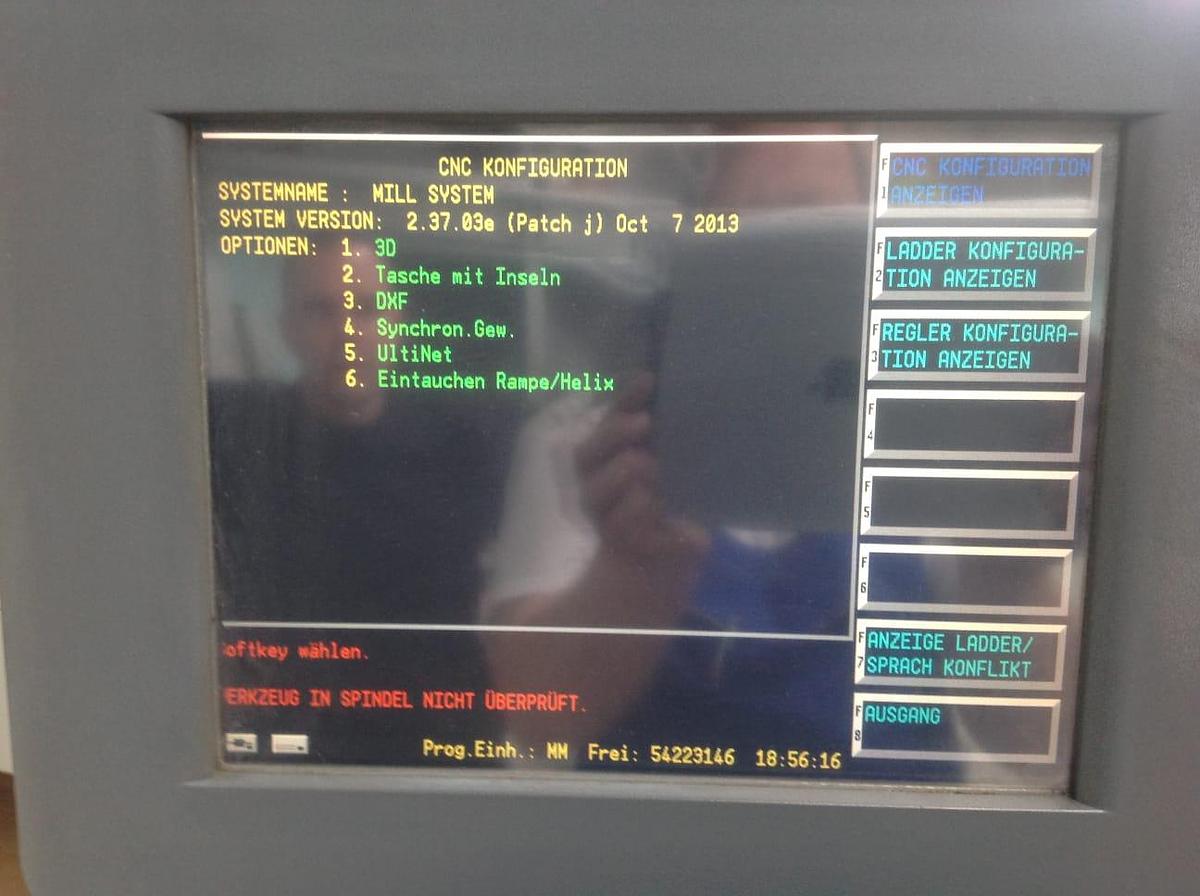

CNC path control Ultimax

X: 760 mm,

Y: 460 mm,

Z: 610 mm

Table: 1010 x 400 mm

Spindle mount: SK 40

Distance spindle nose - table: 150 - 760 mm

Overhang: 450 mm

Spindle speed: 80 to 8000 rpm, stepless

Rapid traverse: 24 m/min

Spindle drive: 7.5 kW at 30min / 5.5 kW at 100%

Electrical connection: 400 Volt, 50 Hz

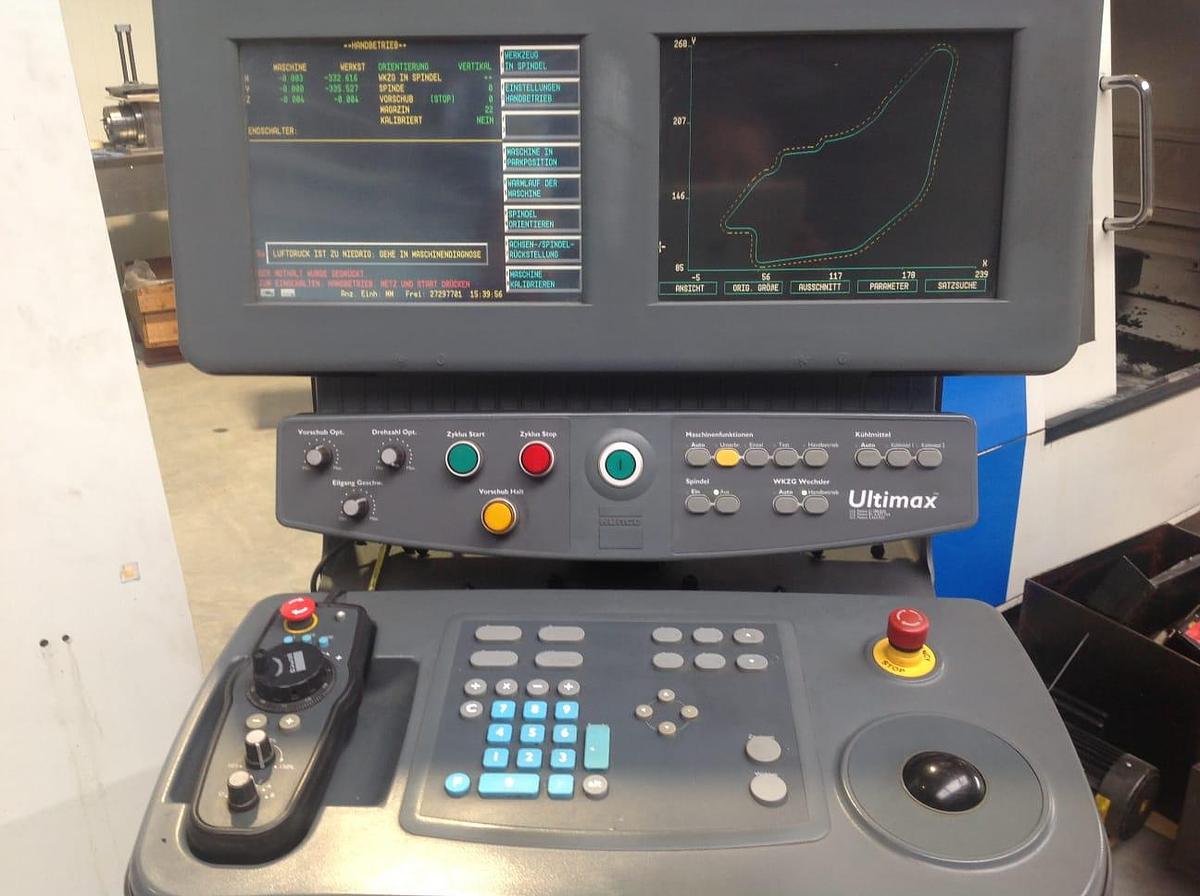

- CNC path control Ultimax (with hardware update, e.g. TFT monitors)

- Electronic handwheel

- Indirect measuring system with rotary encoders on the ball screw

- Tool changer with 24 tool positions

- Full enclosure / sliding door

- Swivel operating panel

- Pneumatic/mechanical tool clamping

Dimensions (L x W x H): 3400 x 2400 x 2550 mm

Weight: approx. 4,800 kg

Good condition  READY TO WORK
