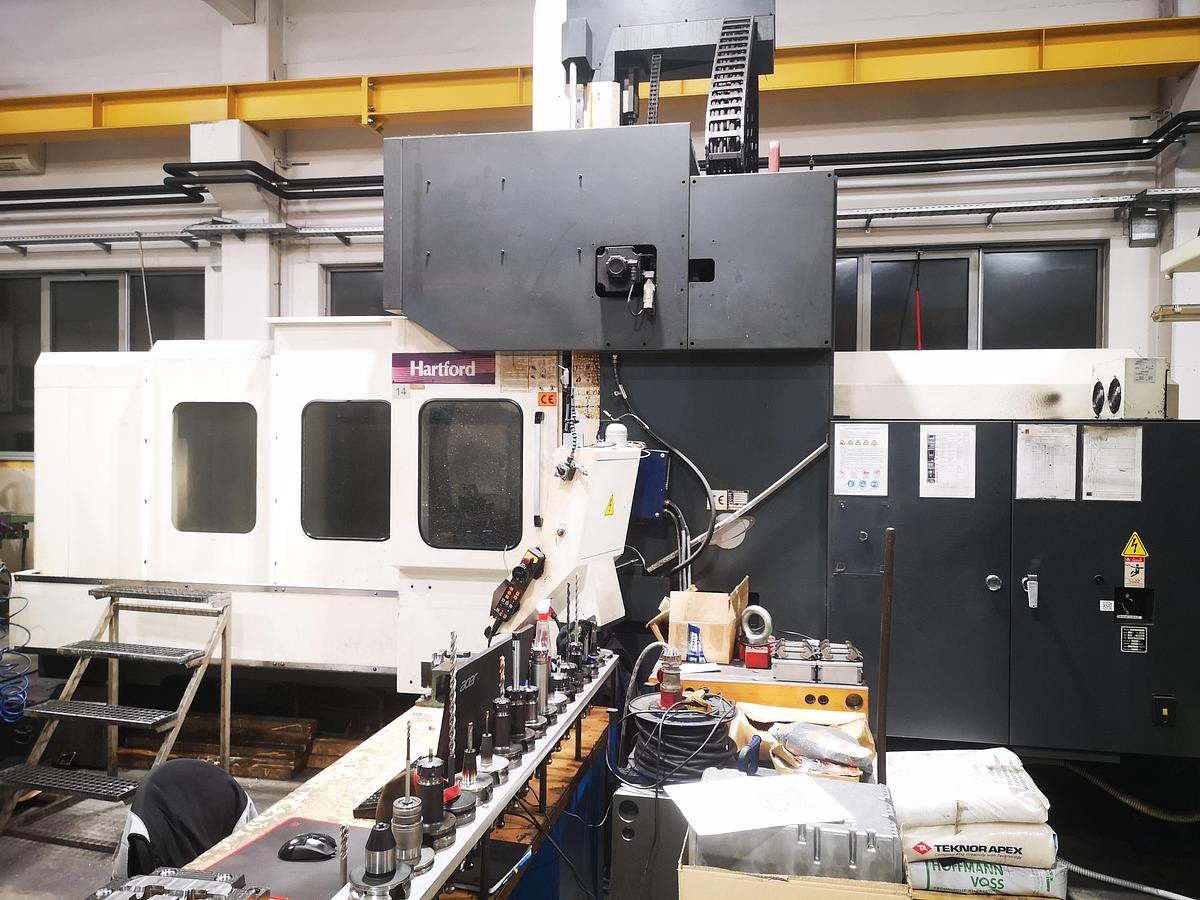

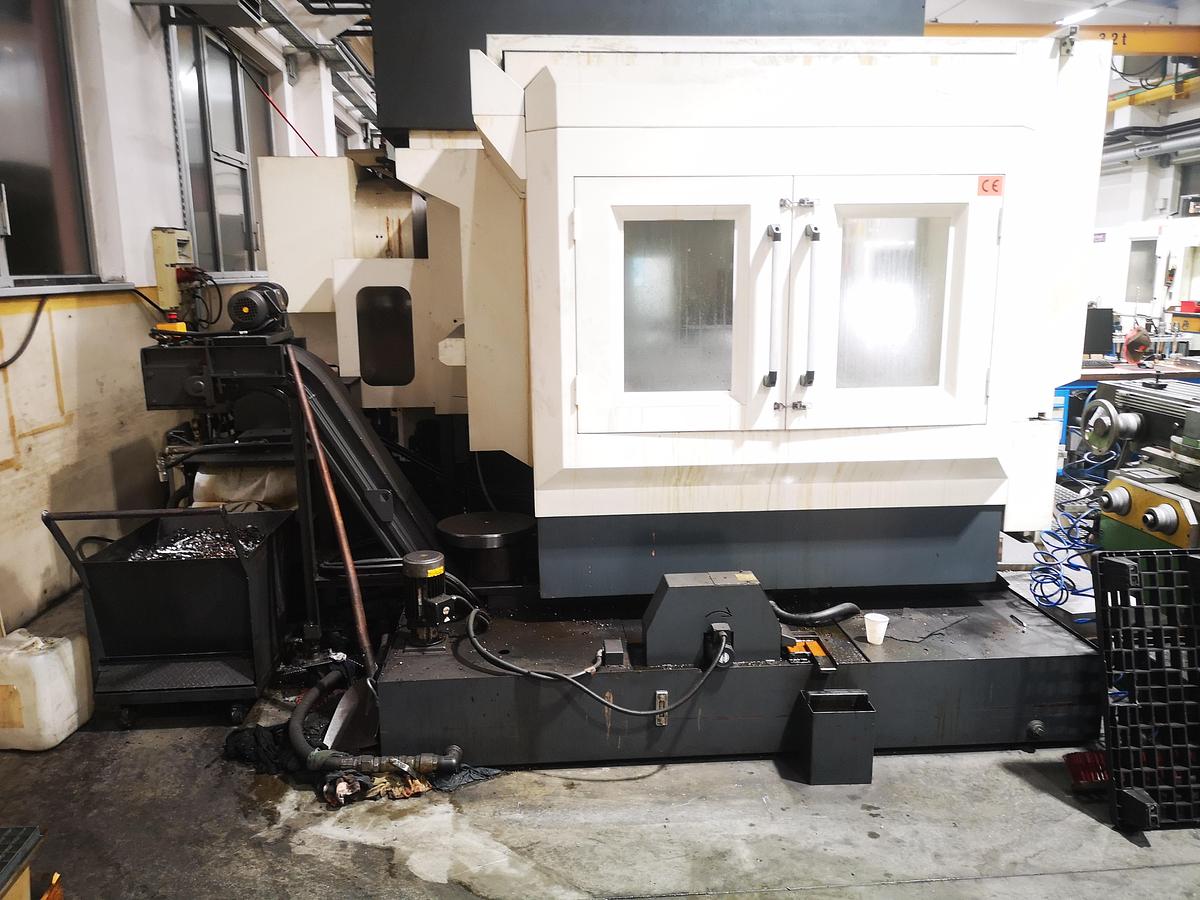

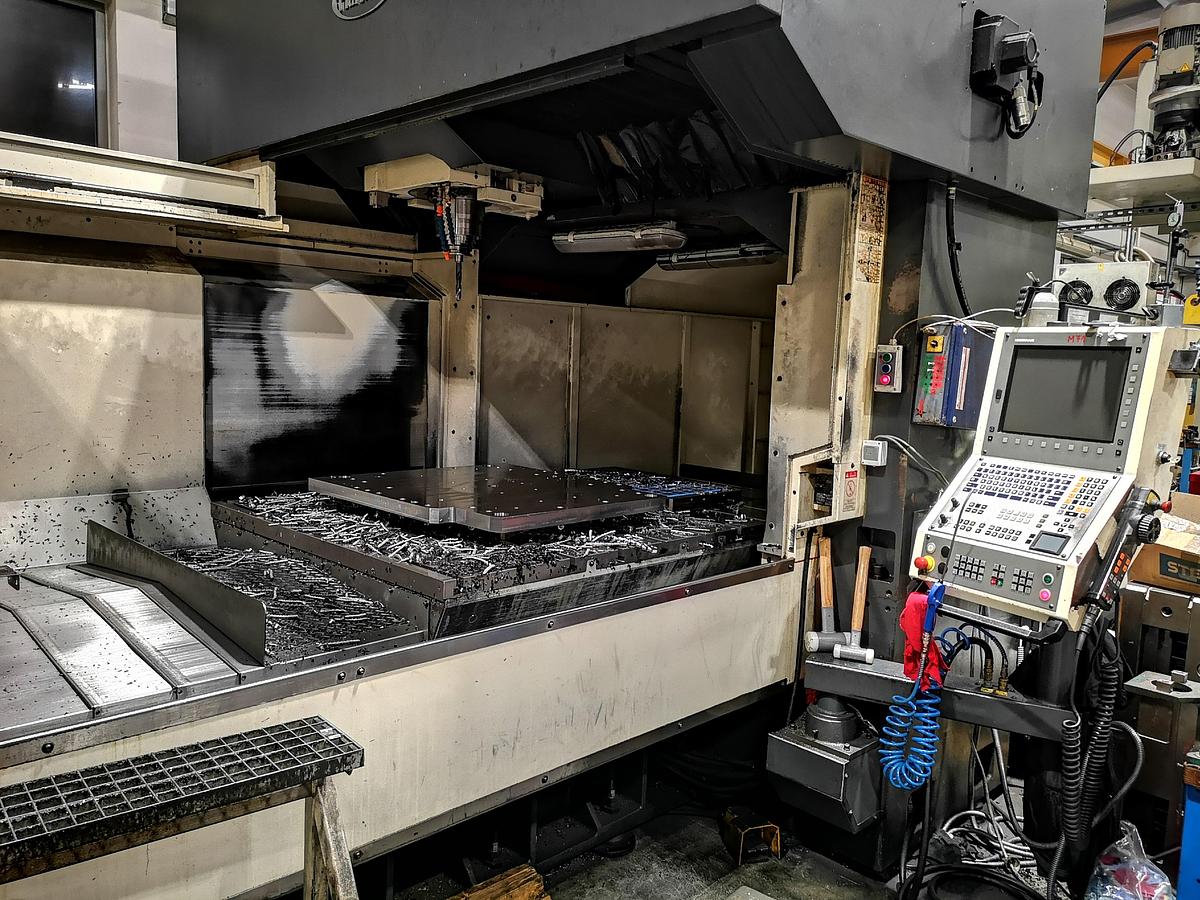

GANTRY TYPE HARTFORD HSA 2215 AD - FULLY EQUIPED INCLUDED TOOLS AND ACCESSORIES

WE OFFER AN FULLY FUNCTIONAL IN GREAT WORKING CONDITION AND WILL BE AN GREAT OPORTUNETEY

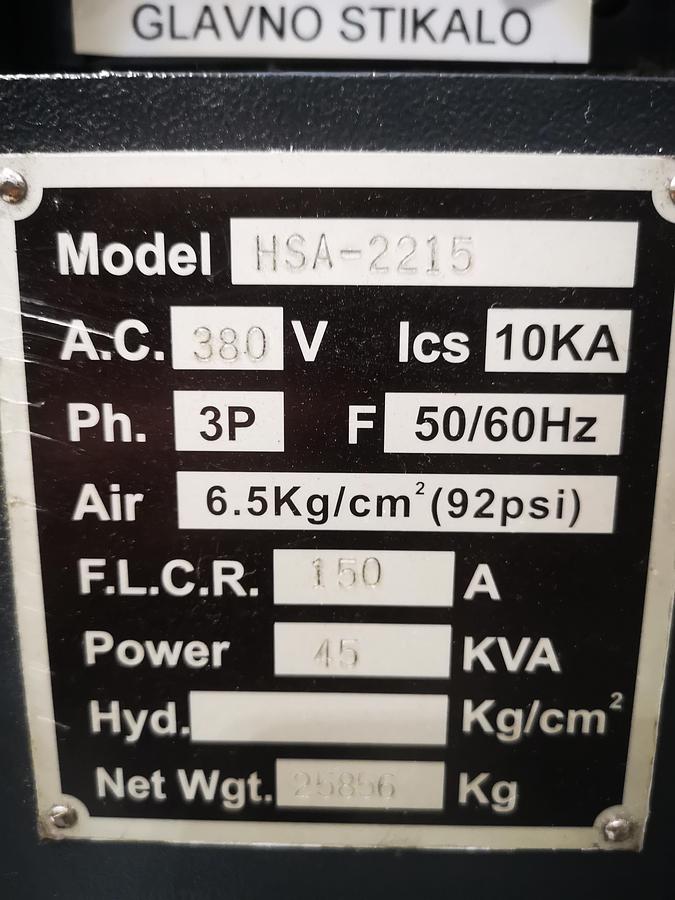

TYPE: HARTFORD HSA 2215 AD + HEIDENHAIN TNC530

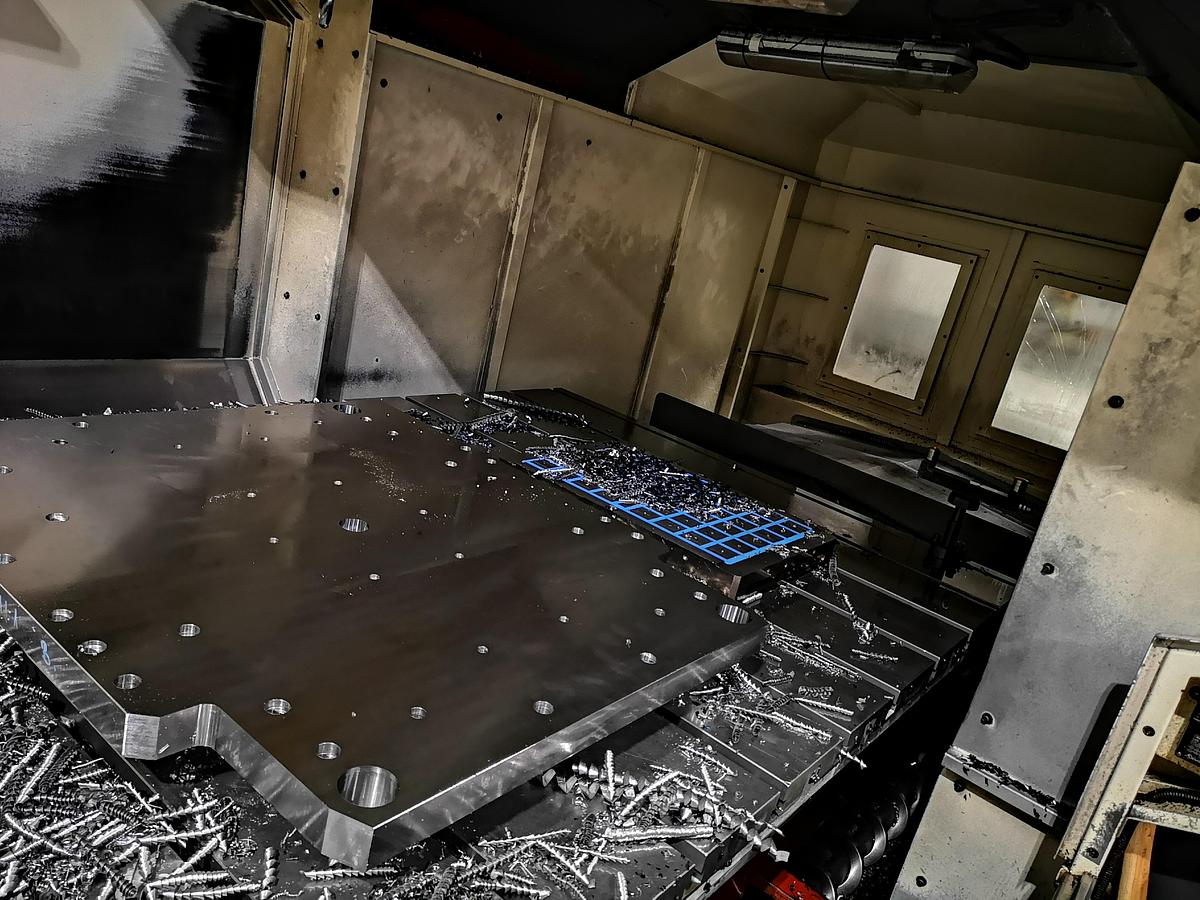

IDEAL MACHINE FOR MAKING BIGGER PLATES

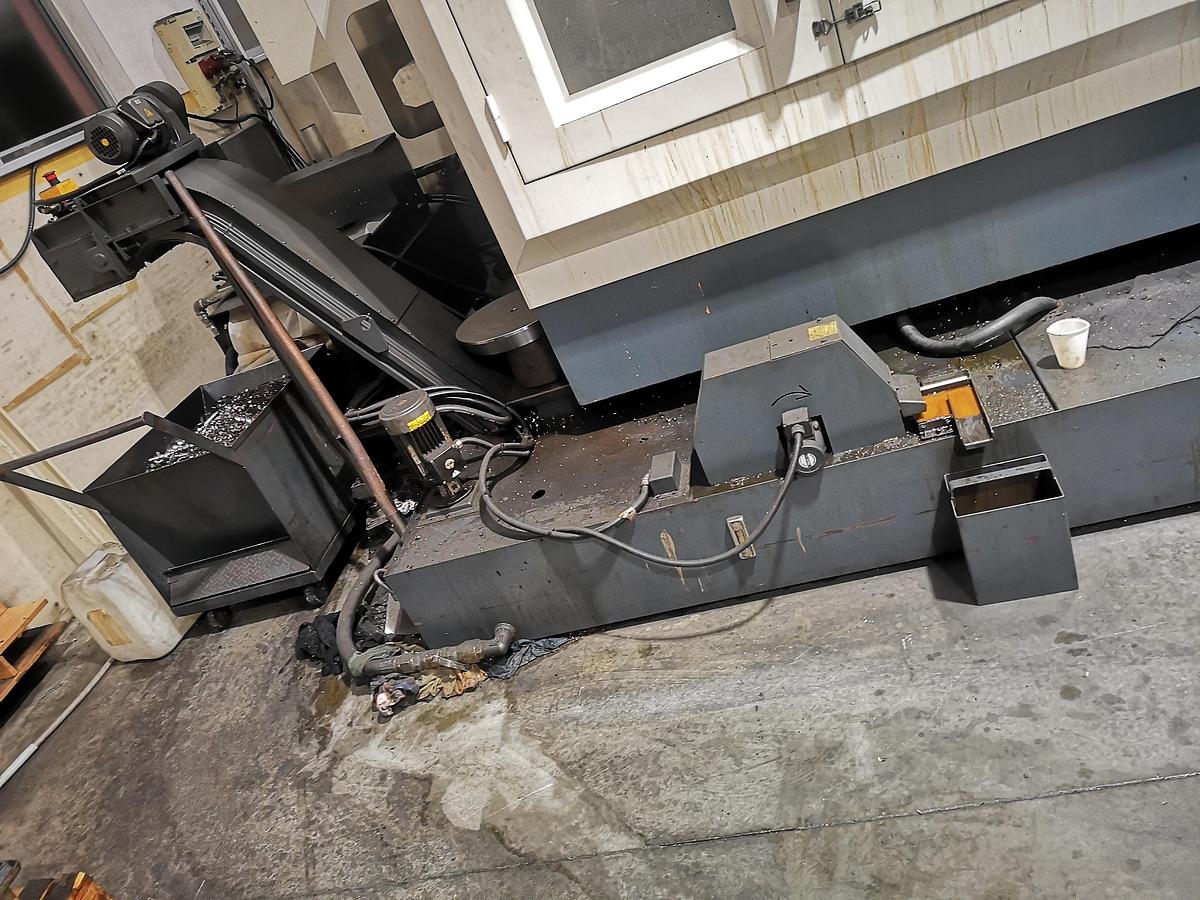

MACHINE HAS COOLING TROUGH SPINDLE

FULLY EQUIPPED WITH TOOLINGS AND ACCESSORIESS

Three-axis travel:

X: 2200 mm

Y: 1500 mm

Z: 780 mm

SPACE BETWEEN TABLE AND SPINDEL: 220-1000mm

SPINDLE SPEED:10.000RPM

SPINDLE POWER : 30KW - DIRECT DRIVE

Tool magazine: 30

Positioning accuracy: 0.01mm

Main motor power: 18.5kw

TOTAL WEIGHT : 28 TON

STANDARD EQUIPMENT:

-    + TNC SOFTWARE

-    + HEIDENHAIN three-point measuring bars

-    + PRE-TENSIONED SPINDLES

-    + HEIDENHAIN handwheel  HR410

-    + OIL COOLING OF THE SPINDLE

-    + CTS cooling through the spindle 20 BAR

-    + HEIDENHAIN 3D touch probe for workpiece measurement TS640

-    + LASER NC-4 F230ZA TOOL MEASUREMENT

-    + HEIDENHAIN SOFTWARE OPTION 1+ 2 (computer HSCI, CC6222)

-    + HEIDENHAI PL-510

-    + SPINDLE AIR CURTAIN

-    + OIL SKIMMER

-    + EXTRA LIGHT

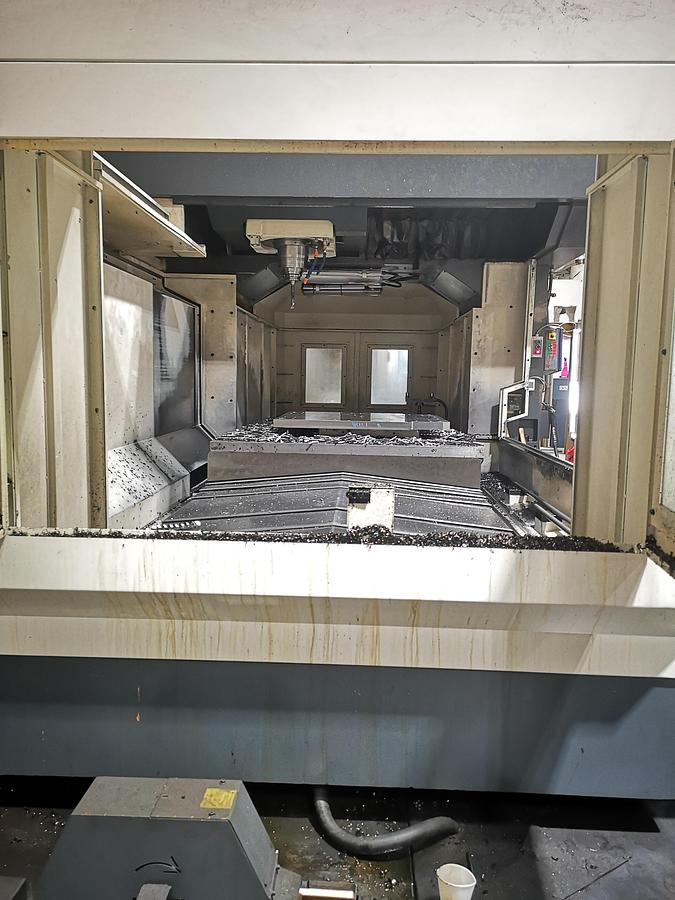

-    + MACHINE ENCLOSED ON ALL SIDES

-    + SPINDLE TEMPERATURE COMPENSATION

ADDITIONAL EQUIPMENT:

WITH MACHINE COMES

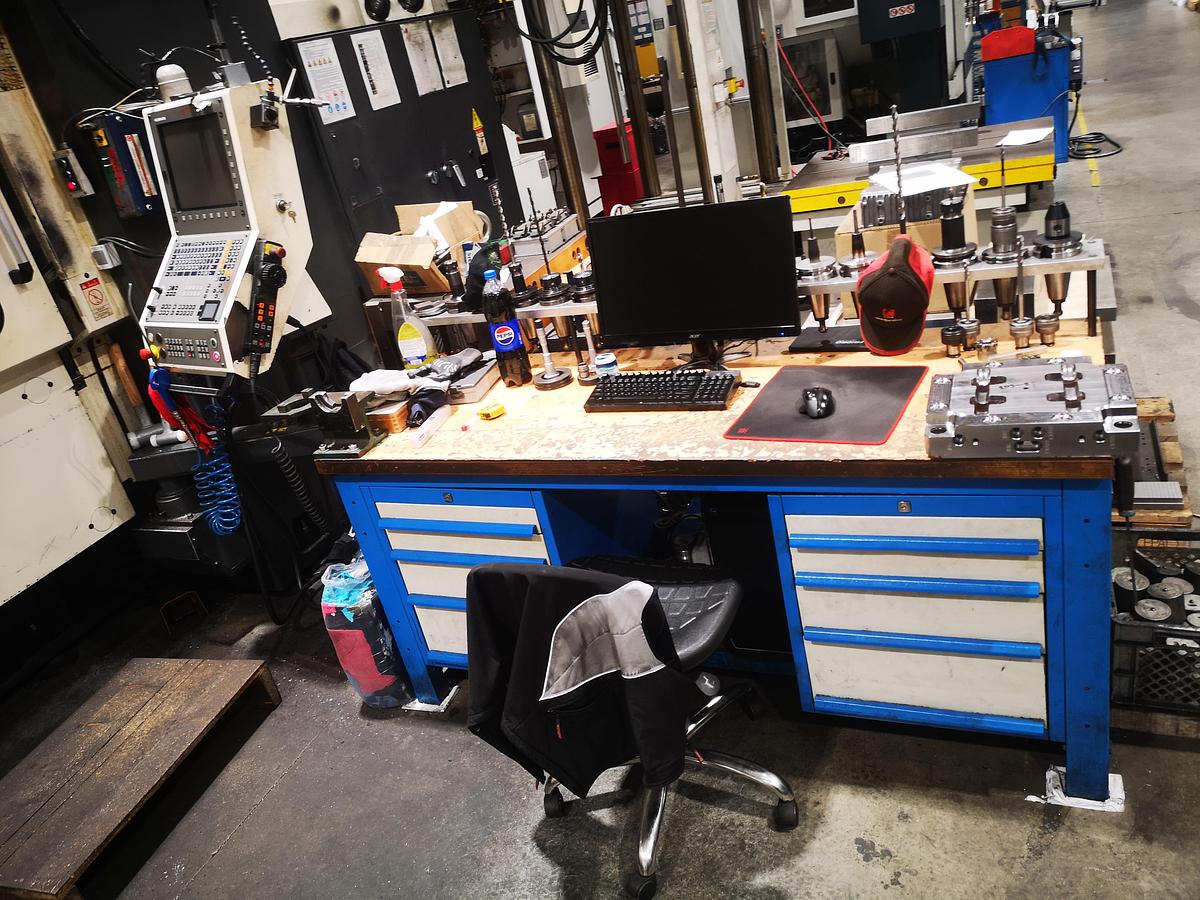

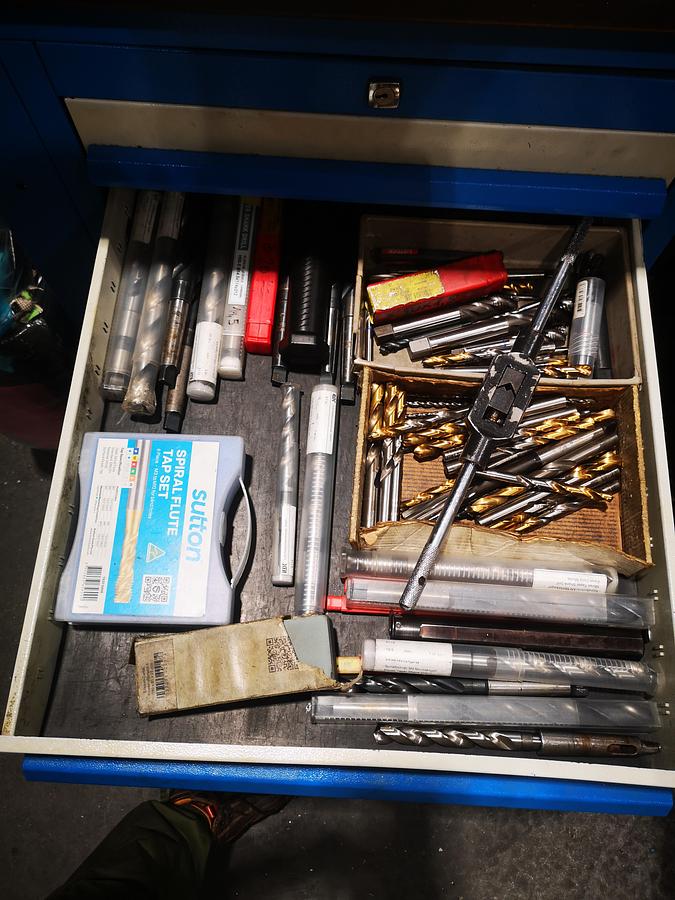

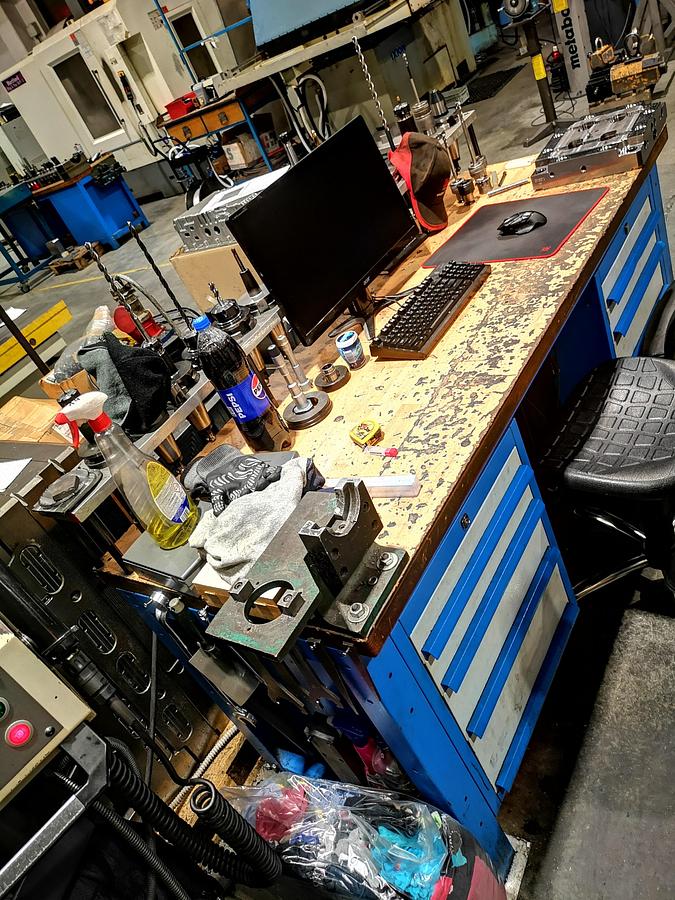

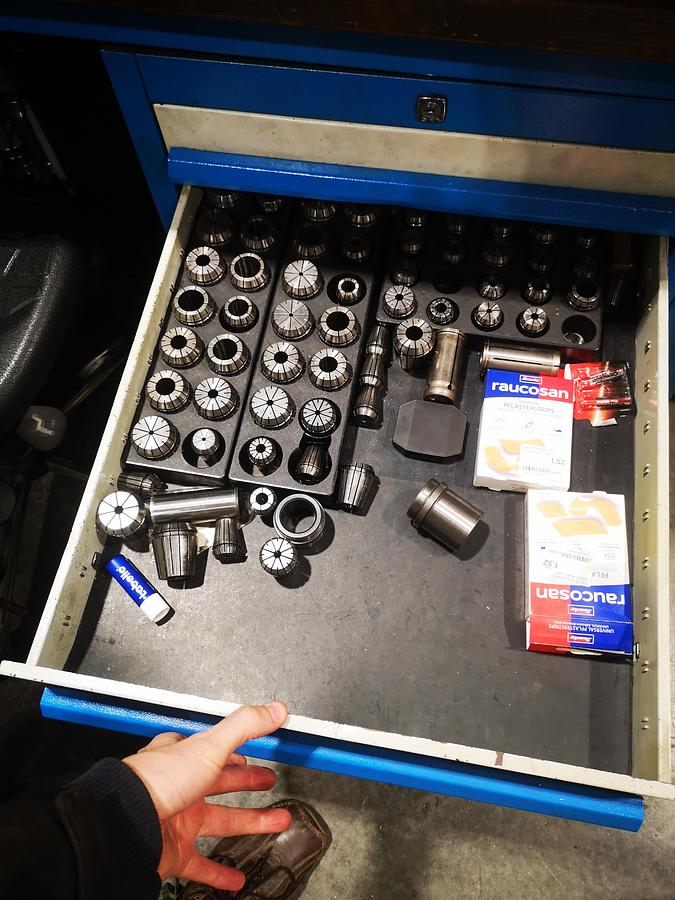

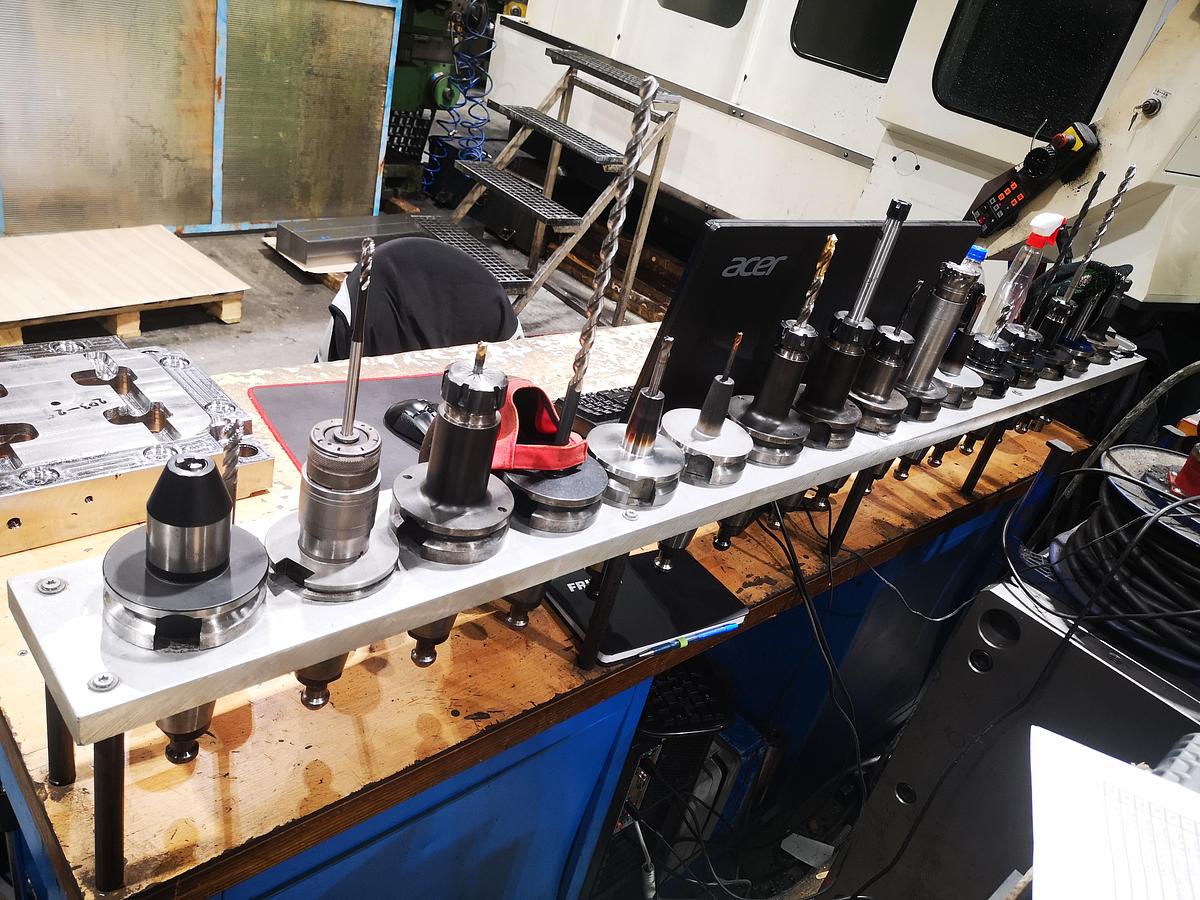

• FULLY ATC TOOLS COMPLETED LOADED TOOLINGS AND ADDITIONAL FULL TOOLS FROM THE TABLE

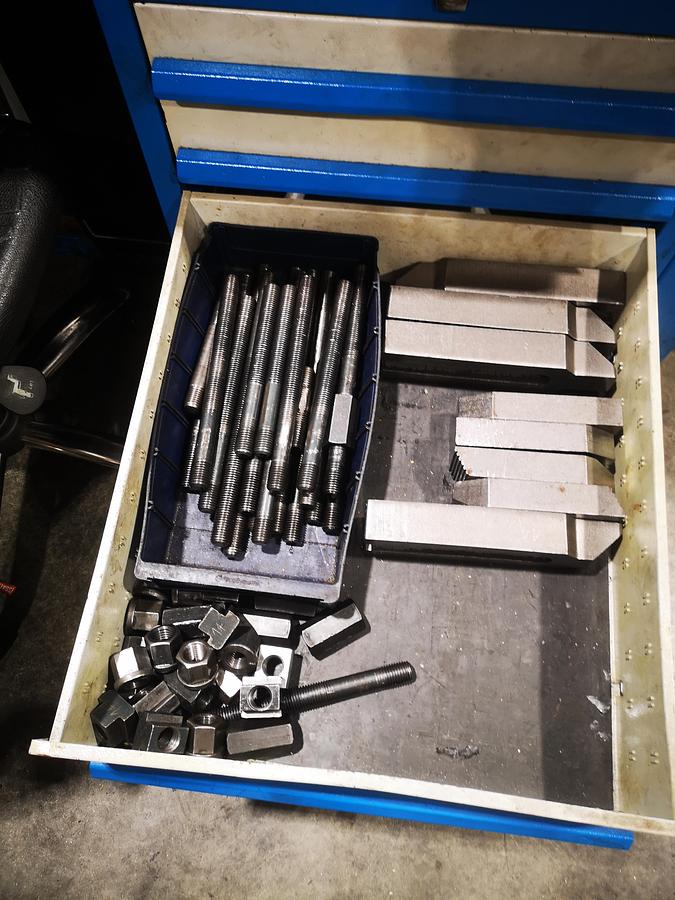

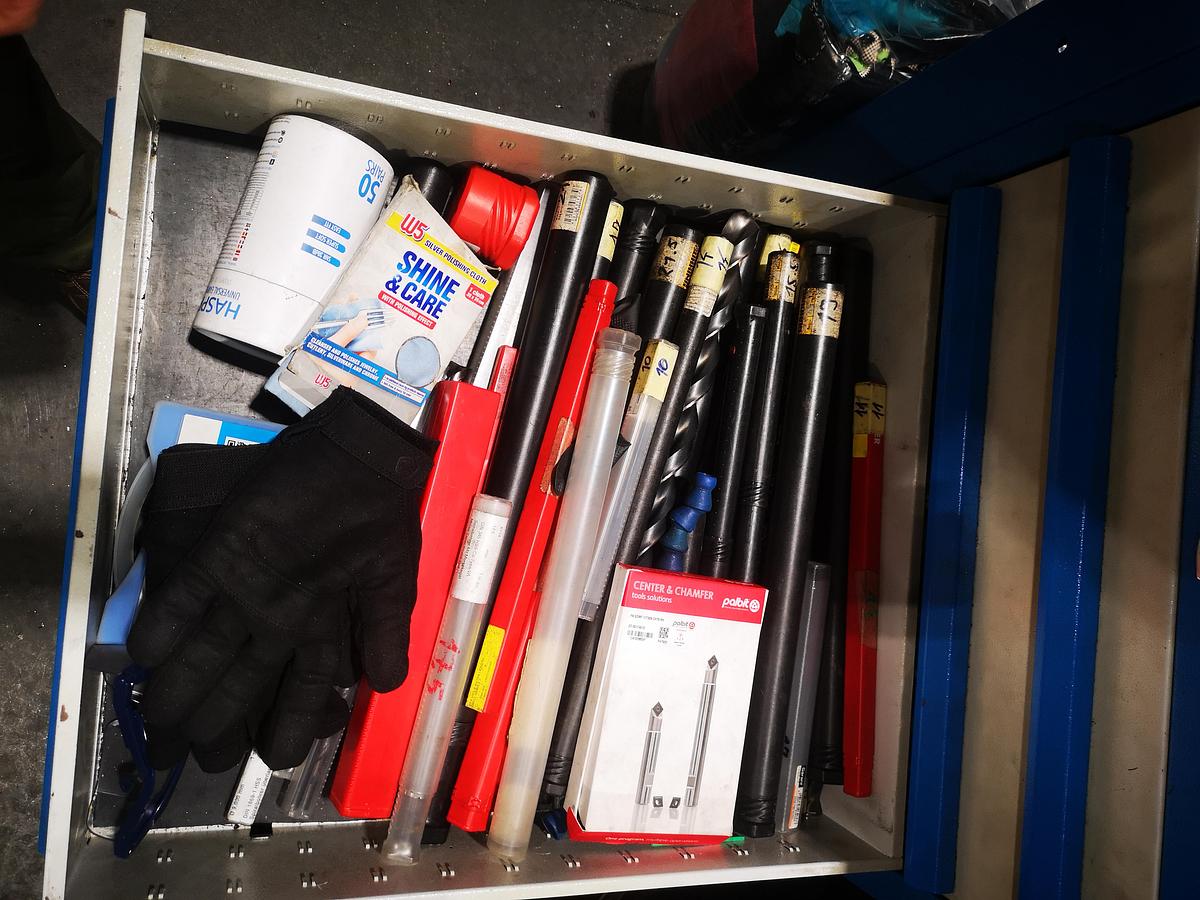

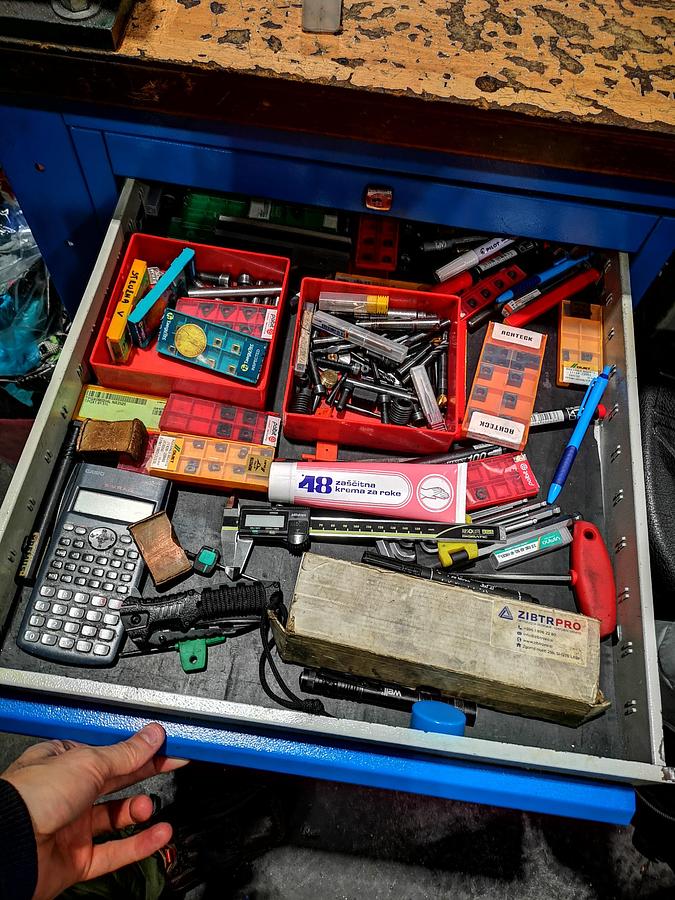

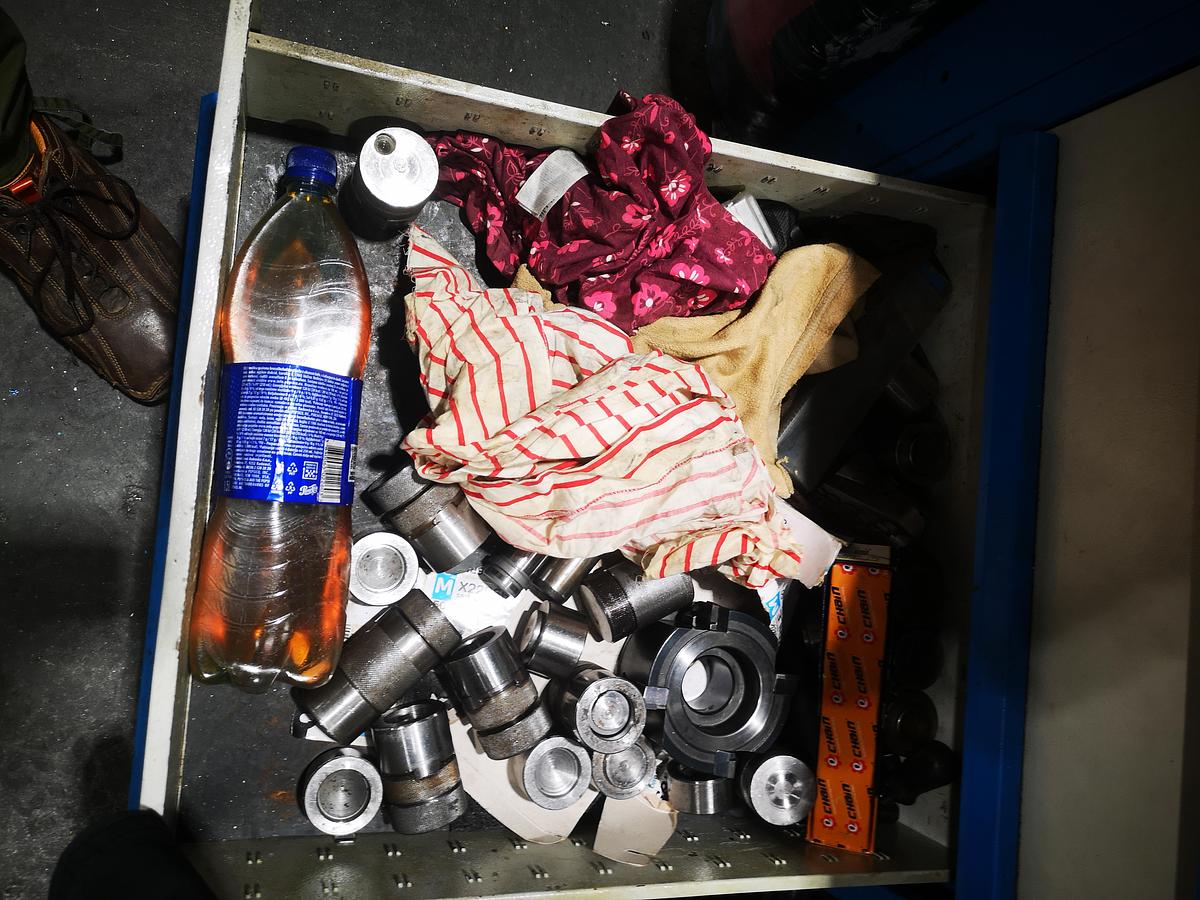

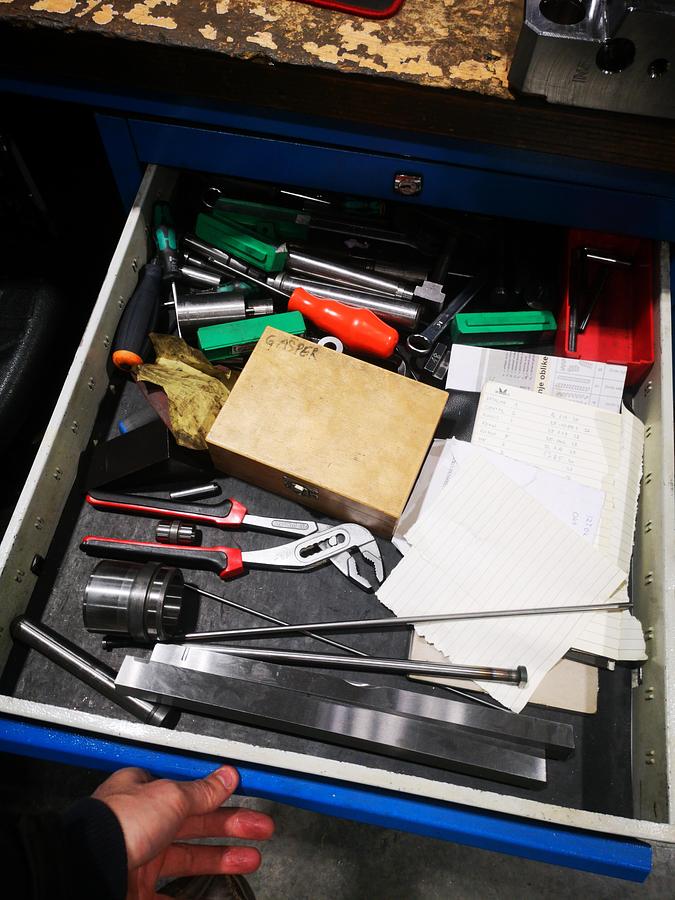

• ALL OTHERS TOOLS AND ACCESSORIESS WHICH BELONG TO MACHINE

WE ORGANIZE FOR CUSTOMER ALSO DISMANTLING LOADING AND SHIPPING
