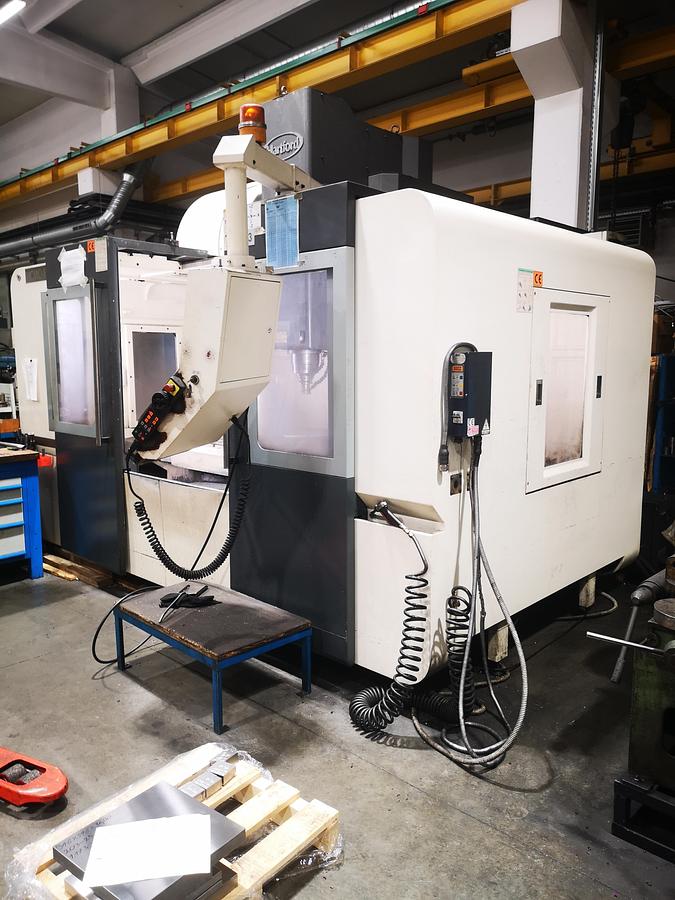

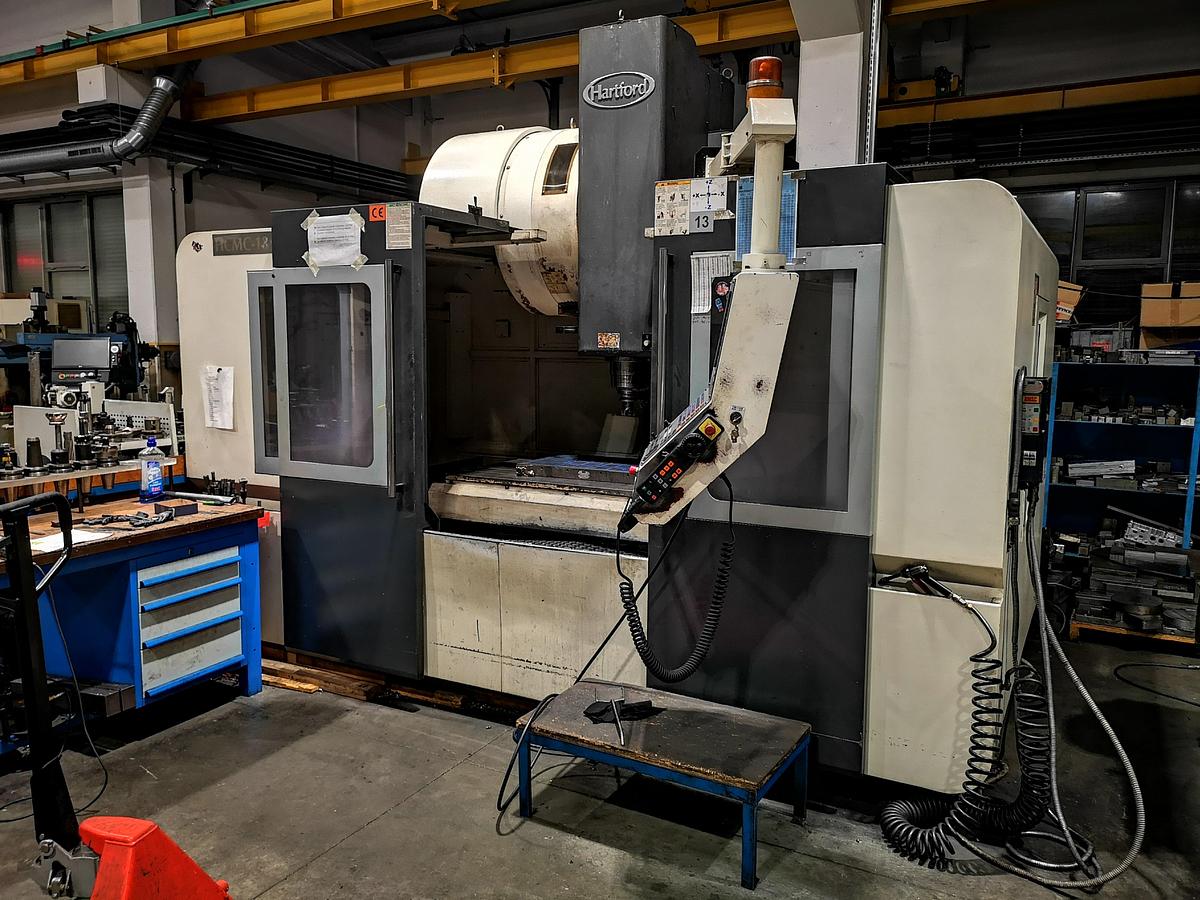

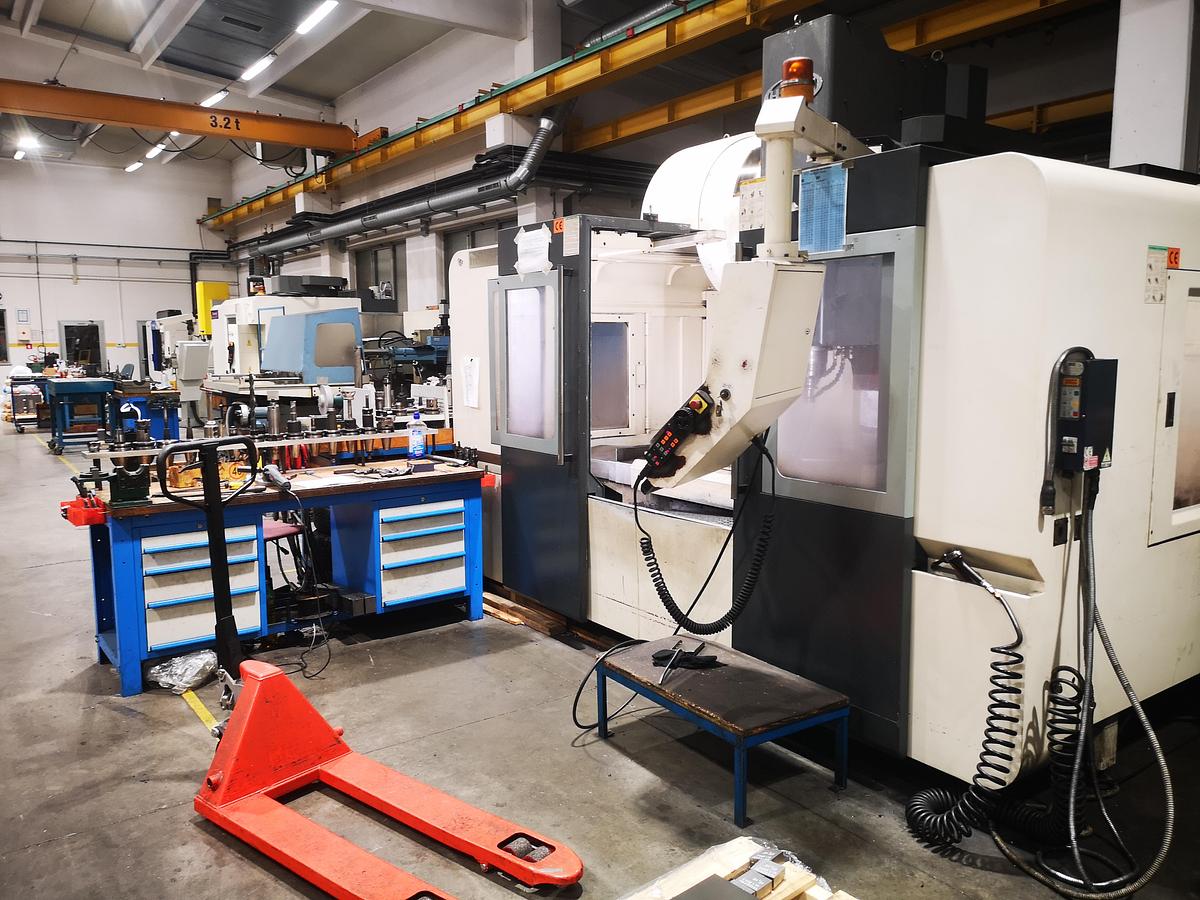

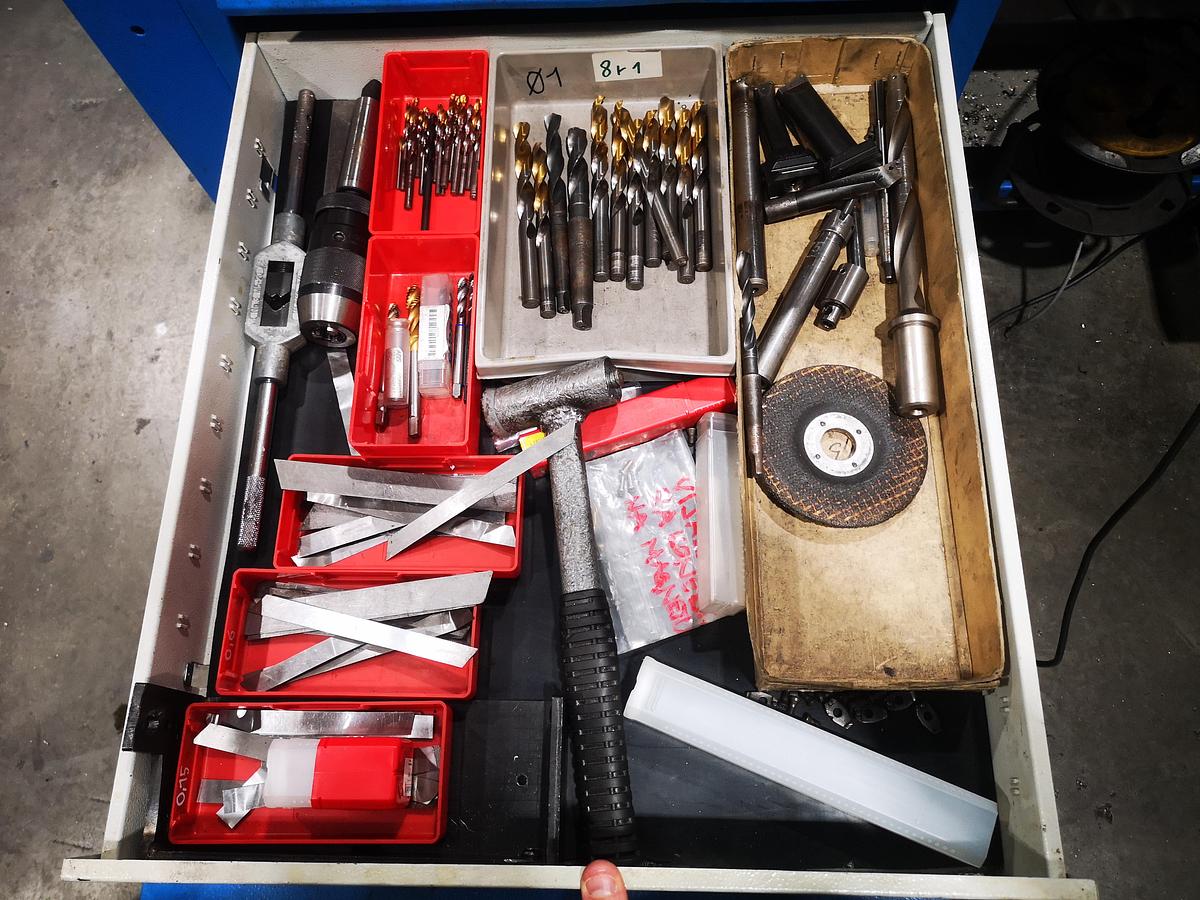

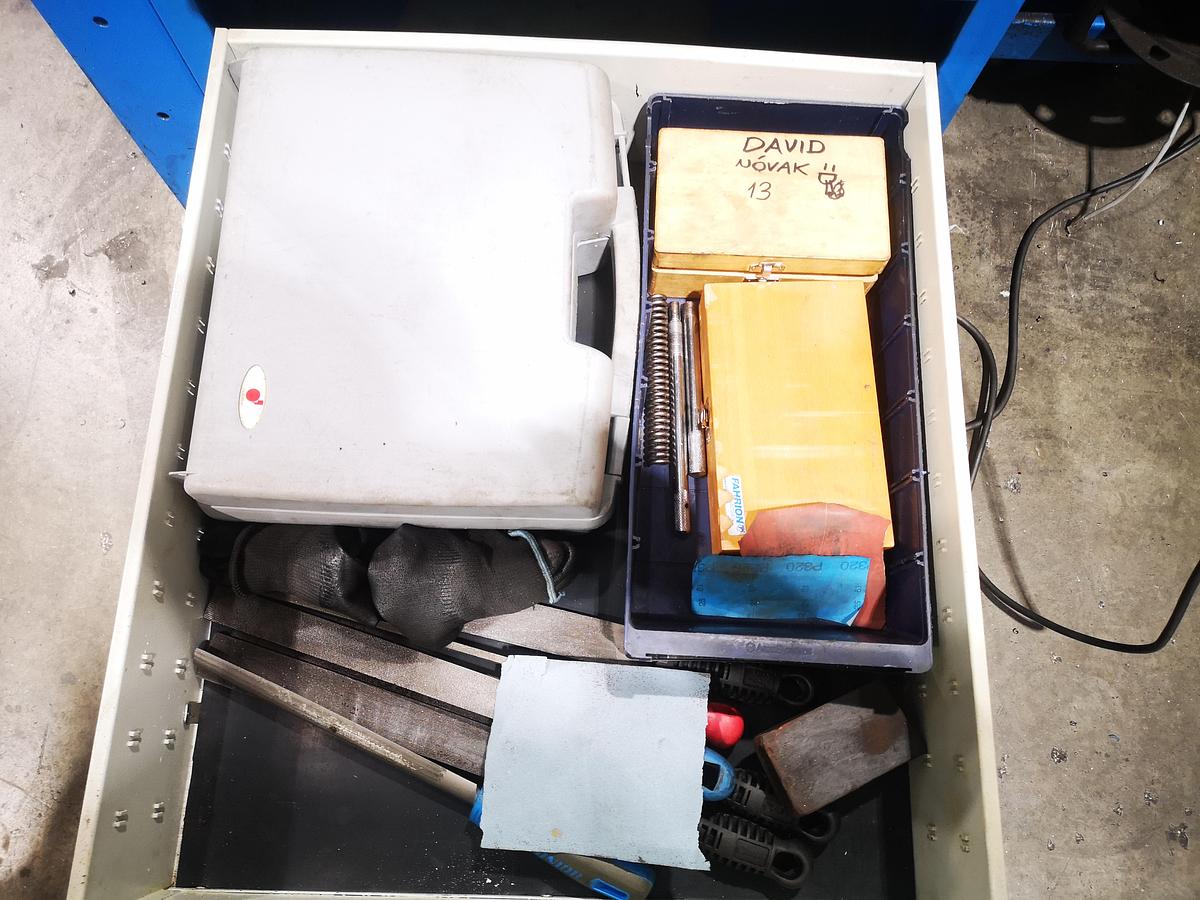

HARTFORD HCMC-13 AD -2013 FULL EQUIPED WITH TOOLINGS AND ACCESSORIESS

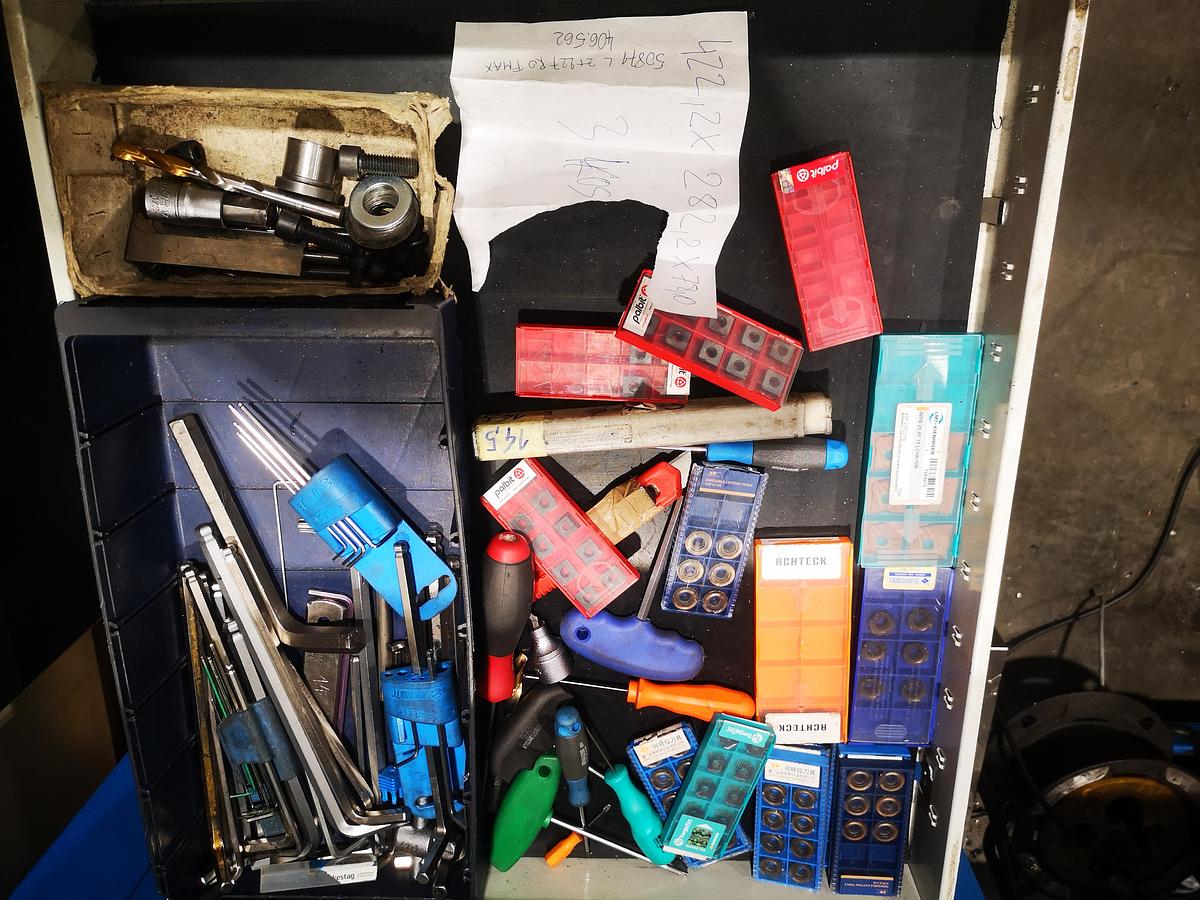

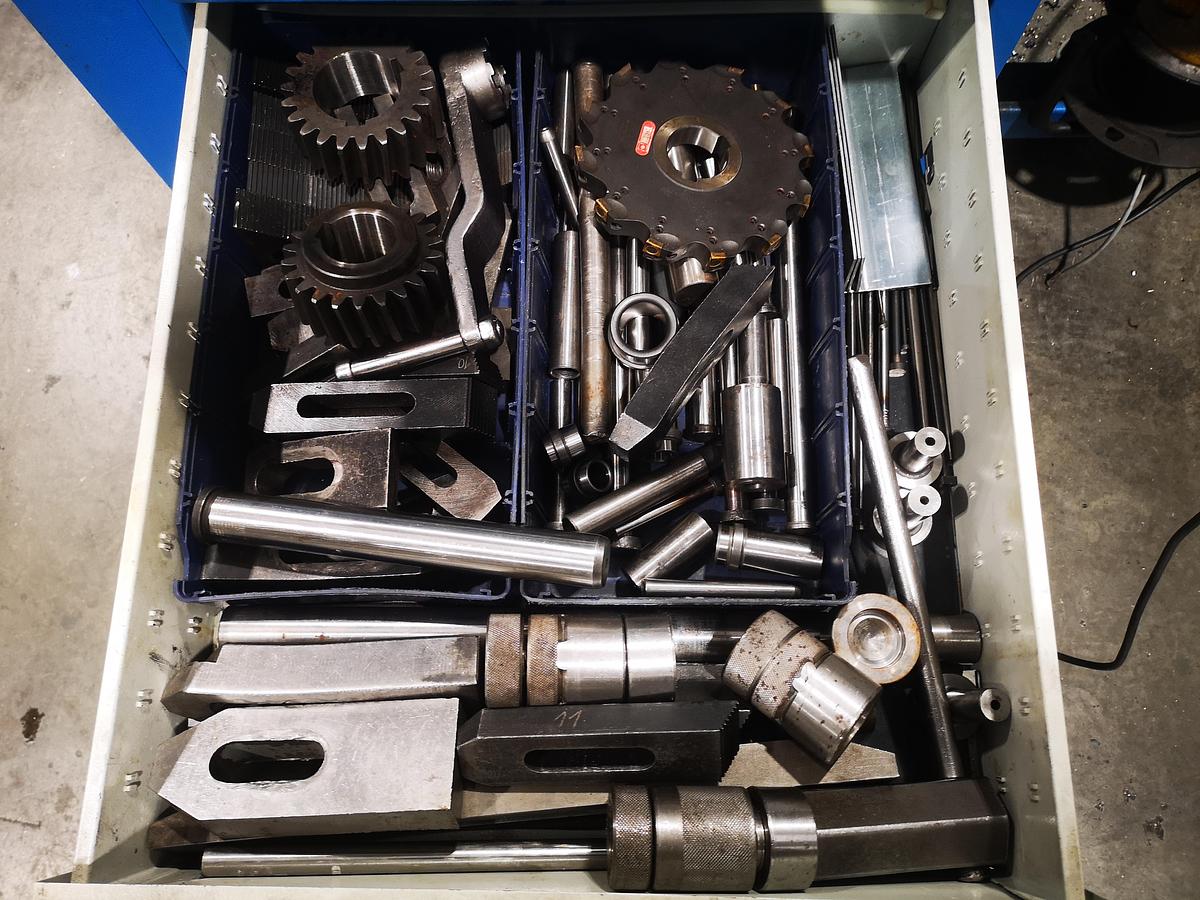

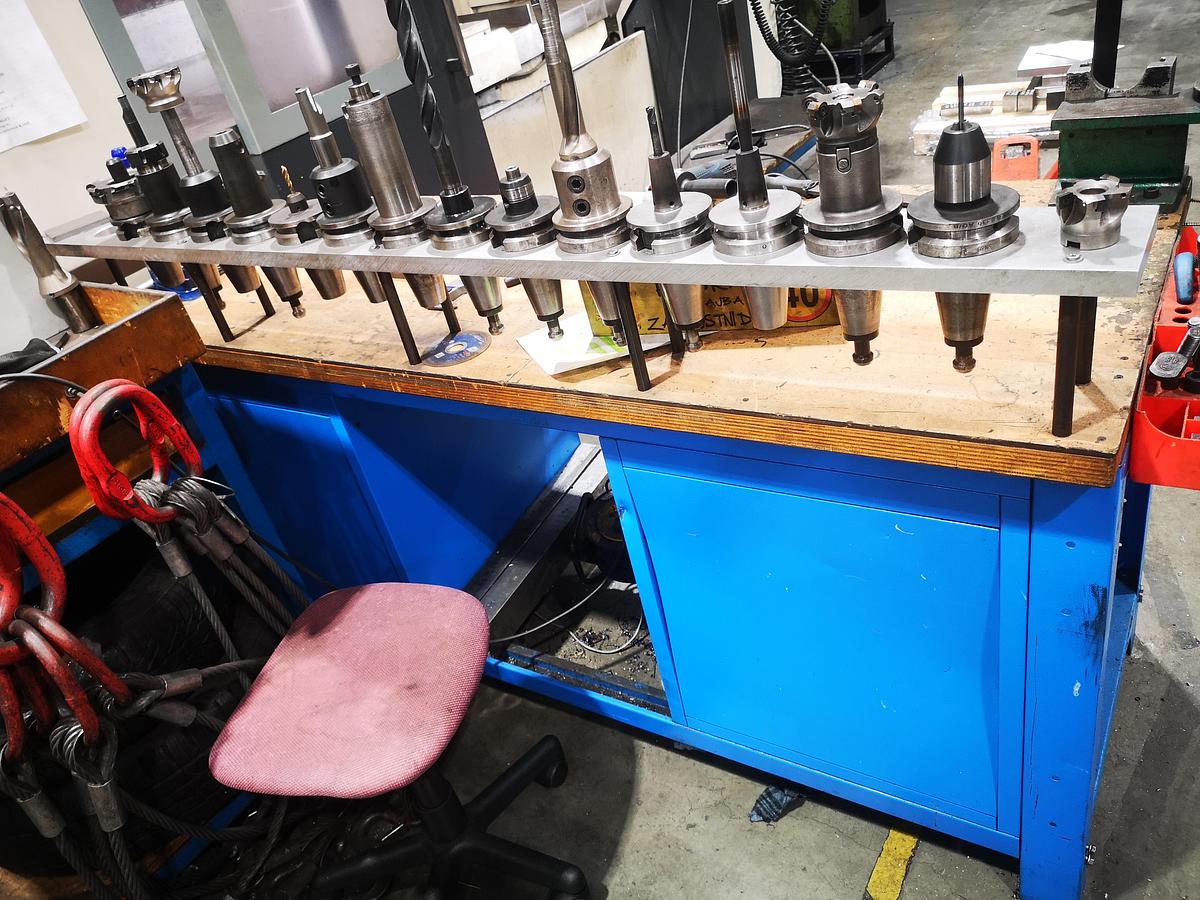

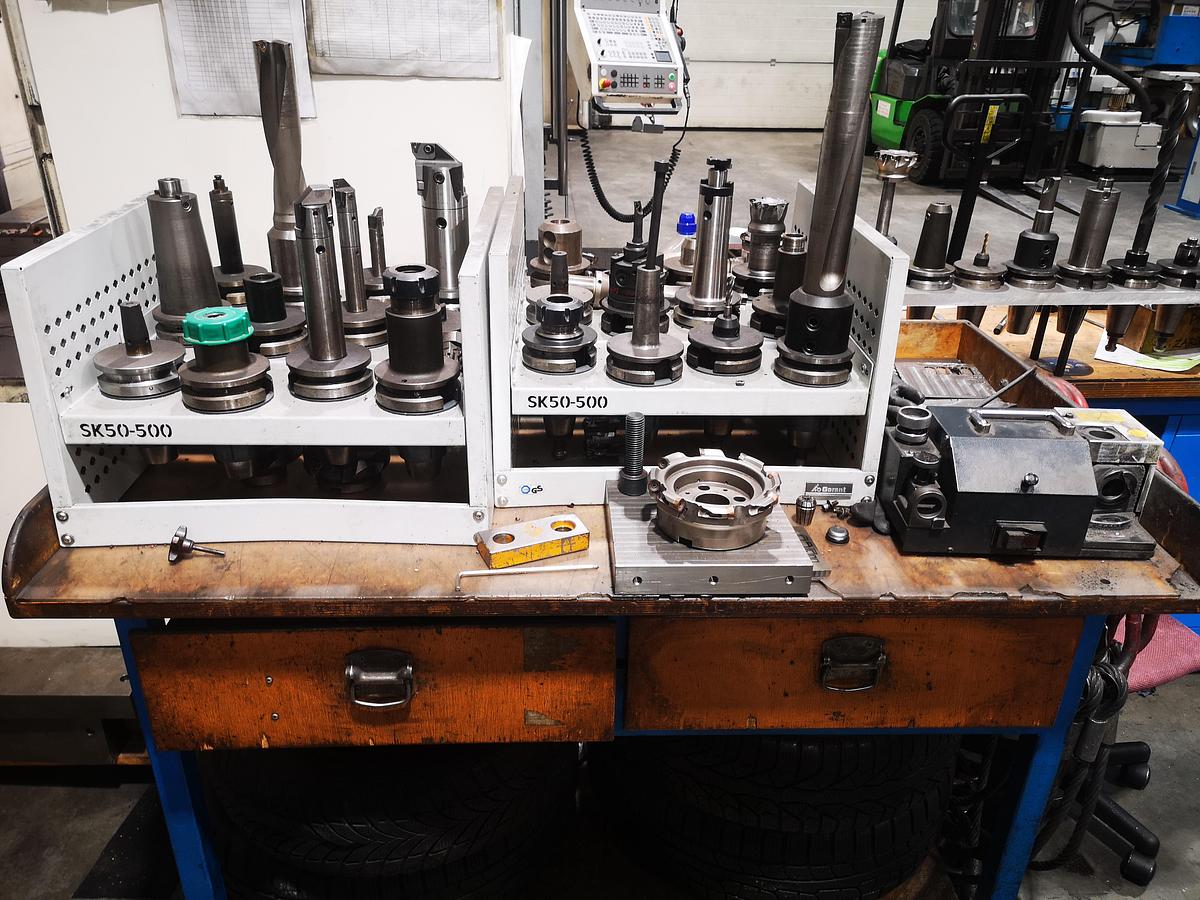

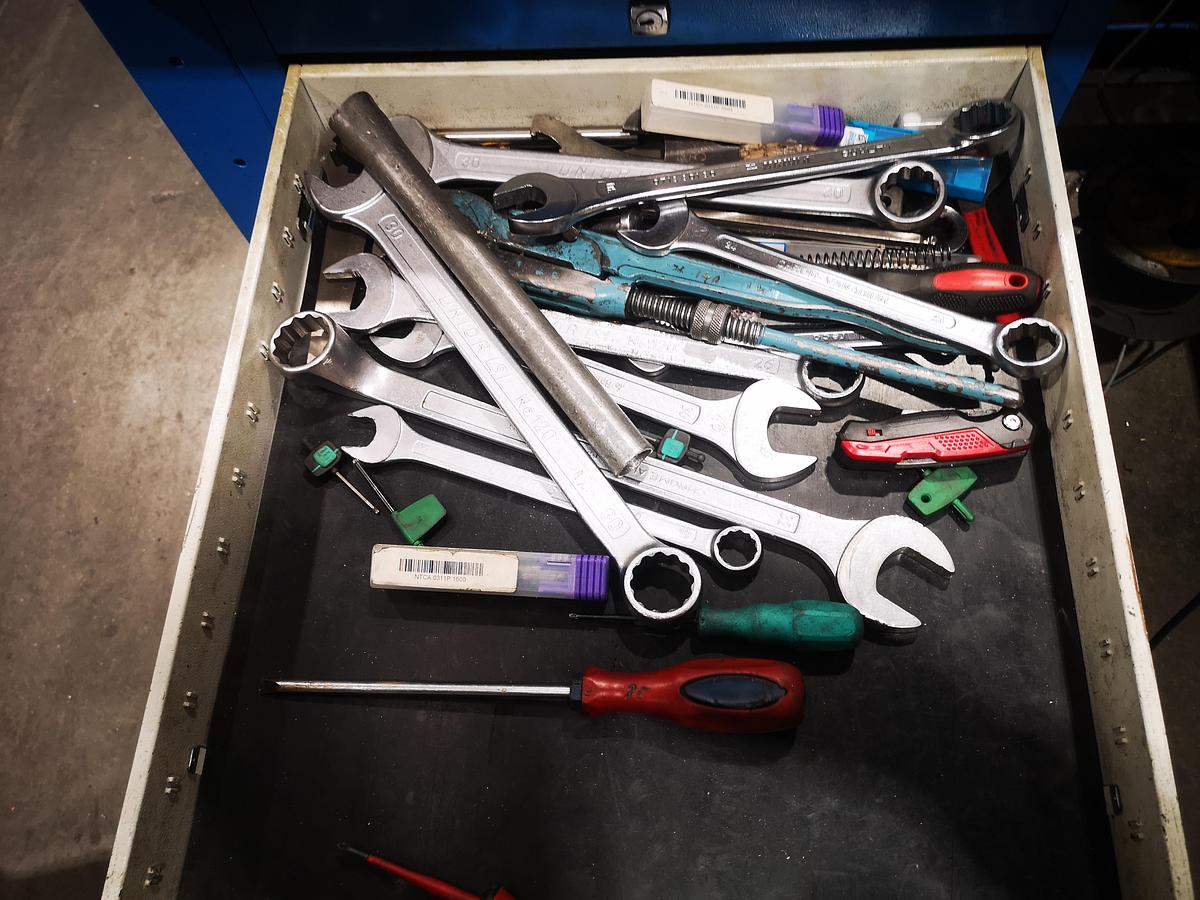

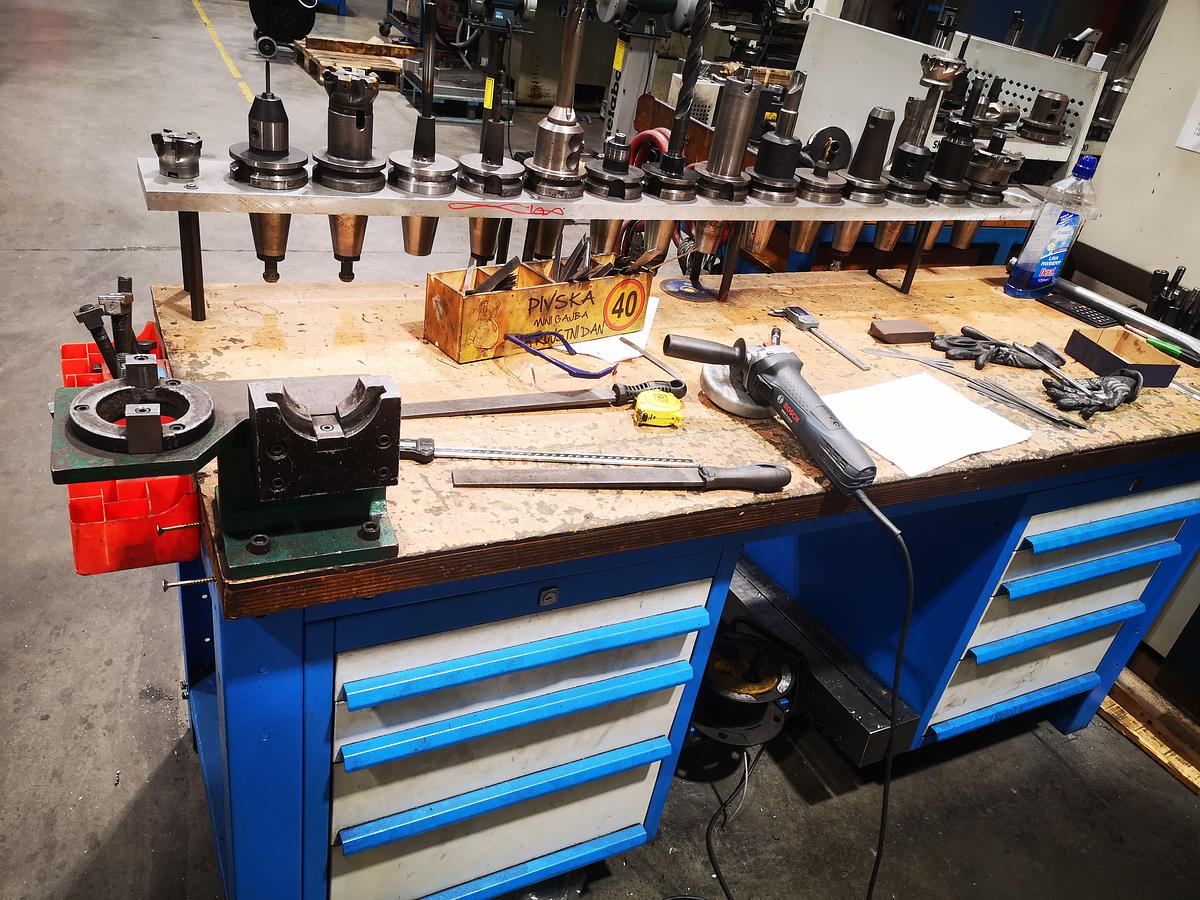

WE OFFER AN GOOD NICE CONDITION HARTFORD HCMC-13 AD , FULLY EQUIPPED MACHINE WITH FULL TOOLINGA AND ACCESSORIESS

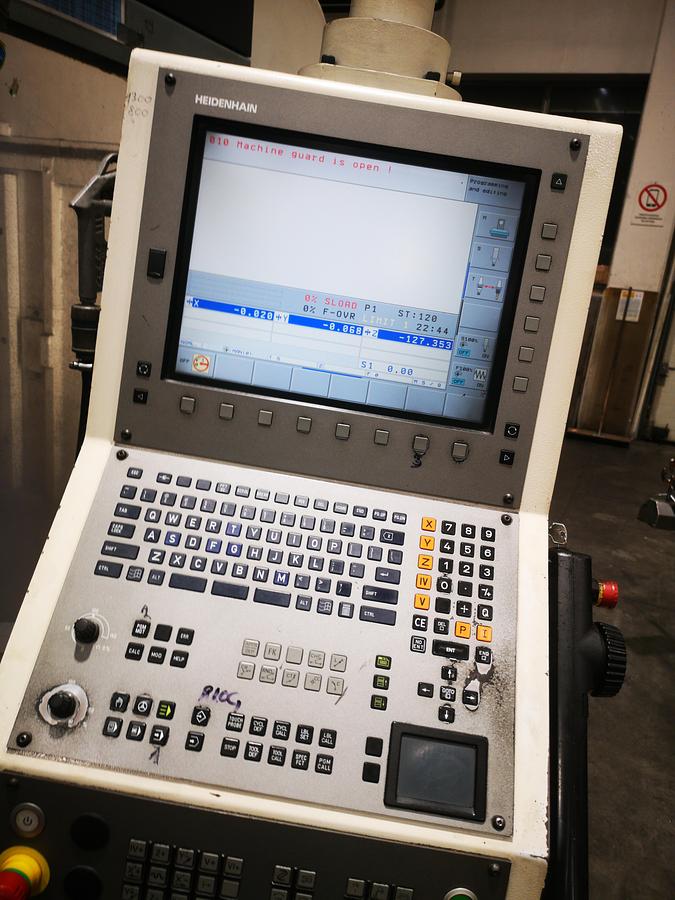

HCMC-13AD + HEIDENHAIN TNC530 CONTROLS

VERTICAL MACHINING CENTER    » CE«

MANUFACTURER: SHE HONG INDUSTRIAL CO. LTD. ( HARTFORD )

WORKING HOURS:

MACHINE ON: 47720

PROGRAM RUN: 27406

SPINDEL S1 TIME: 28539

AXIS TIME: 28161

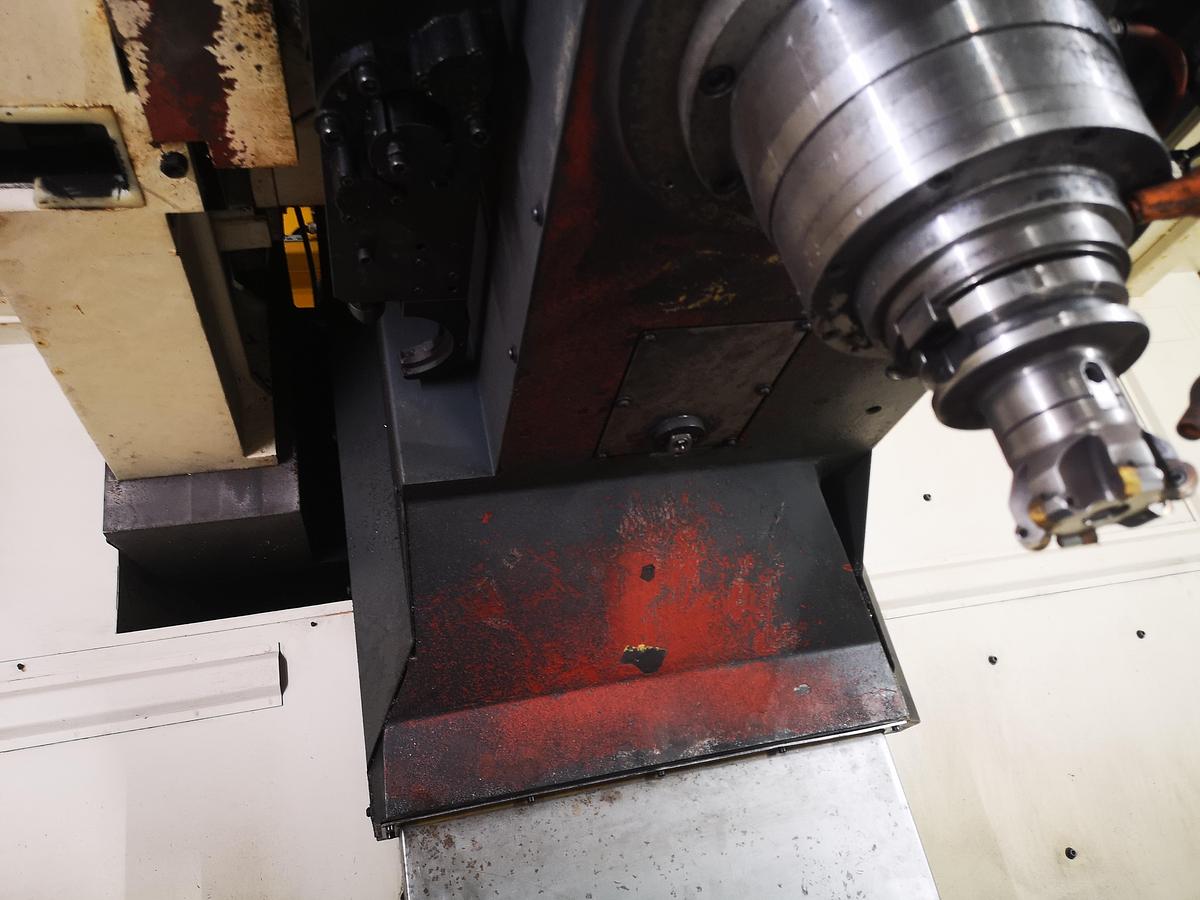

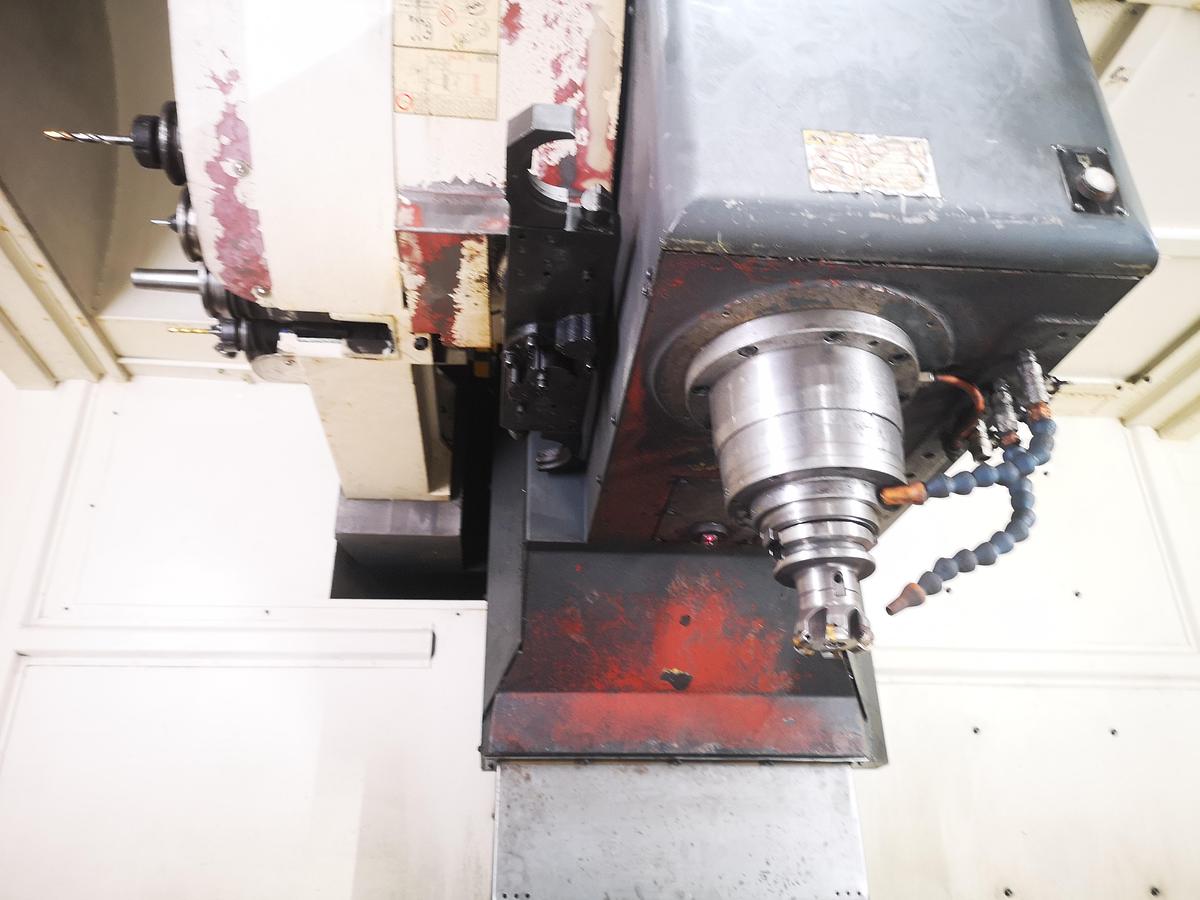

Main spindle: 30 kW

DIRECT DRIVE

cone: BT 50

main motor: 10,000 RPM

X, Y, Z movements: 1300 x 800 x 660 mm

distance between table and spindle:

standard: min 120 - max 780 mm

working strokes: 1 – 10,000 mm/min

return strokes: 16,000 mm/min

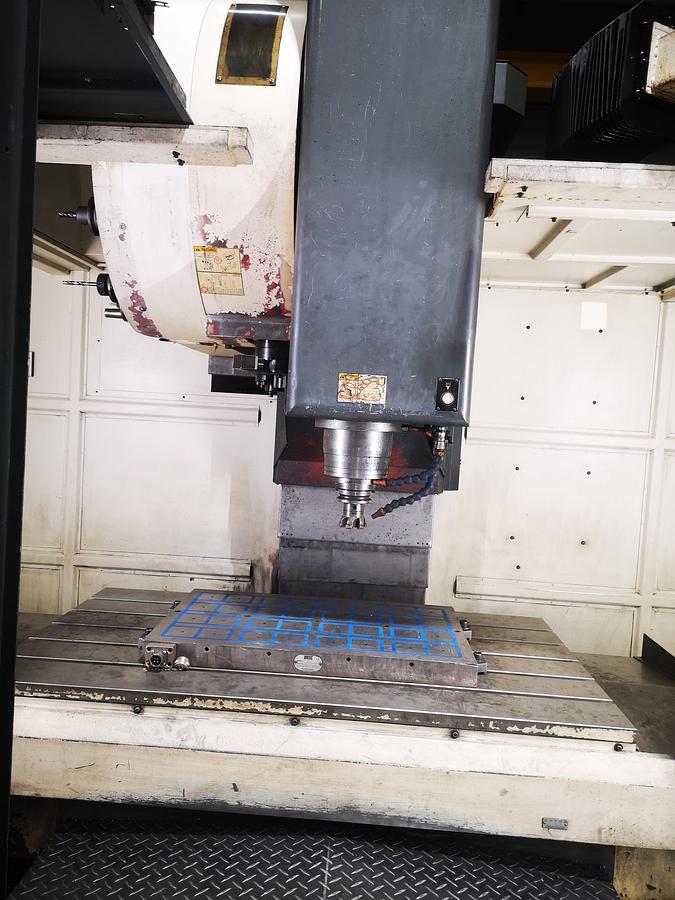

table: 1450 X 800 mm

without tool changer

table load: 1,600 kg

machine weight: 12,000 kg

+ standard equipment according to catalog:

- workpiece cooling

- oil separator

- spindle preload

- central lubrication via controller

- blow-through spindle

- automatic machine shutdown

- work light

- RS-232 interface

- manual blow-through gun

+ CE

+ spindle oil cooling

+ DATA SERVER + 512MB

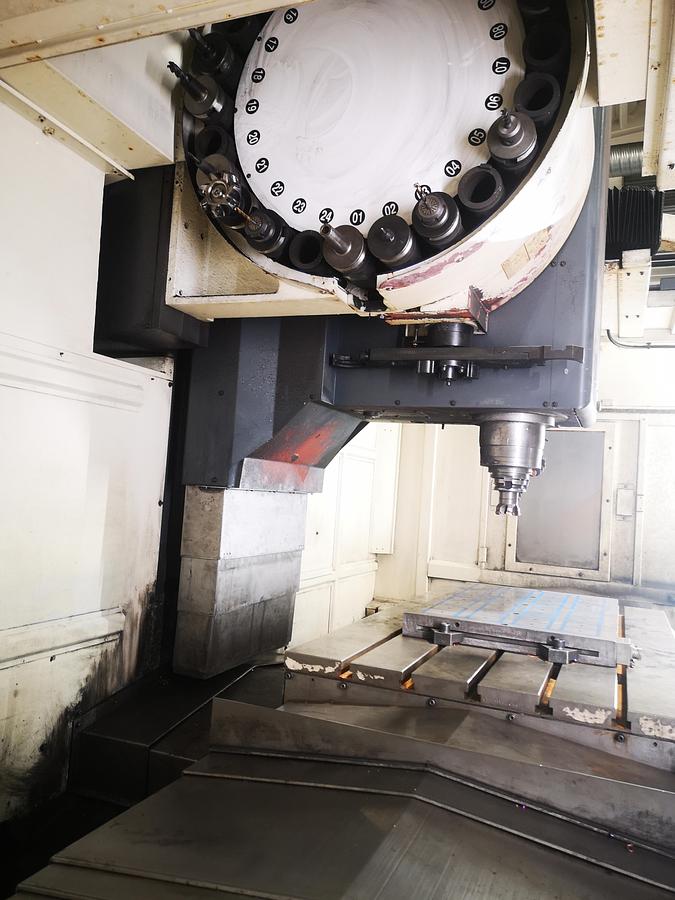

-    vertical rapid tool changer (24 tools)

-    option  2  HEIDENHAIN SOFTWARE

-    RENISHAW LASER TOOL MEASUREMENT  NC-4 F115

-    STAINLESS STEEL PLATE IN THE MACHINE

-    HEIDENHAIN WORKPIECE MEASUREMENT TS 640 + SE540 SENSOR

-    OIL COLLECTOR

-    Z - AXIS SERVO MOTOR UPGRADED

MACHINE WILL BE PROFESSIONAL DISMANTLED AND LOADED FOR CUSTOMER

WE ALSO CAN OFFER TRANSPORT FOR CUSTOMERS WORLDWIDE
