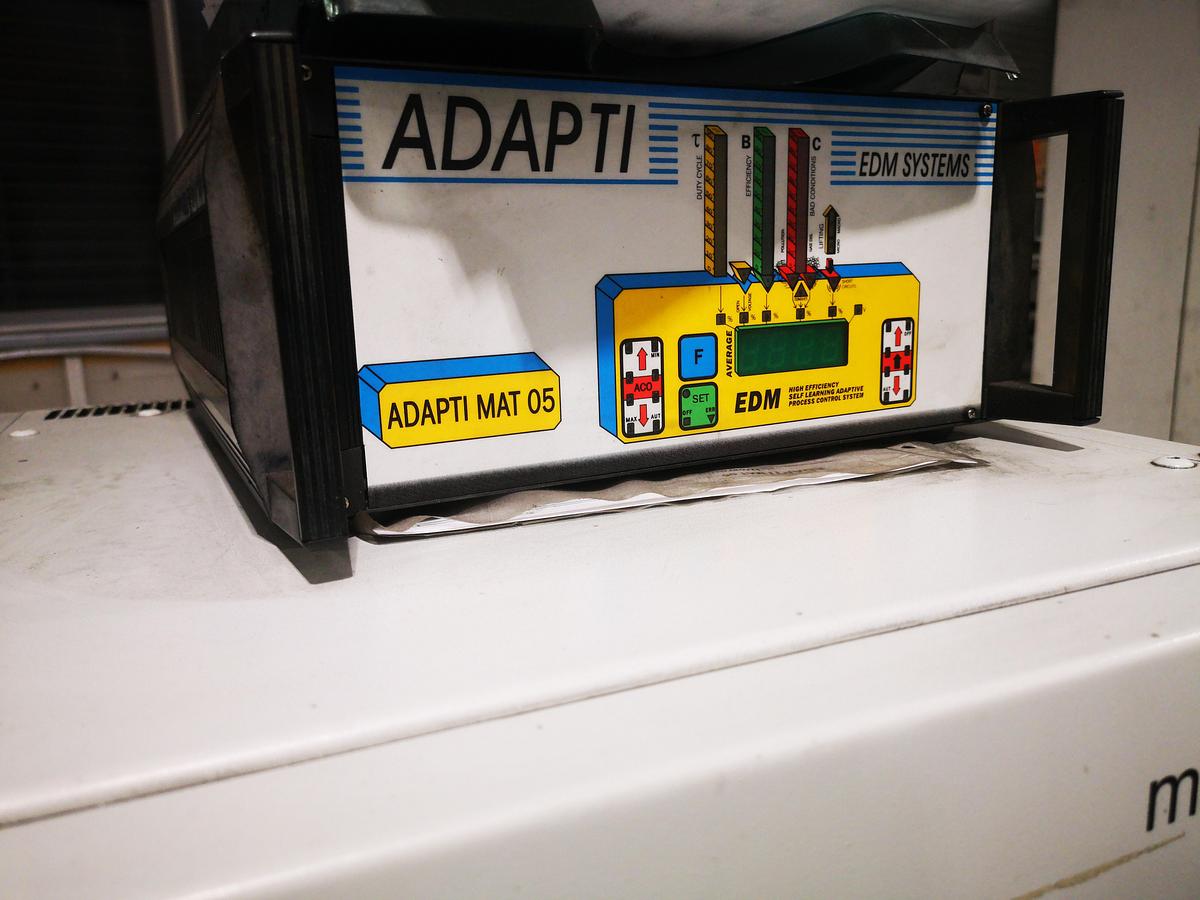

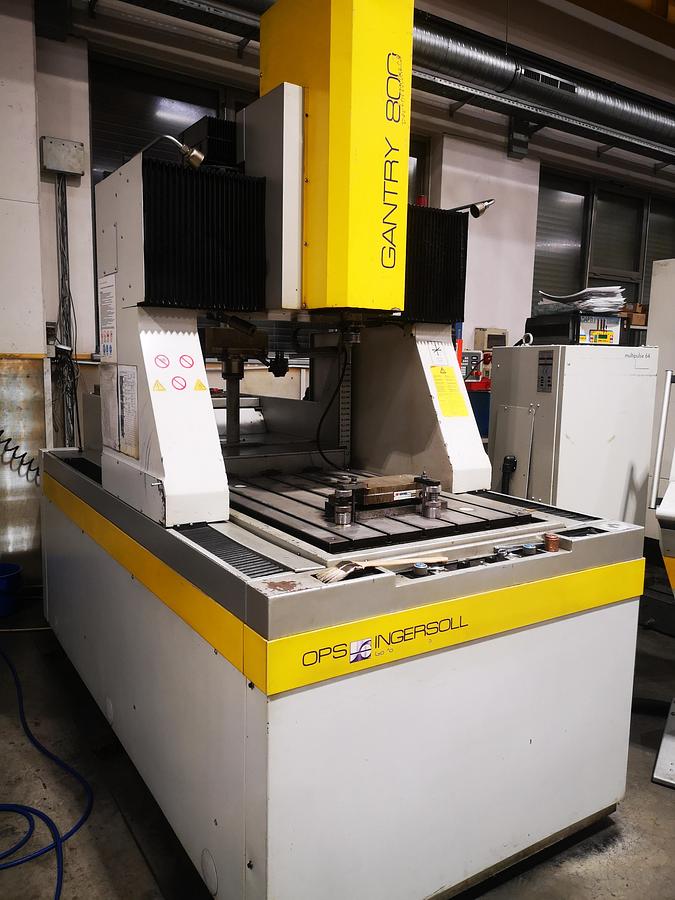

5 AXIS - SPARK EROSION OPS INGERSOLL GANTRY 800 ADAMPT MAT 05 - (2009) FULLY TOOLS EQUIPED

GANTRY 800 ADAMPT MAT 05 -2009

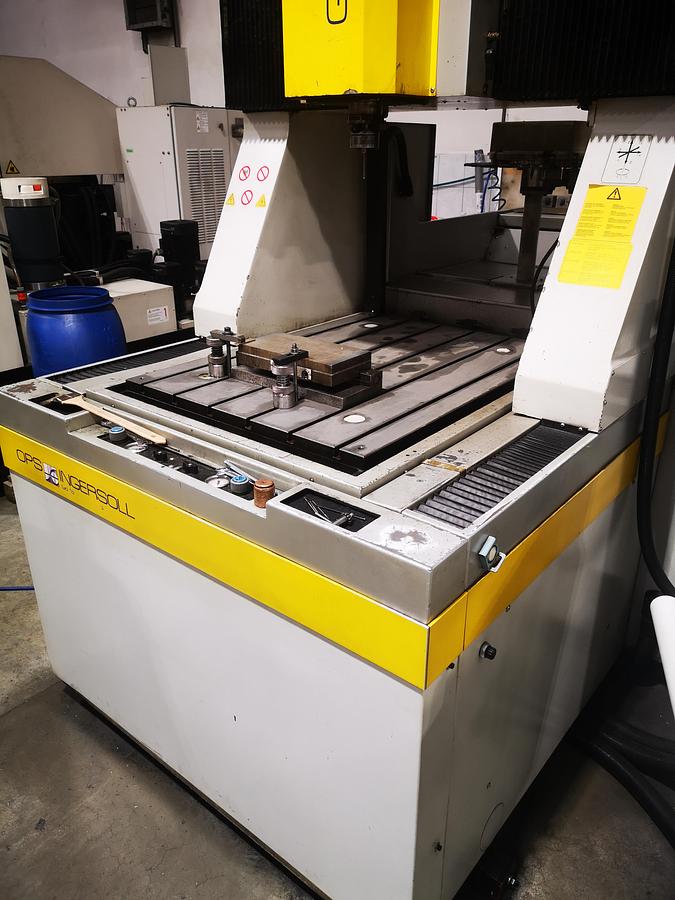

For sale is a high-quality sinker EDM machine from the renowned manufacturer OPS Ingersoll. This machine is ideally suited for precise EDM applications in tool and mould making, and comes with a comprehensive range of equipment.

Condition: Used, well-maintained and fully operational working in the workshop

-TECHNICAL Information:

Manufacturer: OPS Ingersoll

Model: Gantry 800

Machine No.: 575259

Year of manufacture: 2009

- Technical Specifications:

Travel range (X/Y/Z): 550 x 850 x 450 mm

Table size: approx. 800 x 1000 mm

Max. head load: 200 kg

Max. clear width: 585 mm

Max. traversing speed: 12,000 mm/min

- Equipment & Features:

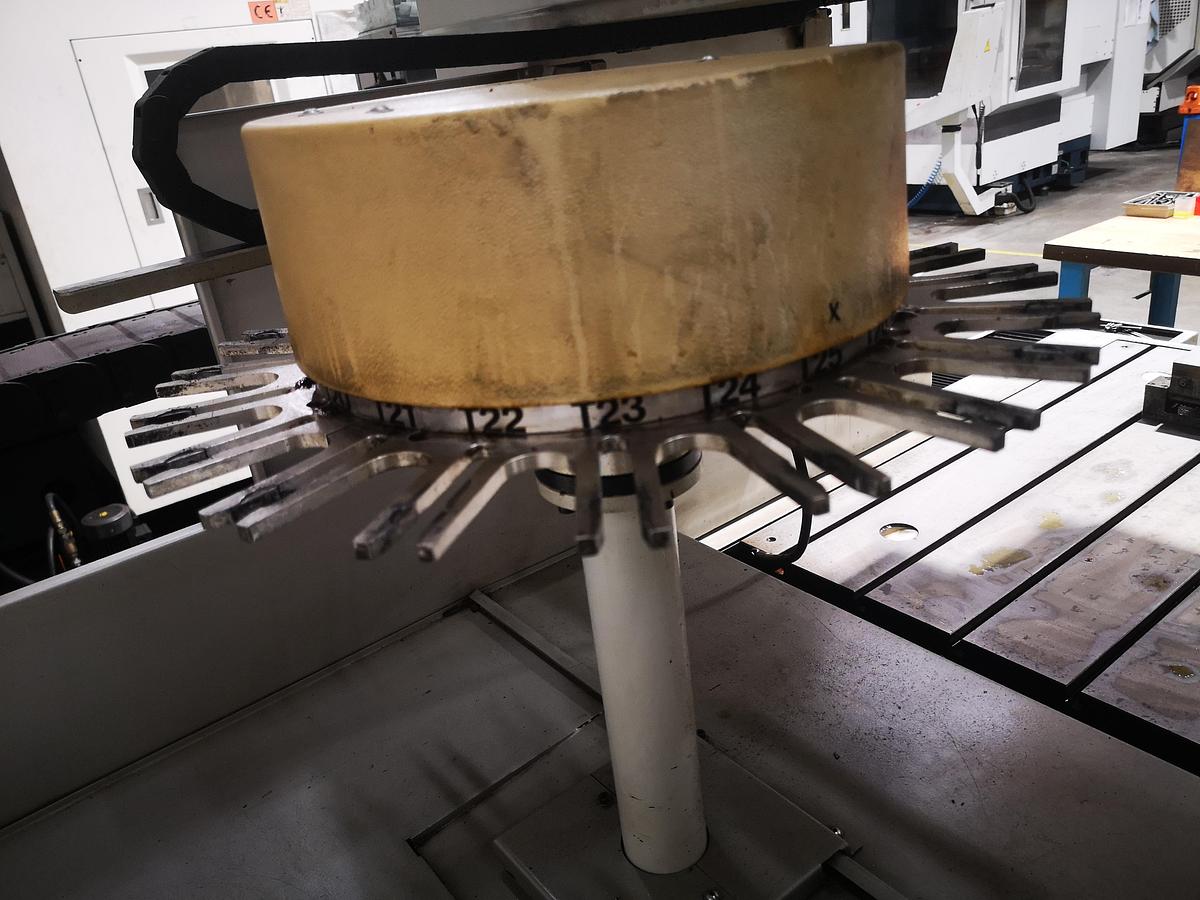

30-position tool changer, EROWA

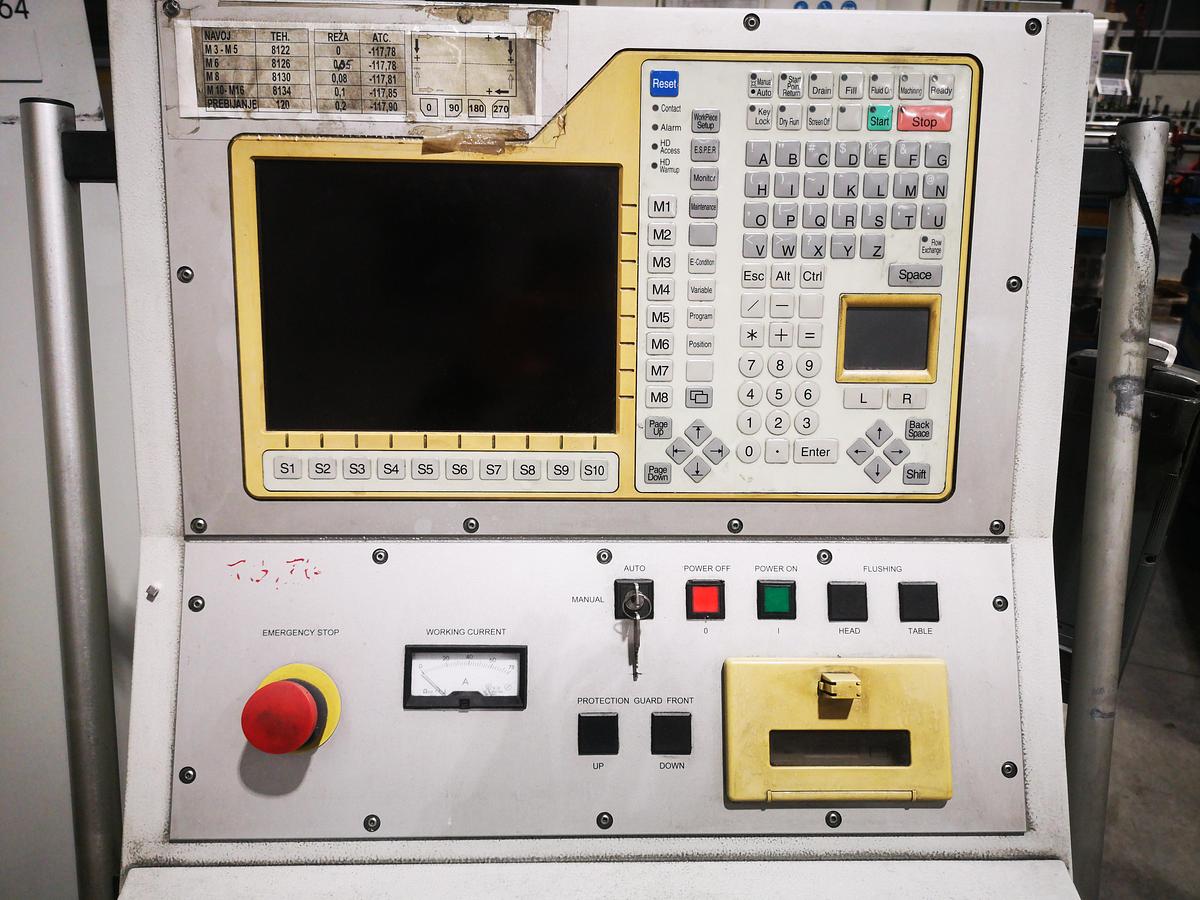

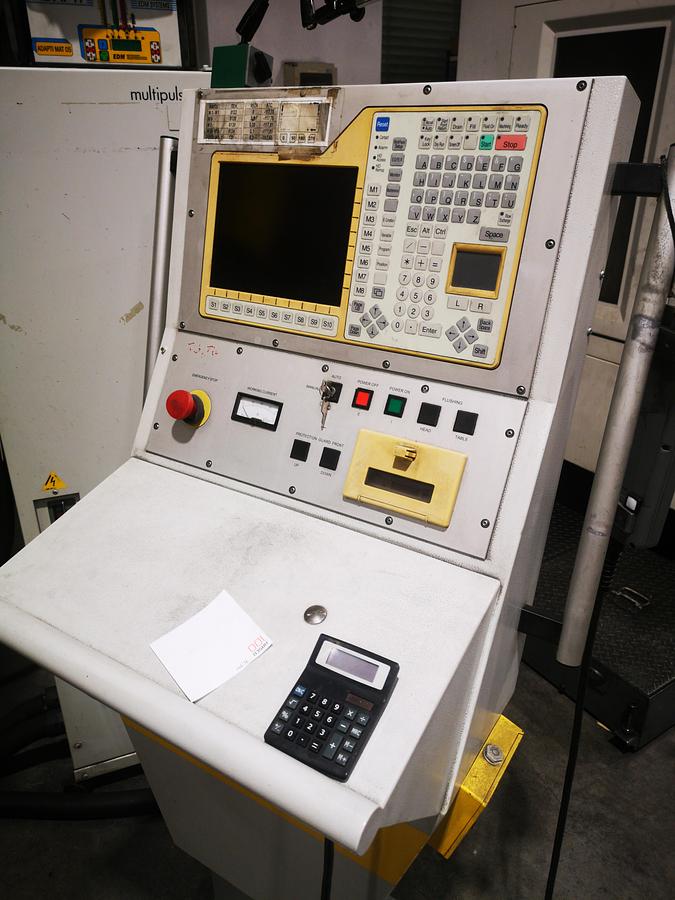

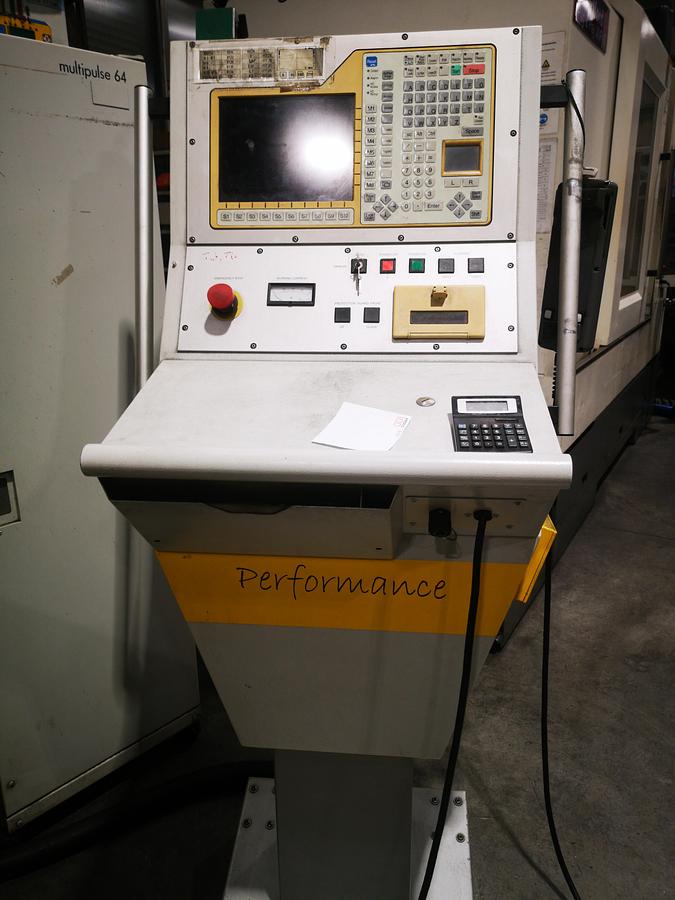

Mitsubishi 64-bit CNC control (separate control panel)

Programming software: MultiProg

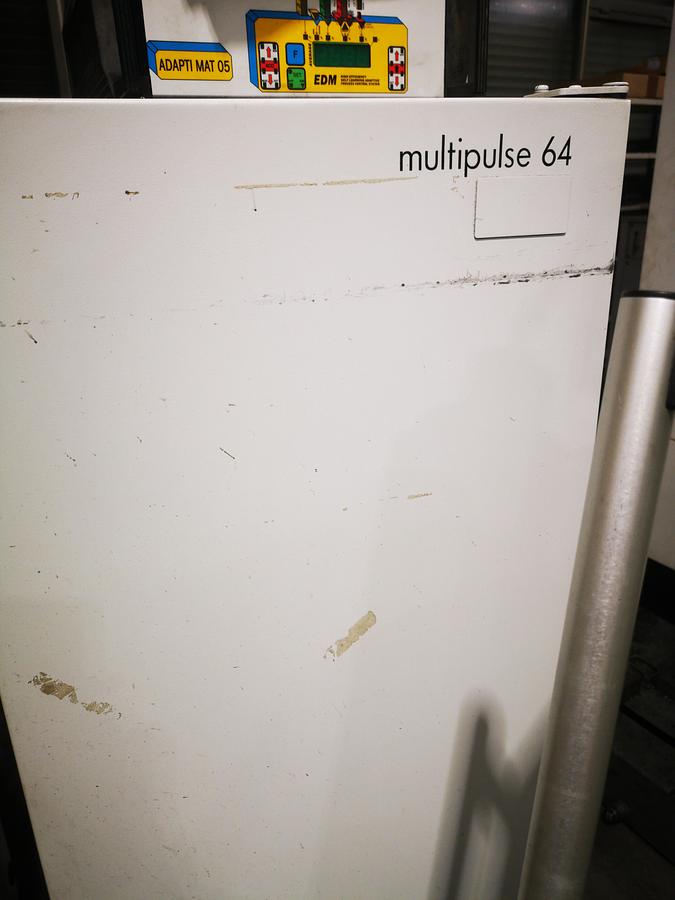

Control technology: Multipulse PRO

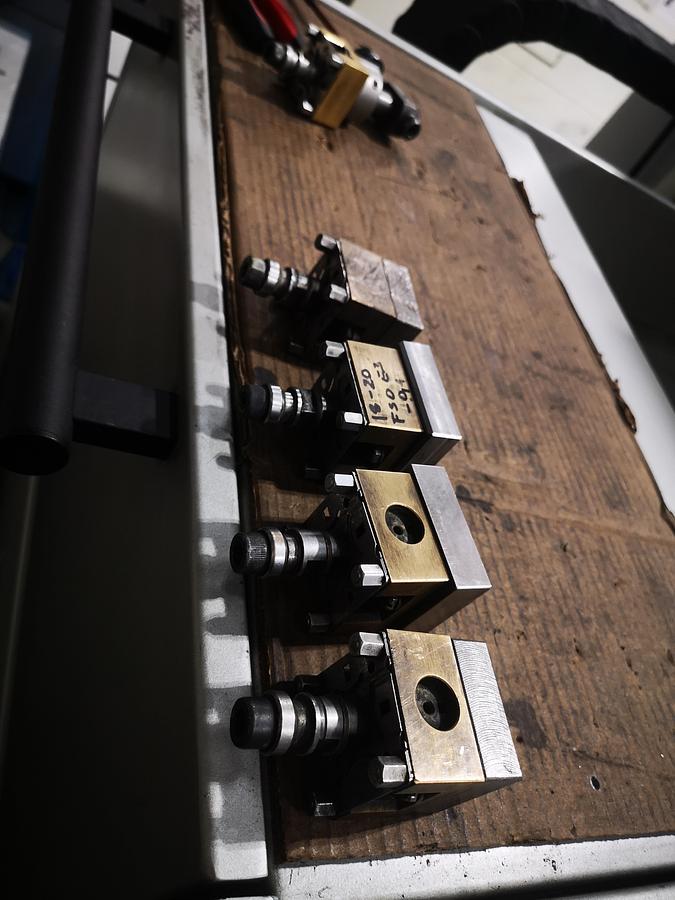

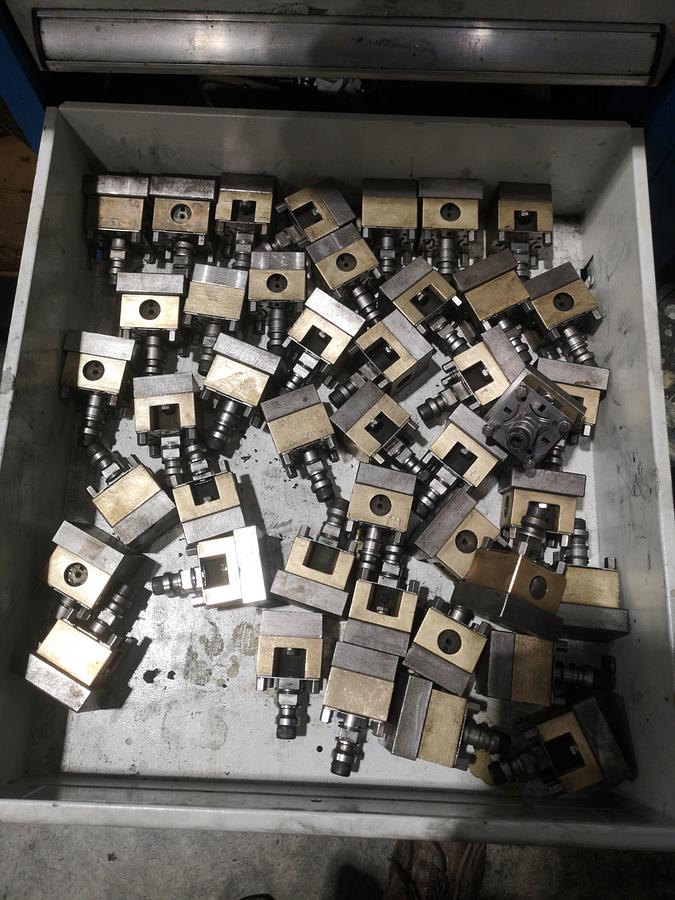

Chuck: ER-016841

Integrated CO₂ fire extinguishing system

Cartridge filtration unit

Dielectric cooling system by Weinreich Industriekühlung

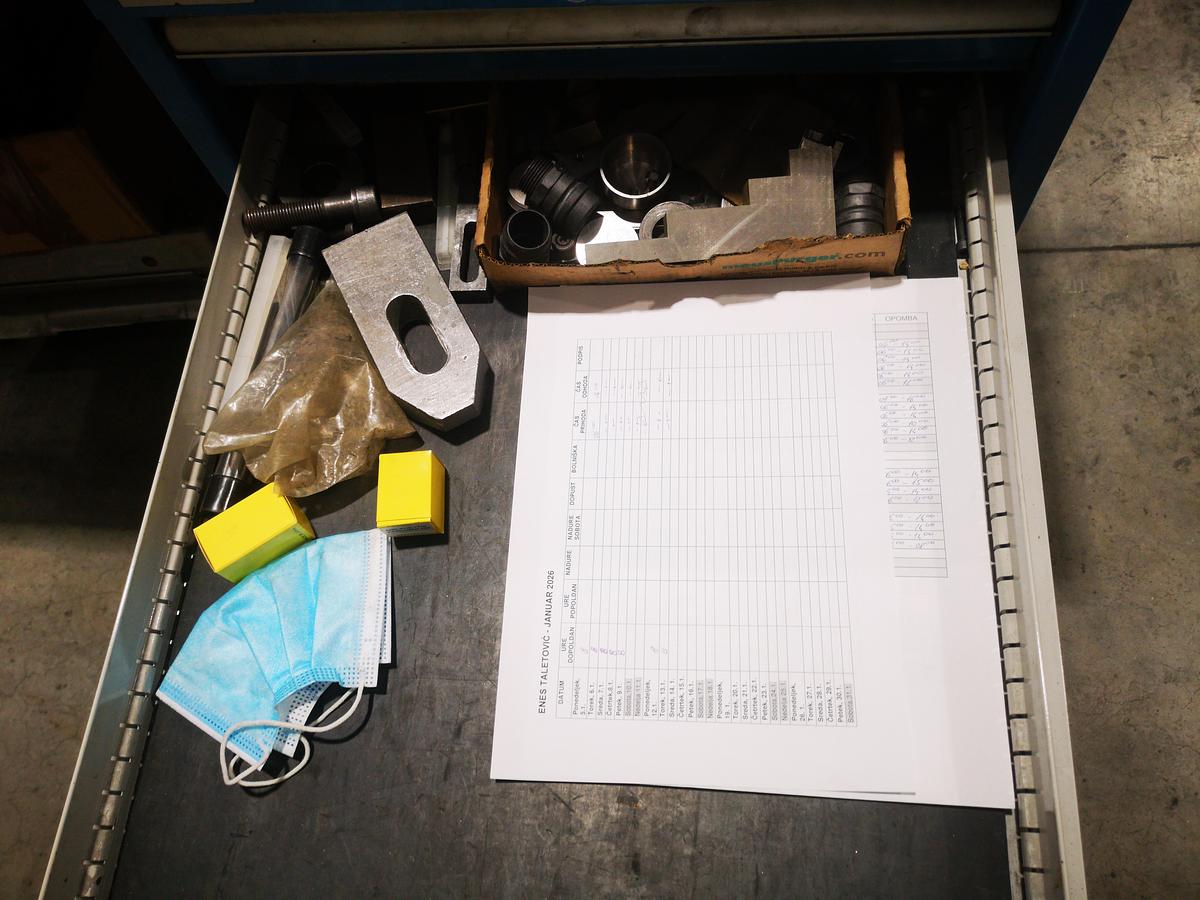

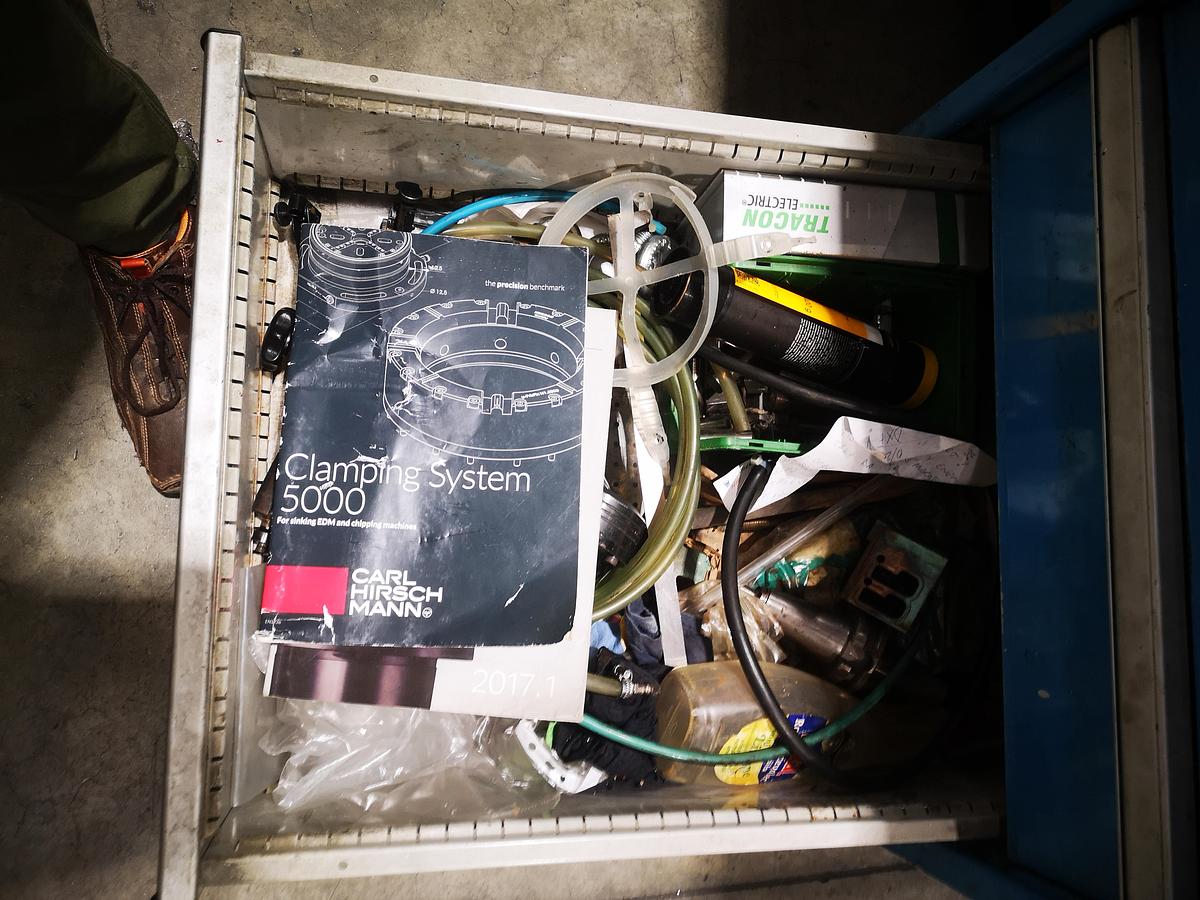

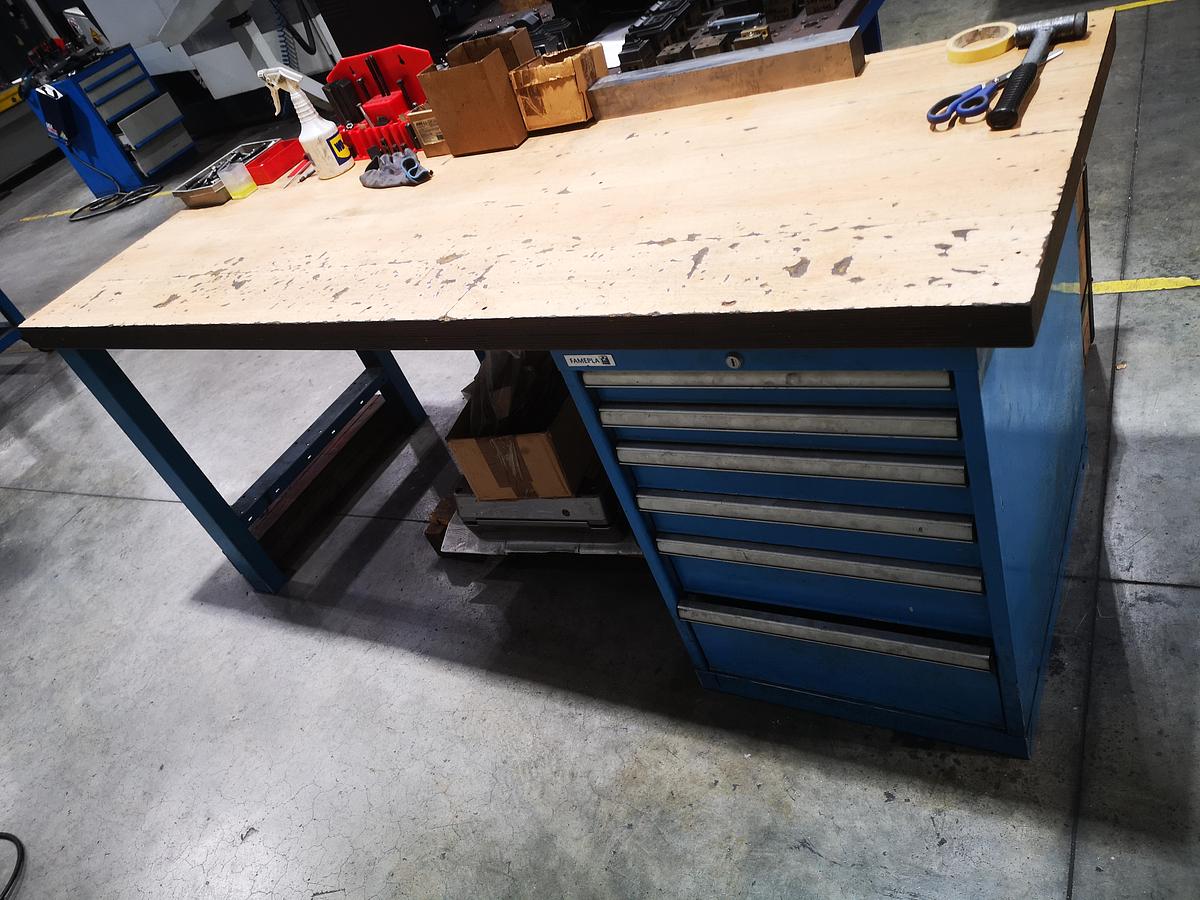

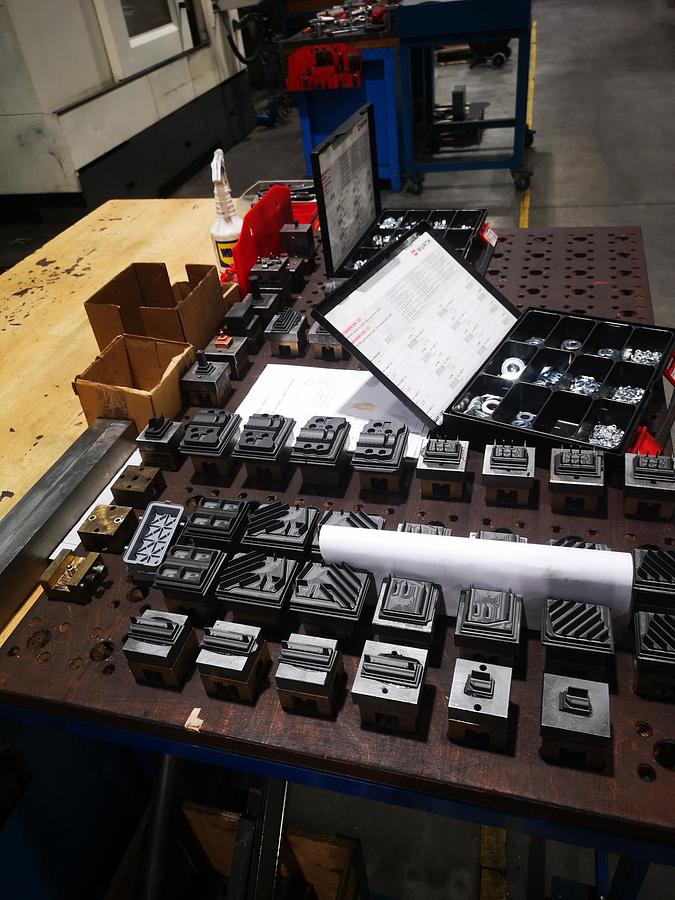

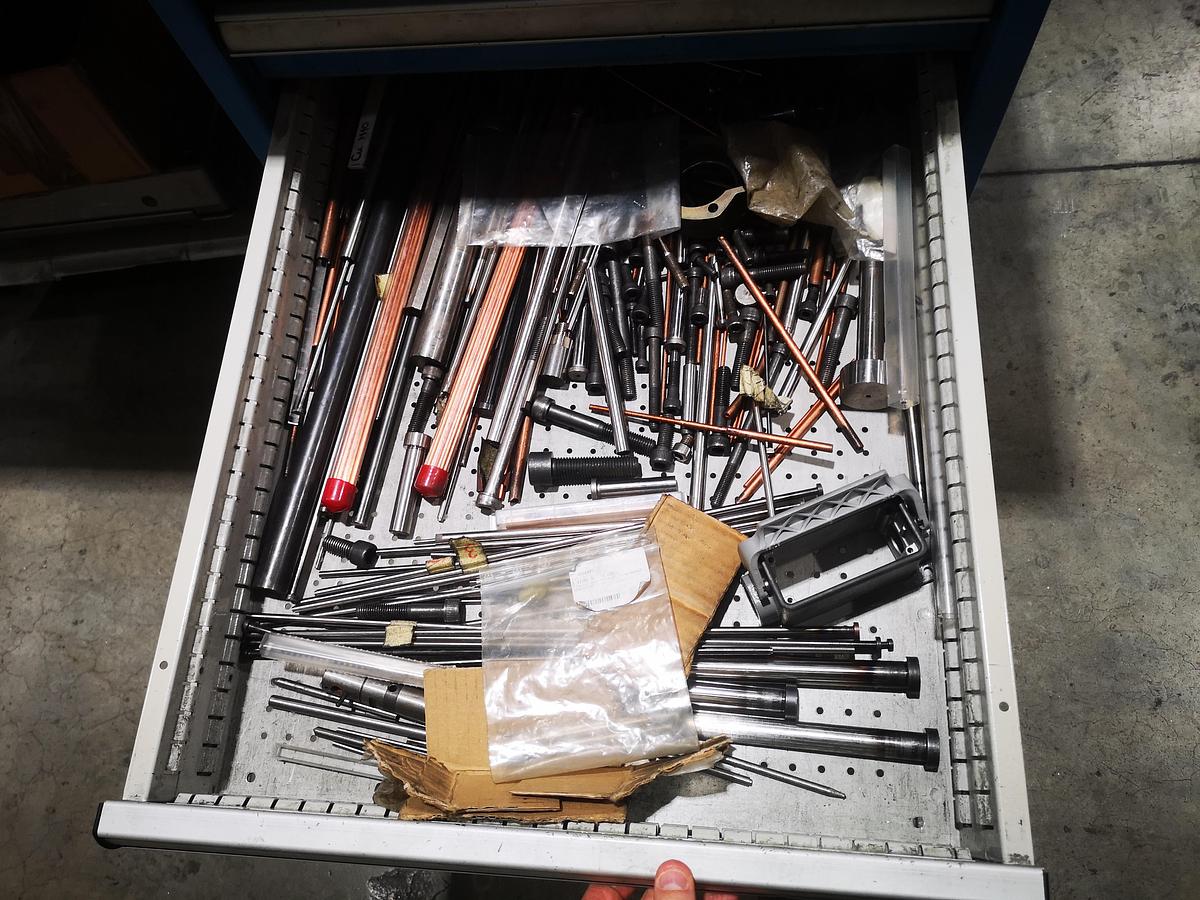

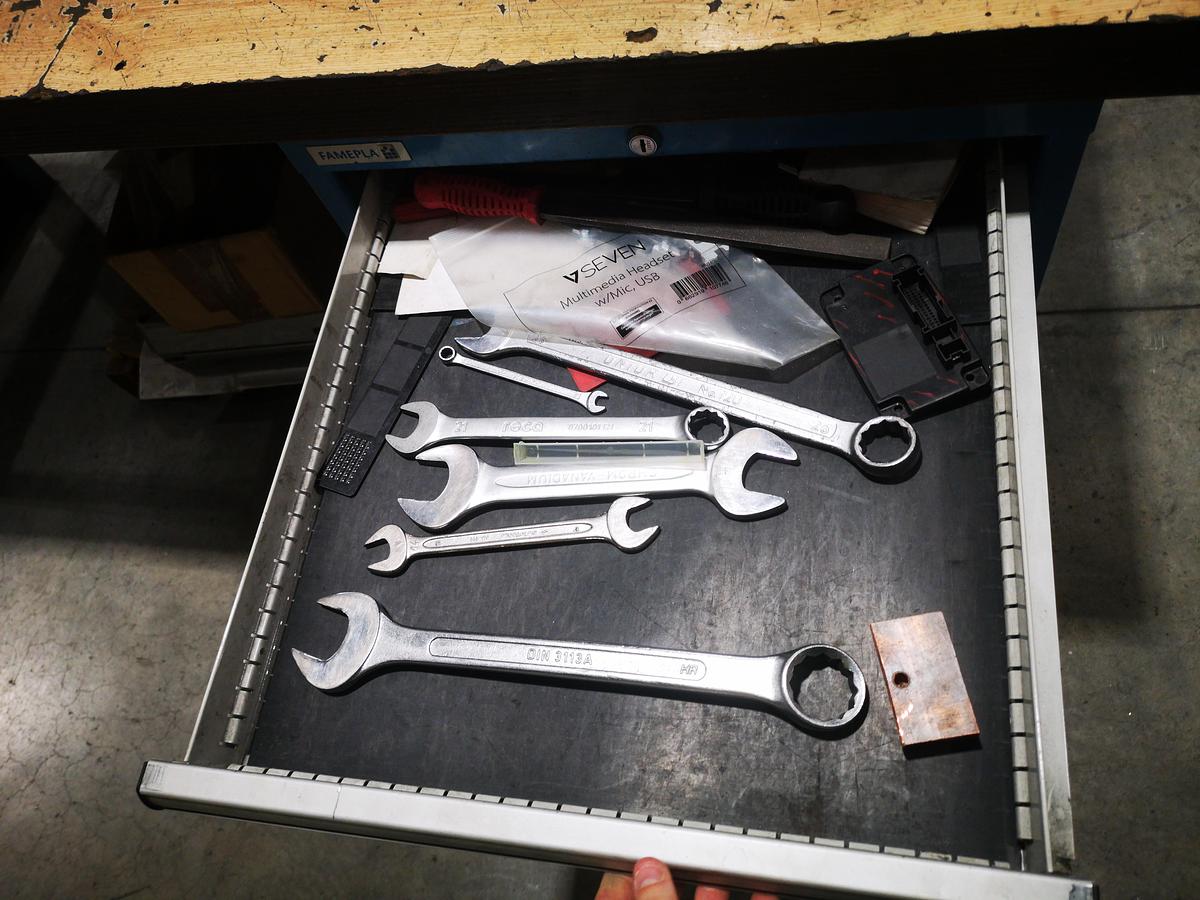

Extensive accessories and connection cables included
