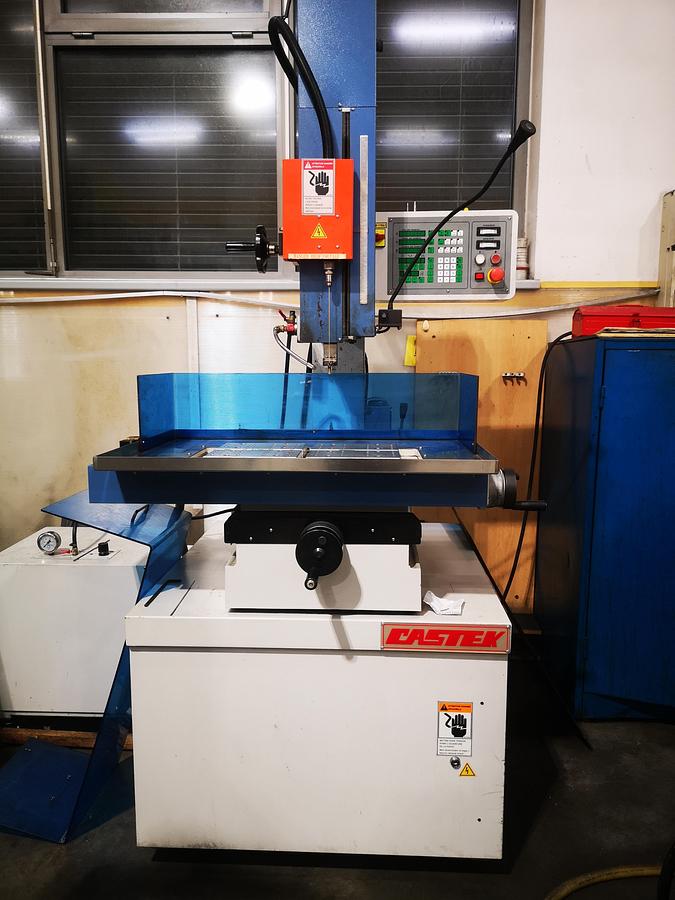

EDM CASTEC SD24P - HOLE DRILLING MACHINE AS NEW CONDITION

Maximum 50 amps. power current.

New and Improved "P" system.

Drilling 0.039"(1.0 mm) through 1" thick steel in less than 35 seconds.

Suitable for drilling through steel, carbide, aluminum and any other conductive material.

Fast and accurate deep hole drilling application with capacity from 0.0078" to 0.236" (0.2 mm - 6.0 mm) in diameter or bigger capacity with 120 amp power supply.

User friendly control panel interface, minimum skill required to operate.

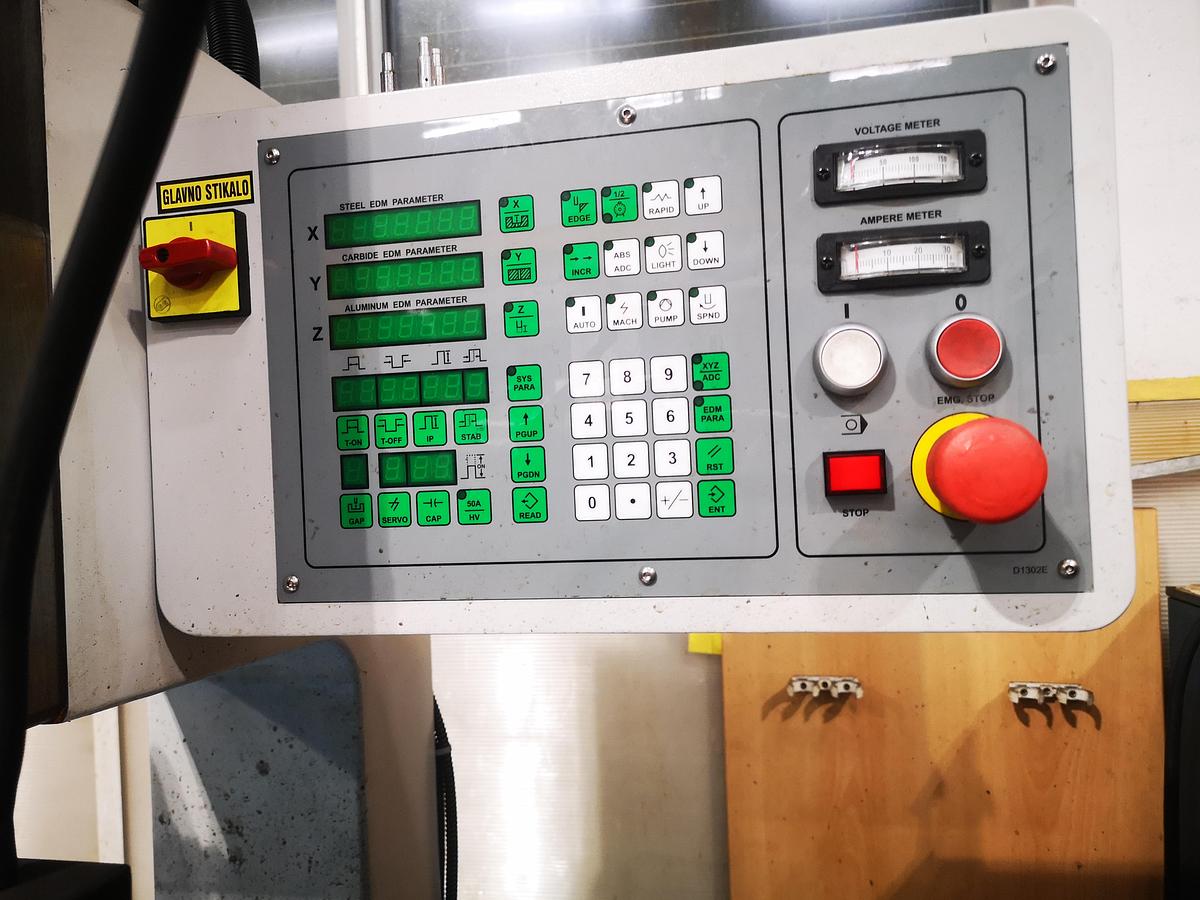

Control Panel Features:

Multiple display functions for dimensions, EDM parameter and machining depth setting.

Machining stability adjustment: Fine tune and stabilize machining conditions result in finer surface finish.

Inch/metric conversion.

0.0002" resolution.

Auto quill retract.

Center positioning.

Machining time timer.

EDM parameters recall.

Edge find.

EDM parameter memory bank stores up to 480 different settings for steel, carbide, and aluminum. Some parameters are preloaded in memory, user can use these parameters as reference for testing, editing, and recording new data accordingly.

Standard Accessories:

3-axes Digital Readout System

50 Amps. Power Current

1.0 MM Ceramic Guide (1 pc)

Work Lamp (1 pc)

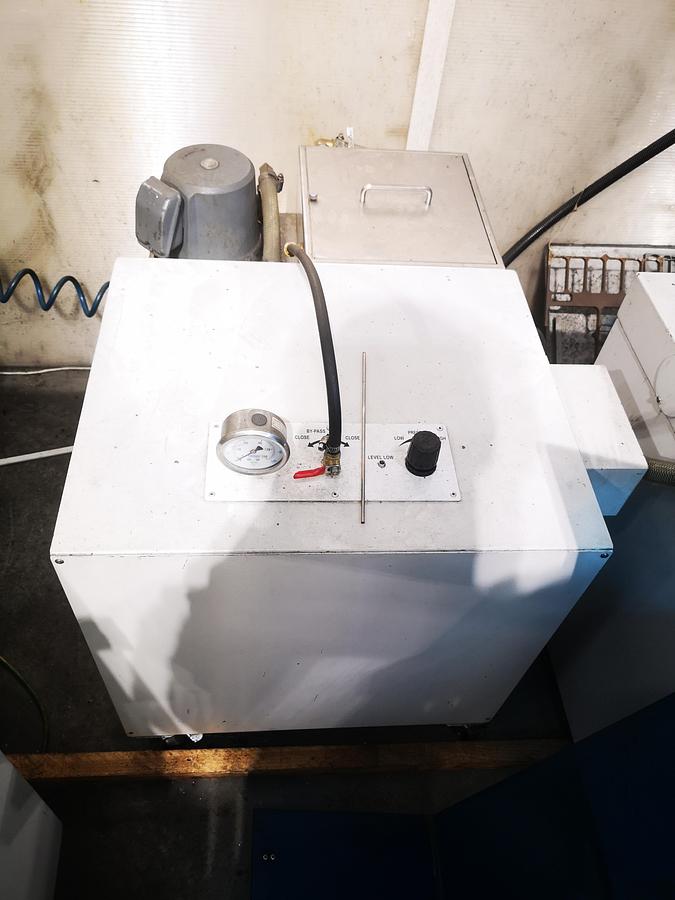

Coolant Pump & Tank (1 set)

Auto-Depth Control

Use distilled water as dielectric

1.0 MM Brass Tubing (10 pcs)

Tool Box & Tools (1 set)

Plastic Shield (1 set)

Range of electrode : 0,2 mm ~ 6mm

Table size: 17.7 in x 10.2 in

Max. workpiece size 31.8 inx20 inx9.4 in

Table travel: (X : Y) 11.8 in x 7.8 in

RAM backslide: 4 in

Guide travel: 4 in

Quill servo travel: 14.5 in

Dielectric capacity: 5.3 Gallon

Max. power rating: 4KVA

Max. current: 50 AMP

On/ Off time setting: 32 Steps

Peak current setting: 16 Steps

Stability setting: 10 Steps

Layout :(L x W x H) 55 in 55 in x 91 in

Net weight: 1430 LB

Machine structure: Dovetail table travel
