INGERSOLL EDM GANTRY Gantry Eagle 2000 AS BRAND NEW

Gantry Eagle 2000

Construction Year: 2023

Description

• travel X/Y/Z 1,550 x 2,750 x 1,000 mm,
• C-axis 360°,
• work bowl dimensions W/D/H 2,020 x 3,220 x 1,350 mm,

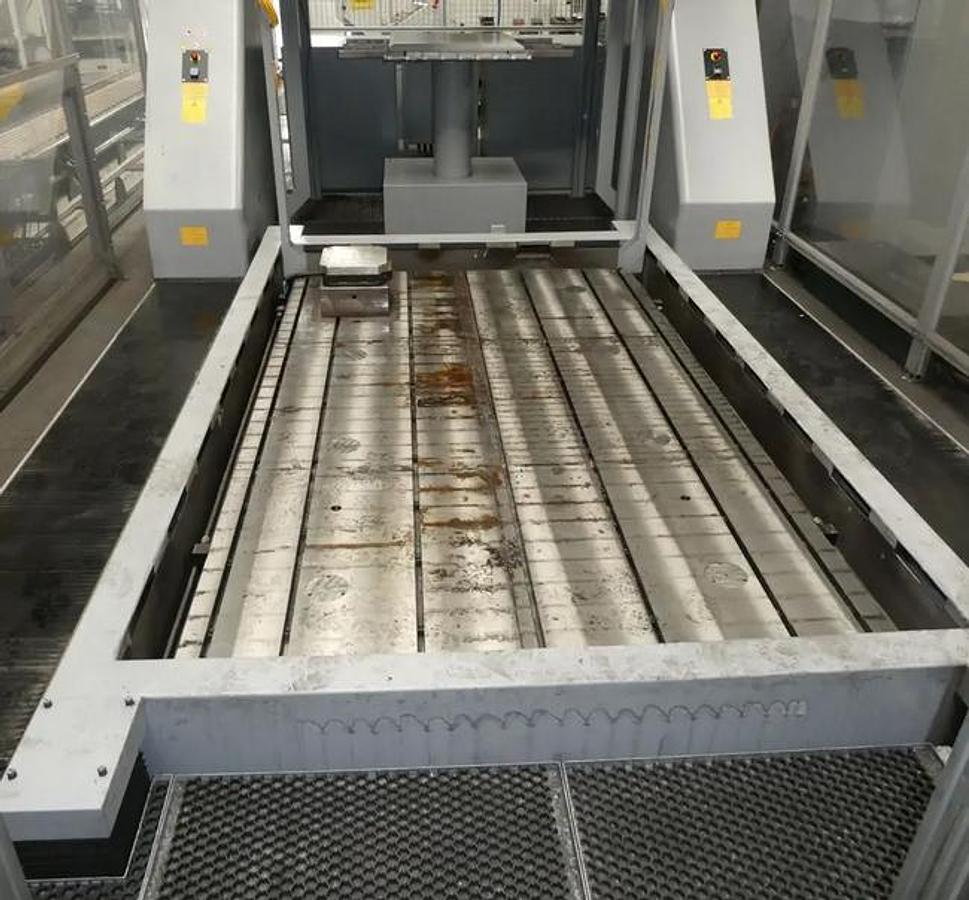

• worktable w. T-slots, W/D 1,870 x 3,080 mm,
• worktable load capacity 30,000 kg,
• rigid design,
• CNC control type Eagle PowerSPARK one,
• w. Fine finishing generator, type Eagle Powertec PT60,
• Eagle Power Jump,
• interval speed X/Y-axis: 2.5 m/min,
• Z-axis 5m/min,
• linear measuring system for X/Y-axis,
• high-performance generator,
• type Eagle Power SPARK PT110,
• max. 110 A, Electrode clamping system, Erowa, type ITS, RAM clamping system,
• Erowa, type UPC,
• Workpiece clamping system, Erowa, type UPC

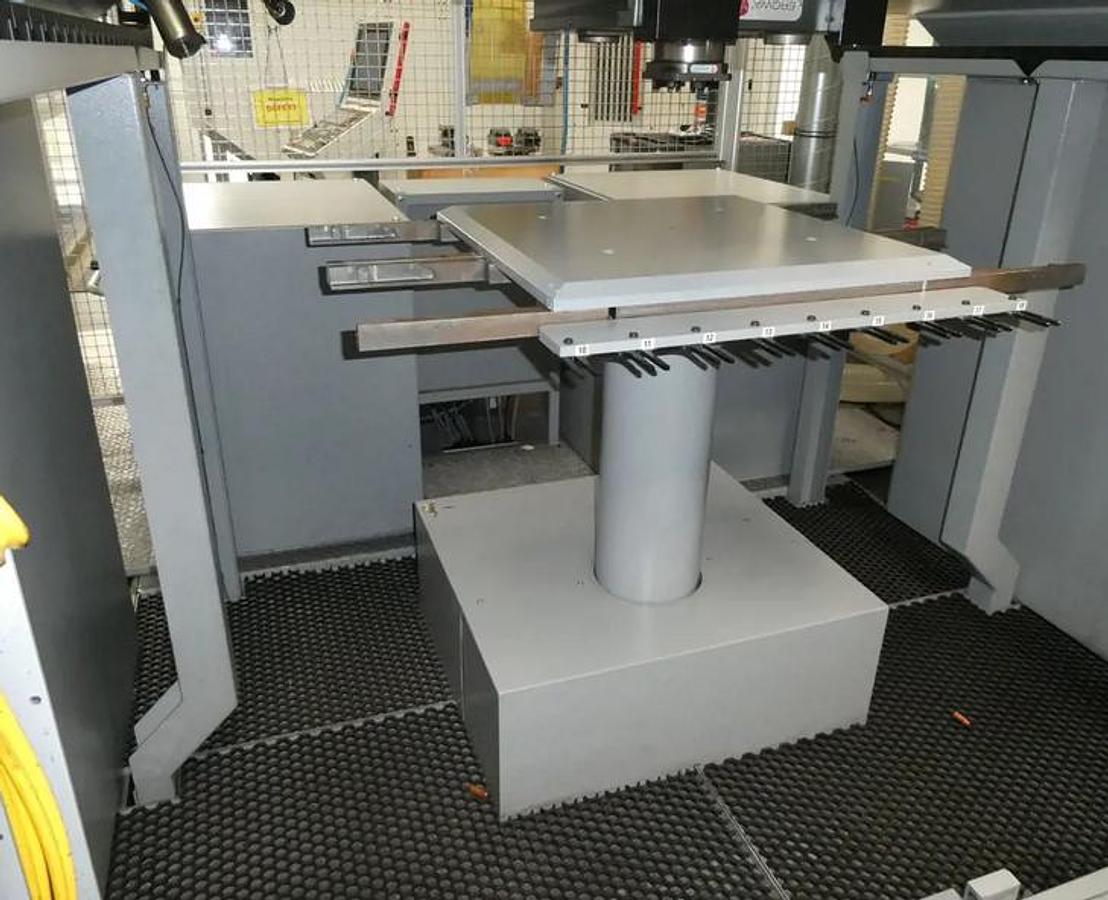

• Production Chuck, 20-fold electrode changer,
• type EW4/18, w. disk magazine and RAM clamping system,
• Dielectric clamping system, Erowa, type ITS, RAM clamping system, Erowa, type UPC RAM clamping system,
• dielectric height max. 1,300 mm,
• programmable, switch cabinet,

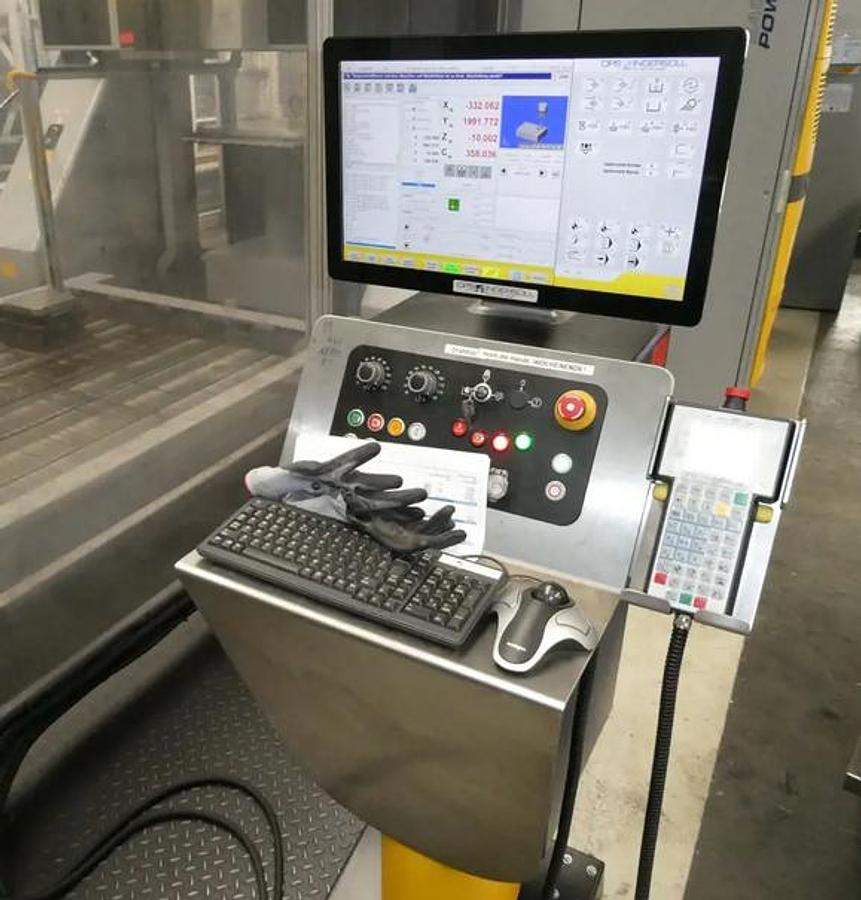

• control panel, tool storage system,
• recooling unit,
• CO2 extinguishing system, Kraft und Bauer,
• control unit, type FB714,
• switch cabinet, connection to automation/robot
