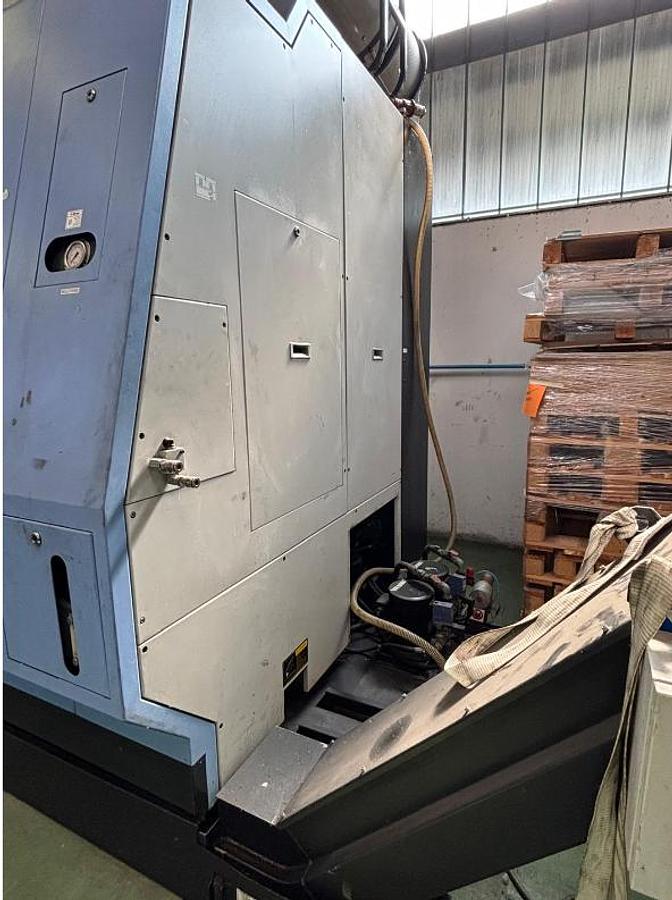

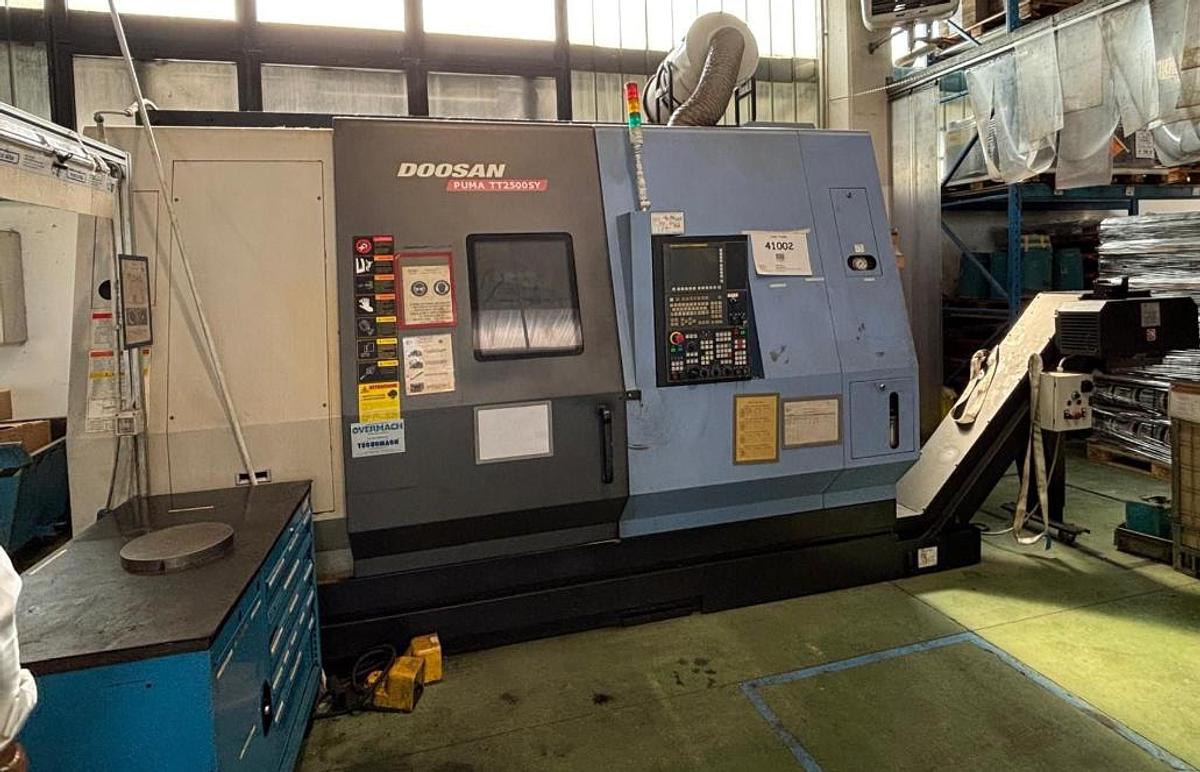

CNC LATHE DOOSAN PUMA TT2500SY TURNING AND MILLING CENTRE WITH TOOLS AND ACCESSORIESS

WE OFFER AN NICE CONDITION MACHINE WITH TOOLINGS

MACHINE HAS LOW WORKING HOURS APPROX 4500 SPINDLE HOURS ONLY

Model: Doosan PUMA TT2500SY

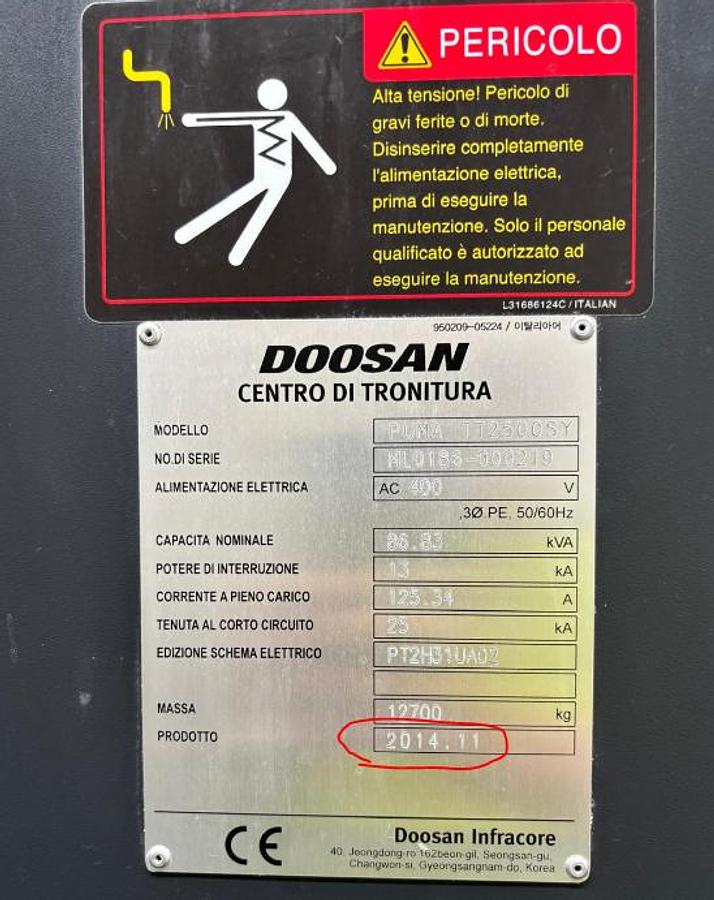

YEAR: 2014/12 START WORK IN 2015

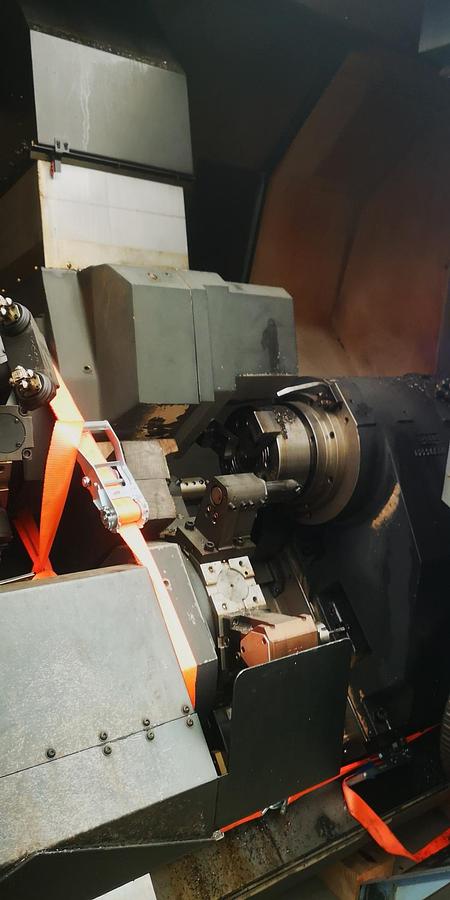

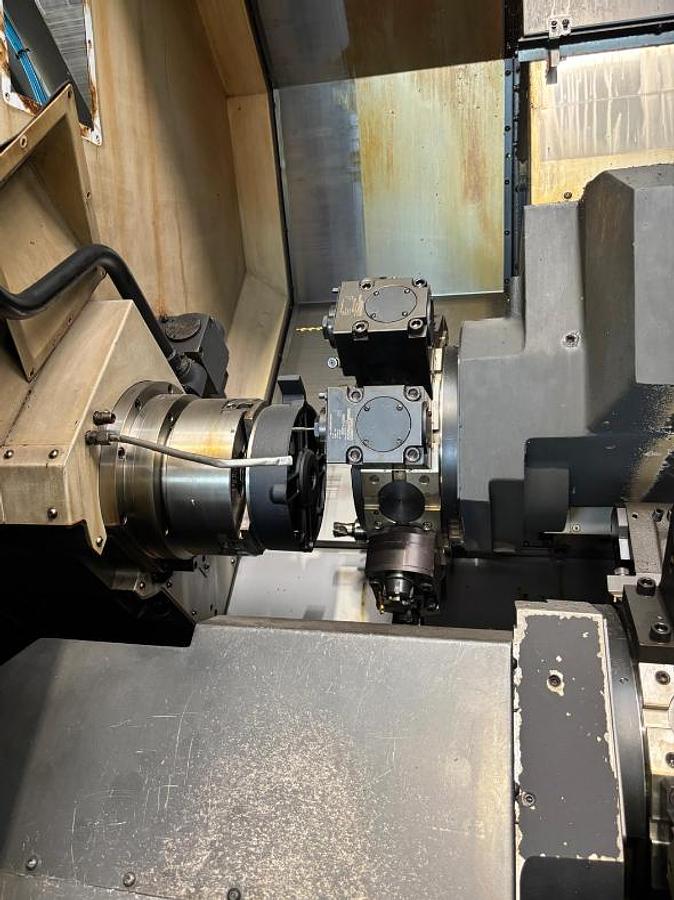

Type: Multitasking CNC lathe with twin spindles and twin turrets

Controlled Axes: 8 axes (2 spindles)

Configuration:

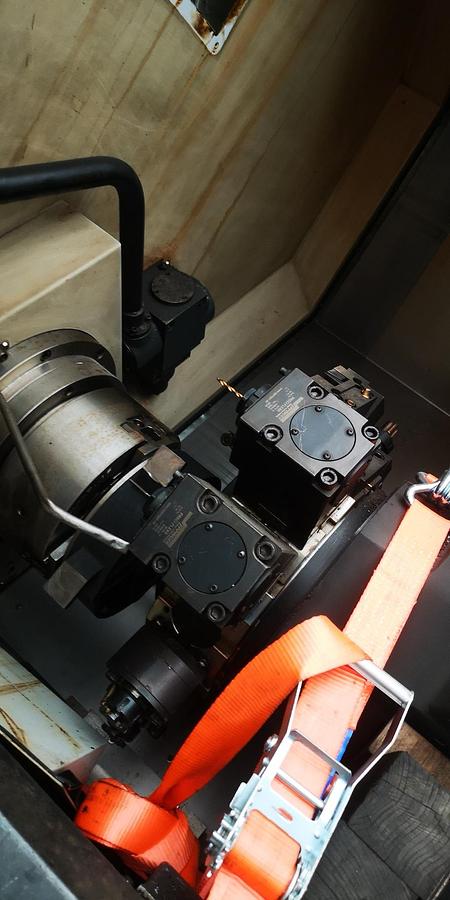

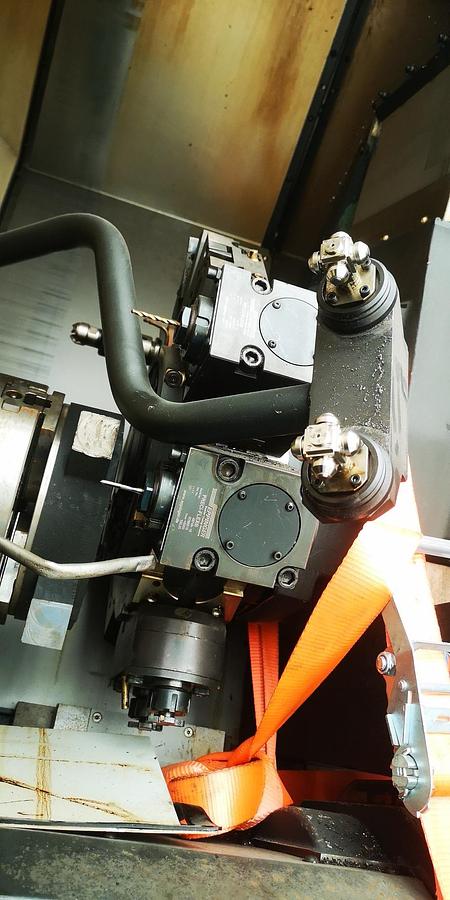

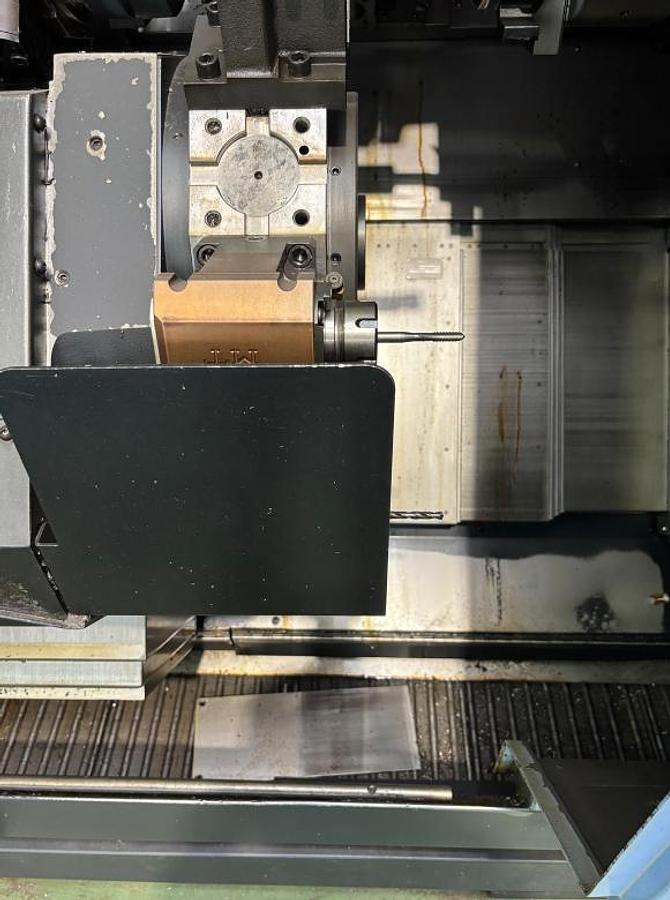

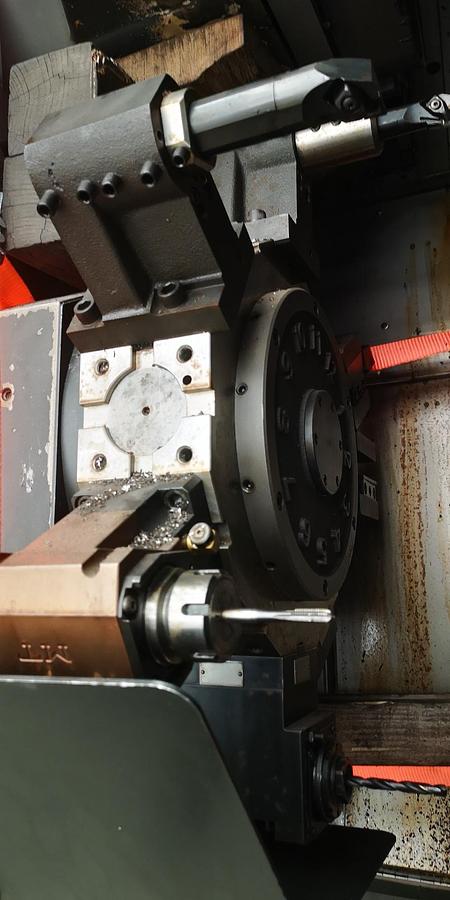

• Upper turret: X1, Z1, Y1, C1
• Lower turret: X2, Z2, C2
• Transfer axis: A

Key Specifications

• Max turning diameter: 390 mm
• Max turning length: 350 mm
• Bar capacity: Ø 76 mm
• Spindle size: 10″ (254 mm)
• Max spindle speed: 3,500 rpm
• Spindle motor power: 26 kW (left and right)

Axis Travels & Rapid Feeds

• X1 axis travel: 255 mm – 20 m/min
• Z1 axis travel: 800 mm – 24 m/min
• Y1 axis travel: ±60 mm – 7.5 m/min
• X2 axis travel: 190 mm
• Z2 axis travel: 900 mm

Machine Dimensions

• Approx. footprint: 4,050 × 2,210 × 2,480 mm
• Net weight: approx. 12,700 kg

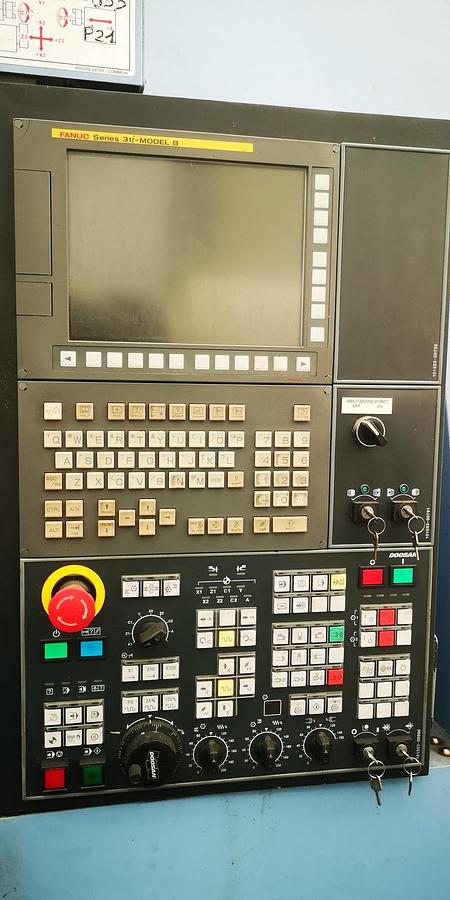

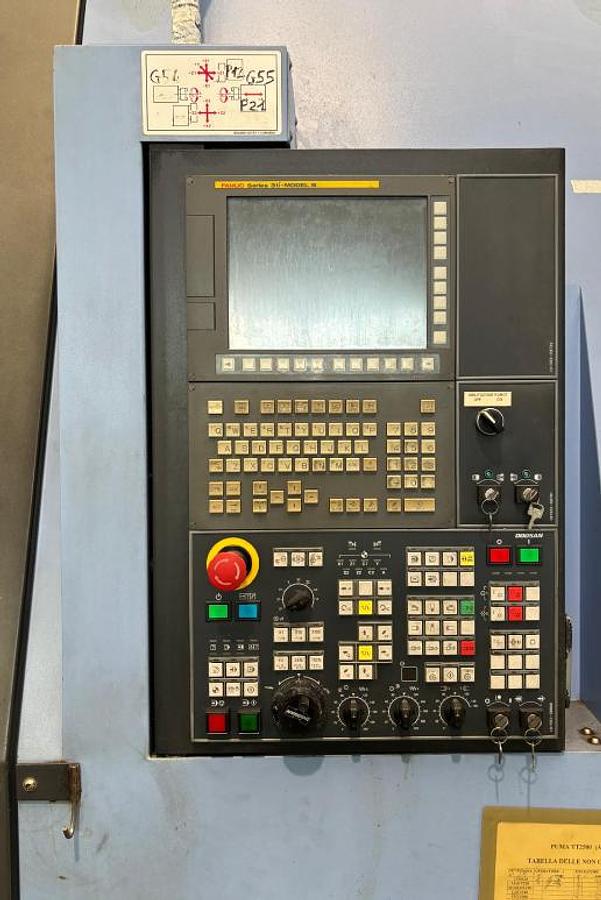

CNC Control FANUC

Overall dimenson: 4050 x 2480 x 2210 H. mm - weight Kg. 12.700
