CNC ACRA FEL-1860ENC/B LATHE VERY LOW WORING HOURS WITH EQUIPMENT

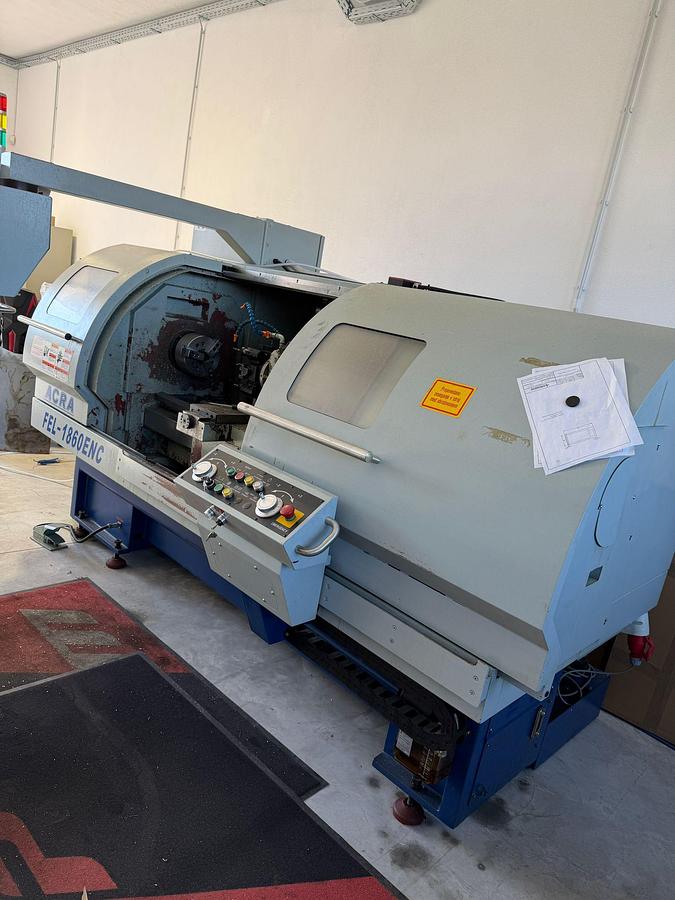

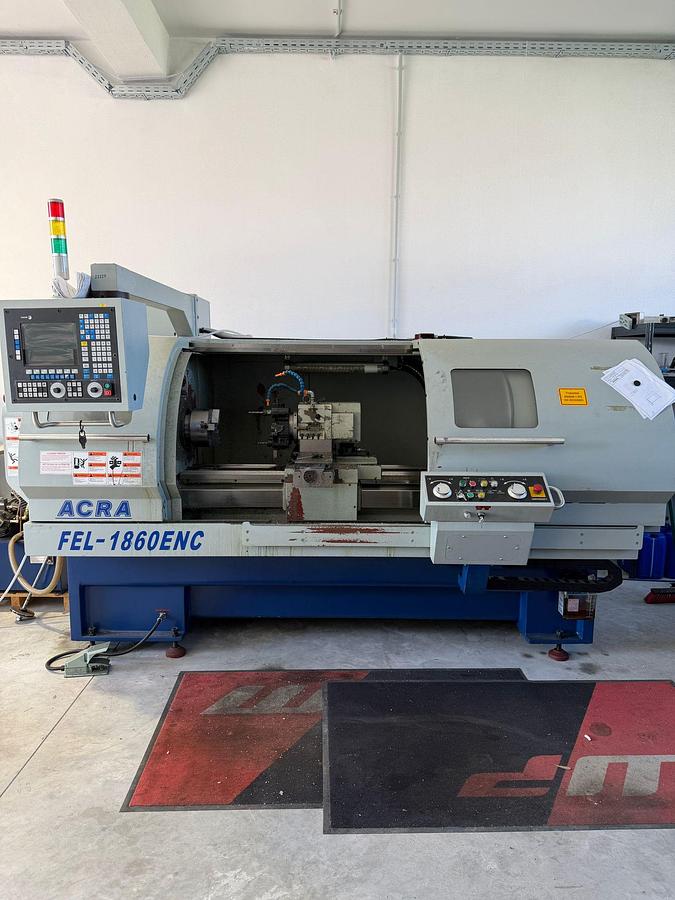

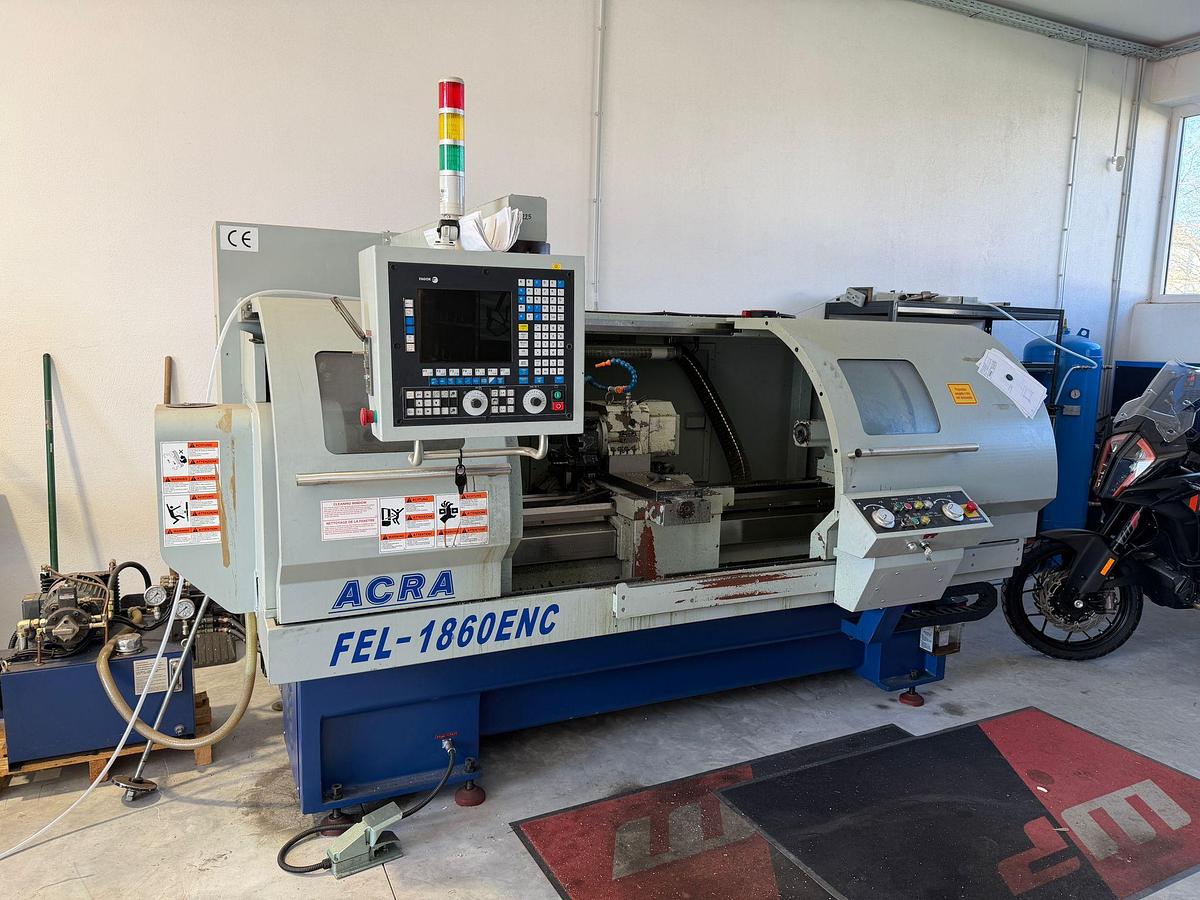

WE OFFER AN VERY NICE CNC LATHE - ACRA FEL-1860ENC/B CNC

A professional and robust CNC lathe, suitable for both batch and single-piece machining.

The machine

offers high precision, reliable operation, and easy handling.

Key Features

· CNC lathe – 2-axis (X, Z)

· Stable cast iron construction for high rigidity

· Suitable for machining steel, stainless steel, aluminum, and other materials

· Easy programming and operation (G-code or direct on the machine)

· Extremely robust

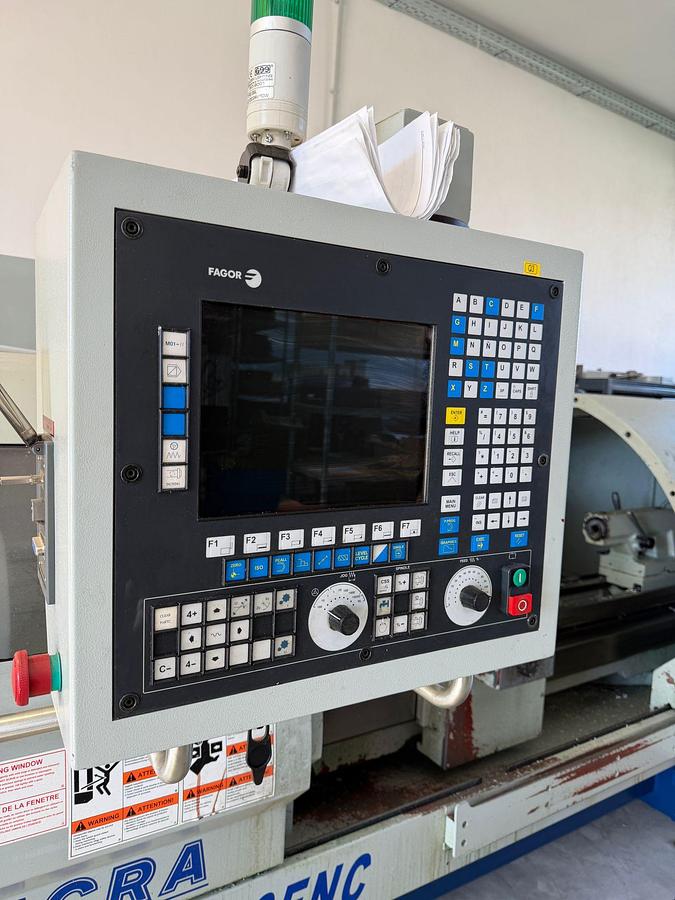

· Fagor 8055

Technical specifications

· Over-bed diameter: approx. 460 mm

· Distance between centers: approx. 1400 mm

· Max. machining diameter: approx. 250 mm

· X-axis travel: 230 mm

· Z-axis travel: 1350 mm

· Spindle diameter (clearance): approx. 60 mm (not sure, need to check again)

· Spindle speed: L: 27 - 831; H: 831 - 2500 rpm

· Main motor power: approx. 7.5 kW

· Spindle taper: D1-6

· Tailstock taper: MT4

· Rapid traverse (X/Z): 7.5 m/min; 10 m/min

· Power supply: 400 V / 50 Hz

Machine condition (important)

· The machine was primarily used to machine copper, brass, aluminum, and a small amount of stainless steel.

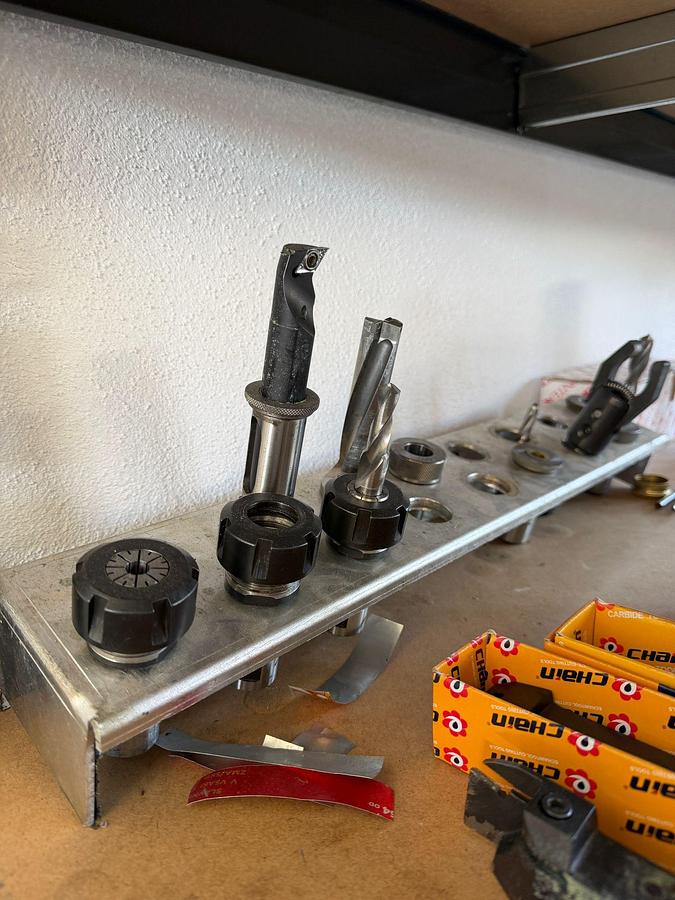

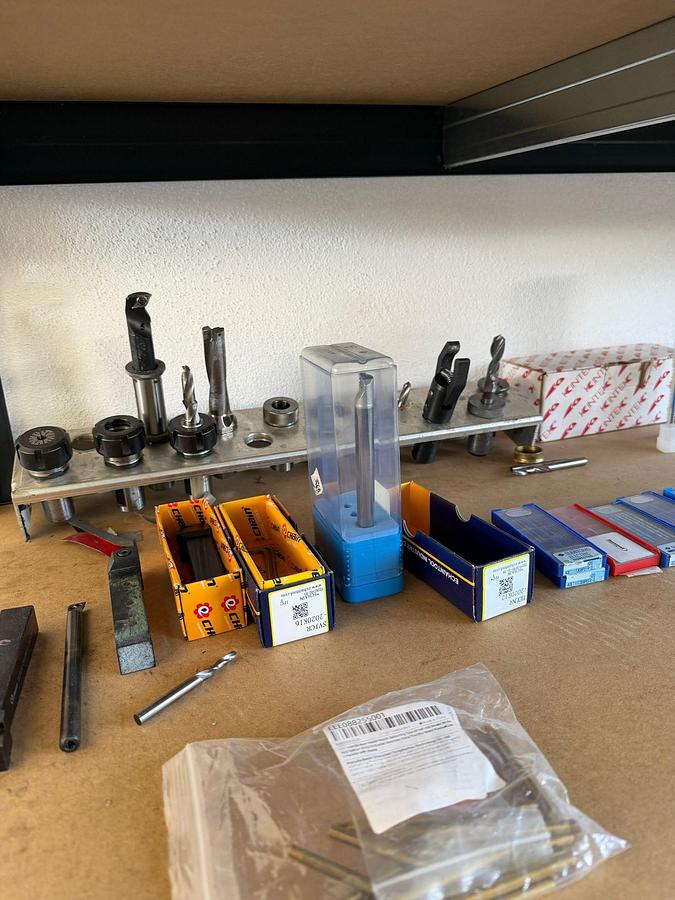

Equipment

· CNC controller

· Clamping head

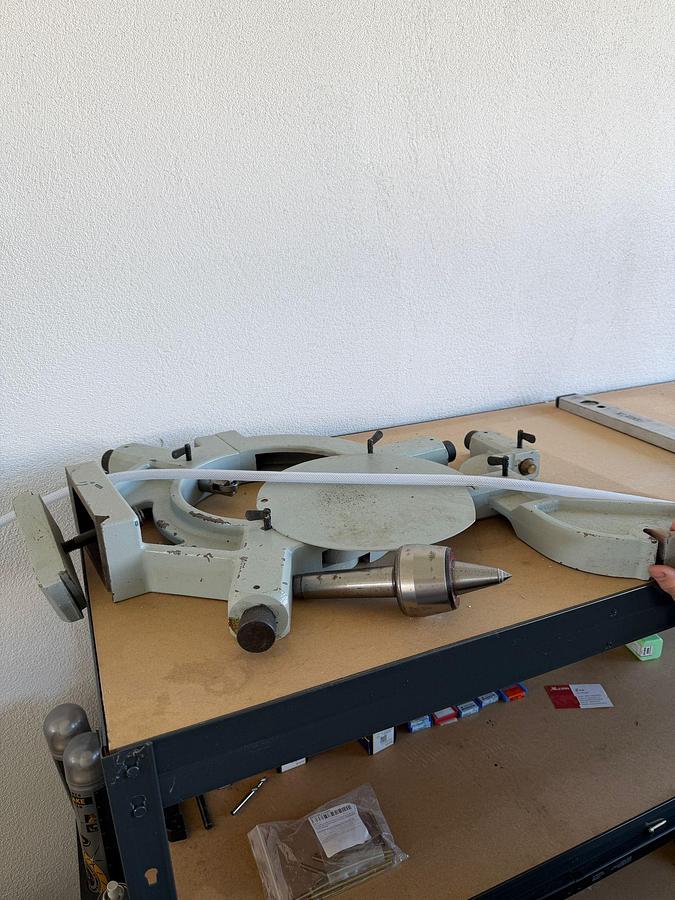

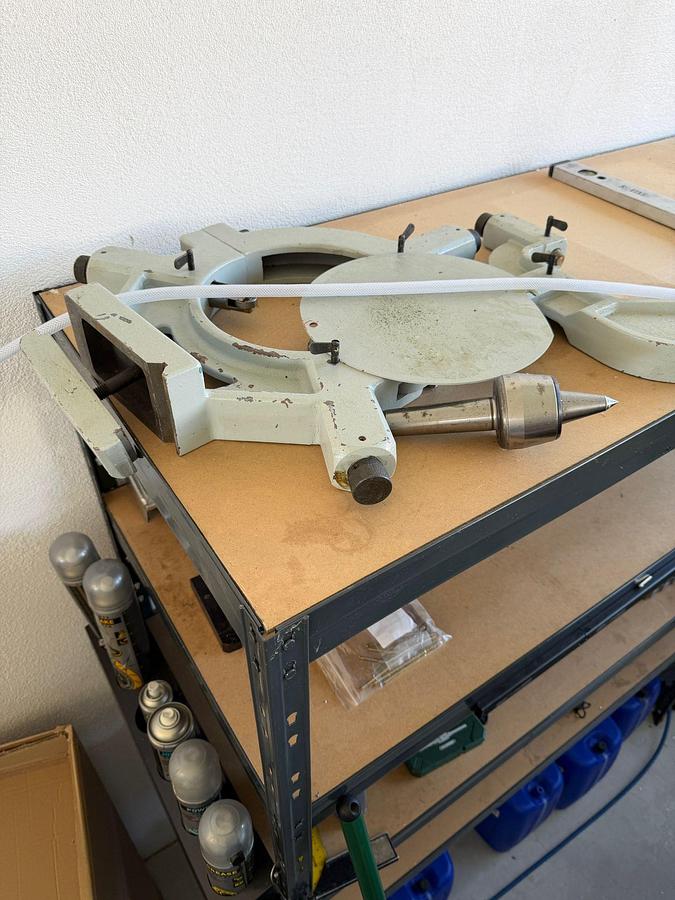

· Tailstock

· Worklight

· User manual

Additional

· Machine is ready for operation

· Immediate pickup available

WE ORGANIZE FOR CLIENT ALSO TRANSPORT WORLDWIDE ON ORDER.
