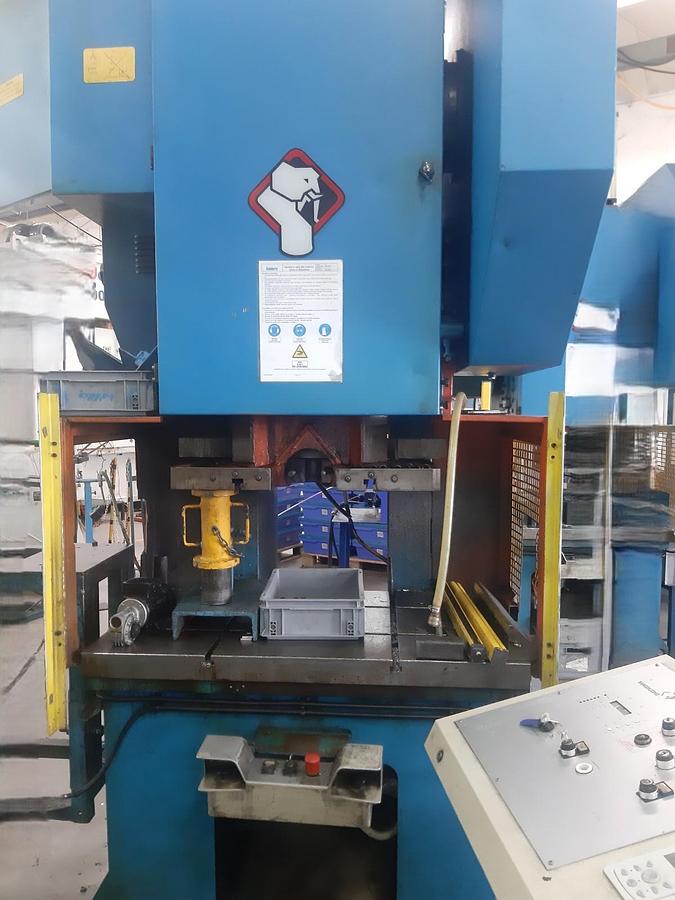

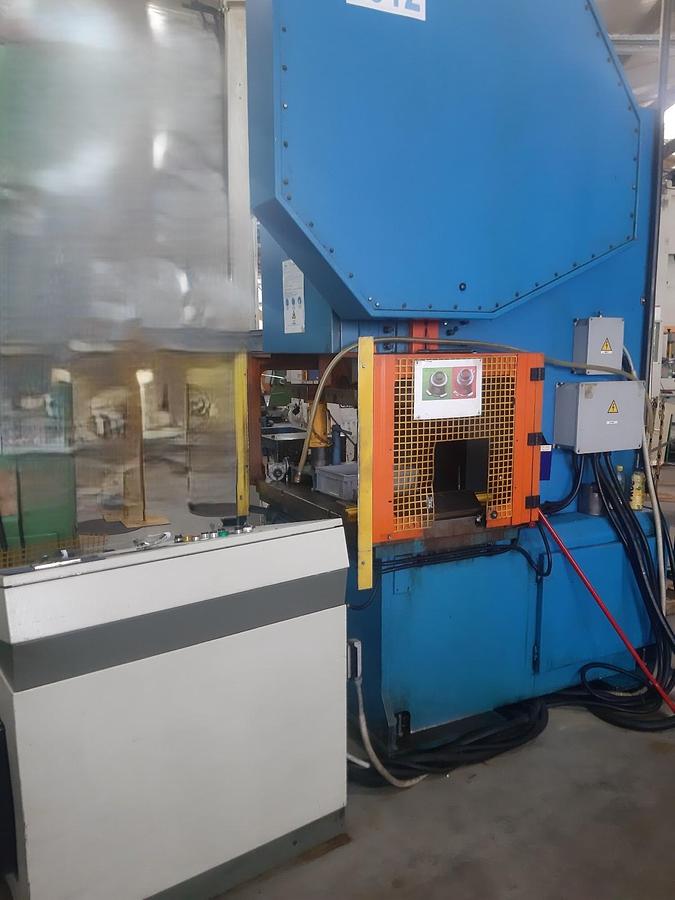

EXCENTRIC PRESS - SAN GIACOMO PRESSE 130 TON

TECHNICAL CHARACTERISTICS:

Press Model: T130R CE

Year of construction: 2005

Nominal force: 1300 kN

Nominal stroke: 7.5 mm

Adjustable stroke: 16÷200 mm

Stop position: TDC

Ram adjustment: 100 mm

Stop time: 190 ms

Strokes per minute min./max.: 10/55

Maximum mould surface: 600 x 1100 mm

Maximum closed mould height: 452 mm

Min. closed mould height: 260 mm

Upper mould mass: 140 kg

Flywheel revolutions per 1°: 411

Max. insertions at 1°: 28

Installed power: KW 11

Voltage: V400

Auxiliary voltage: V24

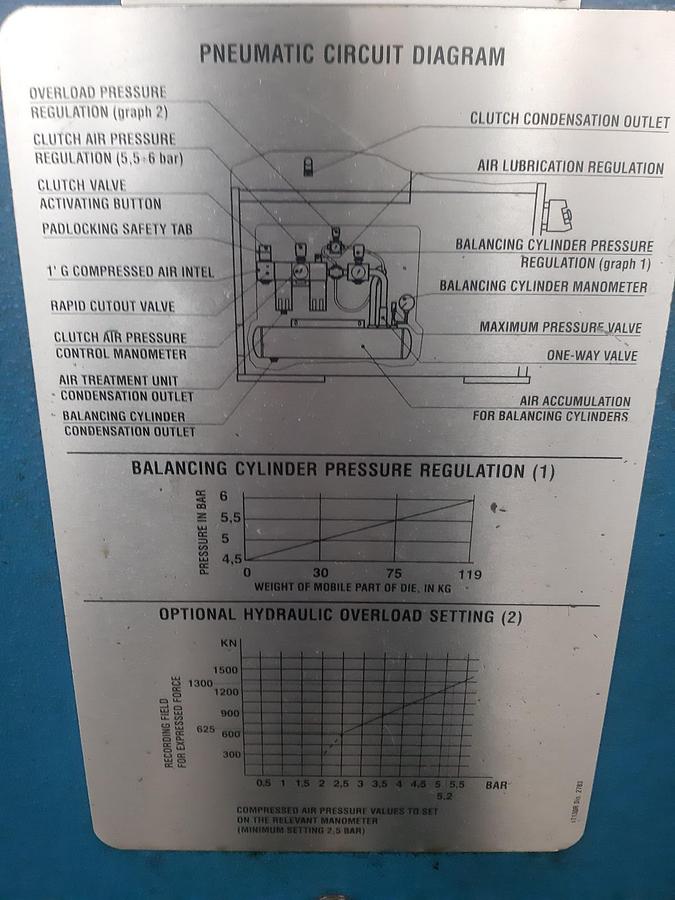

Operating air pressure: BAR 5.5÷6

Mass: Kg. 10,000

Motorized hammer adjustment

Hydraulic overload safety

Speed regulation

Complete with user manual and CE conformity and 6 months warranty.

• Work surface revived on CNC machine;

TECHNICAL CHARACTERISTICS:

Press Model: T130R CE

Serial number: 11911

Year of construction: 2004

Nominal force: 1300 kN

Nominal stroke: 7.5 mm

Adjustable stroke: 16÷200 mm

Stop position: TDC

Ram adjustment: 100 mm

Stop time: 190 ms

Strokes per minute min./max.: 10/55

Maximum mould surface: 600 x 1100 mm

Maximum closed mould height: 452 mm

Min. closed mould height: 260 mm

Upper mould mass: 140 kg

Flywheel revolutions per 1°: 411

Max. insertions at 1°: 28

Installed power: KW 11

Voltage: V400

Auxiliary voltage: V24

Operating air pressure: BAR 5.5÷6

Mass: Kg. 10,000

Motorized hammer adjustment

Hydraulic overload safety

Speed regulation

Complete with user manual and CE conformity and 6 months warranty.

• Work surface revived on CNC machine;
