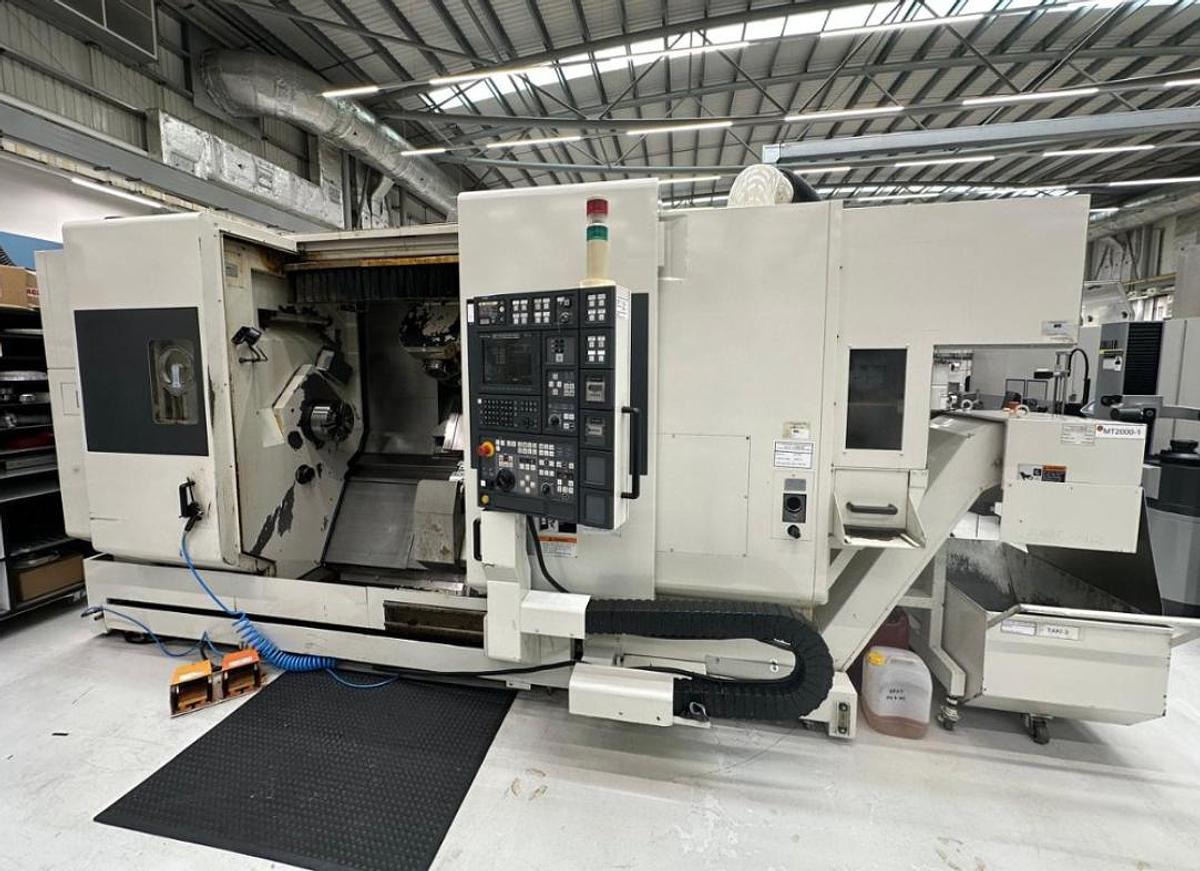

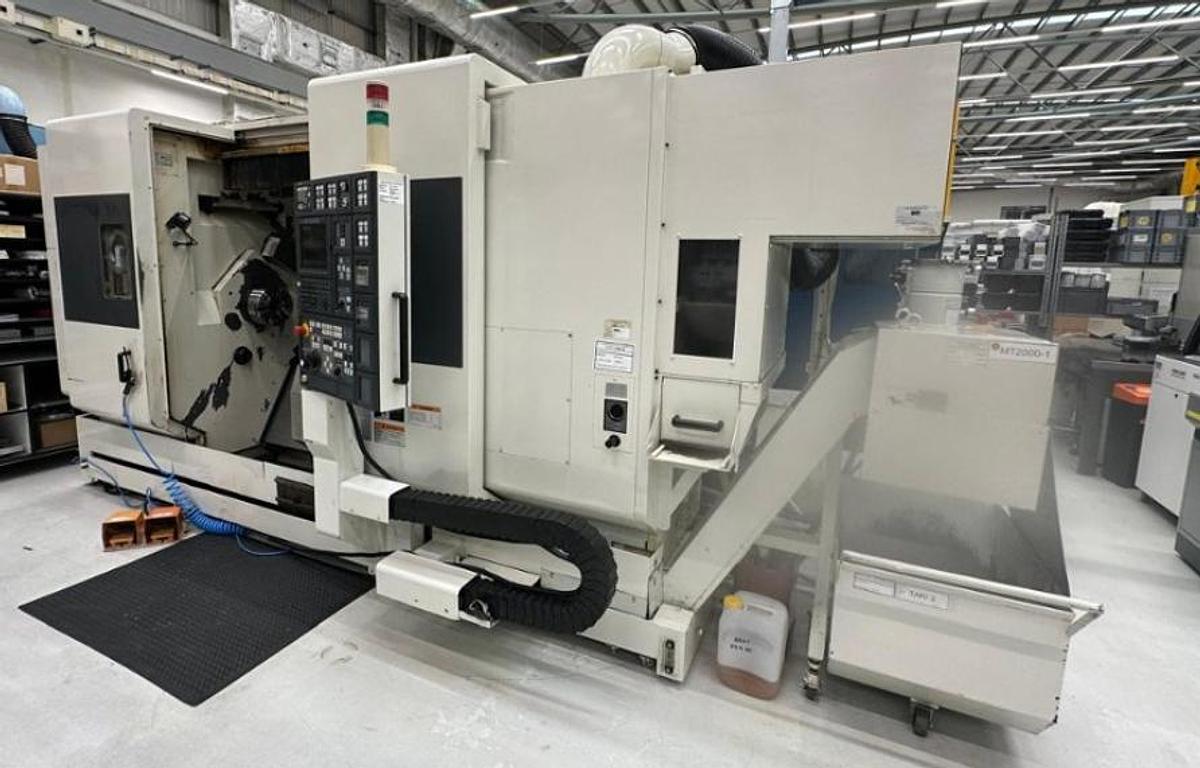

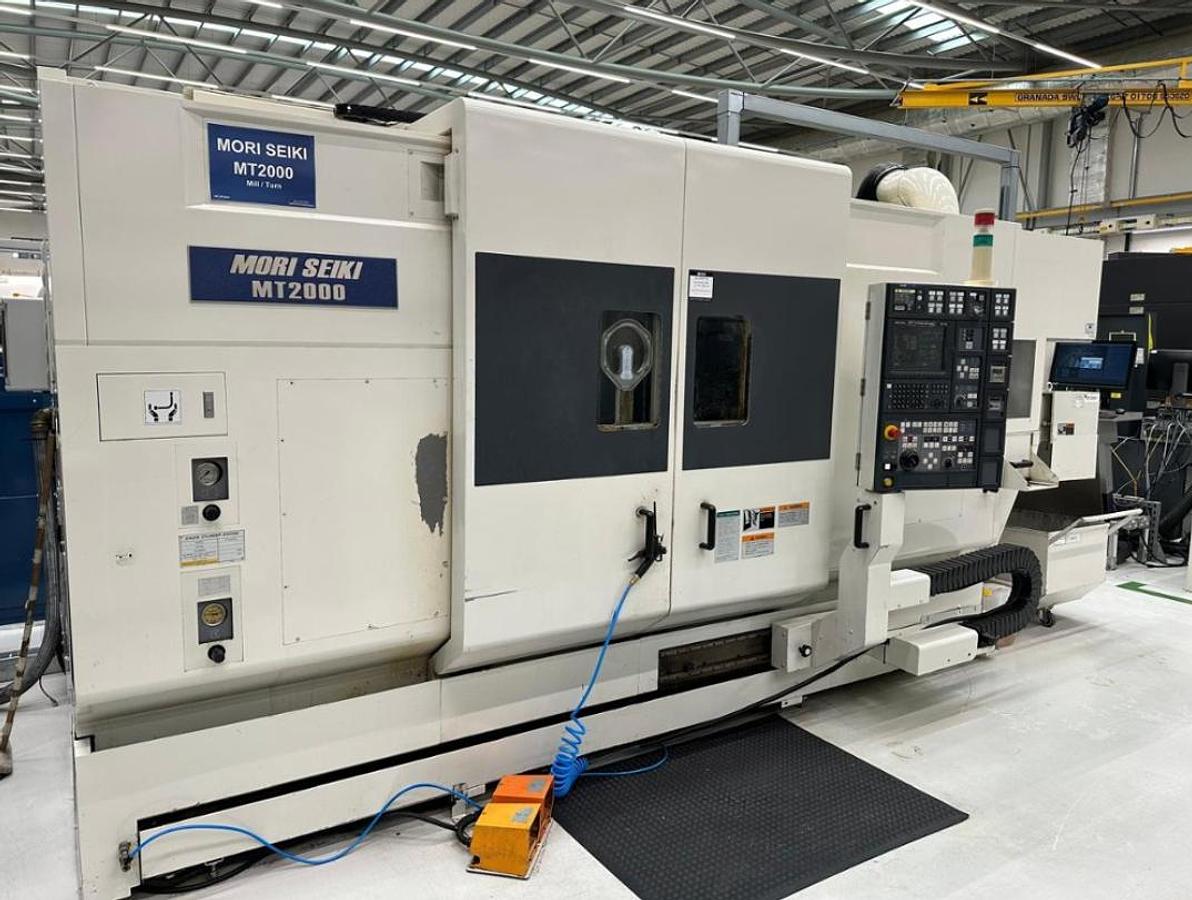

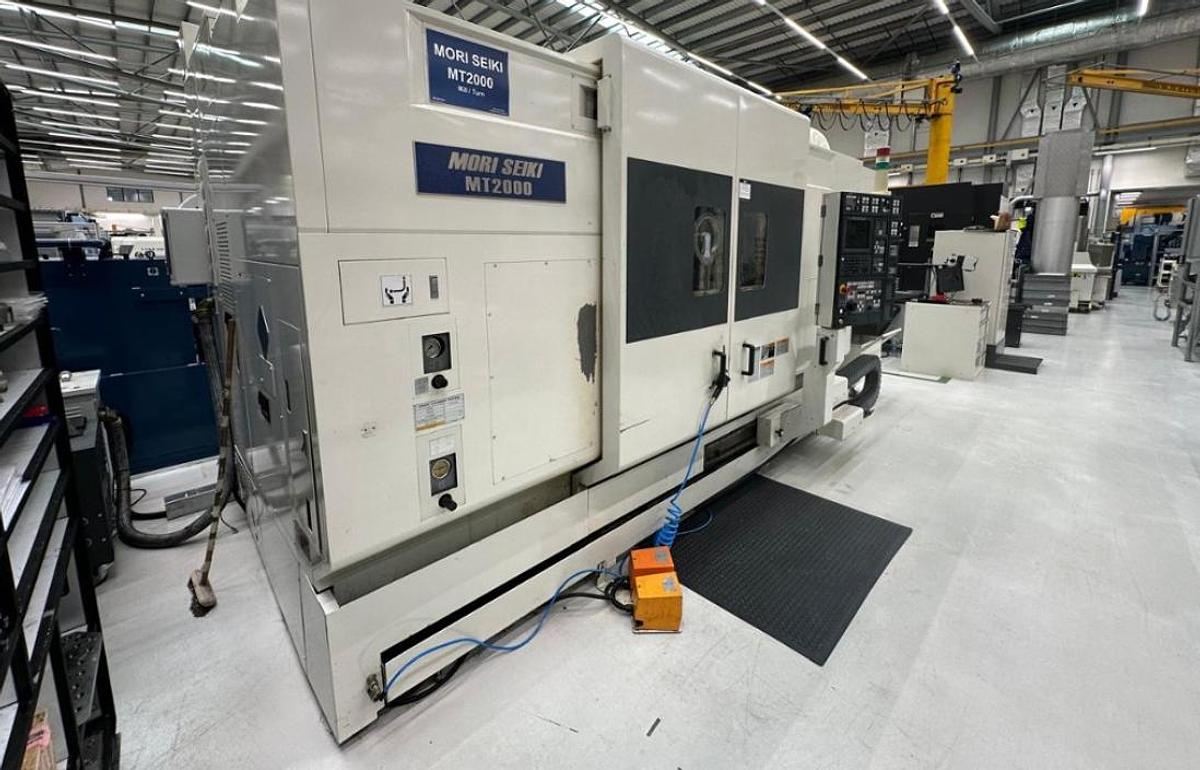

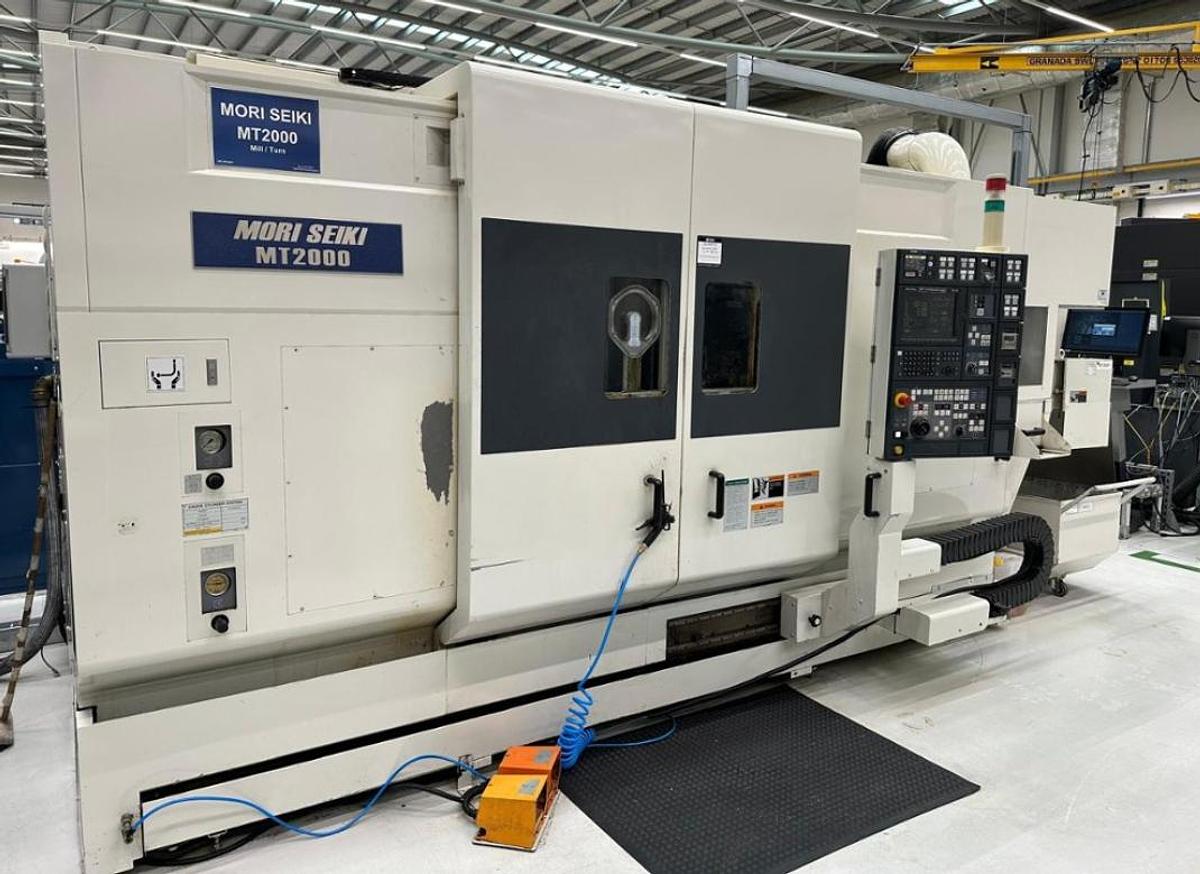

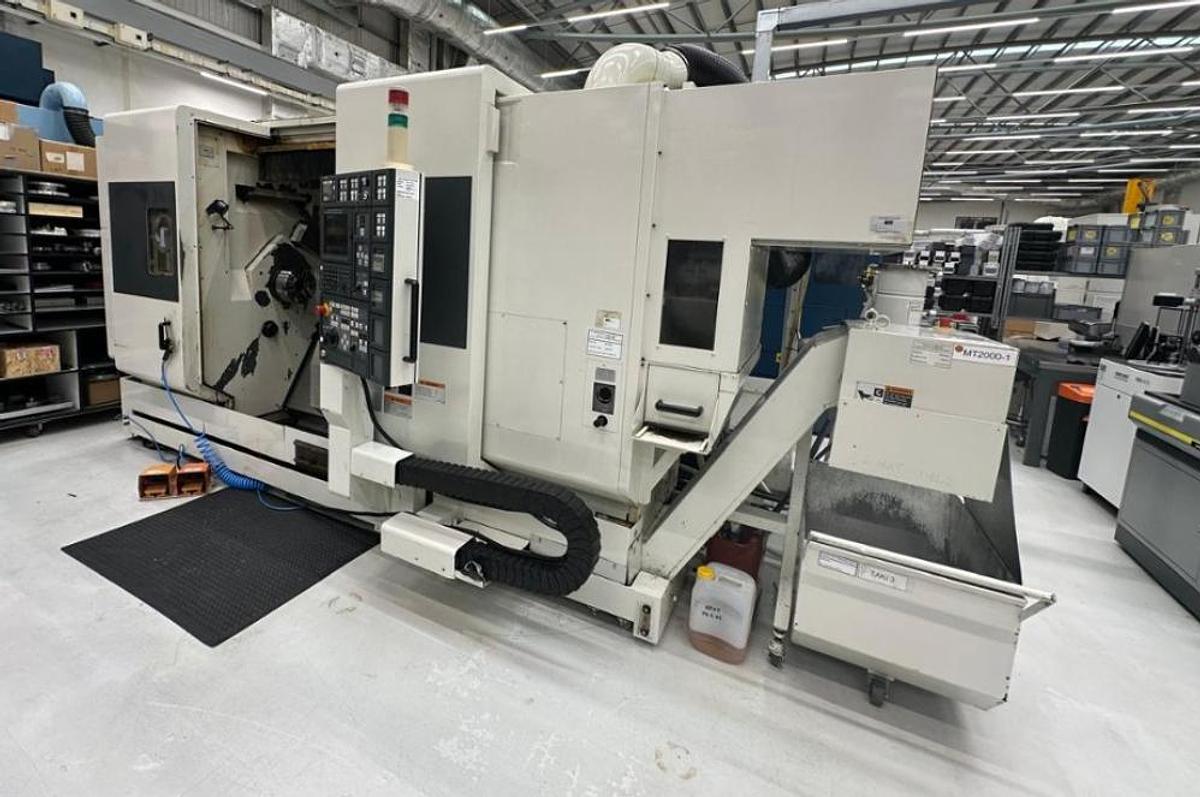

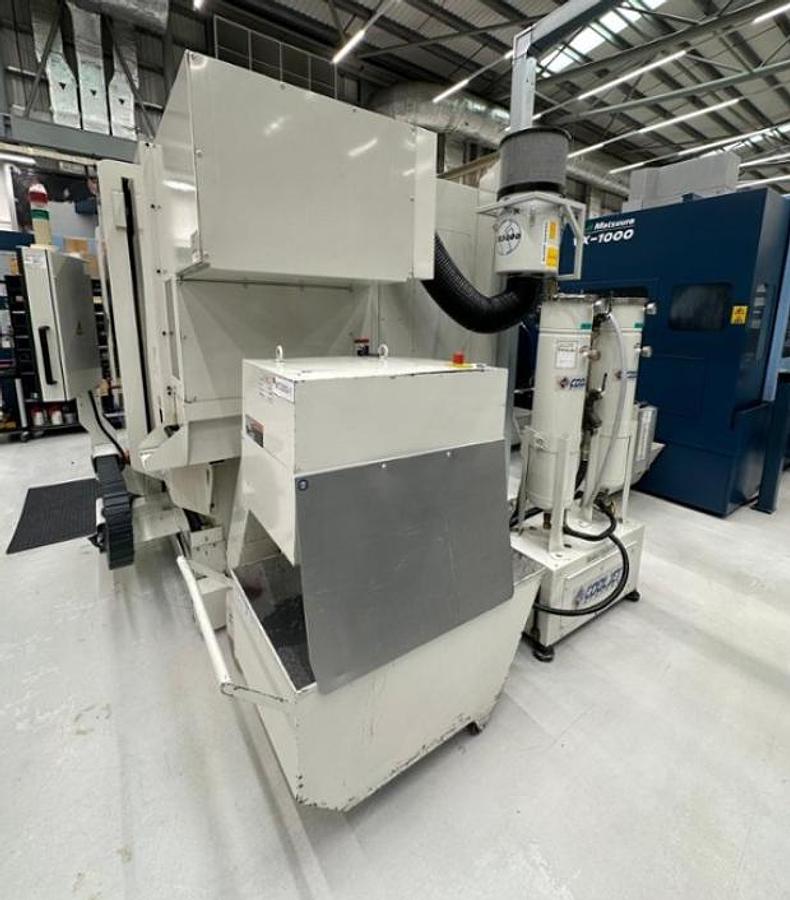

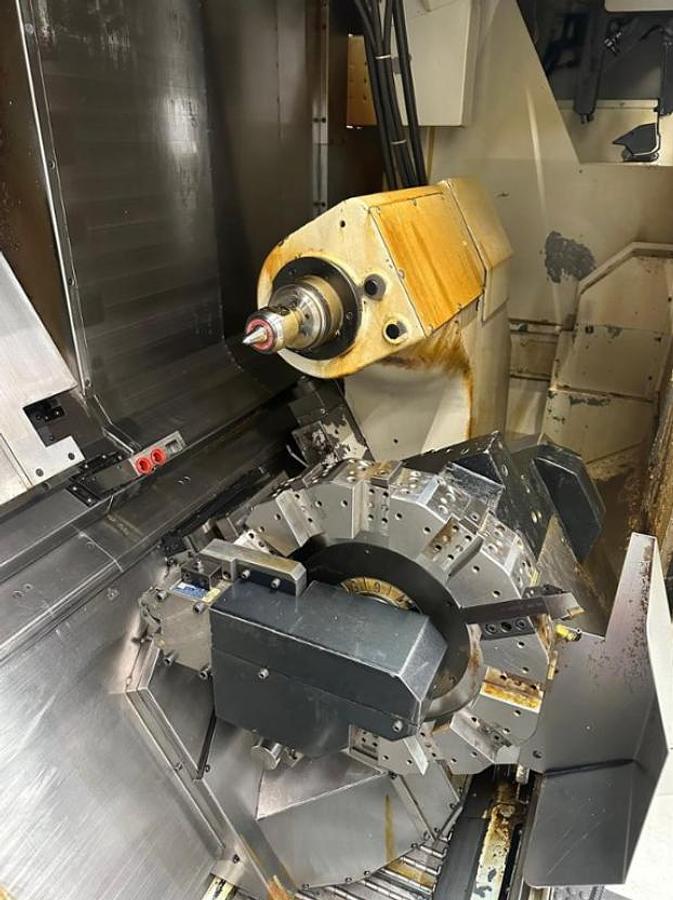

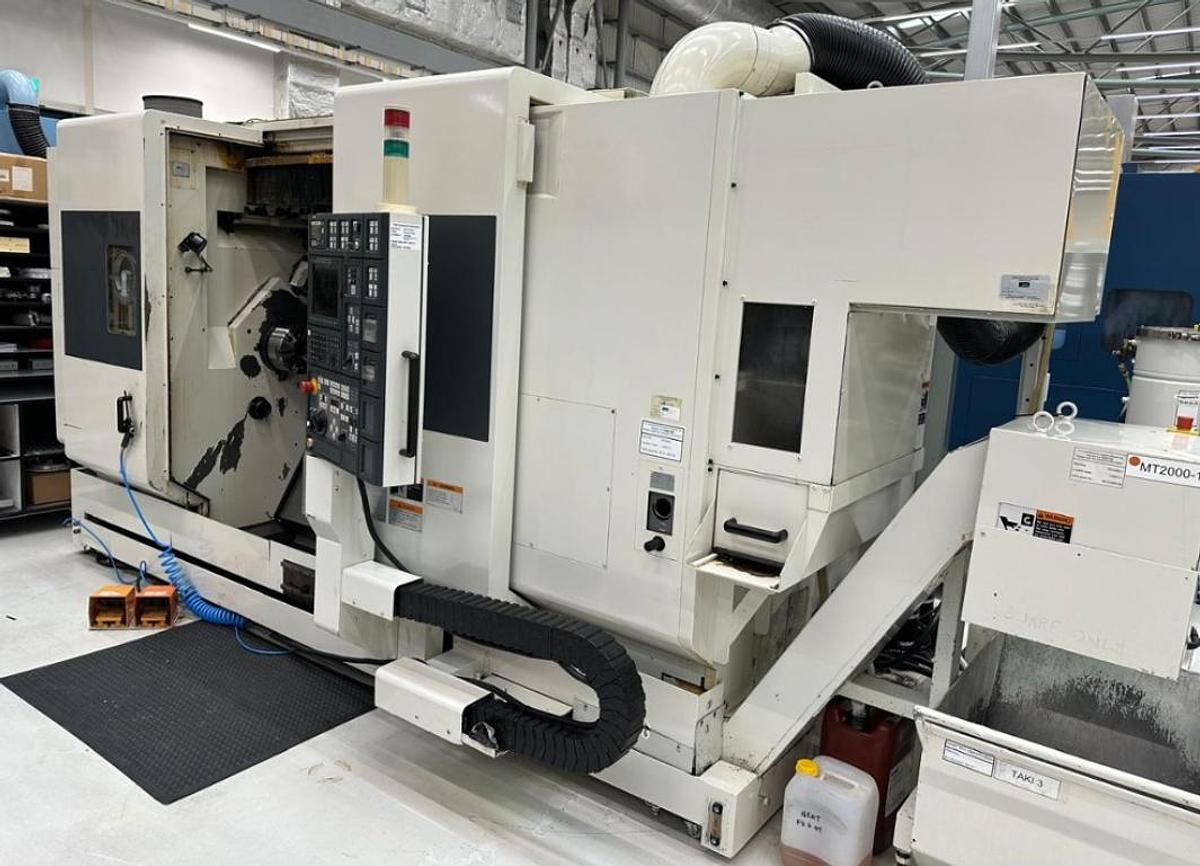

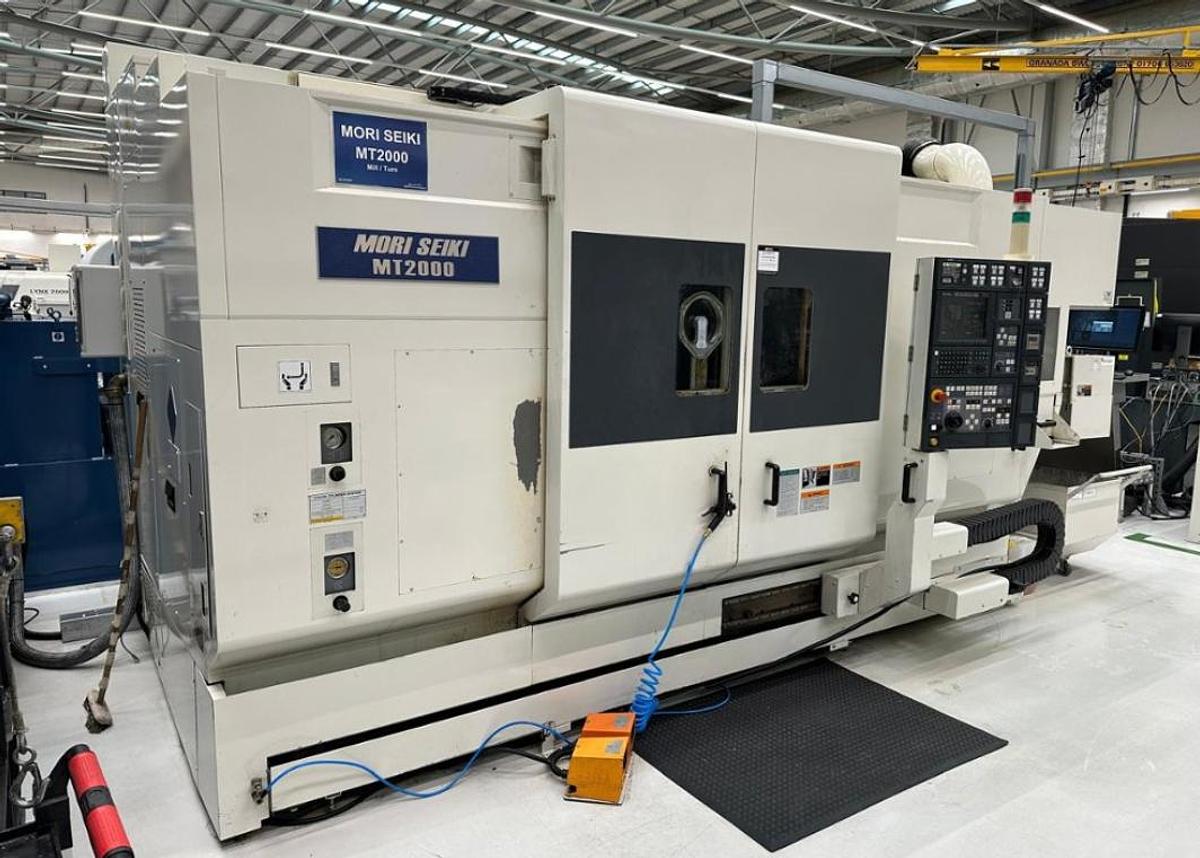

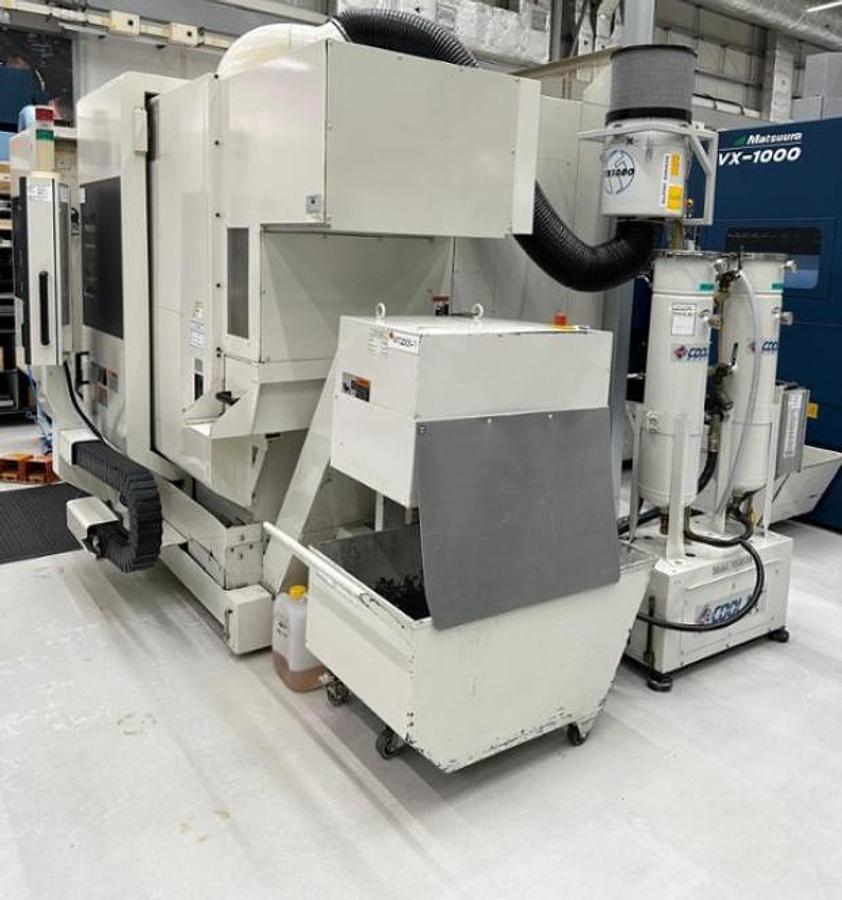

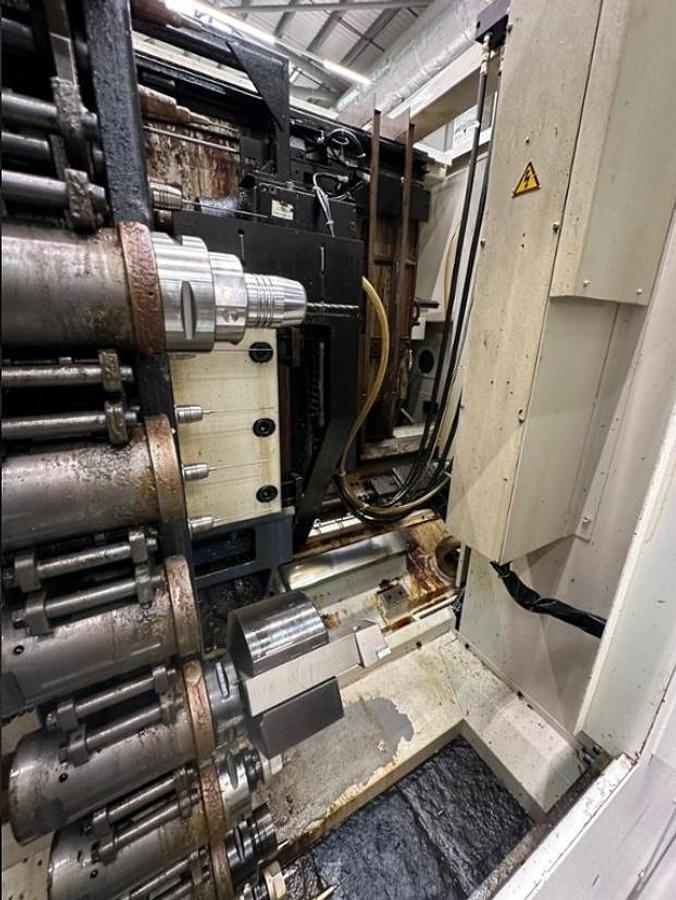

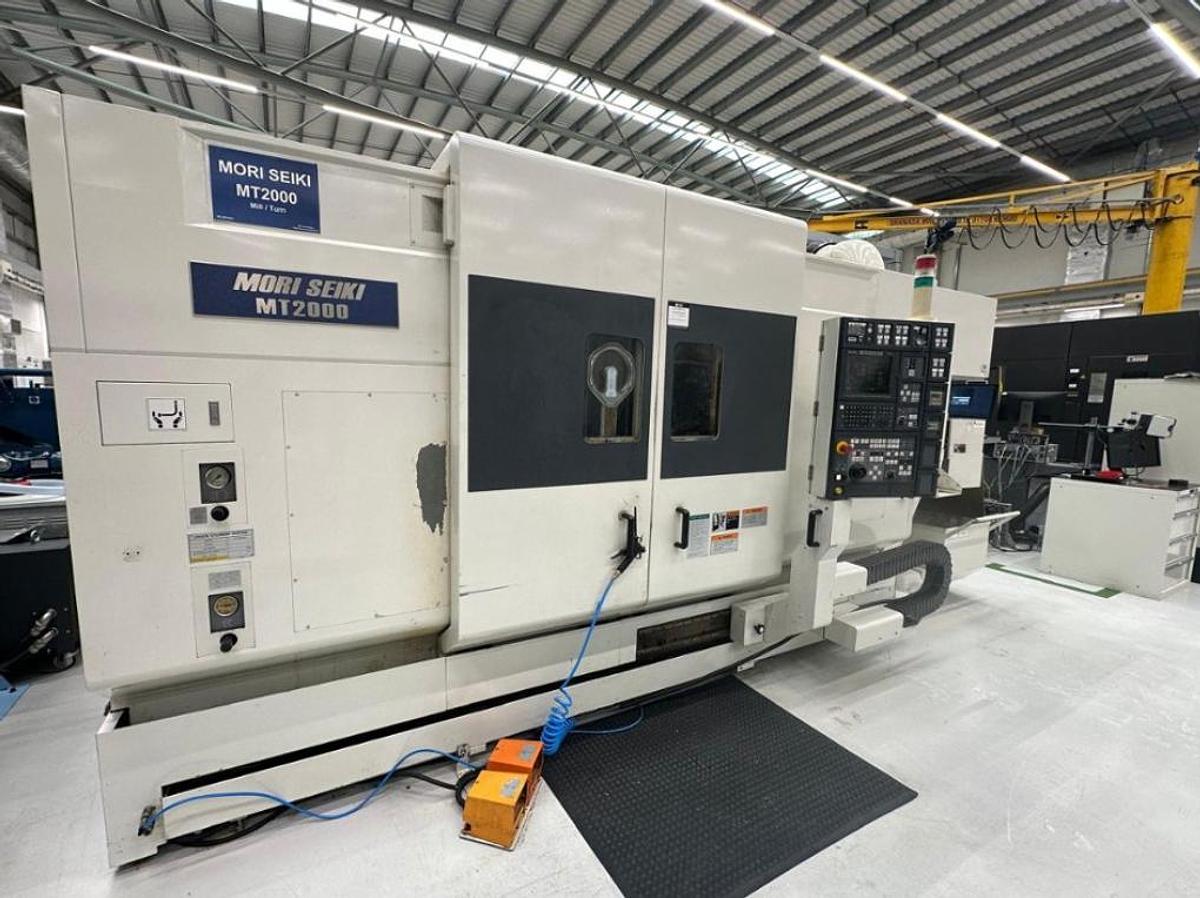

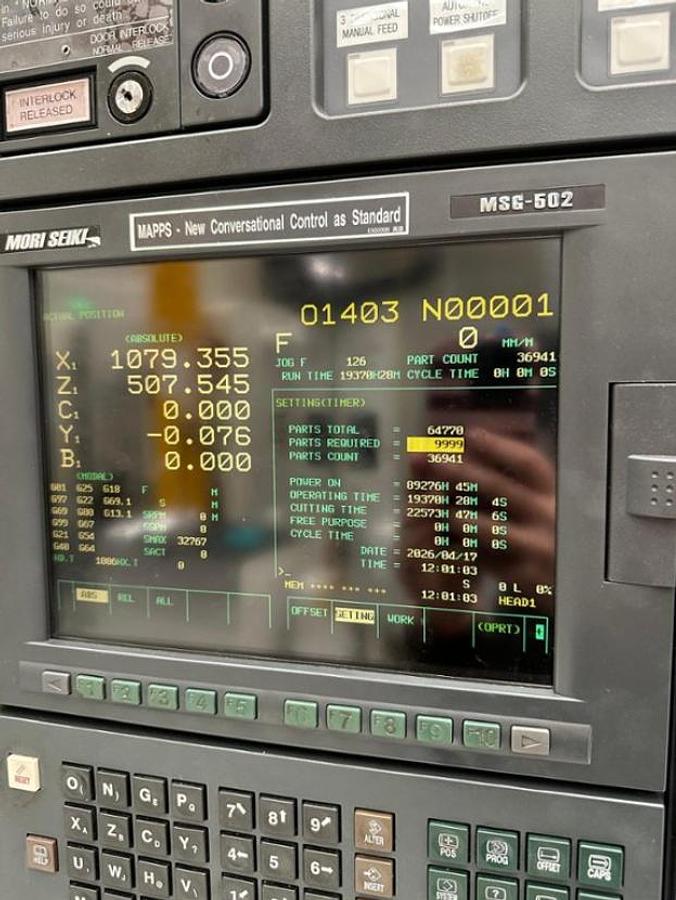

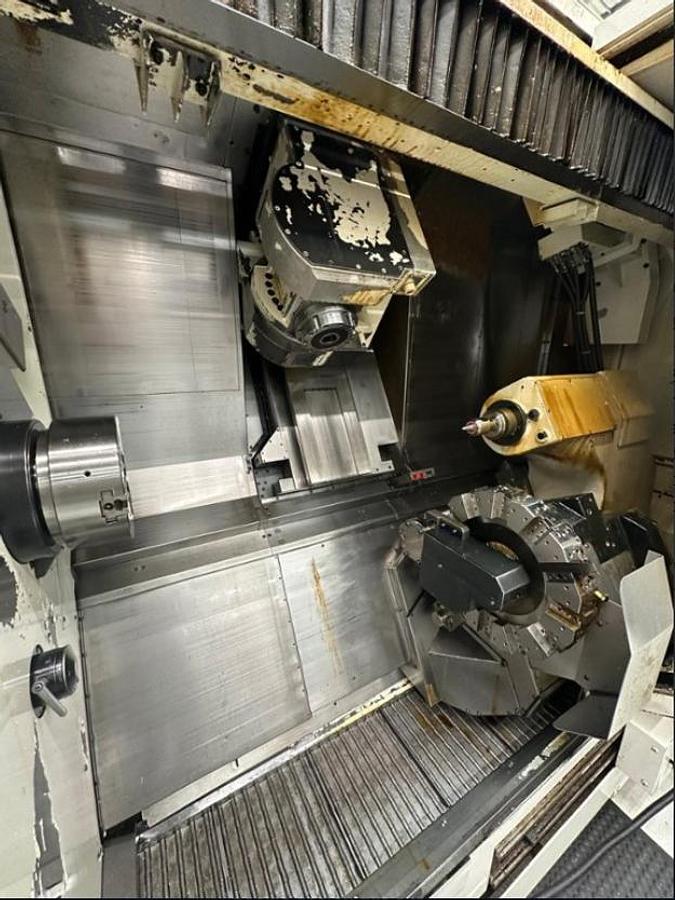

CNC LATHE TURNING AND MILLING -MORI SEIKI MT2000

WE OFFER AN HIGH TECH CNC LATHE TURNING AND MILLING CENTRE

MACHINE WILL COME OUT FROM FORMULA 1 - MERCEDES WORKSHOP

MACHINE WAS FROM NEW HIGEST POSSIBLLE MAINTAINED WITH OFFICAL MORI SEIKI - UK

TECHNICAL DATA:

Mori Seiki MT2000 CNC Lathe

Description:

Swing over bed - 700mm,

Distance between centres - 1080mm,

Max turning dia meter - 550mm,

Max turning length - 1020mm,

Bar capacity - 65mm,

X Travel - 565mm,

Y Travel - +/-80mm,

Z Travel - 1077mm,

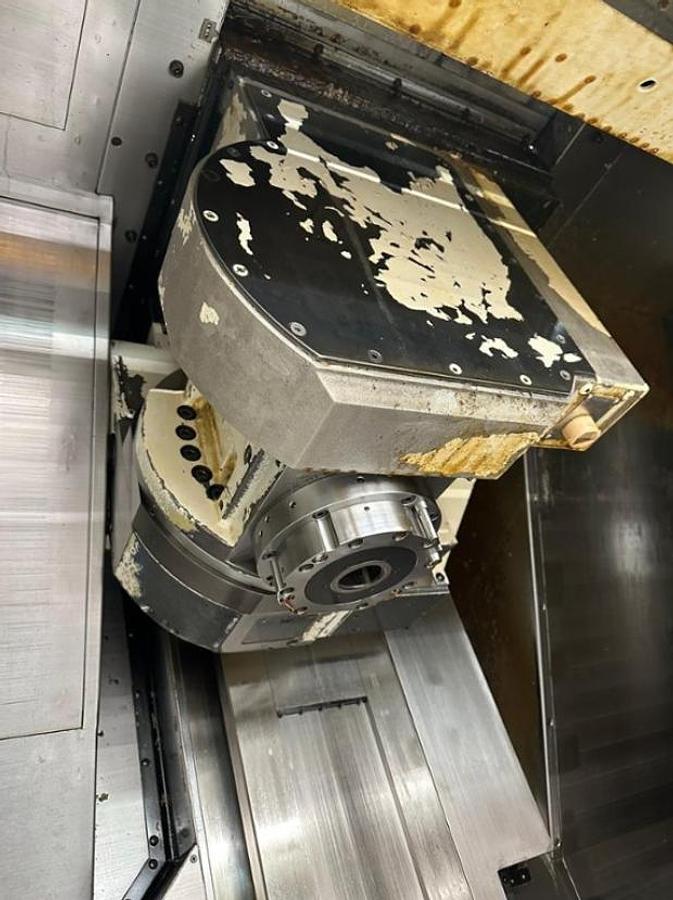

B Indexing - +/-120deg,

X Travel Turret 2 - 155mm,

Z Travel Turret 2 - 1067mm,

Spindle Speed - 4500rpm,

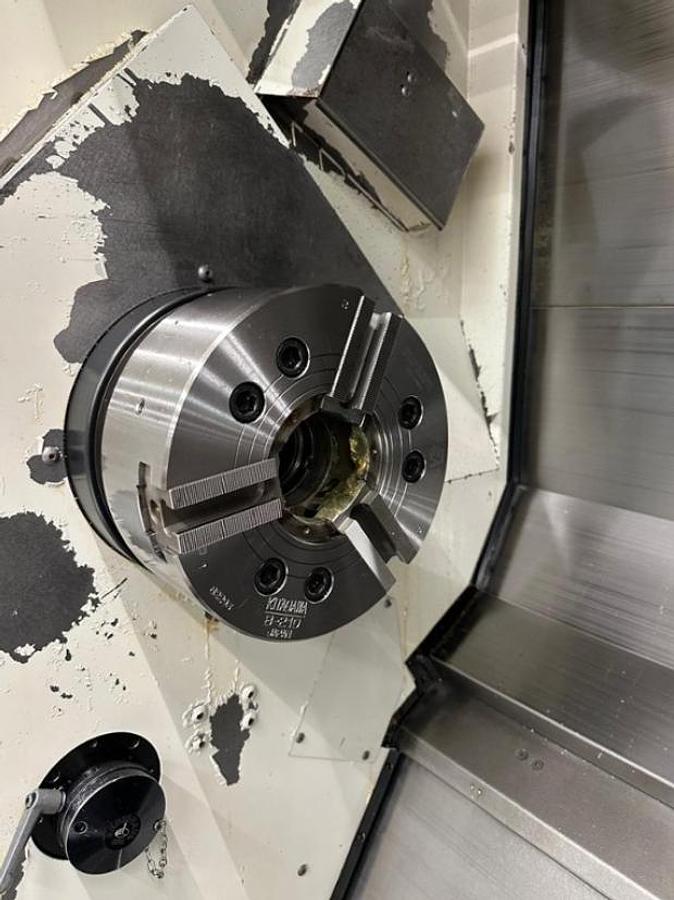

Spindle nose - JIS A2-6,

Tool Spindle Speed - 6000rpm,

Tool Spindle type - Capto C6,

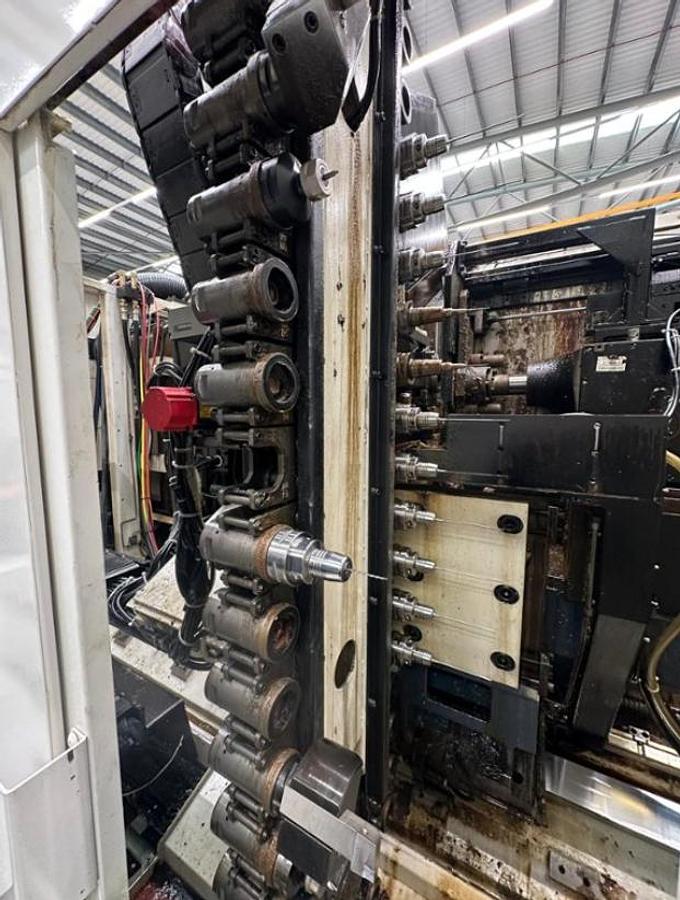

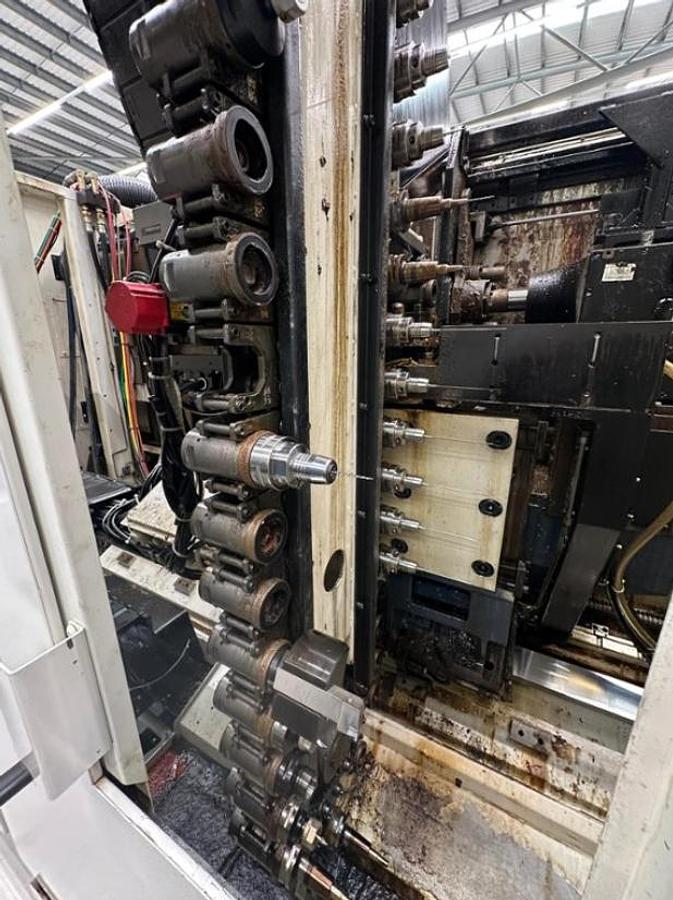

ATC - 40 Tools,

Max tool length - 280mm,

Max tool weight - 7kg,

Turret 2 Tools - 12,

Square shank - 25mm,

Boring bar shank diameter - 40mm,

Drive tool speed - 4000rpm,

Tailstock diameter - 110mm,

Tailstock spindle travel - 150mm,

Taper of Tailstock - MT5

Transport information

• Width: 3800mm
• Depth: 2100mm
• Height: 2565mm
• Weight: 12000kg

FOR CLIENT WE CAN ORGANIZE TRANSPORT WORLDWIDE
