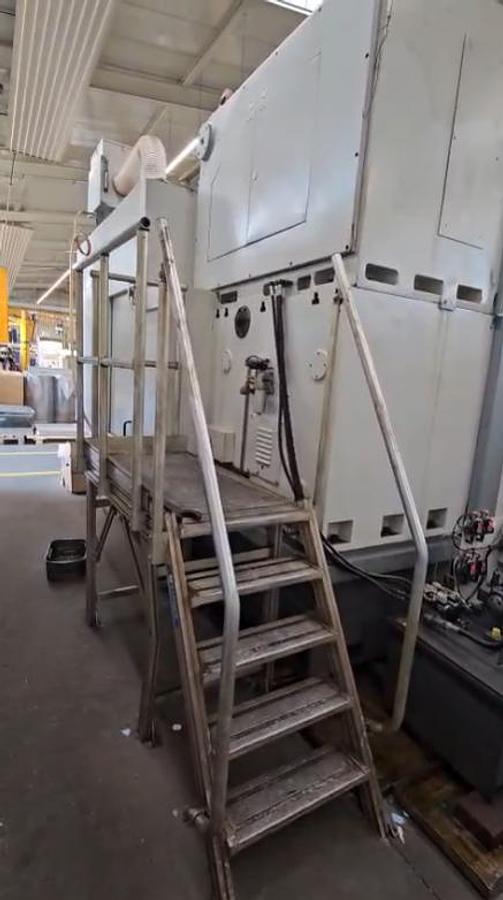

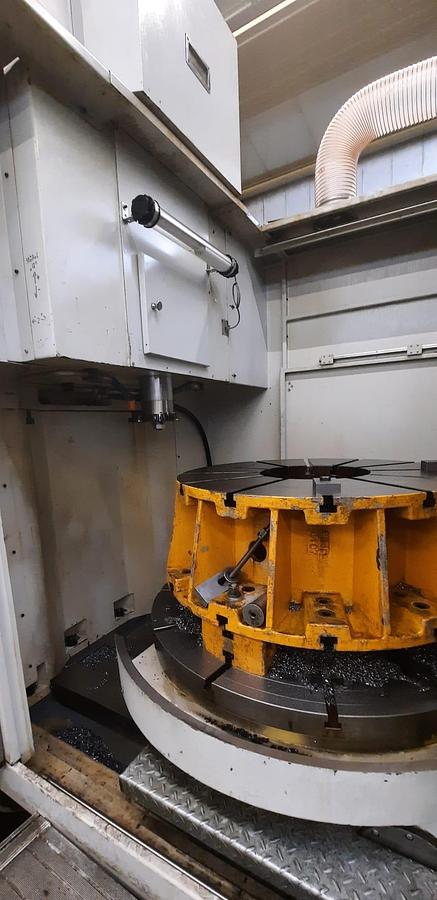

GEAR HOBBER LORENZ WS 1250

  WE OFFER GEARWHEEL SHAPING MACHINE LORENZ LS WS 1250

Description

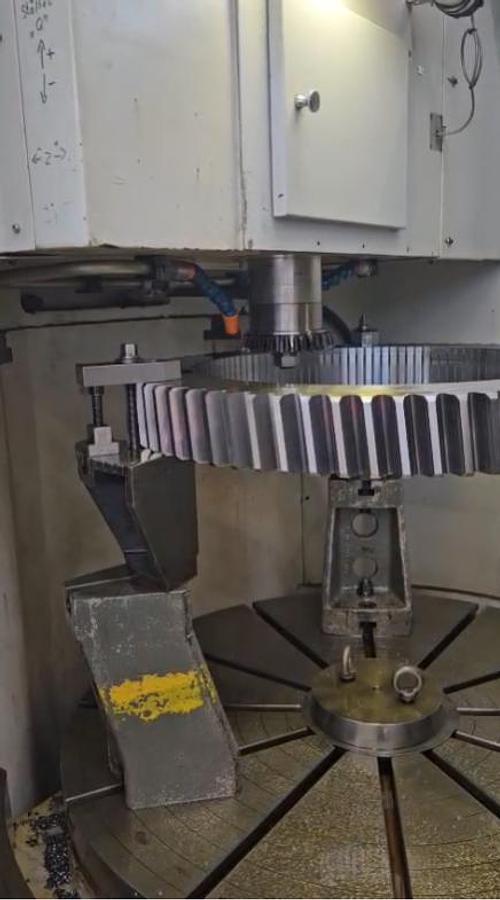

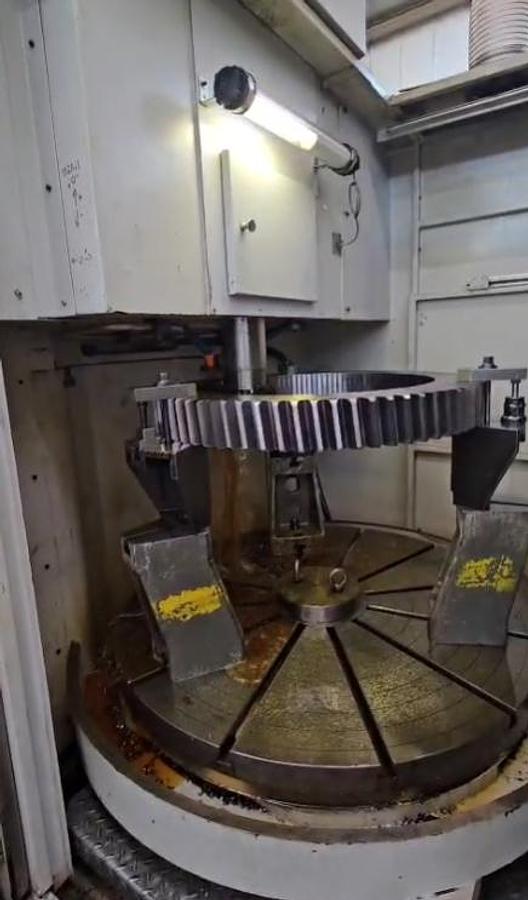

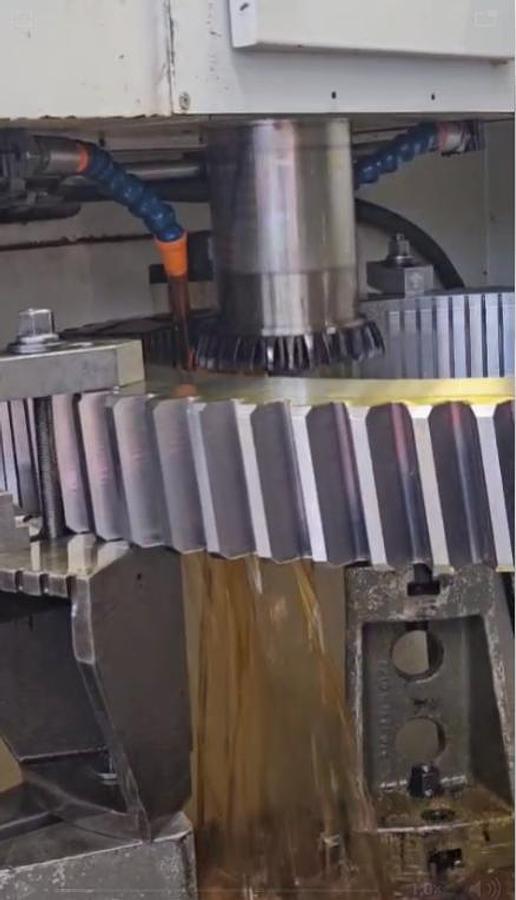

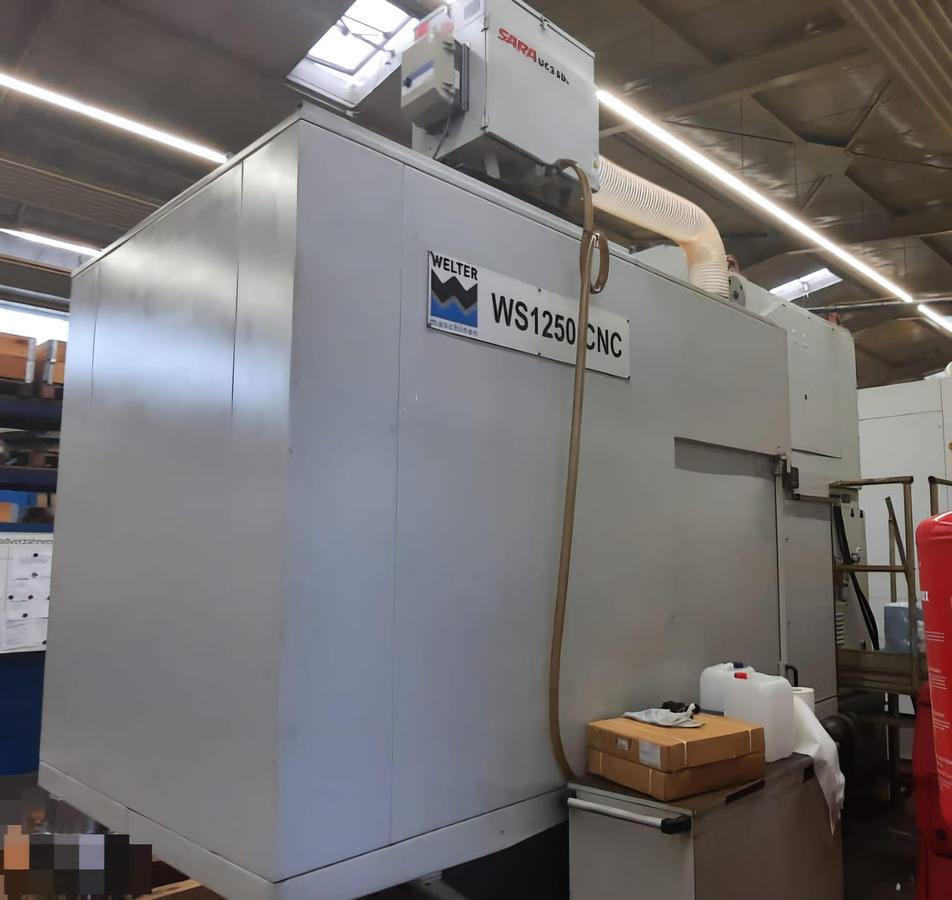

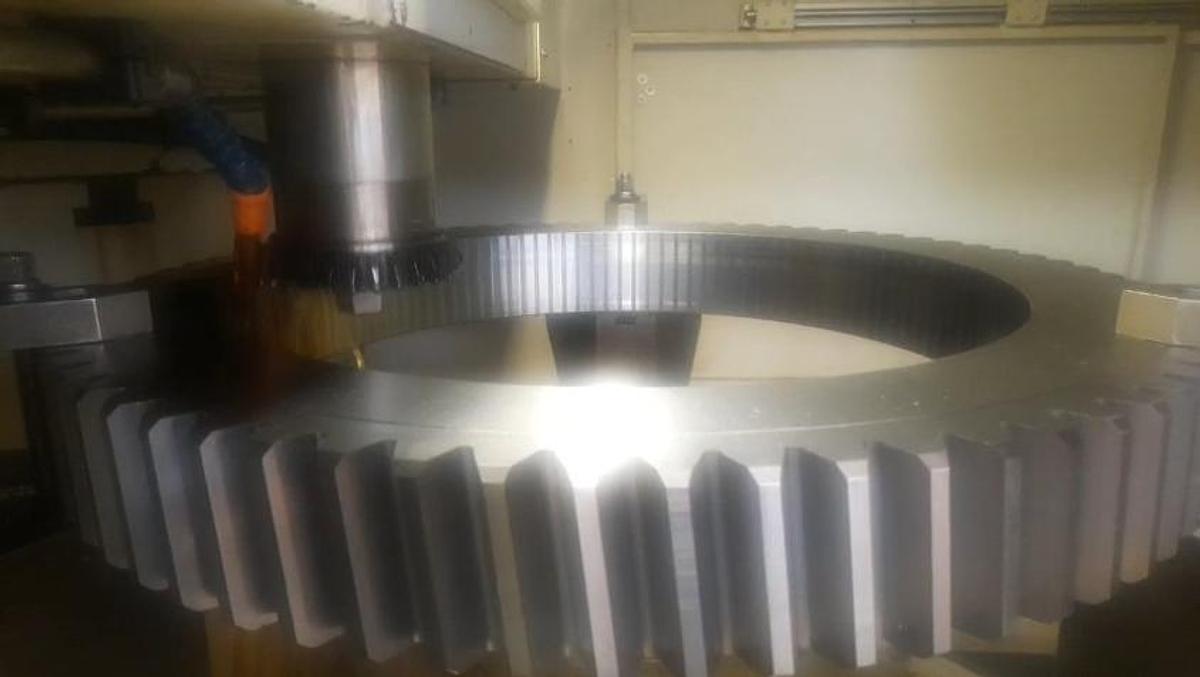

The WS 1250 CNC gear shaping machine features a configuration comparable to the Lorenz LS

1000 or LS 1250 models, is designed as a universal machine, and is employed by manufacturers

of gears and transmission technologies for the process of gear shaping.

Technical Data

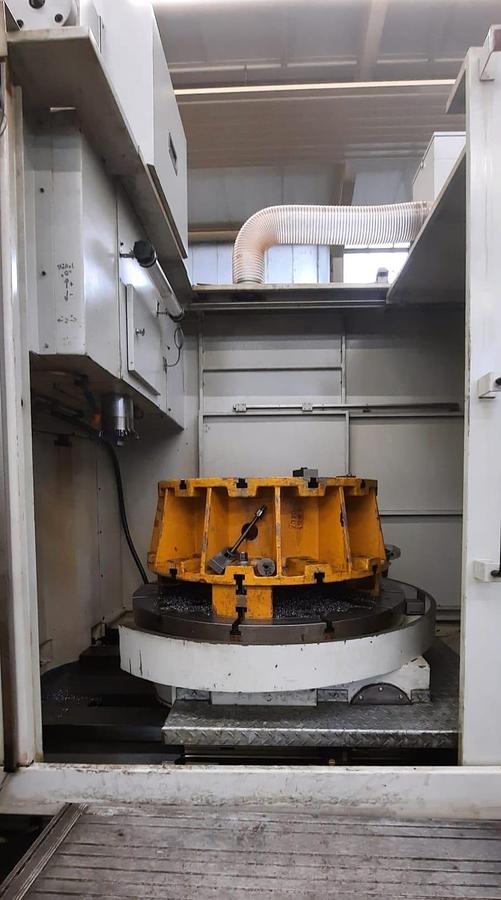

Diameter: 1250 mm

Module: 12 mm

Face width: 210 mm

Dimensions: 3,750 x 2,500 x 3,600 mm

Machine weight: approx. 19,000 kg

Special Features:

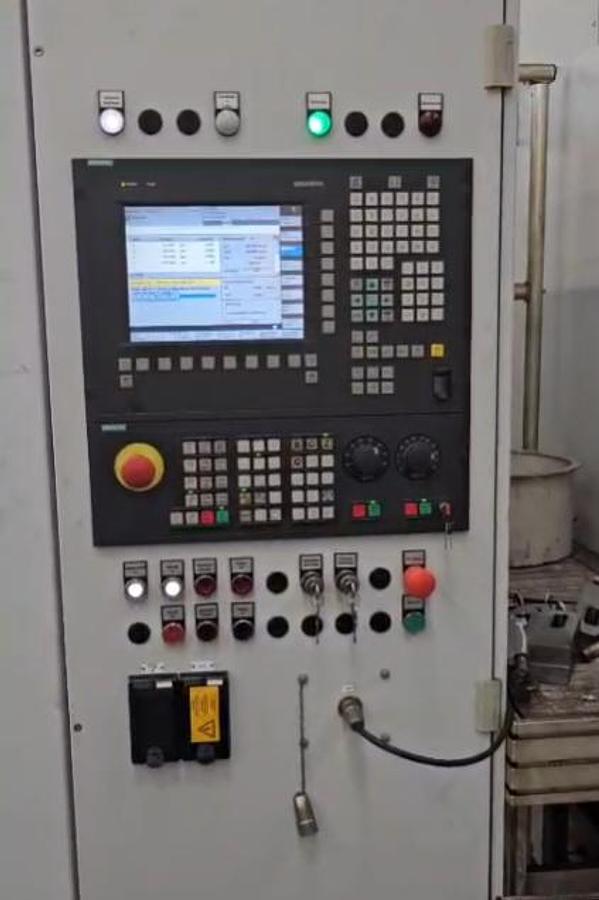

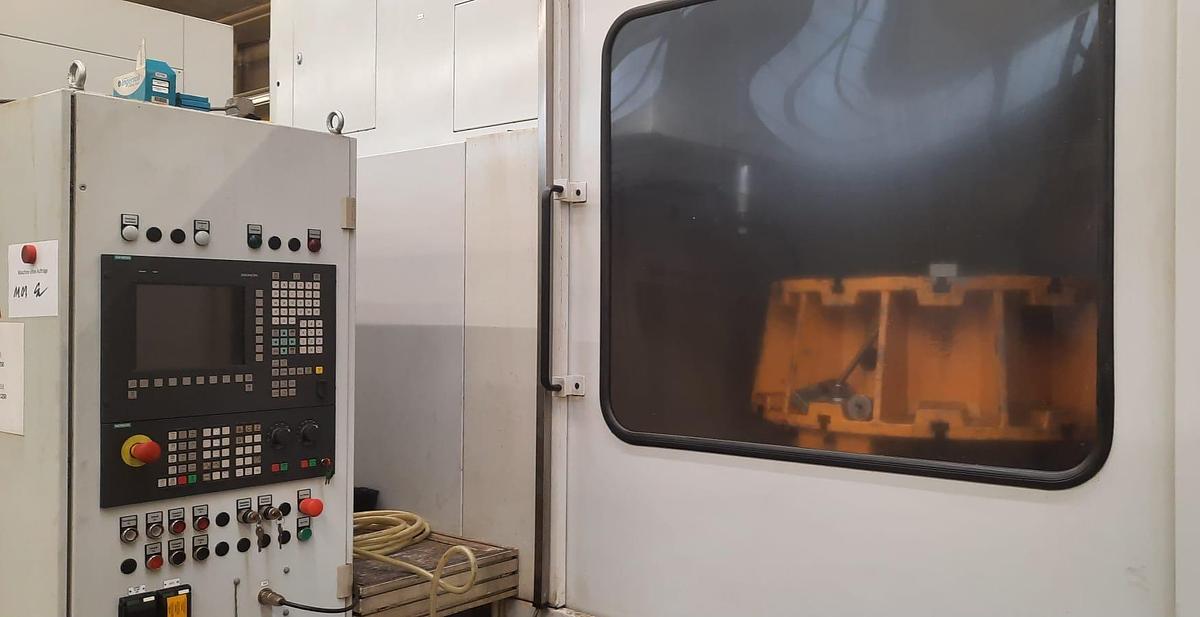

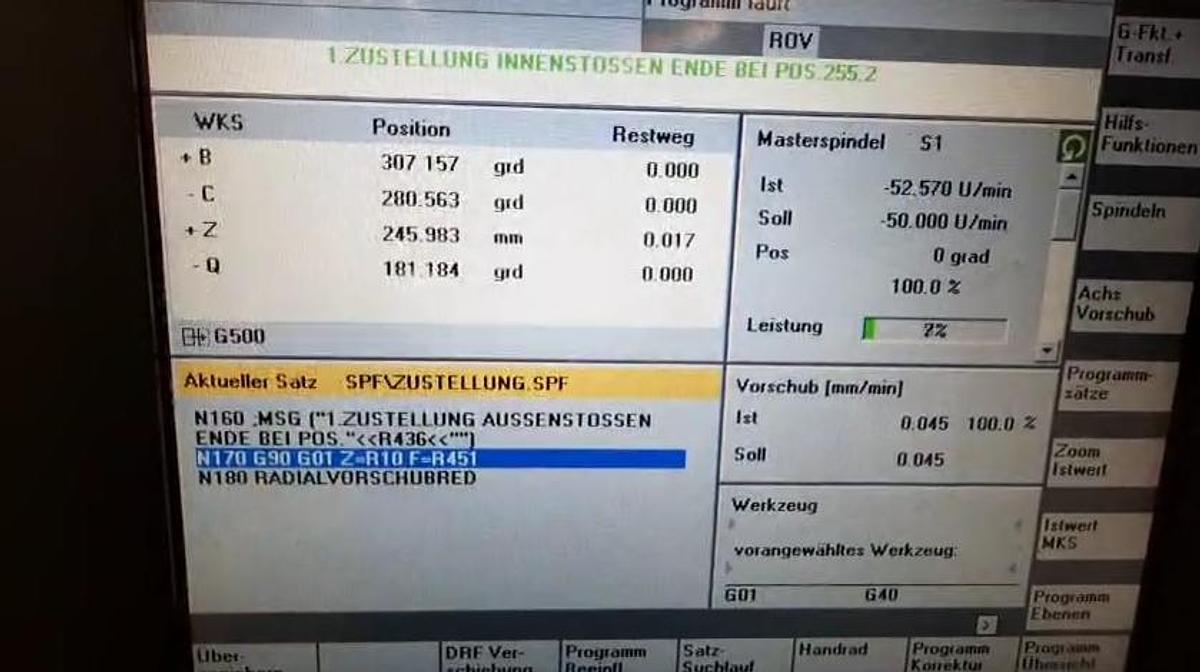

The machine is equipped with a digital CNC control by Siemens type 840 D, as well as digital

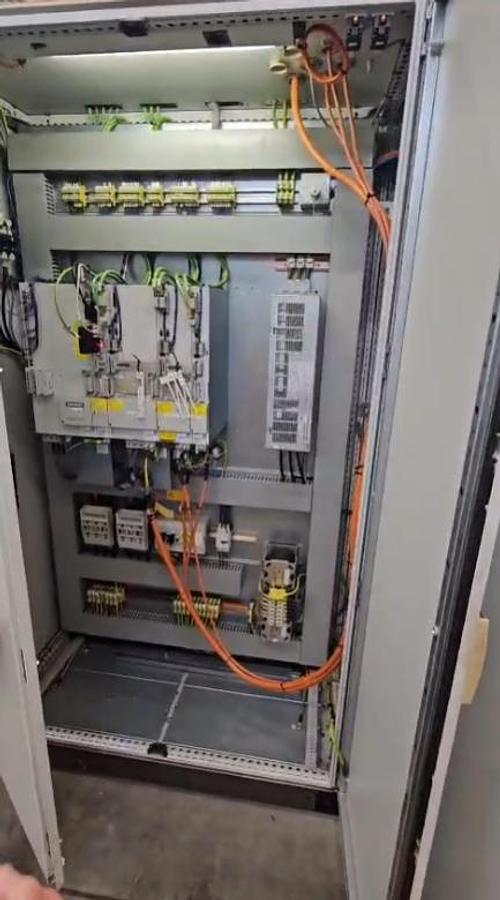

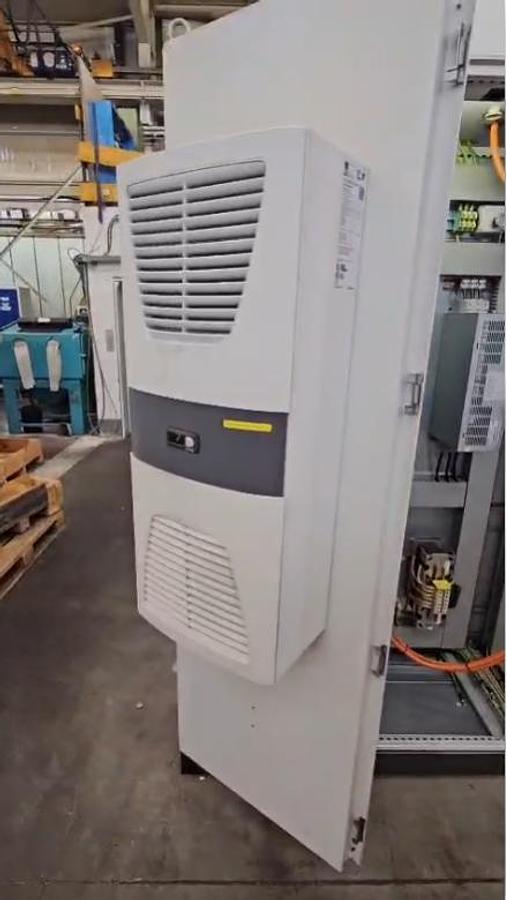

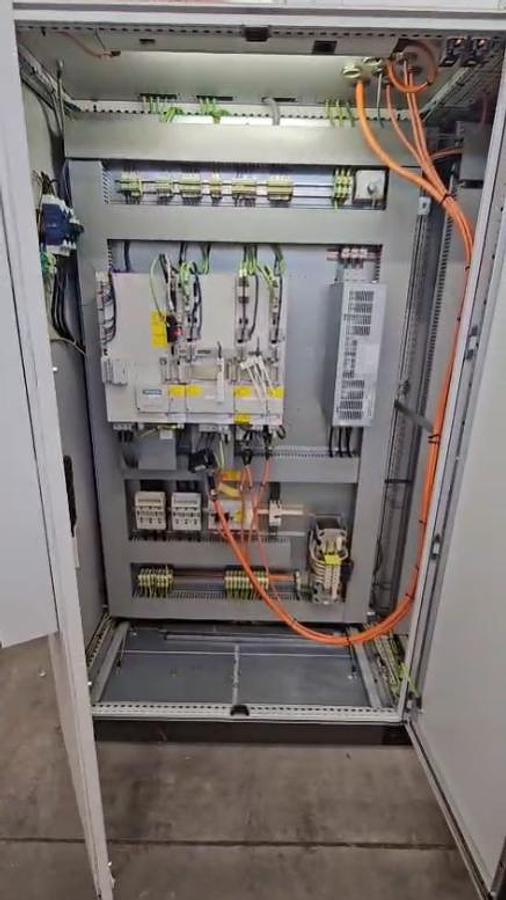

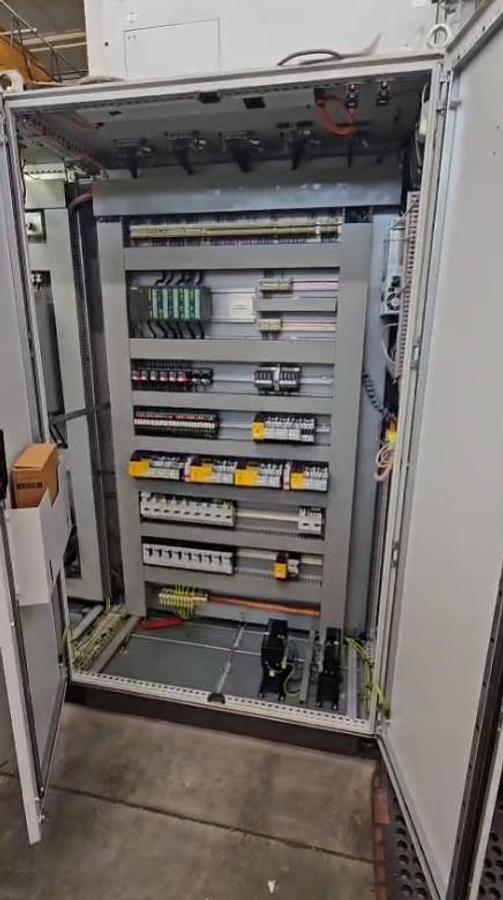

servo motors and drive amplifiers. The control cabinet is air-conditioned. Sinumerik 840 D: PCU

50, 566 MHz, 256 MB RAM, NCU 572.4, 3-axis/spindle, NC memory 2.5 MB, PLC memory 96 KB,

19” flat operating panel OP 10 C, 10.4” flat screen, electronic handwheel for linear axes,

diagnostic system for error messages, warnings, and informational texts.

TOTAL WEIGHT APPROX 19 TON

Transport need be done by low loader because of height: 3750 mm
