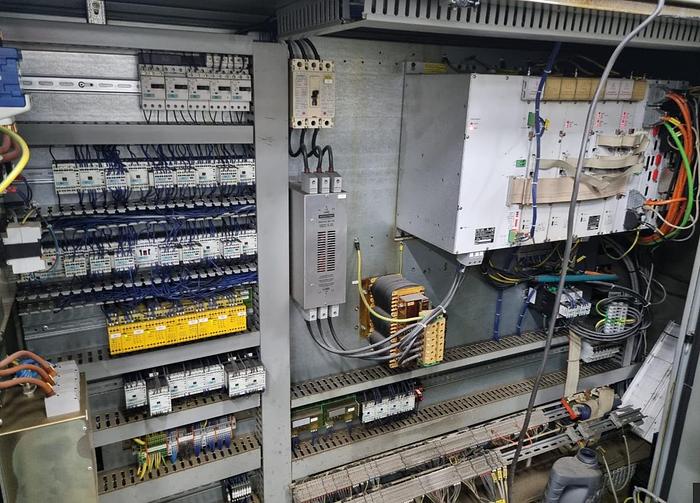

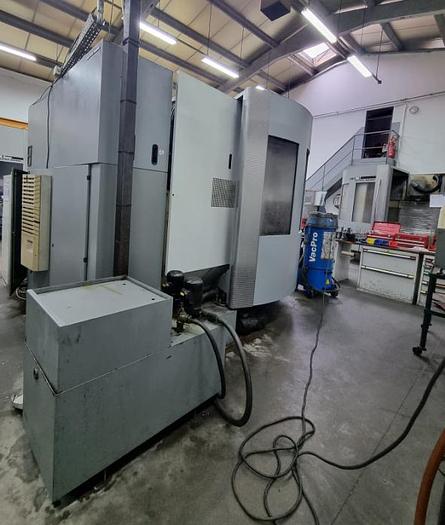

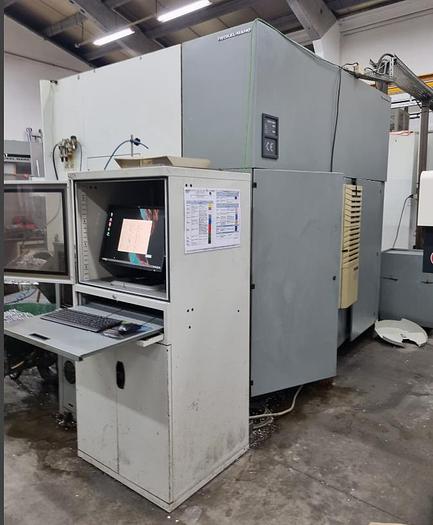

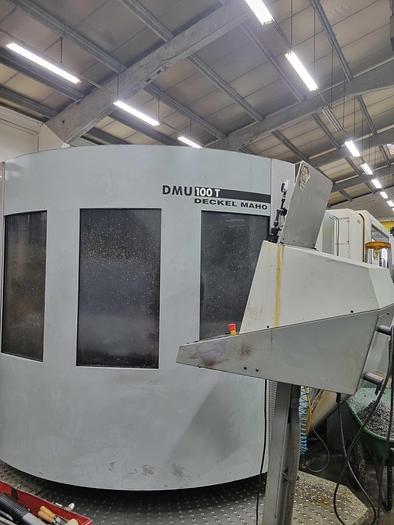

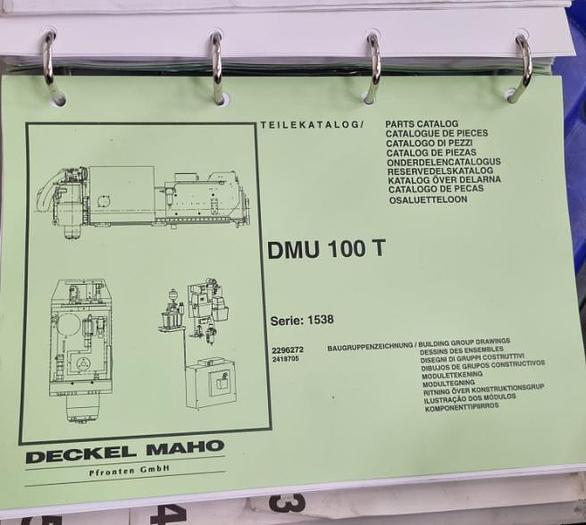

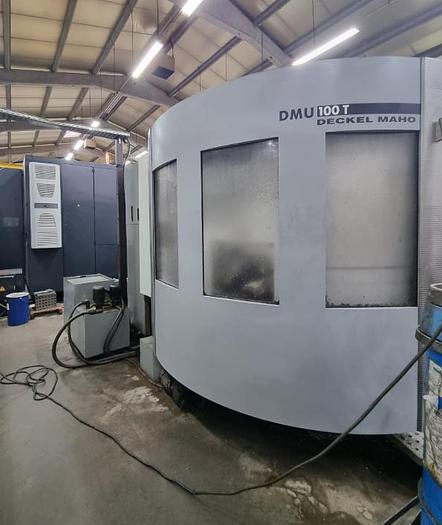

CNC MACHINING -DMG / DMU 100T 5 AXIS

MACHINE IS WORKING IN THE WORKSHOP , PRODUCING TOOLINGS FOR PLASTIC BLOW MOLDING

       TECHNICAL DETAILS

Travel distance X-axis:

880 mm

Travel distance Y-axis:

630 mm

Travel distance Z-axis:

630 mm

Controller manufacturer:

HEIDENHAIN

Controller model:

TNC430

Workpiece weight (max.):

500 kg

Total height:

2,410 mm

Total length:

3,500 mm

Total width:

2,200 mm

Table width:

700 mm

Table length:

1,250 mm

Spindle speed (max.):

12,000 rpm

Number of slots in tool magazine:

32

Tool length:

315 mm

Tool diameter:

130 mm

Tool weight:

8,000 g

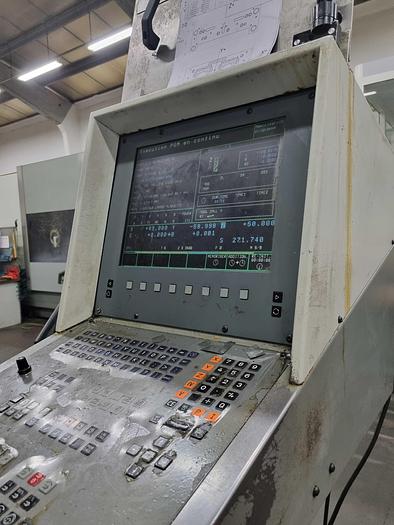

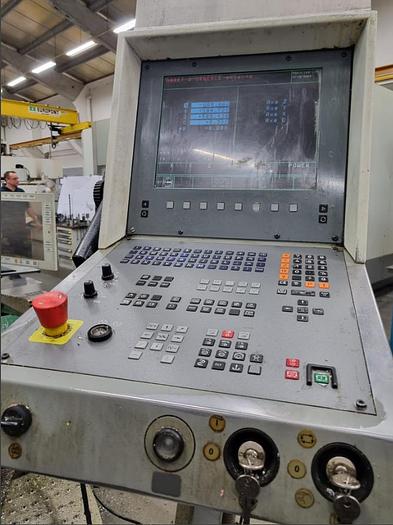

CNC controller: HEIDENHAIN TNC430

Axes

X-axis travel mm: 880

Y-axis travel mm: 630

Z-axis travel mm: 630

C-axis degrees: 360º

B-axis degrees: NC swivel millin head

Worktable

Table dimensions mm: 1.250 x 700

Max. workpiece weight kg: 500

T-Slot version: 1xT-Slot 14 H7 ; 10xT-Slot 14 H12

Spindle

Spindle speed rpm: 12.000

Milling/turning table nc

Table dimensions mm: Ø700

Max. workpiece weight kg: 350

Table rotation speed rpm: 15

max. torque Nm: 4.377 (at 25%)

Drive power kW: 15/10 (40%/100% DC)

Tool system

Tool holder: SK40

Tool magazine slots: 32 (2x16)

Max. Tool Diameter: 130 mm (Magazine 1)/ 80 mm (Magazine 2)

Max. Tool Length mm: 315

Max tool weight kg: 8

Equipment

Electronic Handwheel

Chip conveyor

Rigid table with integrated rotary table

Machine running times

Rated power kVA: 30

Basic machine dimensions / weight

Length mm: 3.500

Width mm: 2.200

Height mm: 2.410

Cqjeet2Wd0

Weight kg: 9.000
