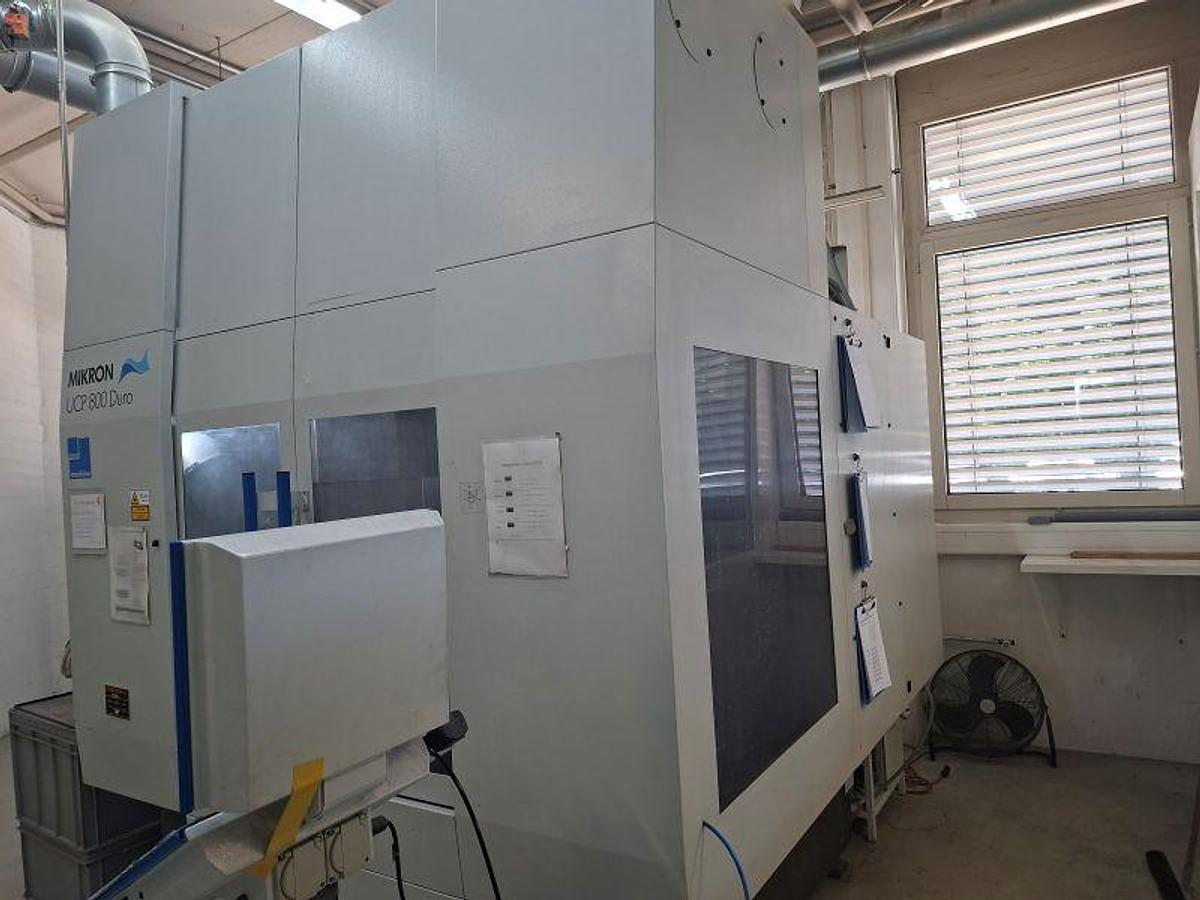

5 AXIS CNC MILLING MIKRON UCP800 DURO

 WE OFFER AN WORKING CONDITION MIKRON 5 AXIS , WORKING ON ONLY COMPOSITES IN SWISS COMPANY.

MACHINE IS WORKING DAILY ORDERS

Technical Specifications: Mikron UCP 800

Travel Ranges and Axes

•    X-axis (Longitudinal): 800 mm

•    Y-axis (transverse): 650 mm

•    Z-axis (vertical): 500 mm

•    Swivel axis (A-axis): +120° / -100° (often +120° / -60° for table-mounted touch probes)

•    Rotary axis (C-axis): 360° (continuous rotation)

•    Rapid traverse (X / Y / Z): 30 m/min

 NC rotary swivel table & workpieces

•    Clamping surface: 600 x 600 mm

•    Max. table load (5-axis): 500 kg

•    Clamping: Hydraulically clamped rotary and swivel axes

 Milling spindle and tools

•    Spindle speed (optional/HSC): max. 20,000 rpm

•    Tool holder: HSK-A63

•    Spindle power: 18 kW

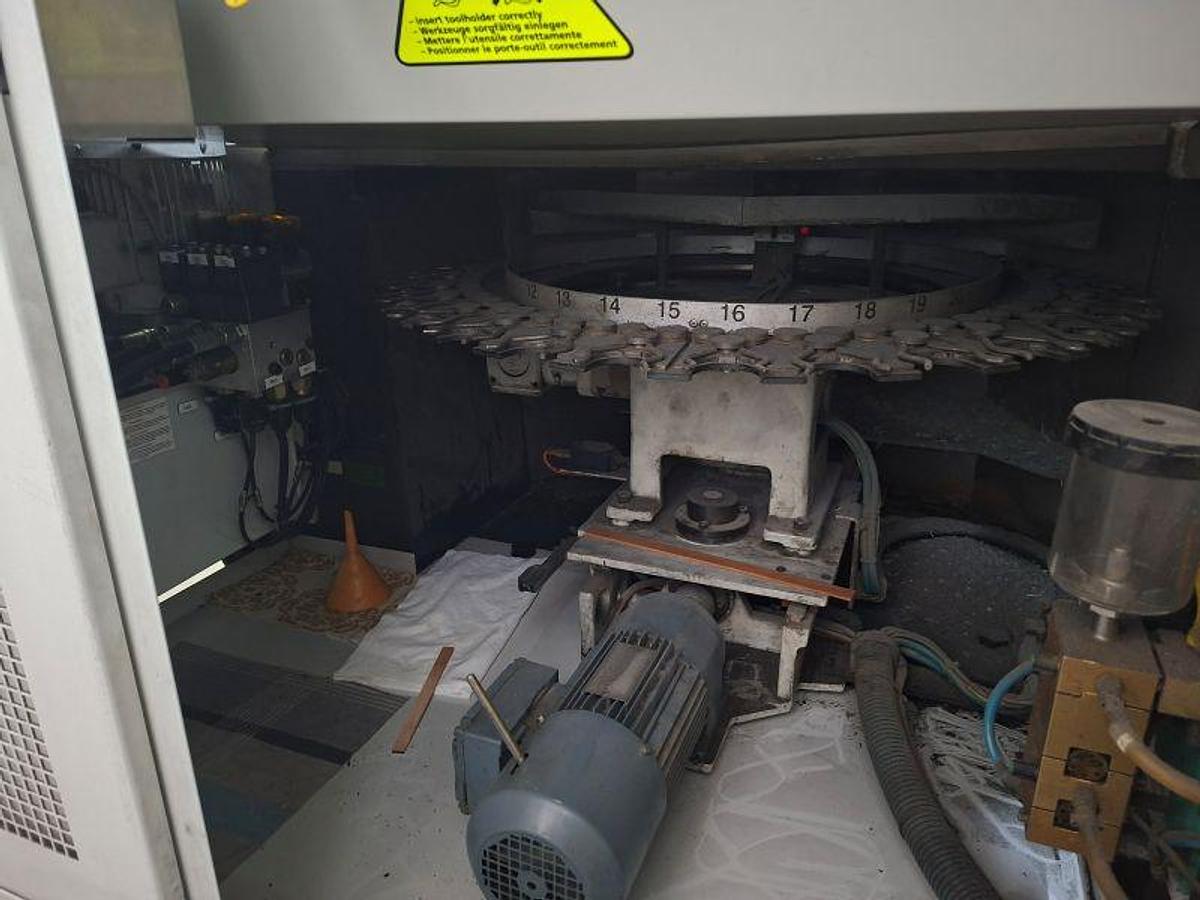

•    Tool changer: 30 positions

•    Max. tool weight: 8 kg

•    Max. tool length: 300 mm

CNC control

•    Equipped with the high-end Heidenhain iTNC 530 control.

 Dimensions, Weight & Connections

•    Machine weight: approx. 9,900 kg to 10,000 kg

•    Footprint (L x W x H): approx. 3.2 m x 2.4 m x 3.2 m

•    Power consumption: 18 kW

•    Fuse rating: 32 A
